Symptom Related Diagnostic Procedures

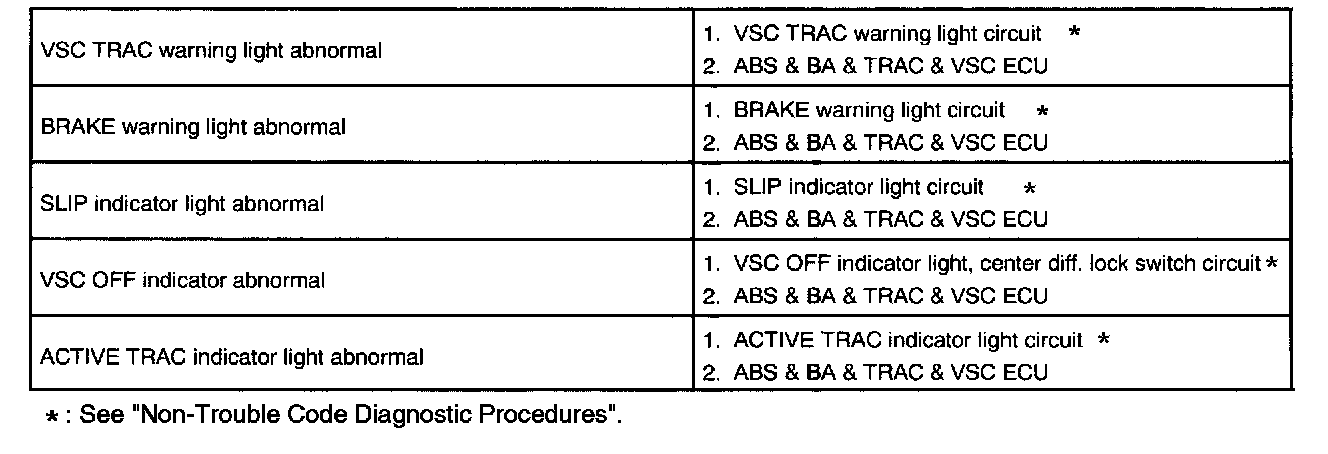

Problem Symptoms Table (Part 1):

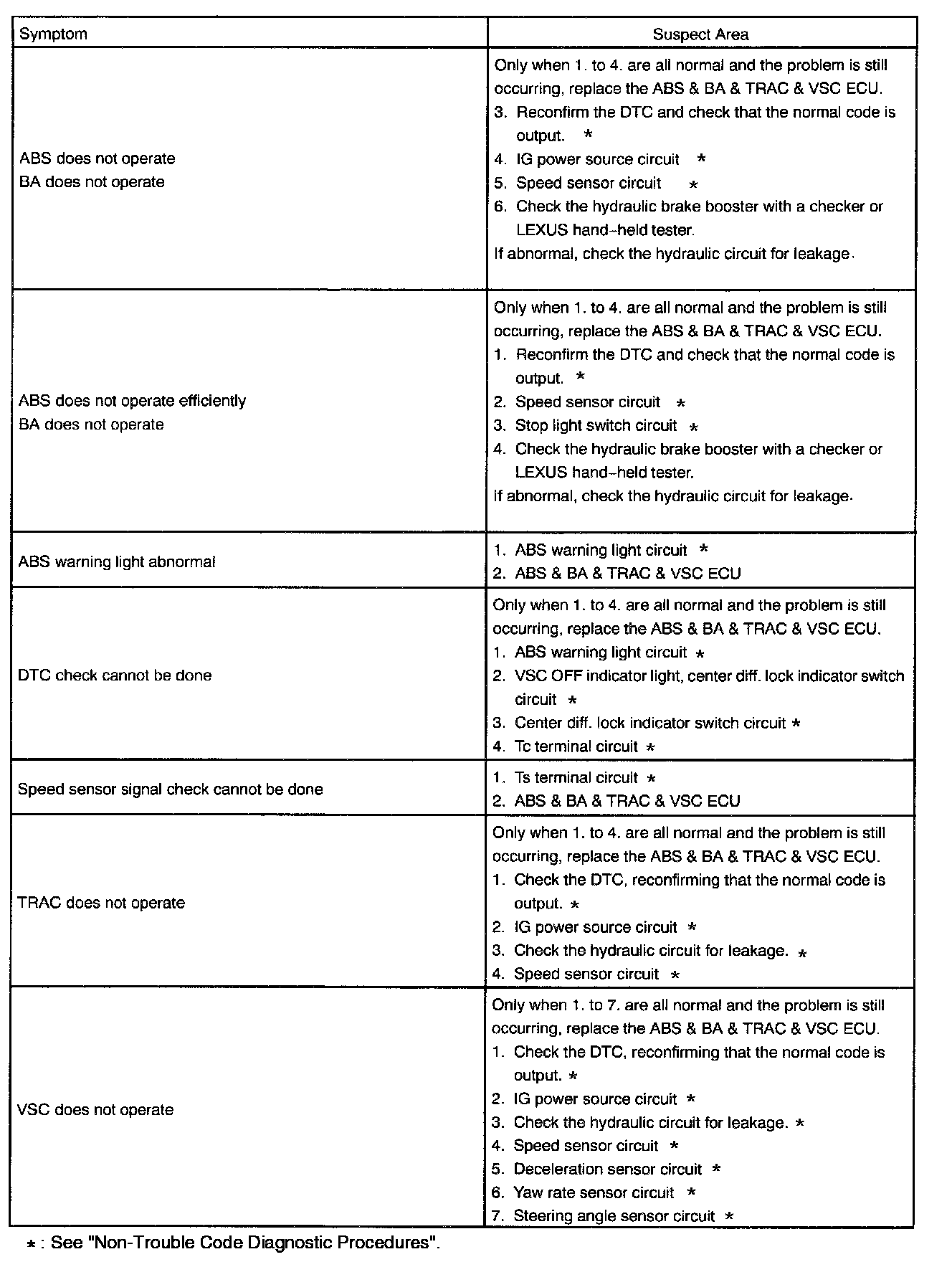

Problem Symptoms Table (Part 2):

PROBLEM SYMPTOMS TABLE
If a normal code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting given.

NOTE: When replacing ABS & BA & TRAC & VSC ECU, sensor or etc., turn the ignition switch OFF.
