Sensor Power Source Circuit

Sensor Power Source Circuit

CIRCUIT DESCRIPTION
Power to the position sensor is output from ECU.

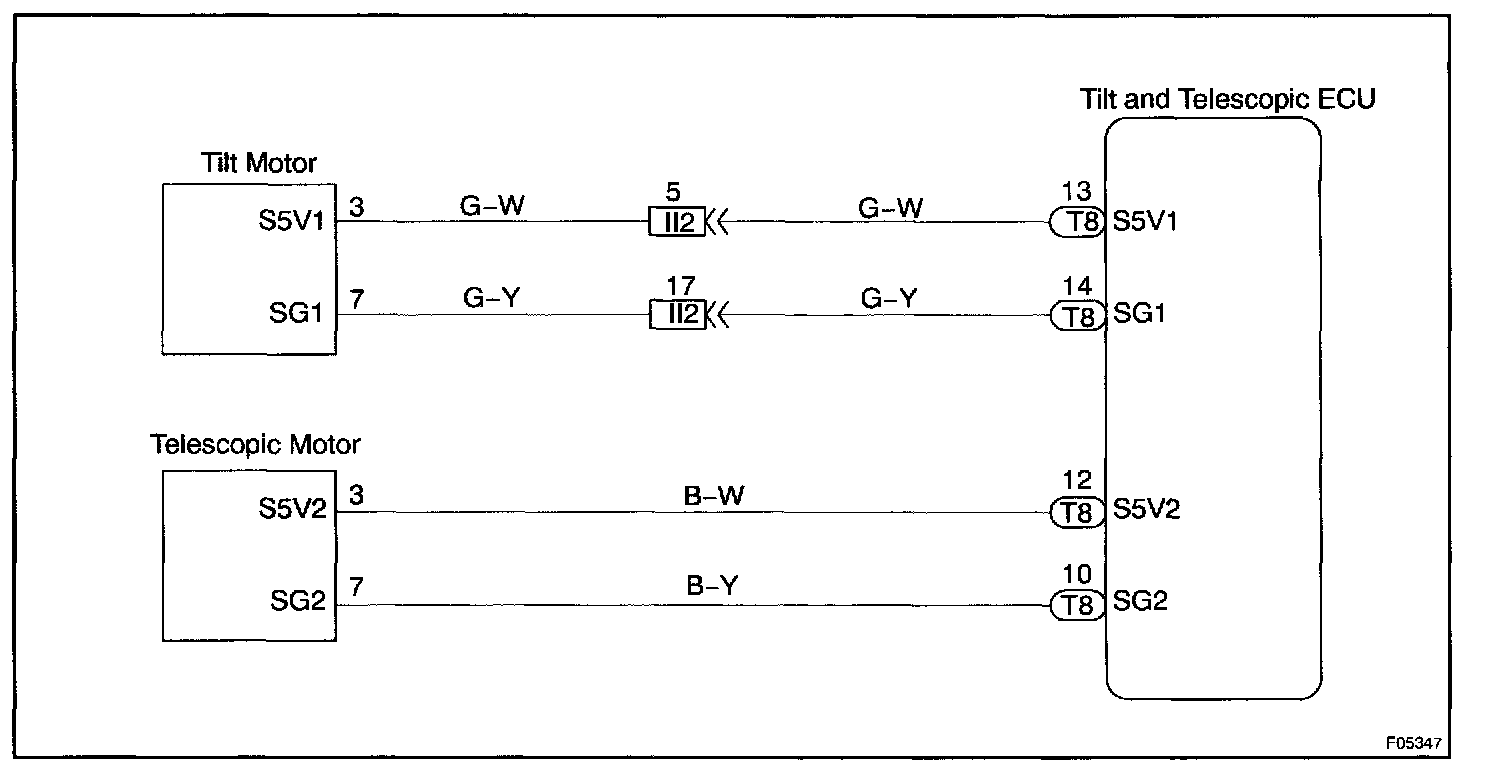

Wiring Diagram:

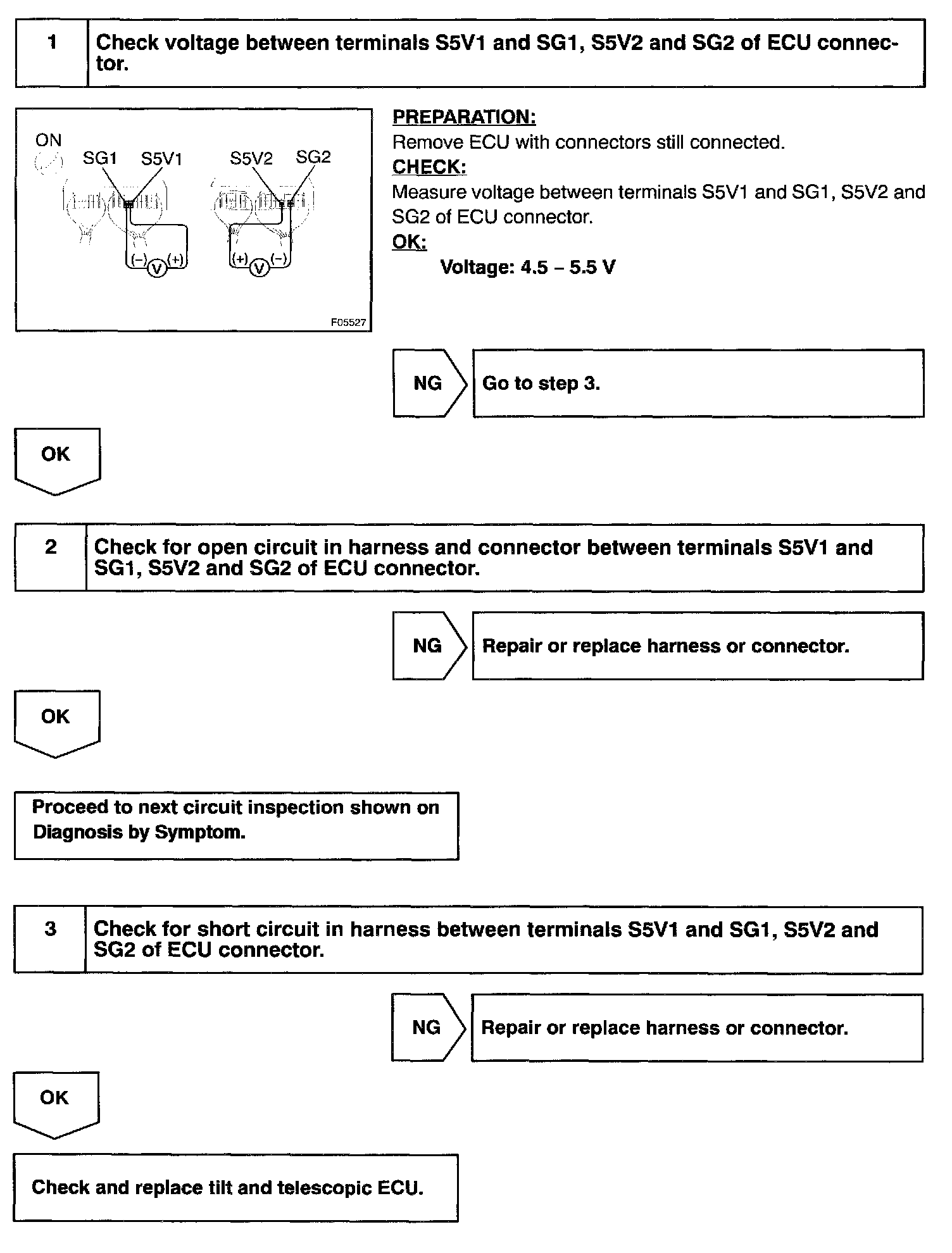

Steps 1 - 3:




INSPECTION PROCEDURE
