ABS and TRAC Actuator

REMOVAL
1. REMOVE RIGHT FRONT WHEEL AND FRONT FENDER LINER
2. REMOVE PS GEAR TUBE CLAMP BOLT
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
3. DISCONNECT ENGINE COOLANT RESERVOIR
Slide the engine coolant reservoir upward and remove it from the bracket.

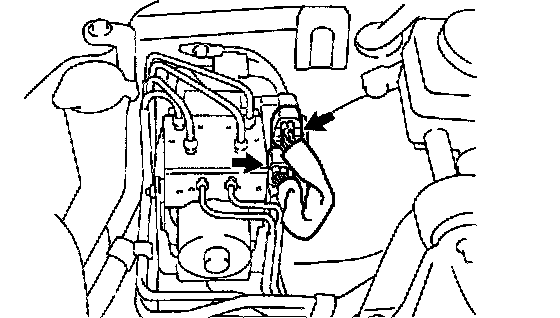

4. DISCONNECT 2 CONNECTORS FROM ABS & TRAC ACTUATOR ASSEMBLY

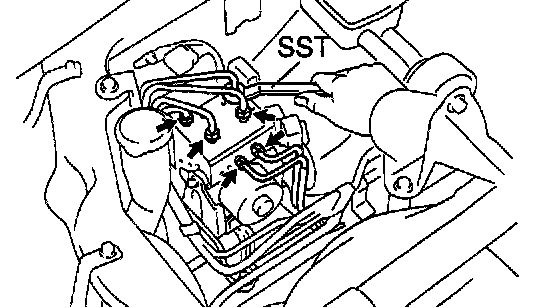

5. DISCONNECT BRAKE LINES
Using SST, disconnect the 6 brake lines from the ABS & TRAC actuator assembly.
SST 09751-36011
Torque:
10 mm nut: 15 Nm (155 kgf-cm, 11 ft. lbs.)
12 mm nut: 20 Nm (200 kgf-cm, 14 ft. lbs.)

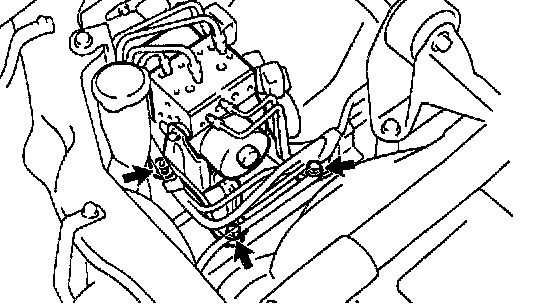

6. REMOVE ABS & TRAC ACTUATOR ASSEMBLY
Remove the 2 bolts, nut and ABS & TRAC actuator assembly.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)
7. REMOVE ABS & TRAC ACTUATOR
a. Remove the 2 nuts and ABS & TRAC actuator from actuator bracket.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
b. Remove the 2 holders and 3 cushions from the ABS & TRAC actuator.
