Home >> Lexus Truck >> 2000 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Locations >> Component Locations >> Power Window Control System

Power Window Control System

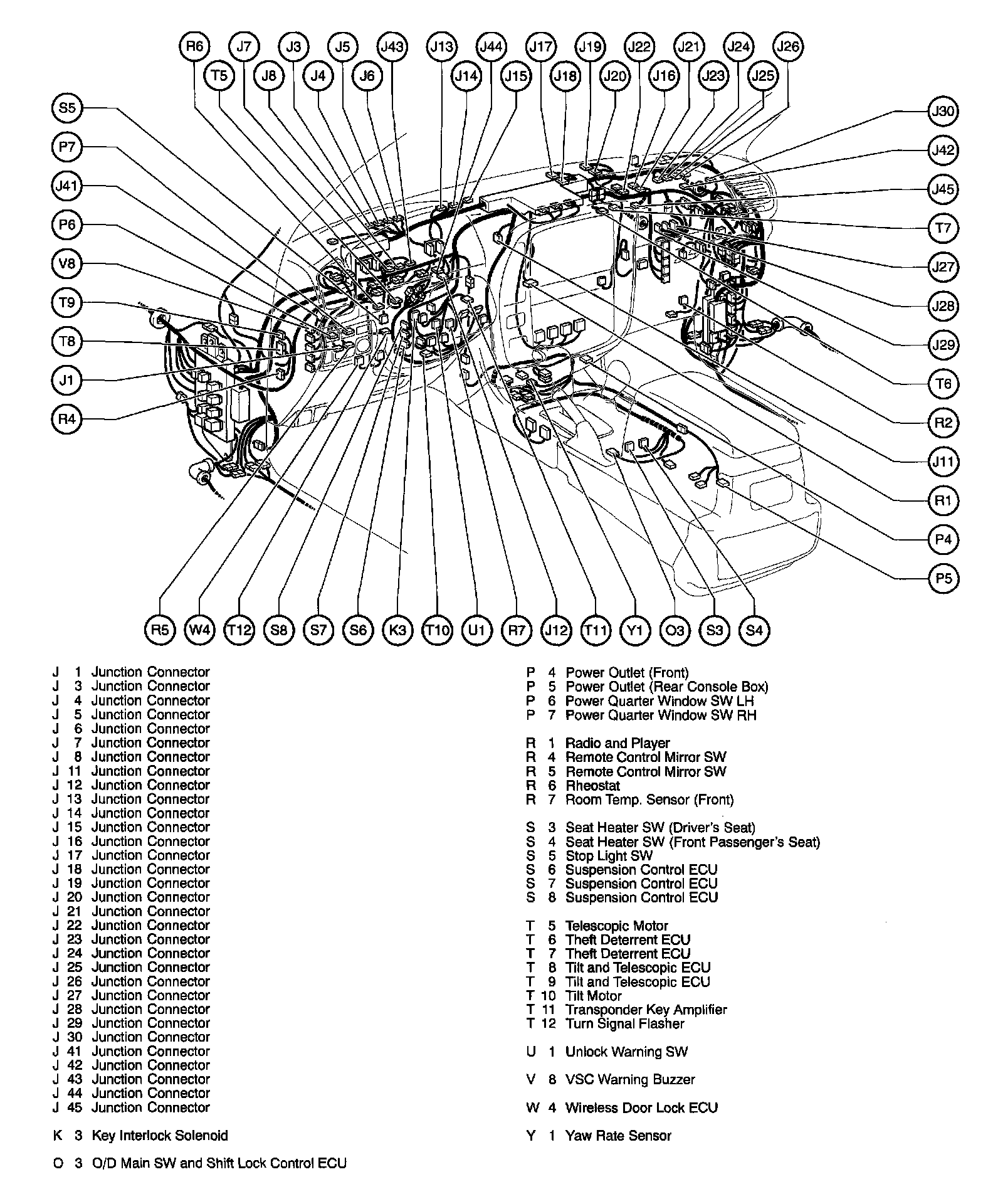

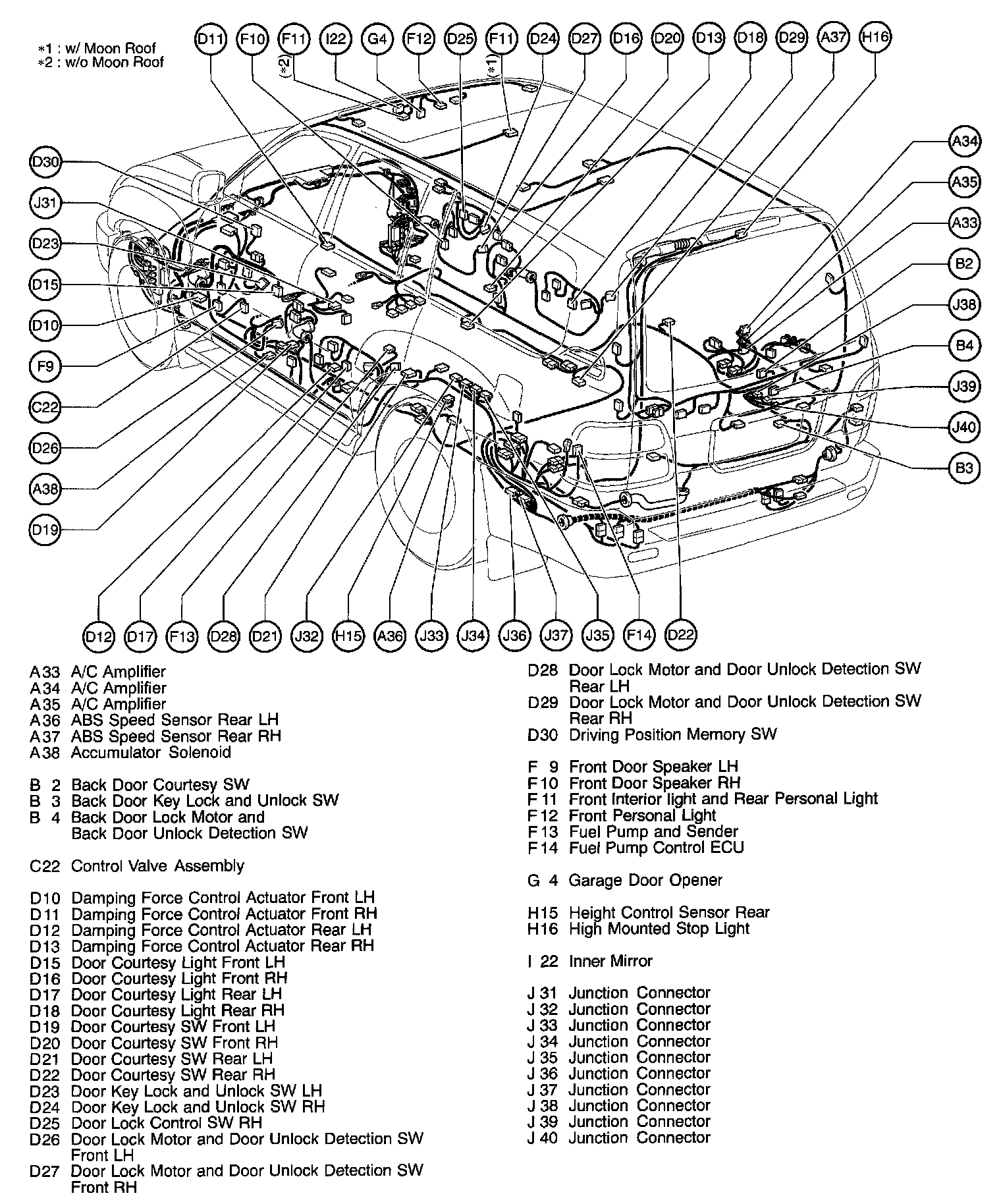

PARTS LOCATION




FIG 40




FIG 41




FIG 42




FIG 43
