Tc Terminal Circuit

CIRCUIT DESCRIPTION
Connecting terminals Tc and E1 of the DLC1 causes the ECU to display the DTC by flashing the height control OFF indicator light.

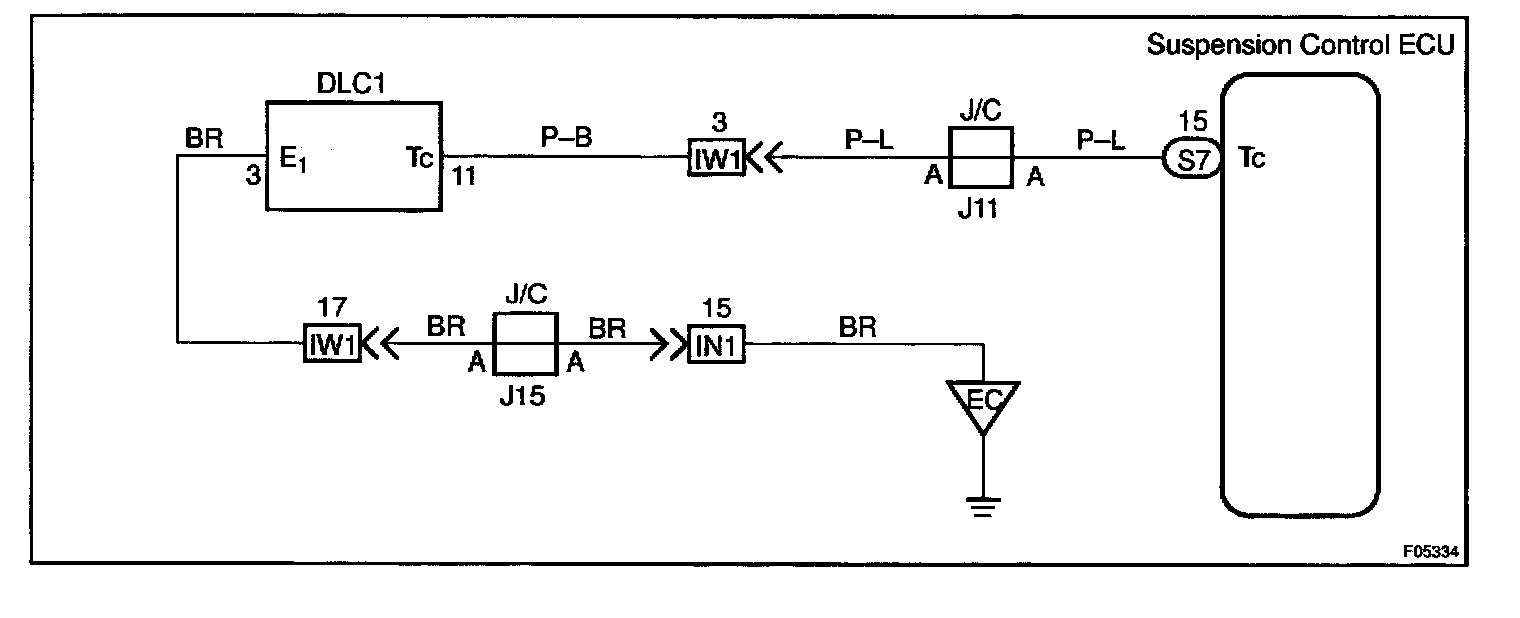

WIRING DIAGRAM

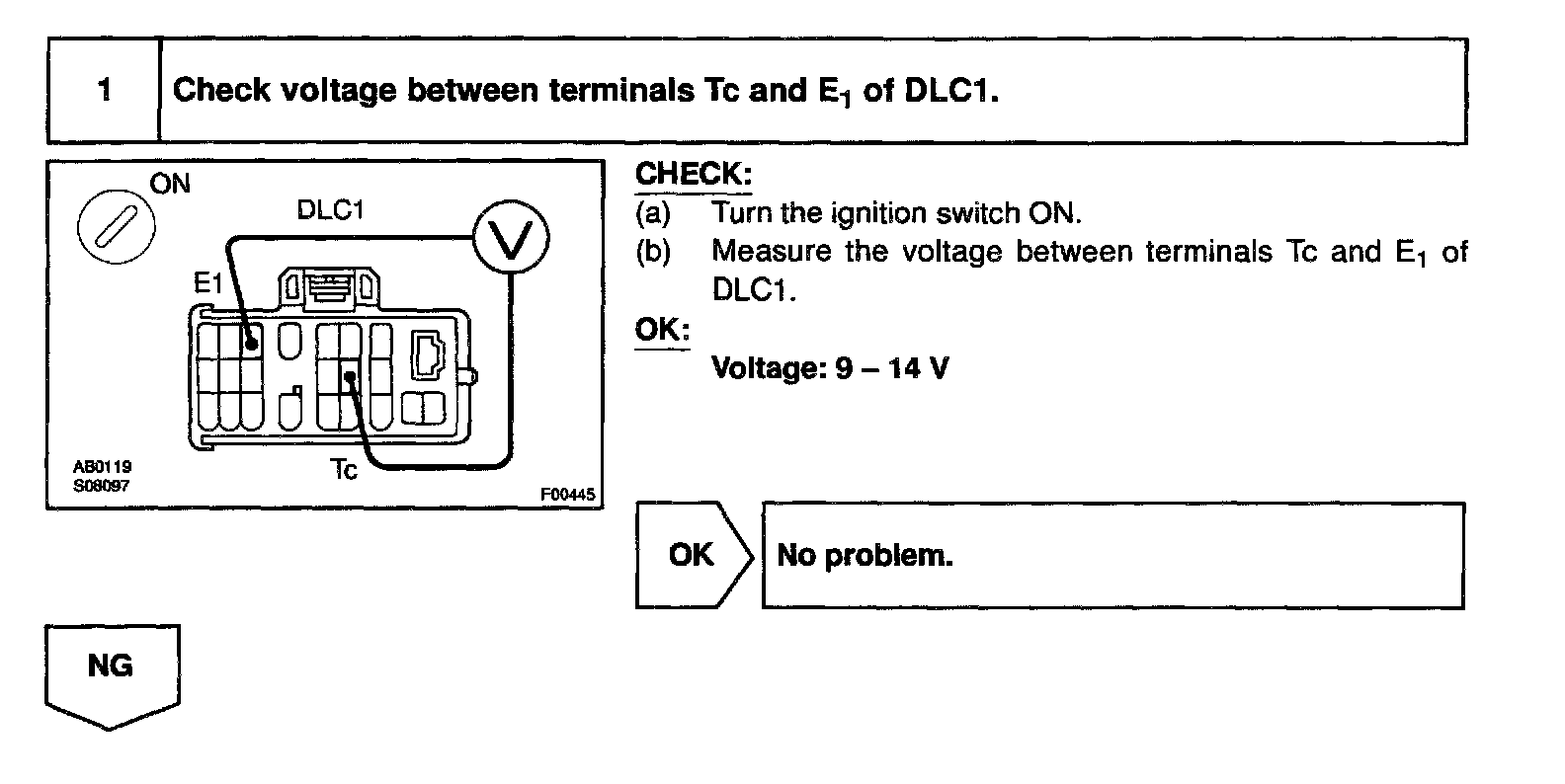

Step 1:

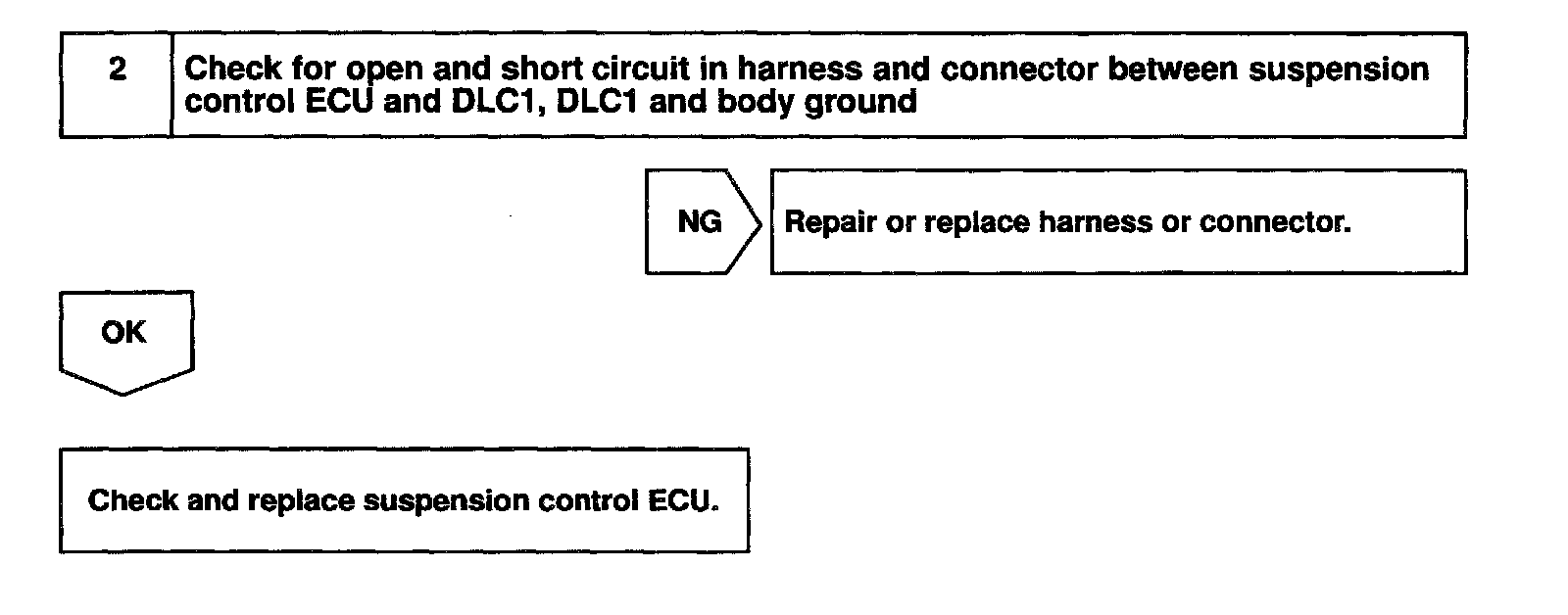

Step 2:

INSPECTION PROCEDURE
