Fuse Block: Testing and Inspection

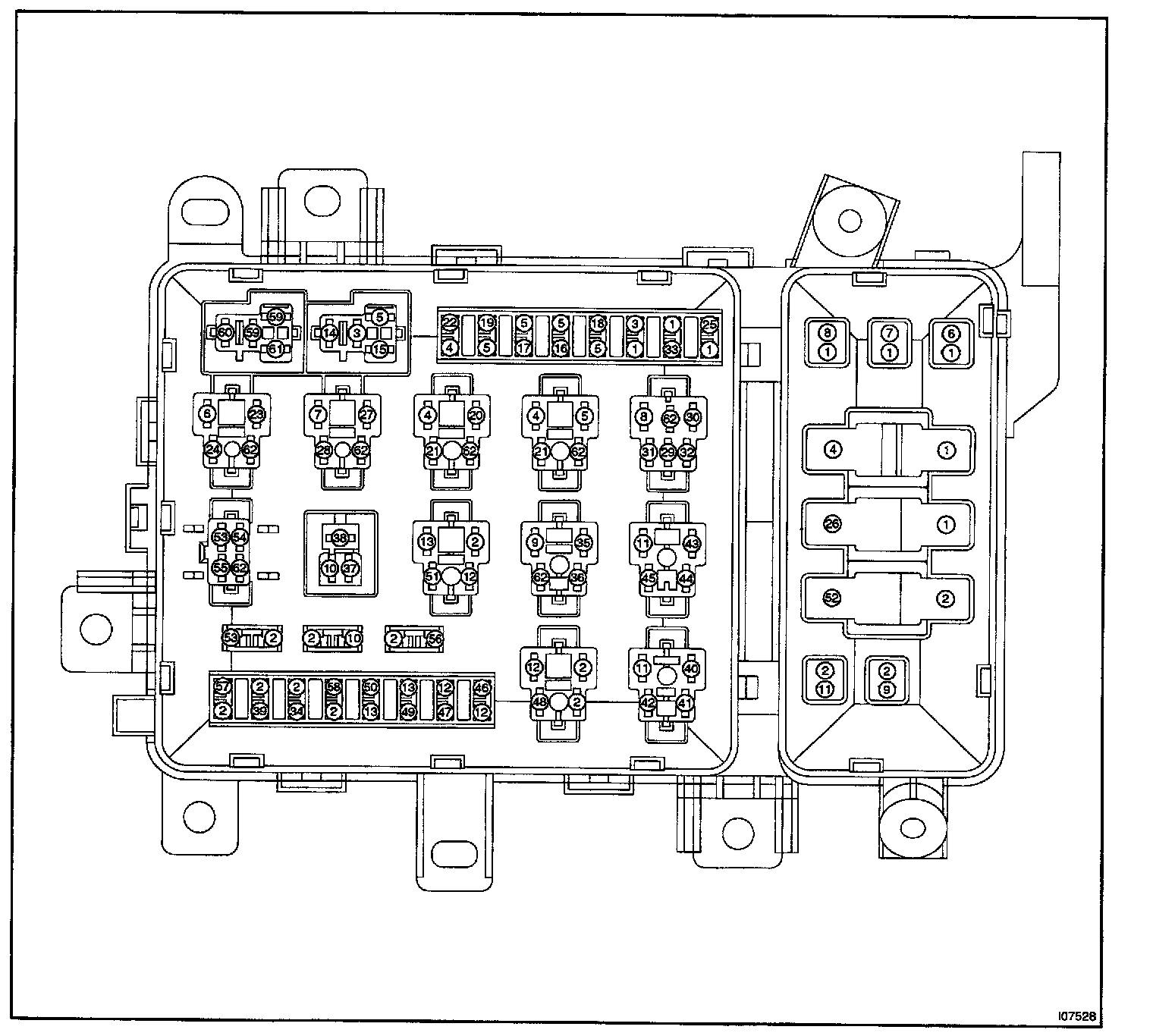

1. INSPECT ENGINE ROOM JUNCTION BLOCK CIRCUIT

Part 1 Of 2:

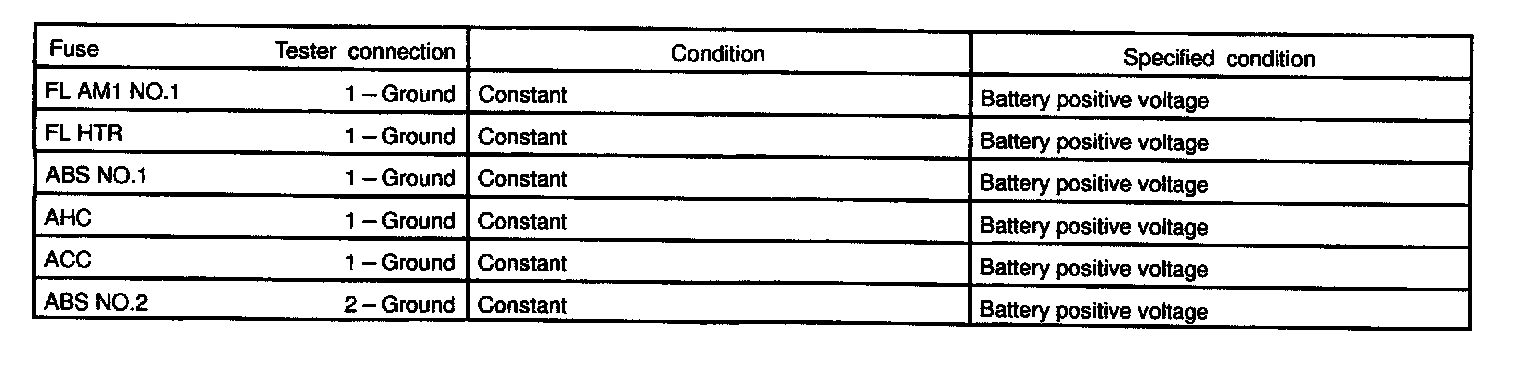

a. Remove the fuse from the junction block and inspect the connector on junction block side.

Part 2 Of 2:

It the circuit is not as specified, inspect the circuits connected to other parts.

Part 1 Of 2:

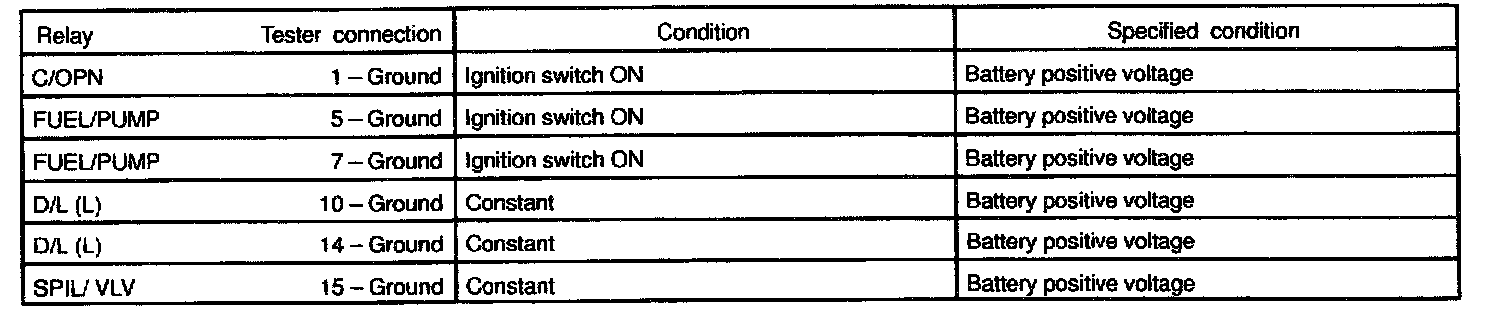

b. Remove the relay from the junction block and inspect the connector on junction block side.

Part 2 Of 2:

If the circuit is not as specified, inspect the circuits connected to other parts.

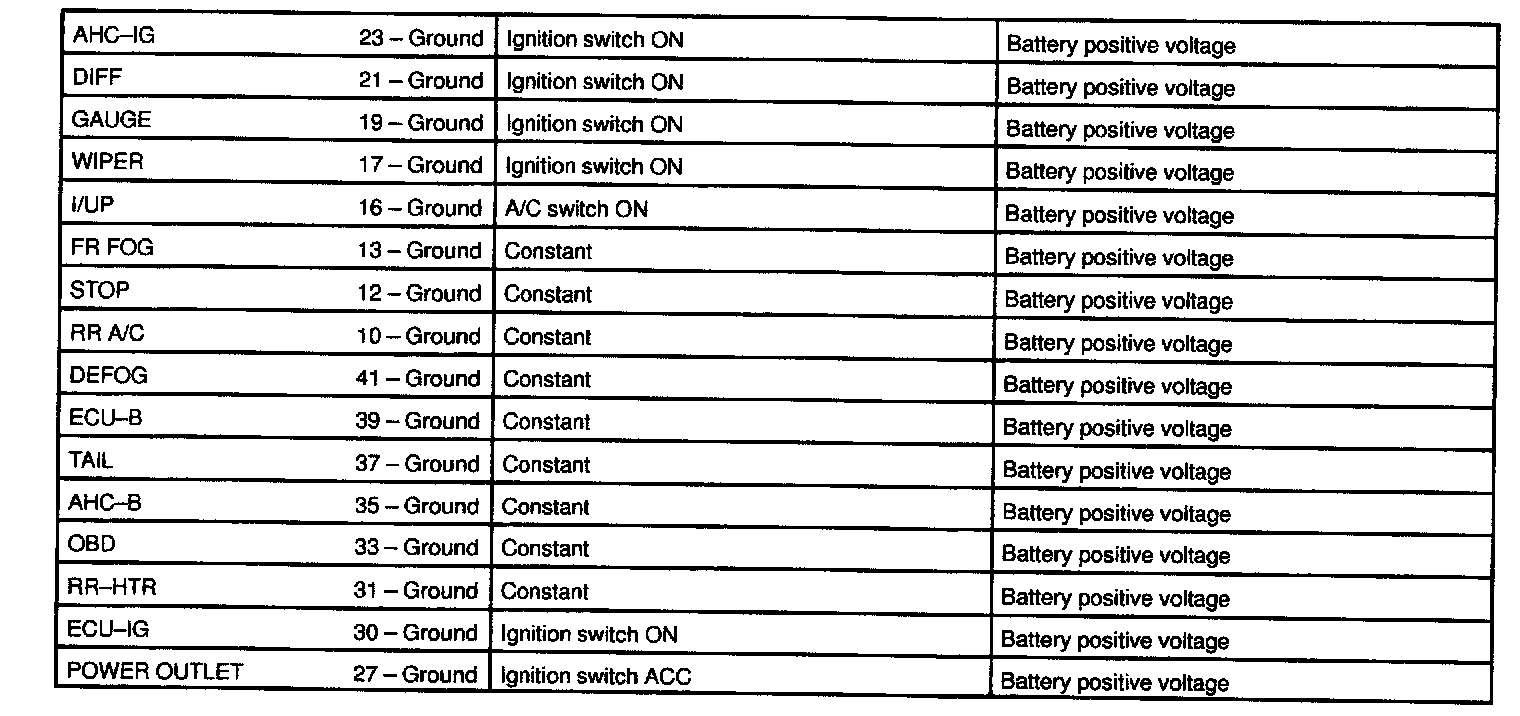

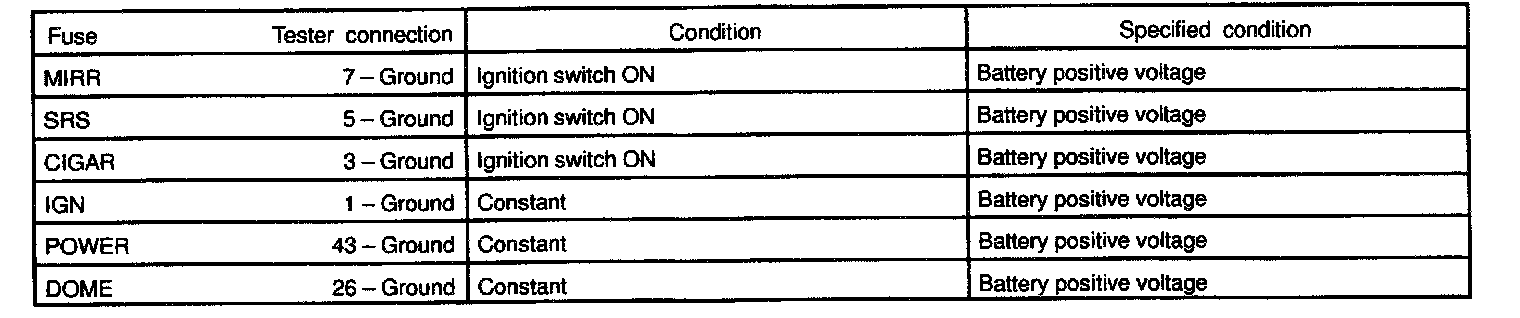

2. INSPECT DRIVER SIDE JUNCTION BLOCK FUSE CIRCUIT

Part 1 Of 2:

Remove the fuse from the junction block and inspect the connector on junction block side

Part 2 Of 2:

If the circuit is not as specified, inspect the circuits connected to other parts.

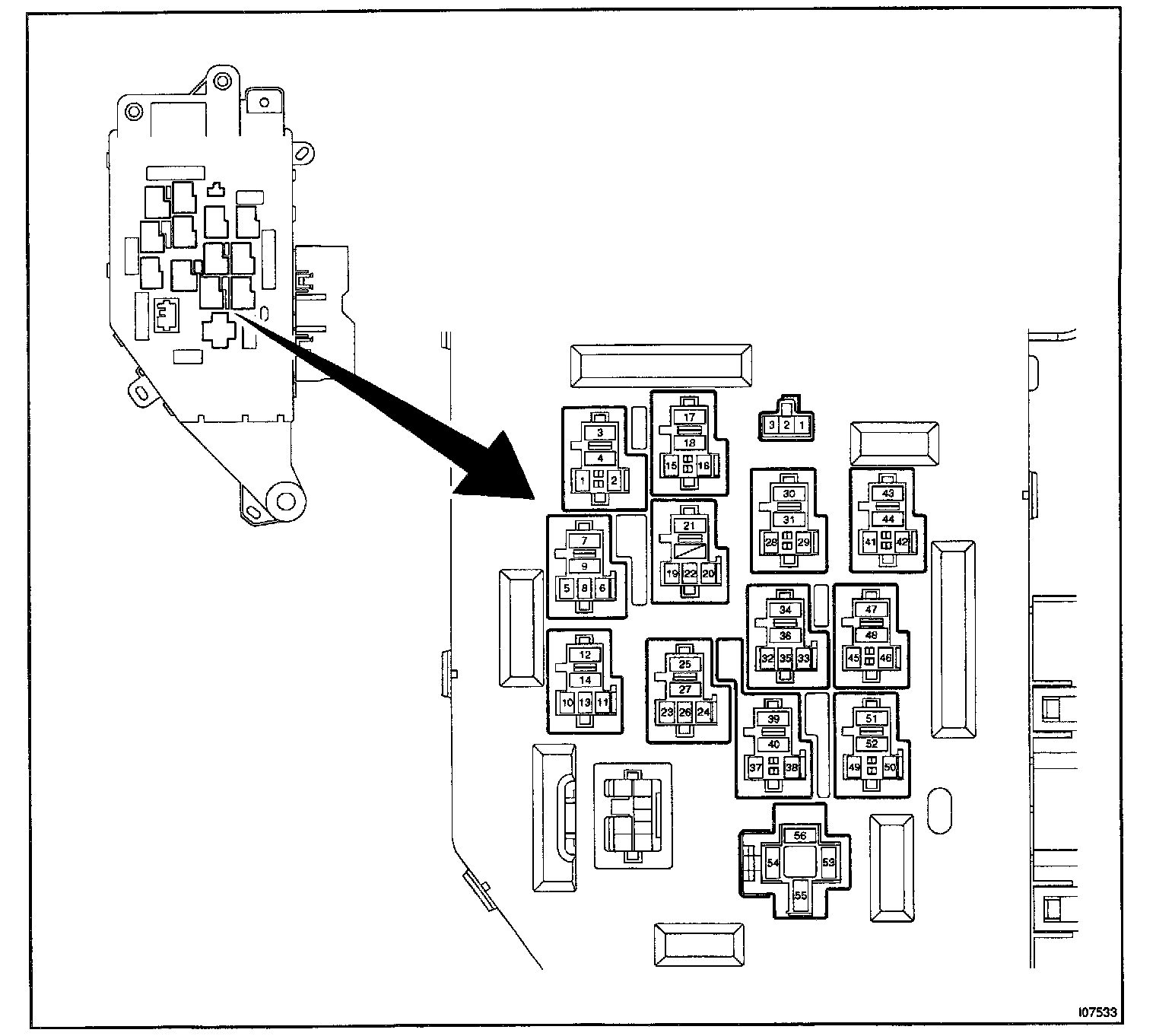

3. INSPECT DRIVER SIDE JUNCTION BLOCK RELAY CIRCUIT

Part 1 Of 2:

Remove the relay from the junction block and inspect the connector on junction block side.

Part 2 Of 2:

It the circuit is not as specified, inspect the circuits connected to other parts.

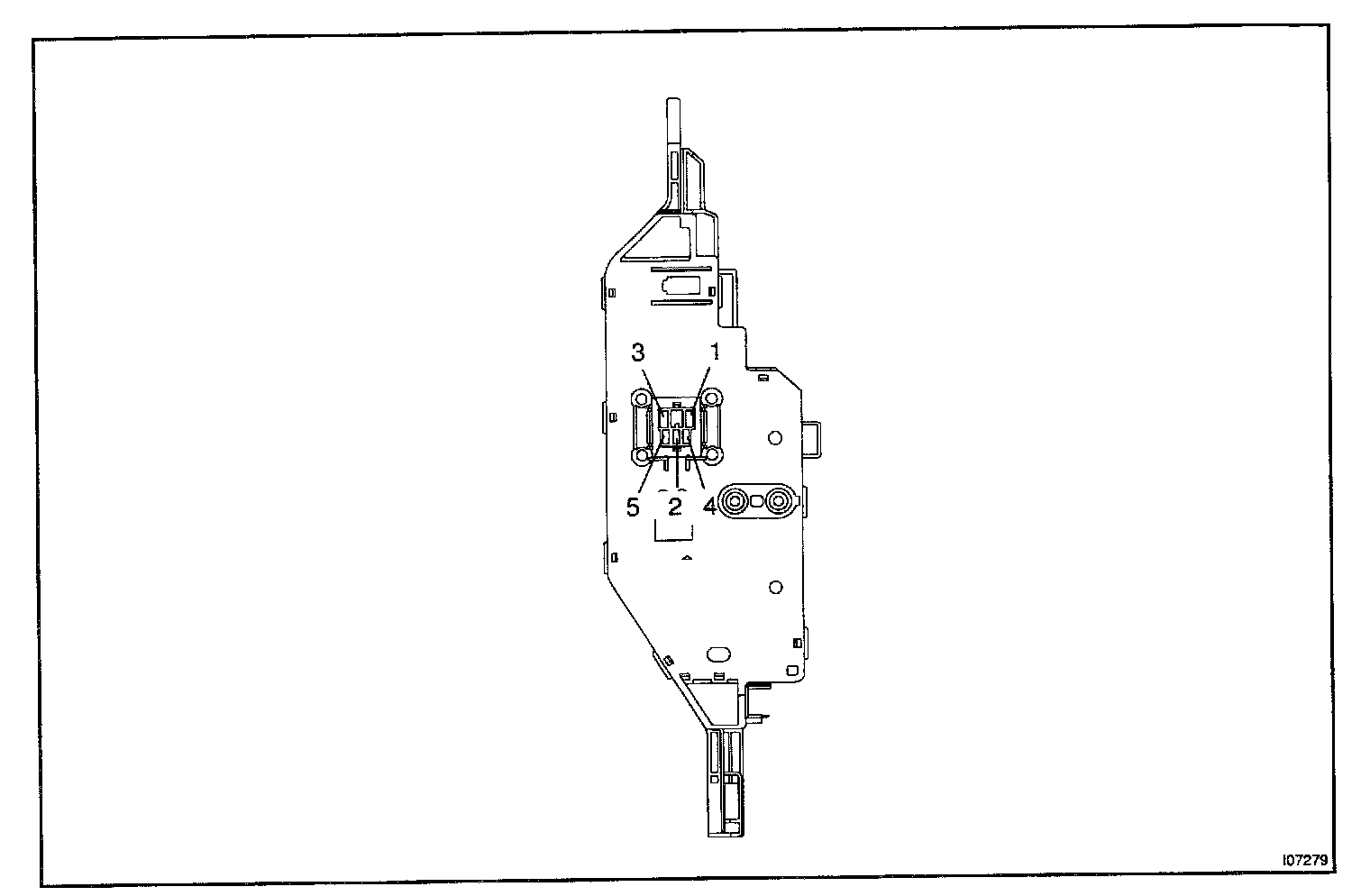

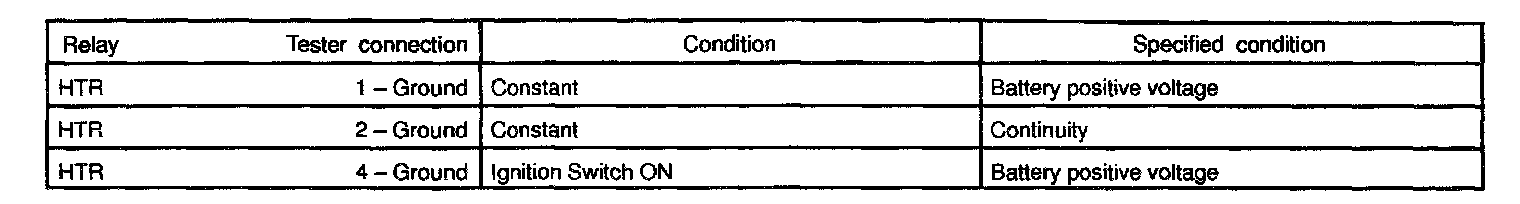

4. INSPECT PASSENGER SIDE JUNCTION BLOCK CIRCUIT
Remove the relay from the junction block and inspect the connector on junction block side.




If the circuit is not as specified, inspect the circuits connected to other parts.
