Seat Belt: Testing and Inspection

INSPECTION

CAUTION: Replace the seat belt assembly (outer belt, inner belt, bolts, nuts) if it has been used in a severe impact. The entire assembly should be replaced even if damage is not obvious.

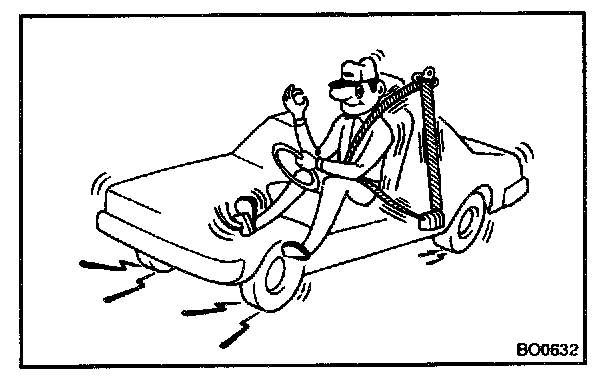

1. Except Manual Type: RUNNING TEST (IN SAFE AREA)
a. Fasten the front seat belts.




b. Drive the car at 10 mph (16 km/h) and slam on the brakes. Check that the belt locks and cannot be extended at this time.

HINT: Conduct this test in a safe area. If the belt does not lock, remove the belt mechanism assembly and conduct the following static check. Also, whenever installing a new belt assembly, verify the proper operation before installation.

2. Driver's Seat Belt (ELR): STATIC TEST
a. Make sure that the belt locks when pulled out quickly.
b. Remove the locking retractor assembly.
c. Tilt the retractor slowly.

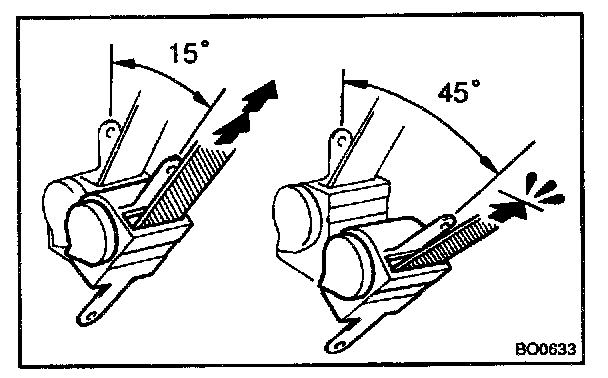

d. Make sure that the belt can be pulled out at a tilt of 15 degrees or less, and cannot be pulled out over 45 degrees of tilt.
If a problem is found, replace the assembly.

3. Except Driver's Seat Belt (ALR/ELR): STATIC TEST
a. Make sure that the belt locks when pulled out quickly.
b. Pull out the whole belt and measure the length of the whole belt.
Then retract the belt slightly and pull it out again.

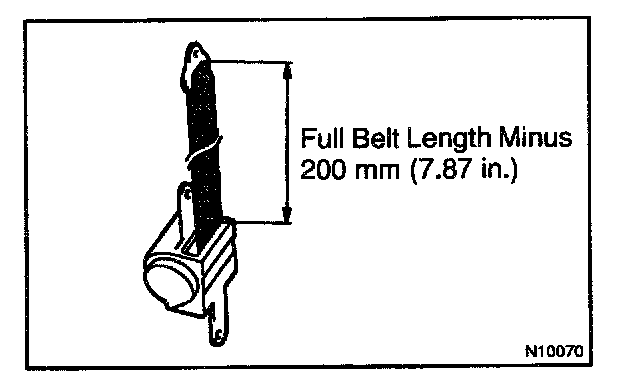

c. Retract the whole belt, then pull out the belt until 200 mm (7.87 in.) of belt remains retracted.
d. Tilt the retractor slowly.




e. Make sure that the belt can be pulled out at a tilt of 15 degrees or less, and cannot be pulled out at over 45 degrees of tilt.
If a problem is found, replace the assembly.

4. INSPECT REAR NO. 1 SEAT CENTER BELT




a. After retracting 300 mm (11.81 in.) of the seat belt, check that the belt is locked when suddenly extracted.

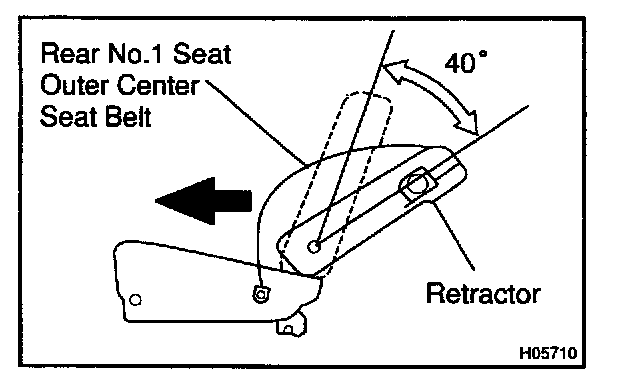

b. Check that the belt can be extracted 300 mm (11.81 in.) without being locked when the seat is reclined as shown in the illustration.
c. Check that the belt is locked when the belt is extracted by a certain amount under a. condition.

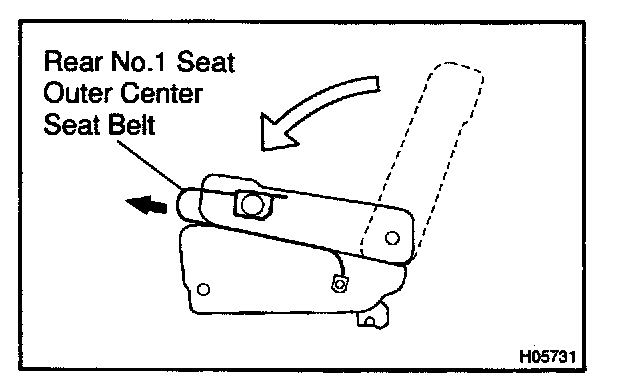

d. When folding down the seat beck forward and extracting the seat belt slowly, check that the belt is locked after a certain length (approx. 500 mm (19.69 in.)) of the belt has been extracted.
