Rear Heater Relay
1. REMOVE FRONT DOOR SCUFF PLATE LH2. REMOVE COWL SIDE TRIM LH
3. REMOVE REAR HEATER RELAY

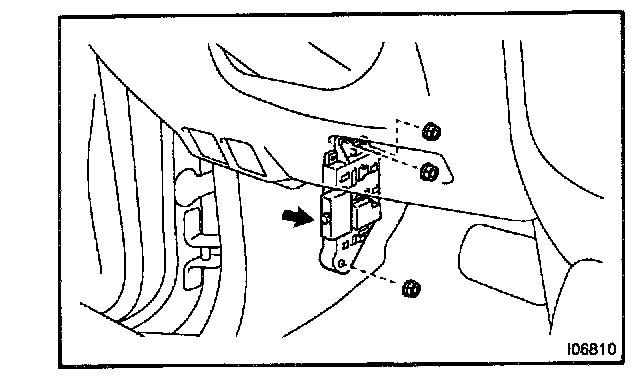

a. Remove the 3 No.2 junction block set nuts.
b. Loosen the bolt and disconnect the connector.
c. Pull out the junction block.

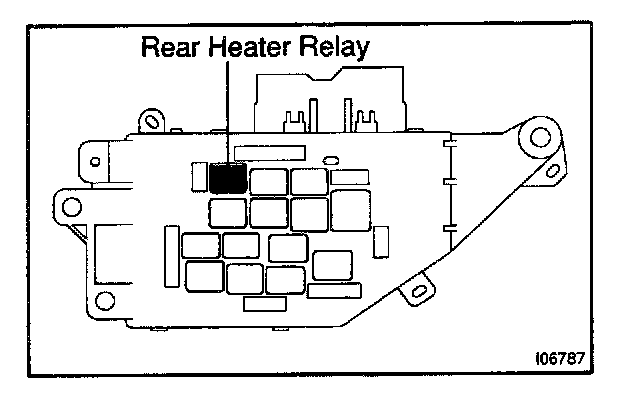

d. Remove the rear heater relay

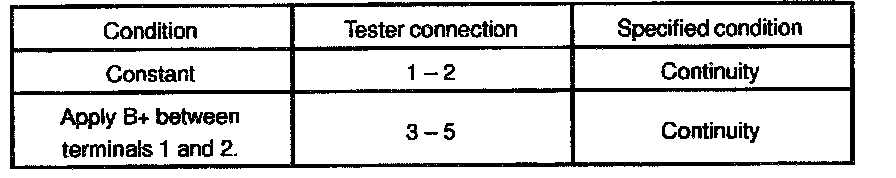

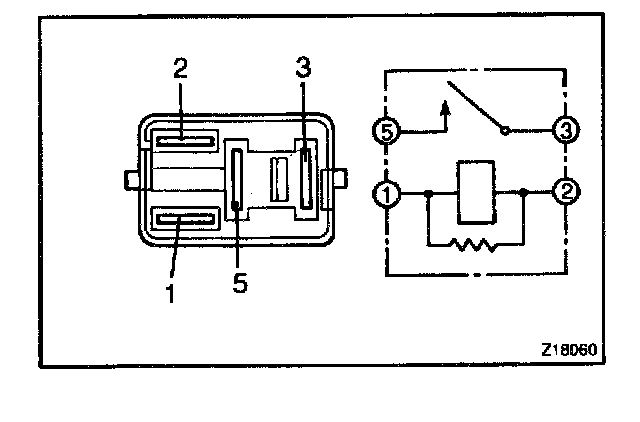

4. INSPECT REAR HEATER RELAY CONTINUITY
If continuity is not as specified, replace the relay.
5. INSTALL RELAY
6. INSTALL 3 NO.2 JUNCTION BLOCK SET NUTS
7. INSTALL COWL SIDE TRIM LH
8. INSTALL FRONT DOOR SCUFF PLATE LH
