Tc Terminal Circuit
CIRCUIT DESCRIPTIONConnecting terminals Tc and E1 of the DLC1 causes the ECU to display the DTC by flashing the ABS warning light and VSC TRAC warning light.

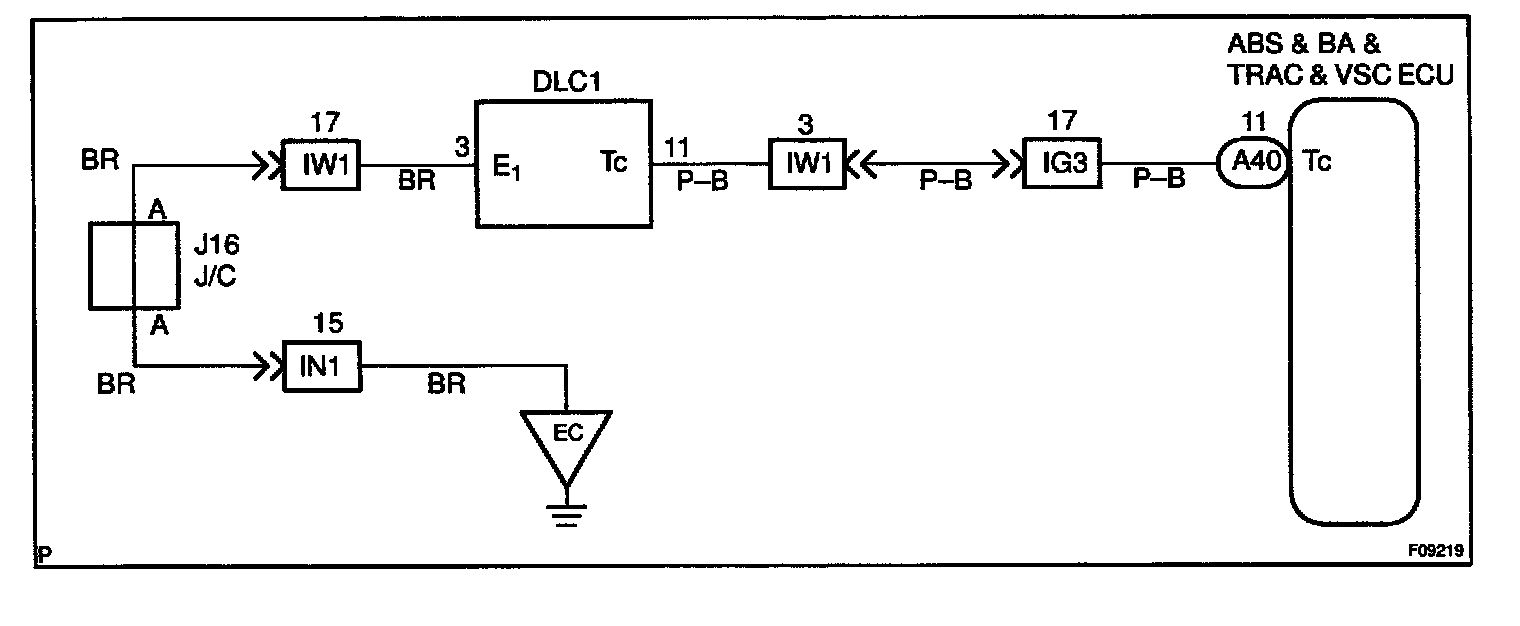

WIRING DIAGRAM

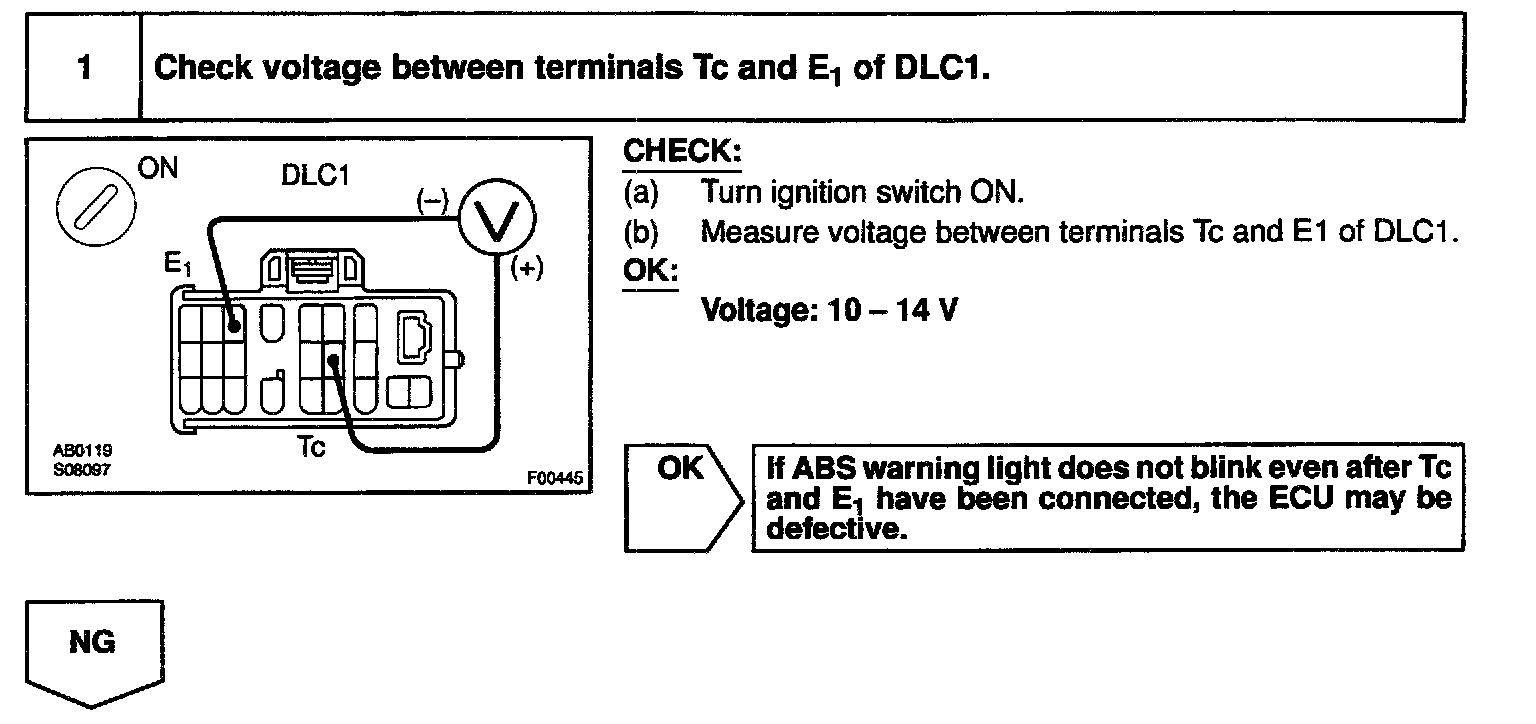

Step 1:

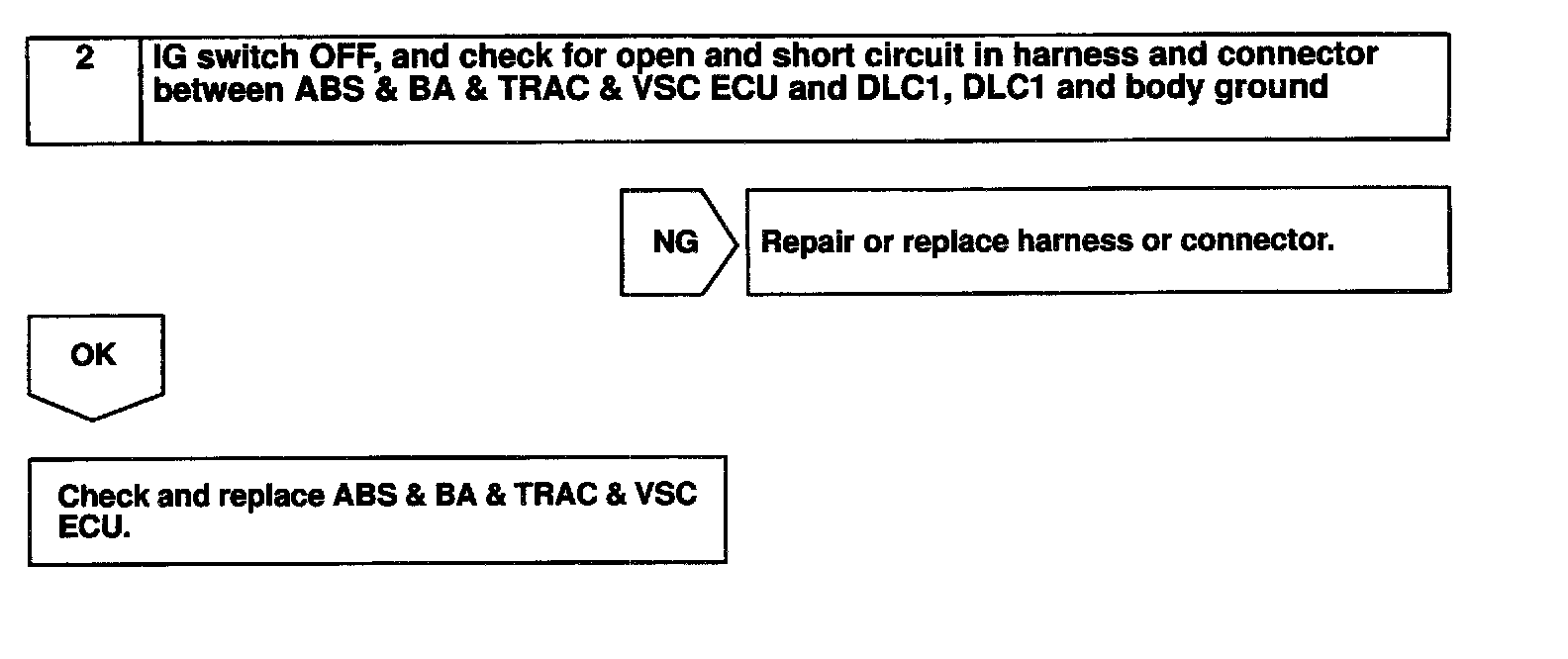

Step 2:
INSPECTION PROCEDURE
Connecting terminals Tc and E1 of the DLC1 causes the ECU to display the DTC by flashing the ABS warning light and VSC TRAC warning light.
WIRING DIAGRAM
INSPECTION PROCEDURE
