Heated Mirror Relay: Testing and Inspection

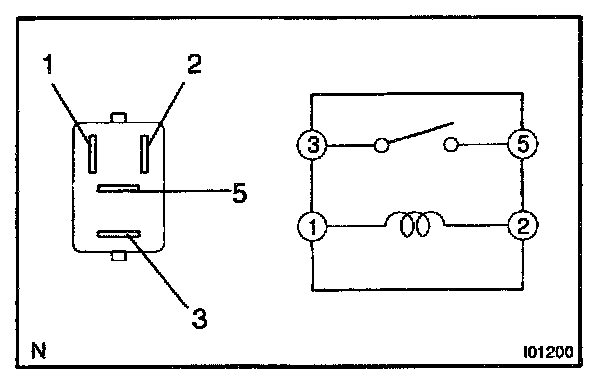

INSPECT MIRROR HEATER RELAY CONTINUITY

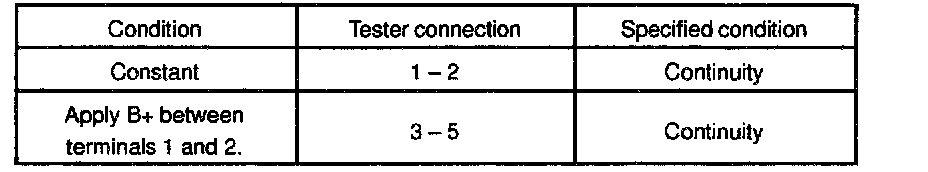

If continuity is not as specified, replace the relay.

INSPECT MIRROR HEATER RELAY CIRCUIT




w/ Mirror Heater

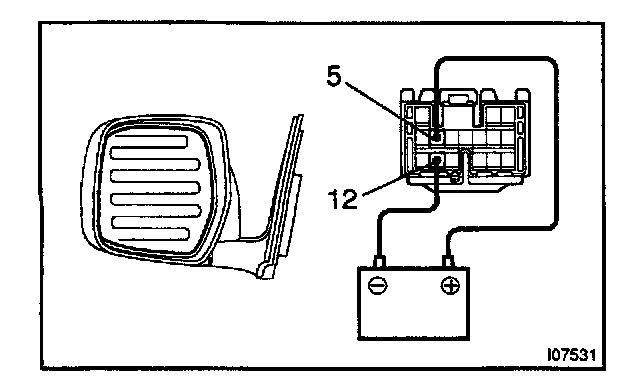

INSPECT MIRROR HEATER OPERATION
a. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 12.
b. Check that the mirror becomes warm.

HINT: It will take a short time for the mirror to become warm.
