Home >> Lexus Truck >> 2000 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations >> Ground Locations

Ground Locations

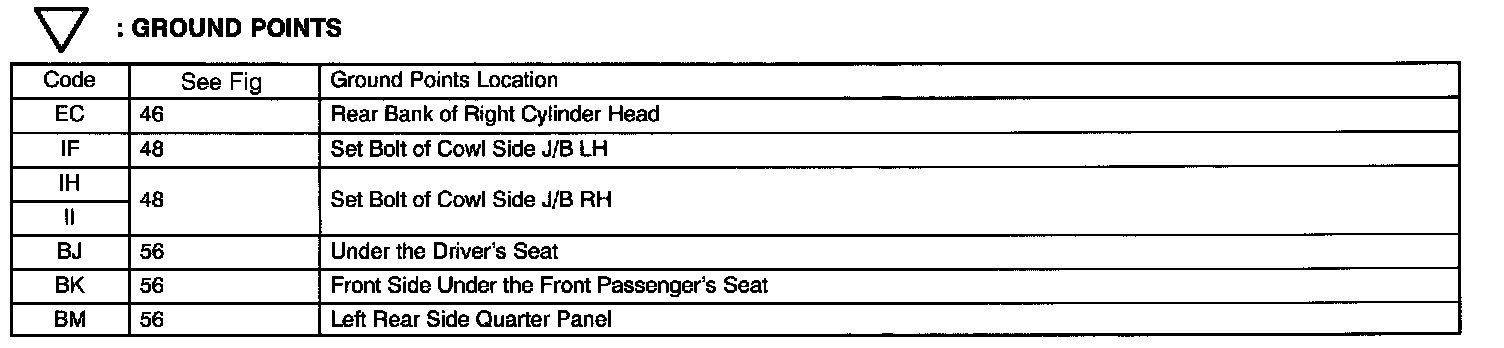

GROUND POINTS

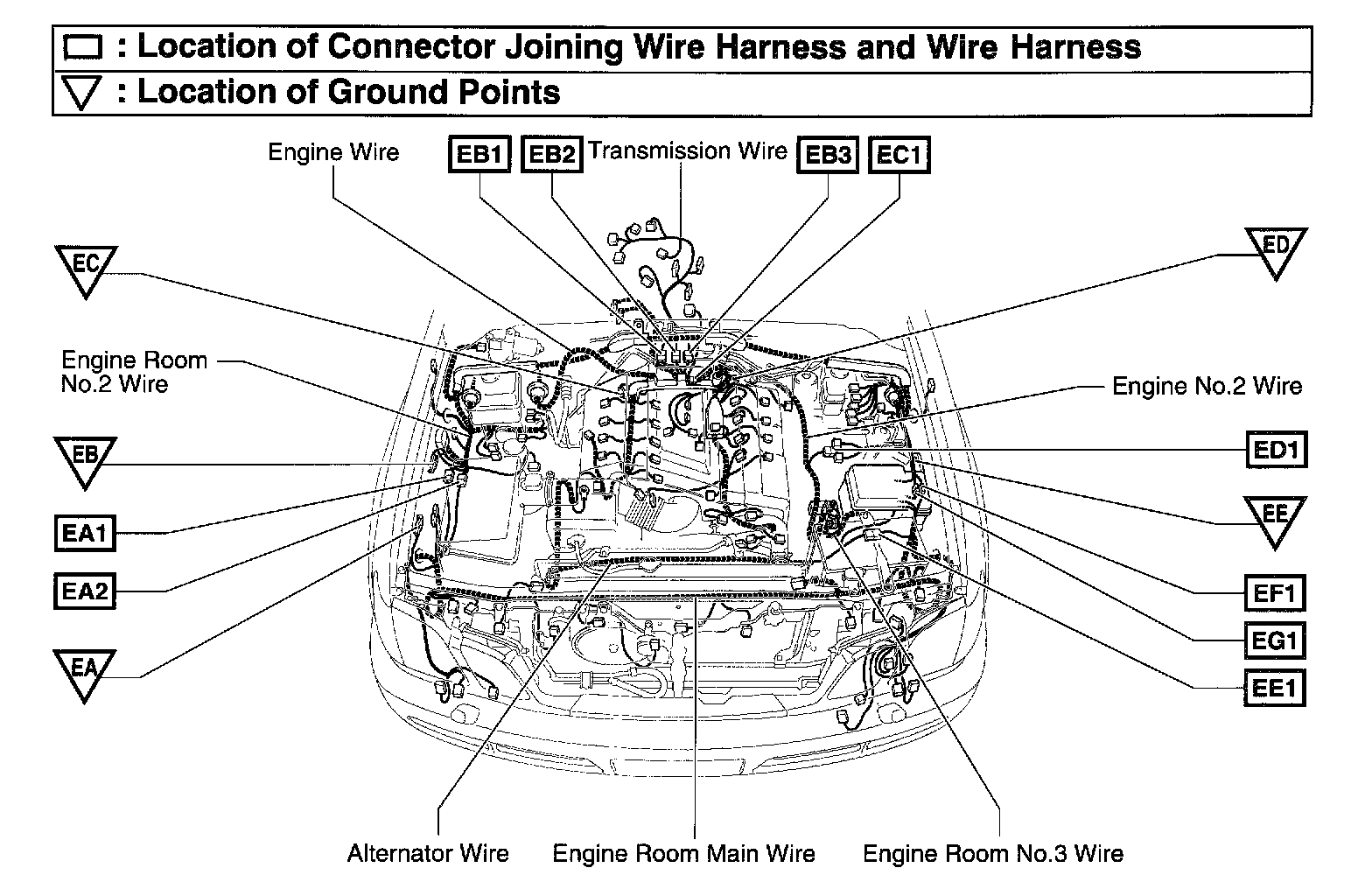

FIG 46

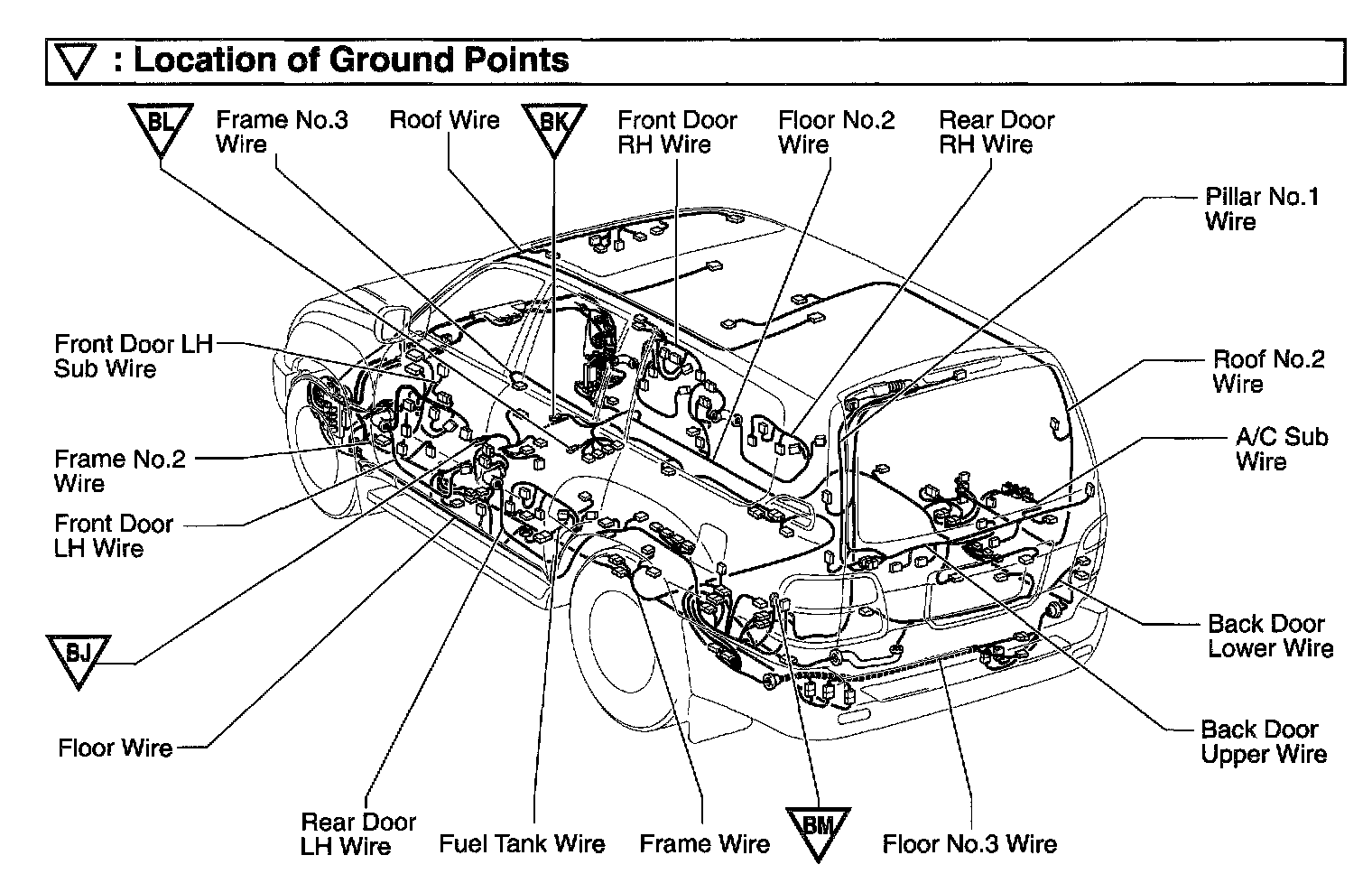

FIG 48




FIG 56
