Connector Locations

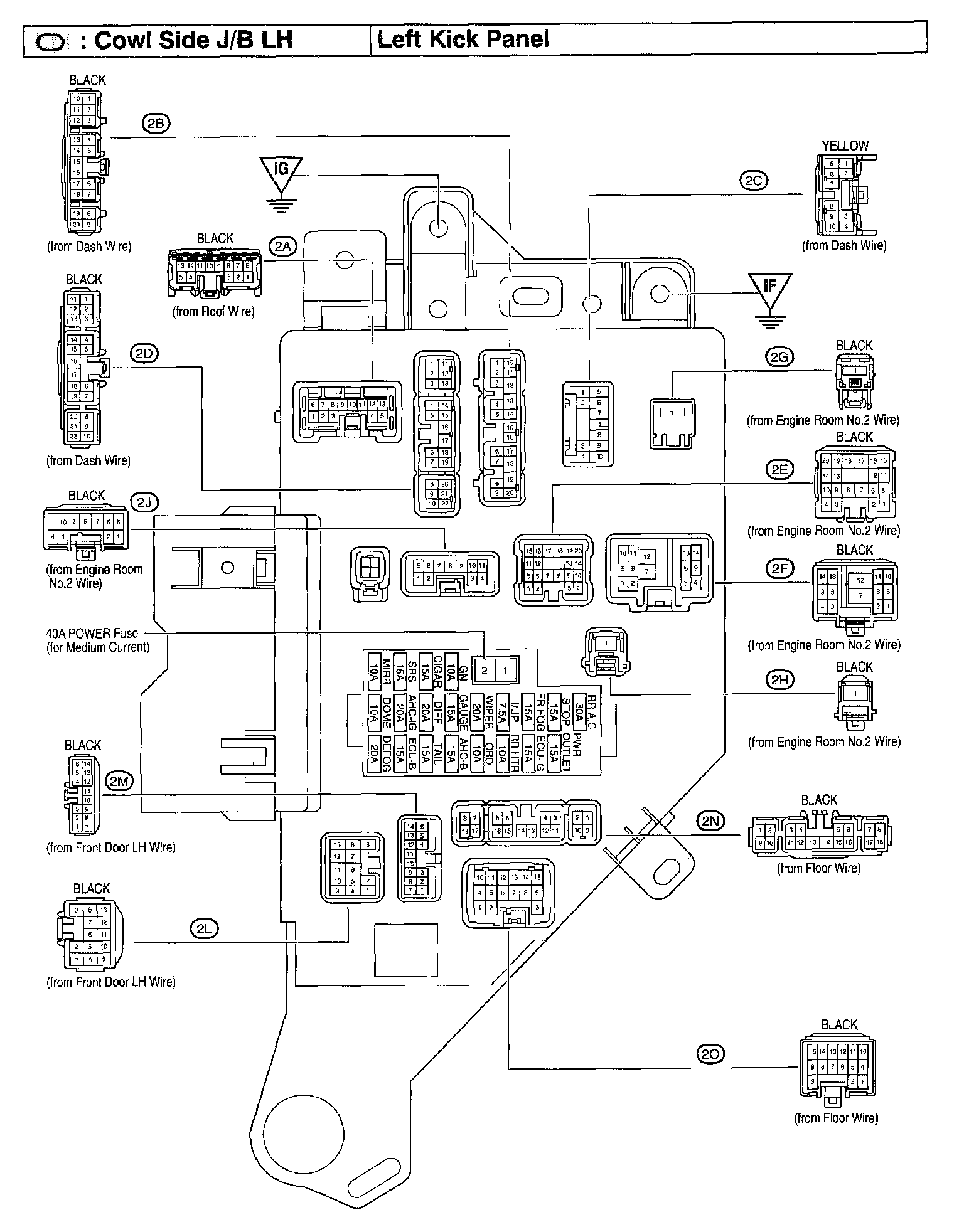

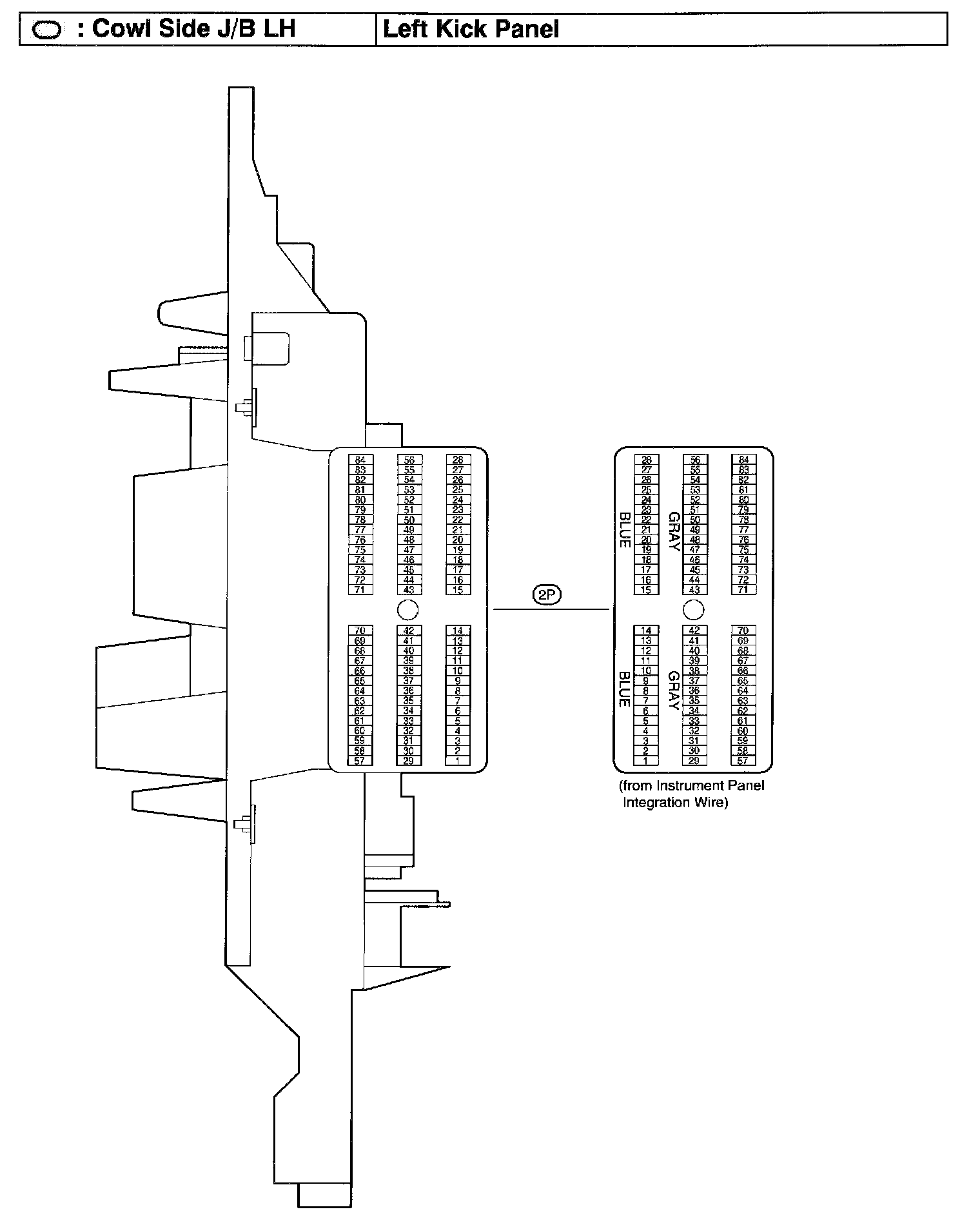

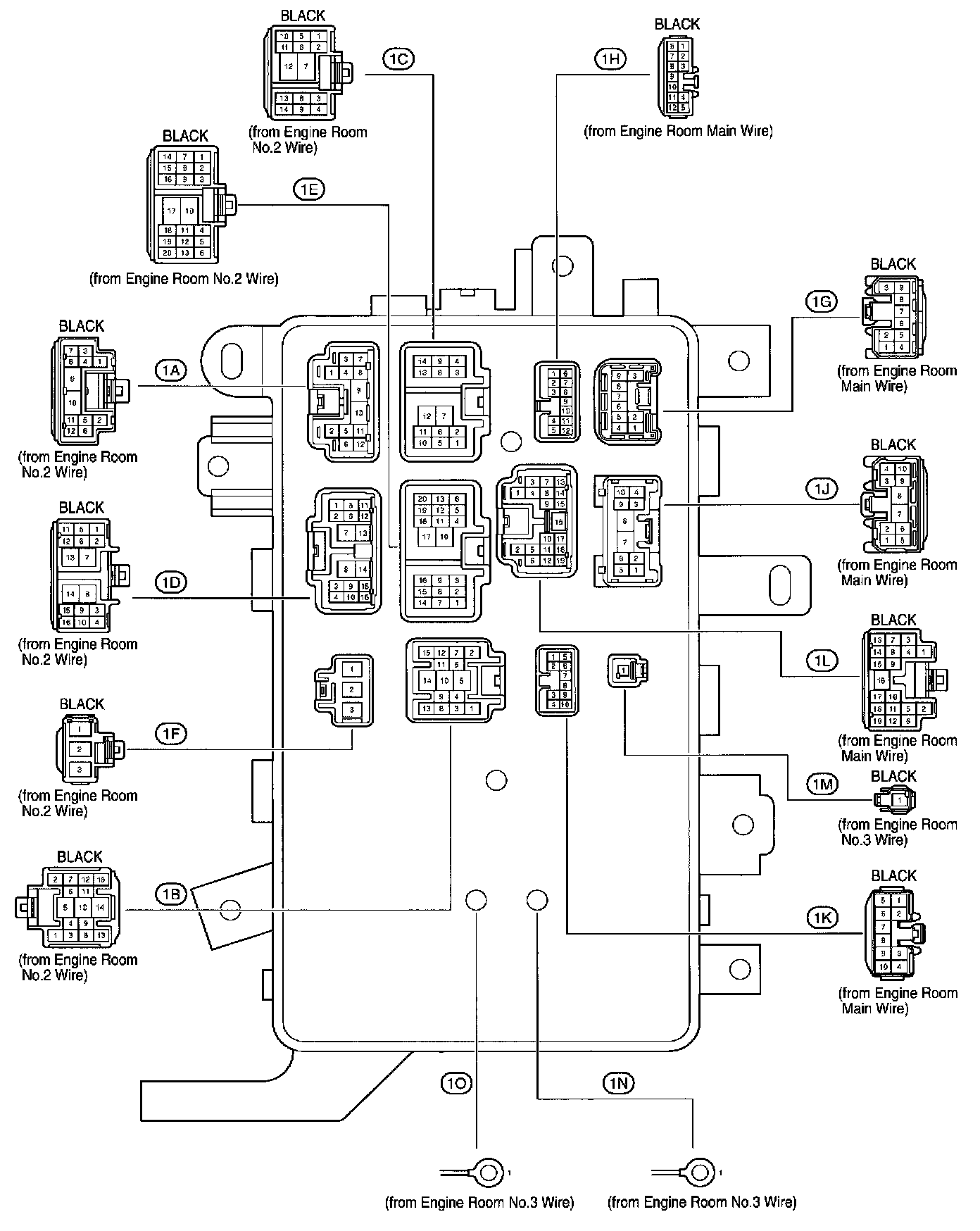

JUNCTION BLOCK AND WIRE HARNESS CONNECTOR




FIG 23




FIG 26




FIG 28




FIG 32

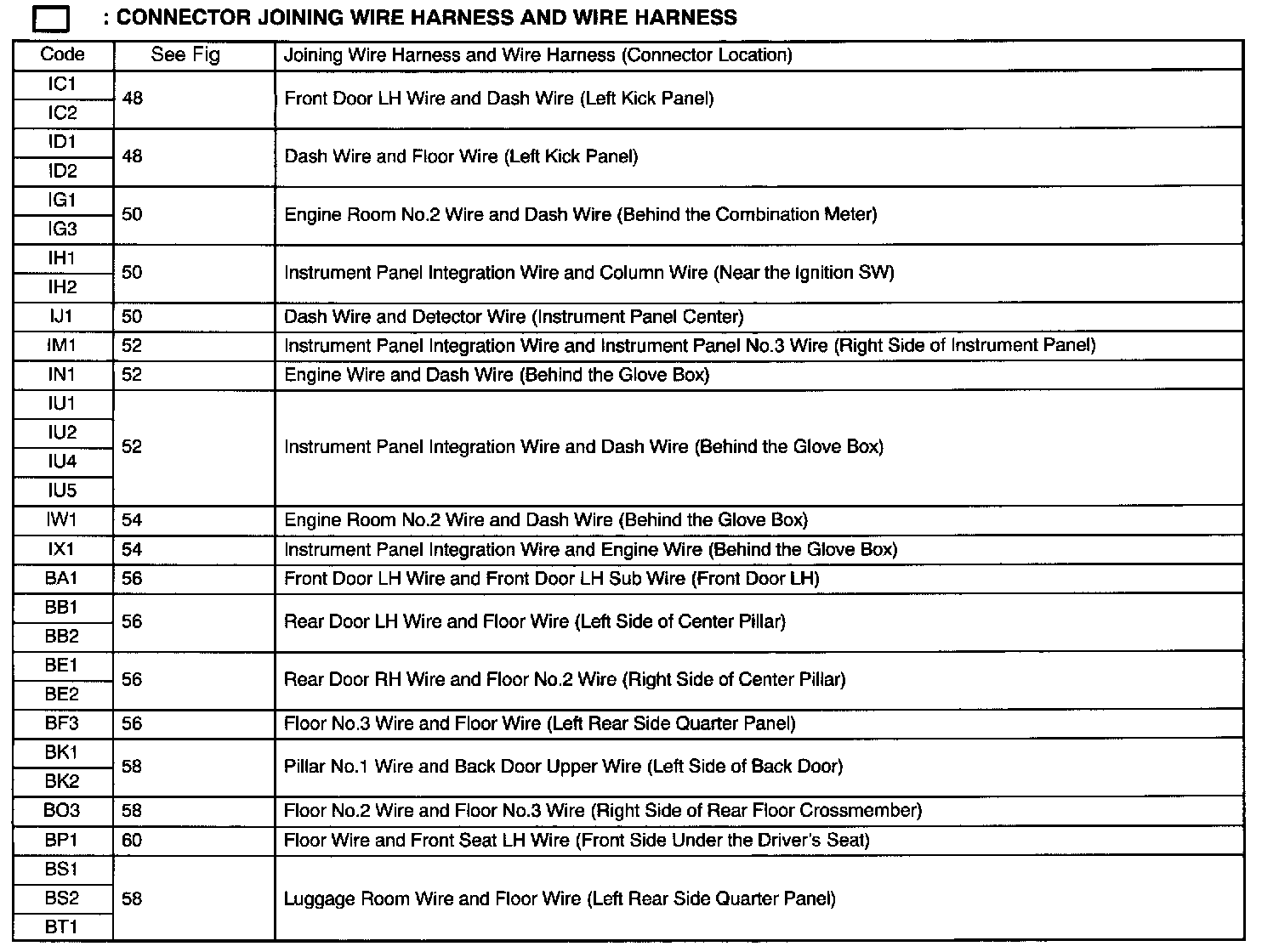

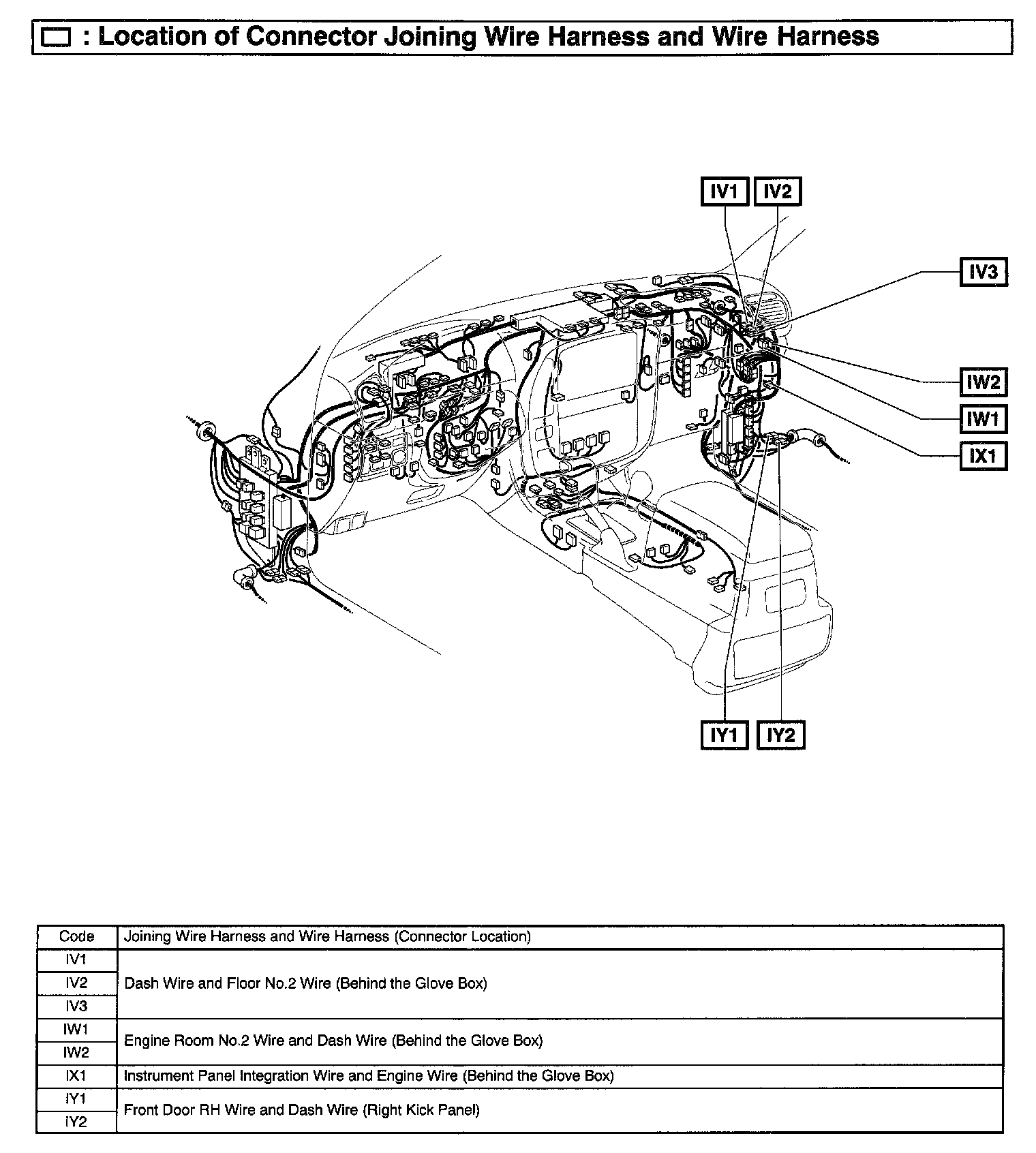

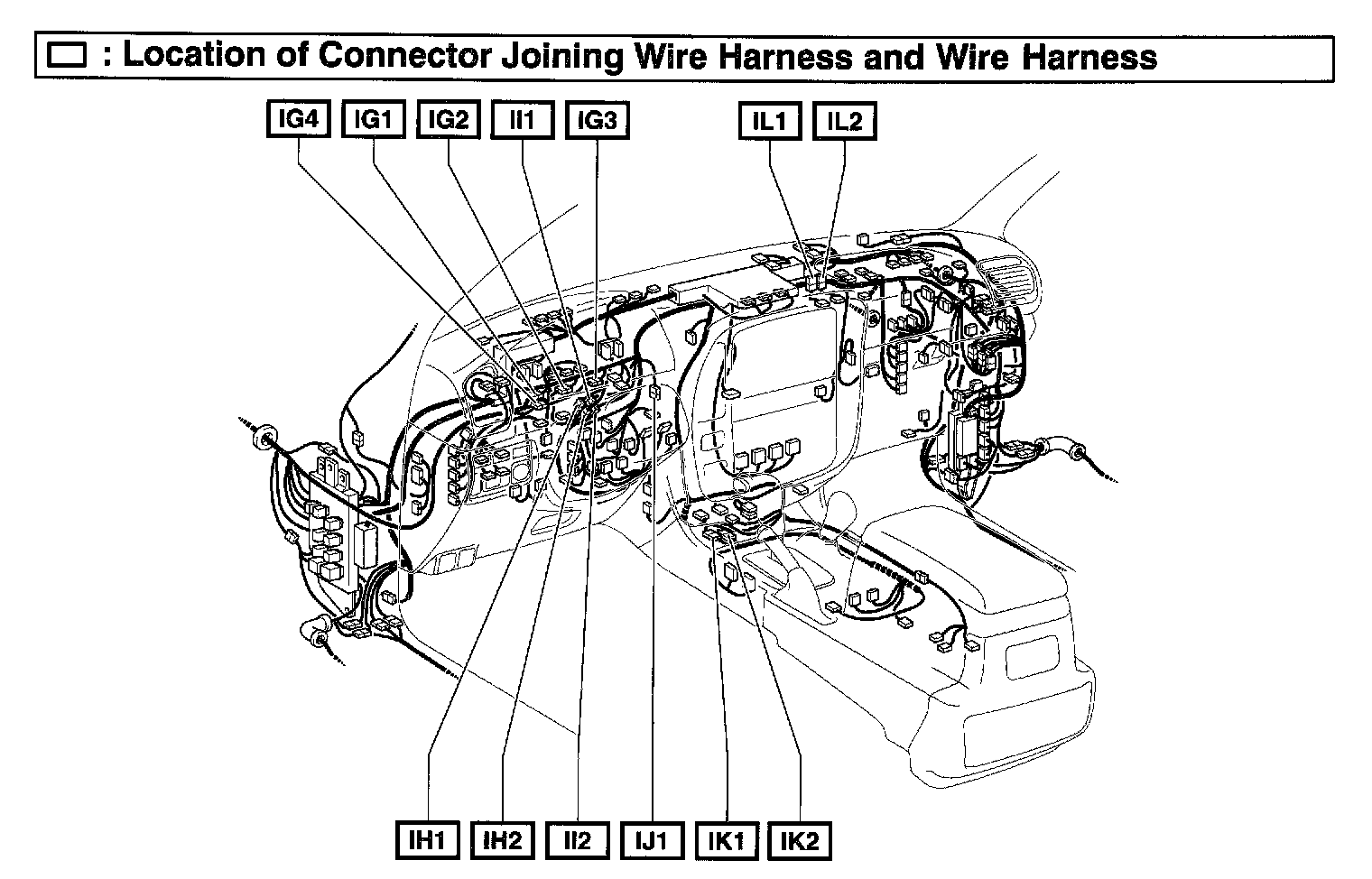

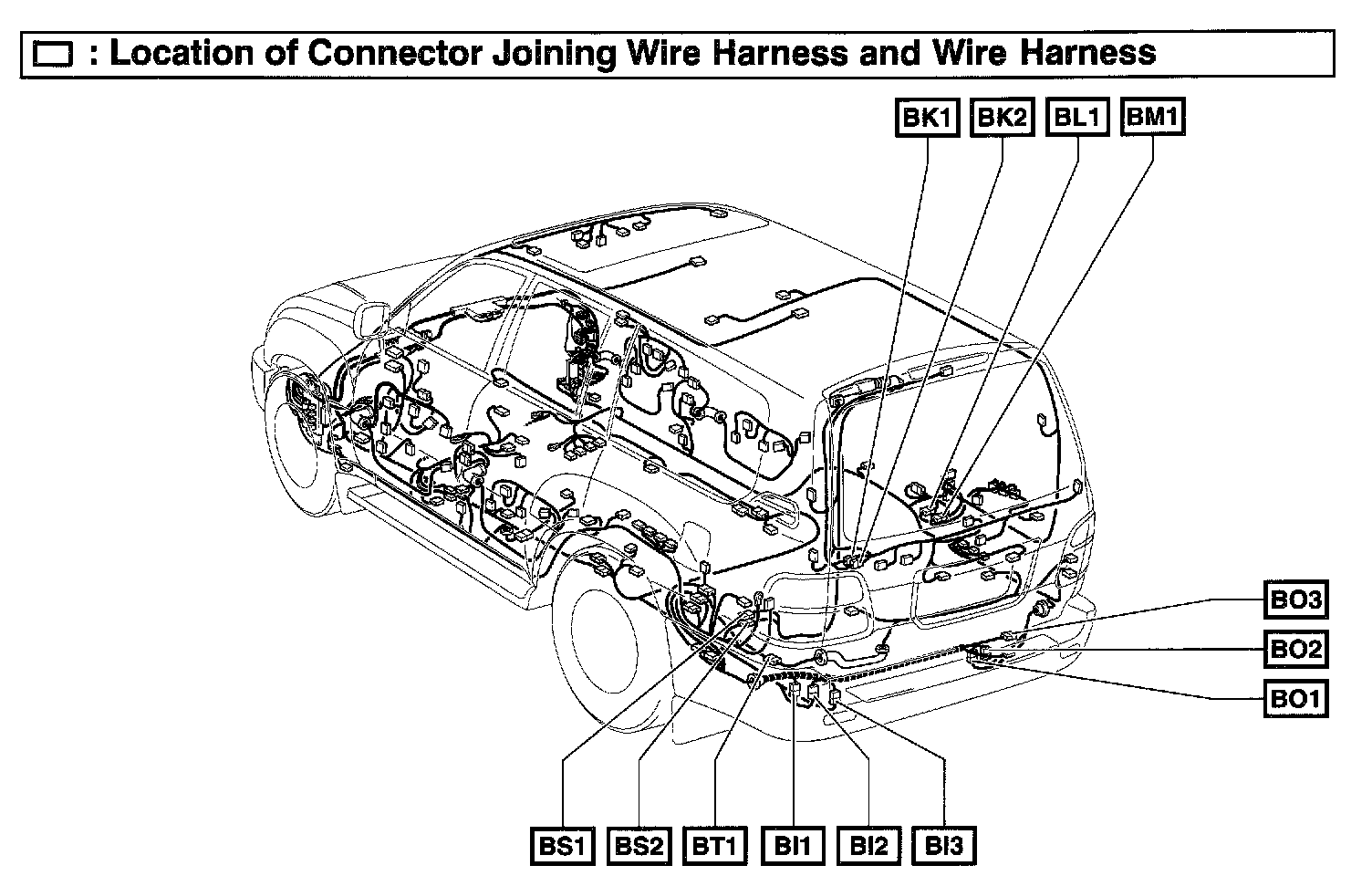

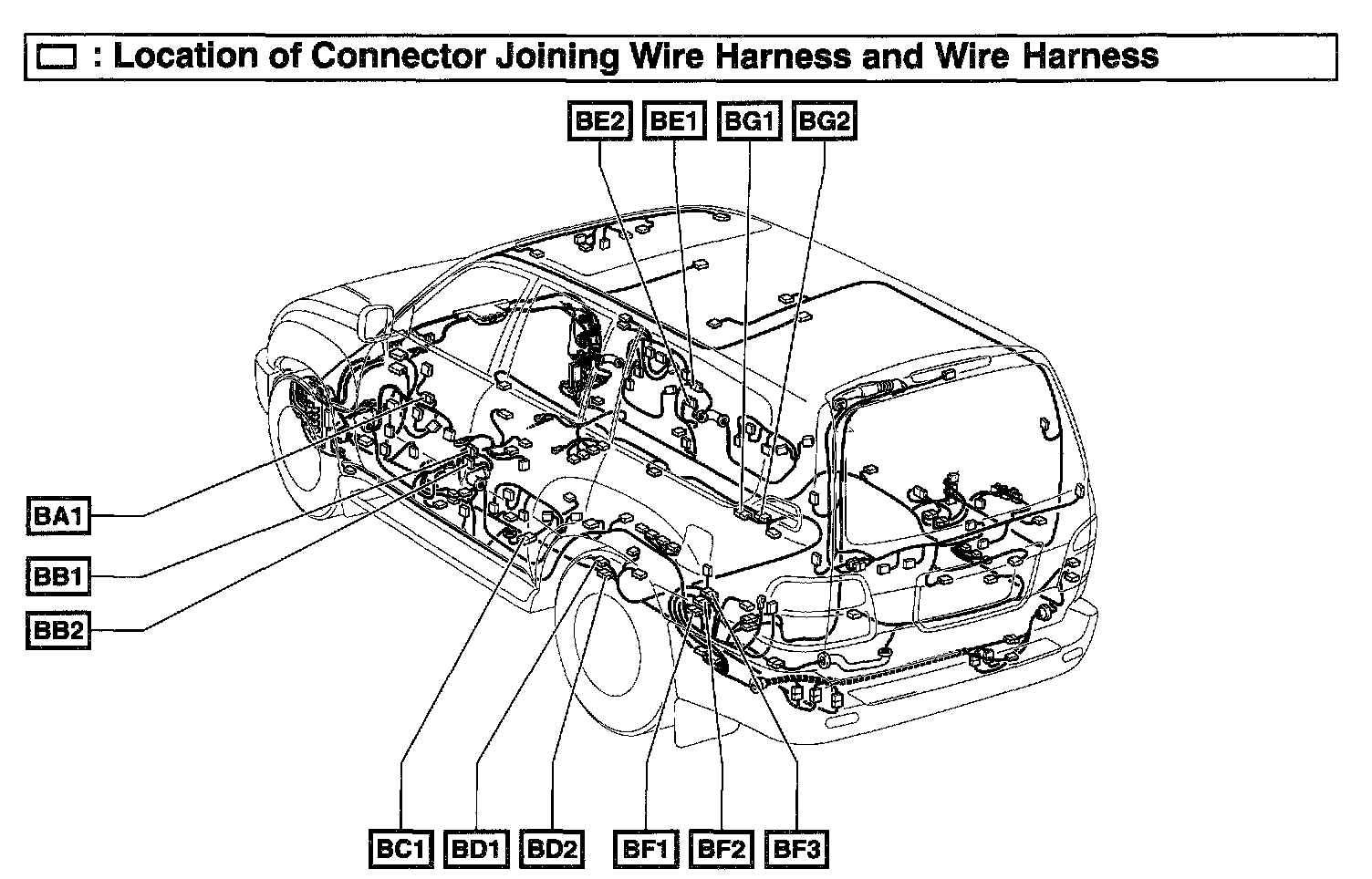

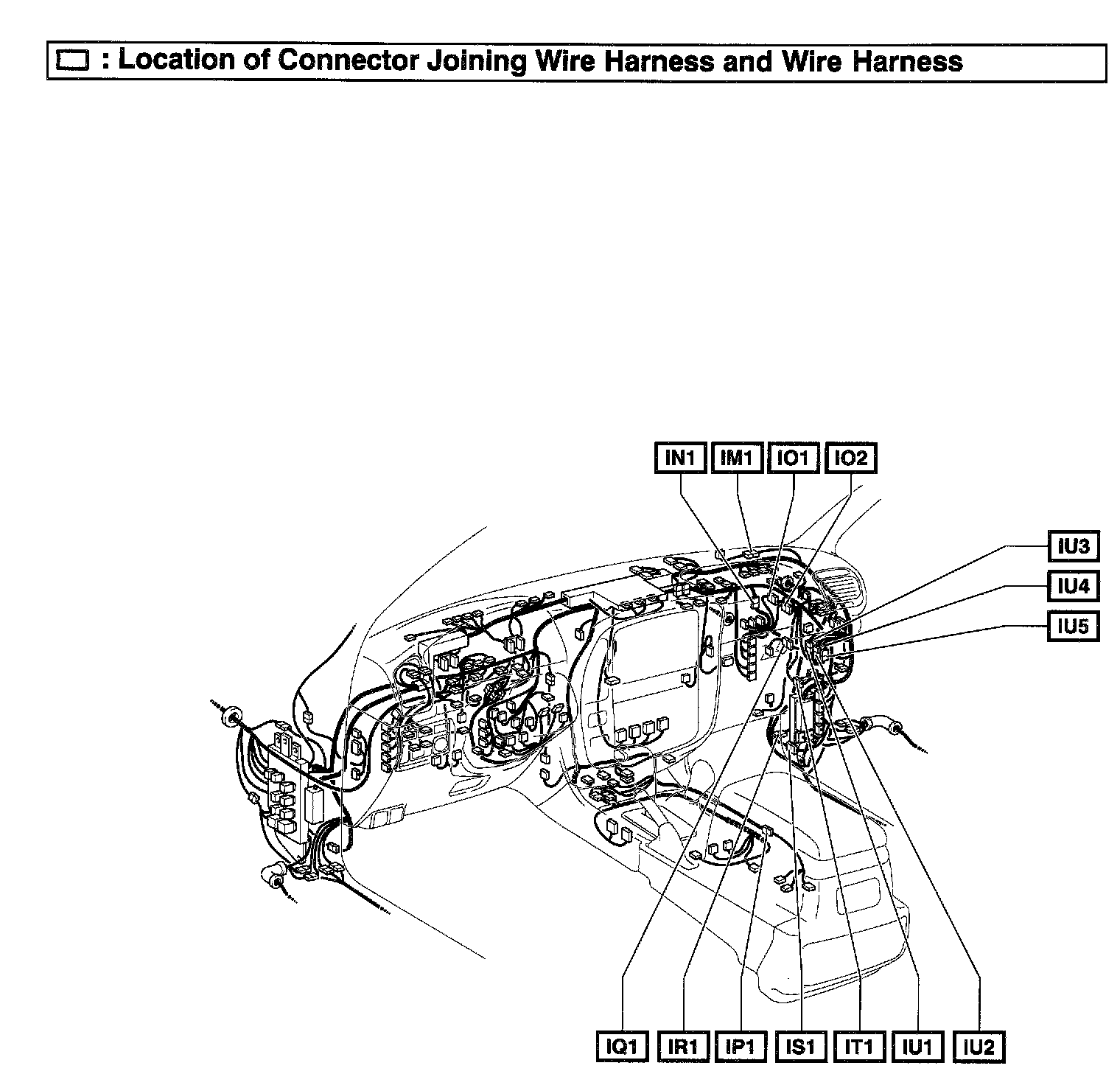

CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS




FIG 48




FIG 50




FIG 52




FIG 54




FIG 56




FIG 58




FIG 60
