Pinout Values and Diagnostic Parameters

A/C Amplifier - ECU Views - (C8 , C9 , C10 , C11):

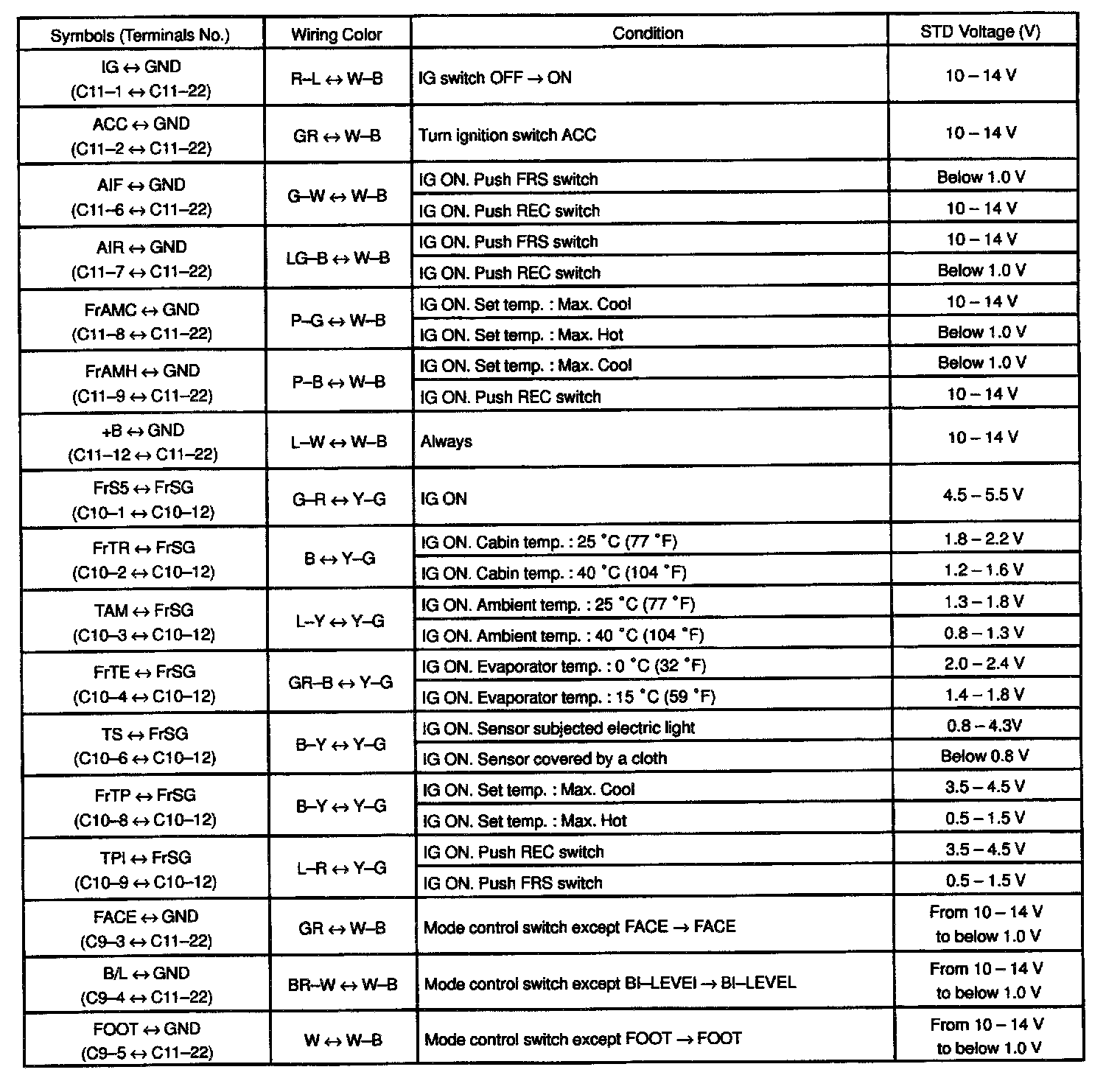

A/C Amplifier - ECU Pinouts - (C8 , C9 , C10 , C11) (Part 1 Of 2):

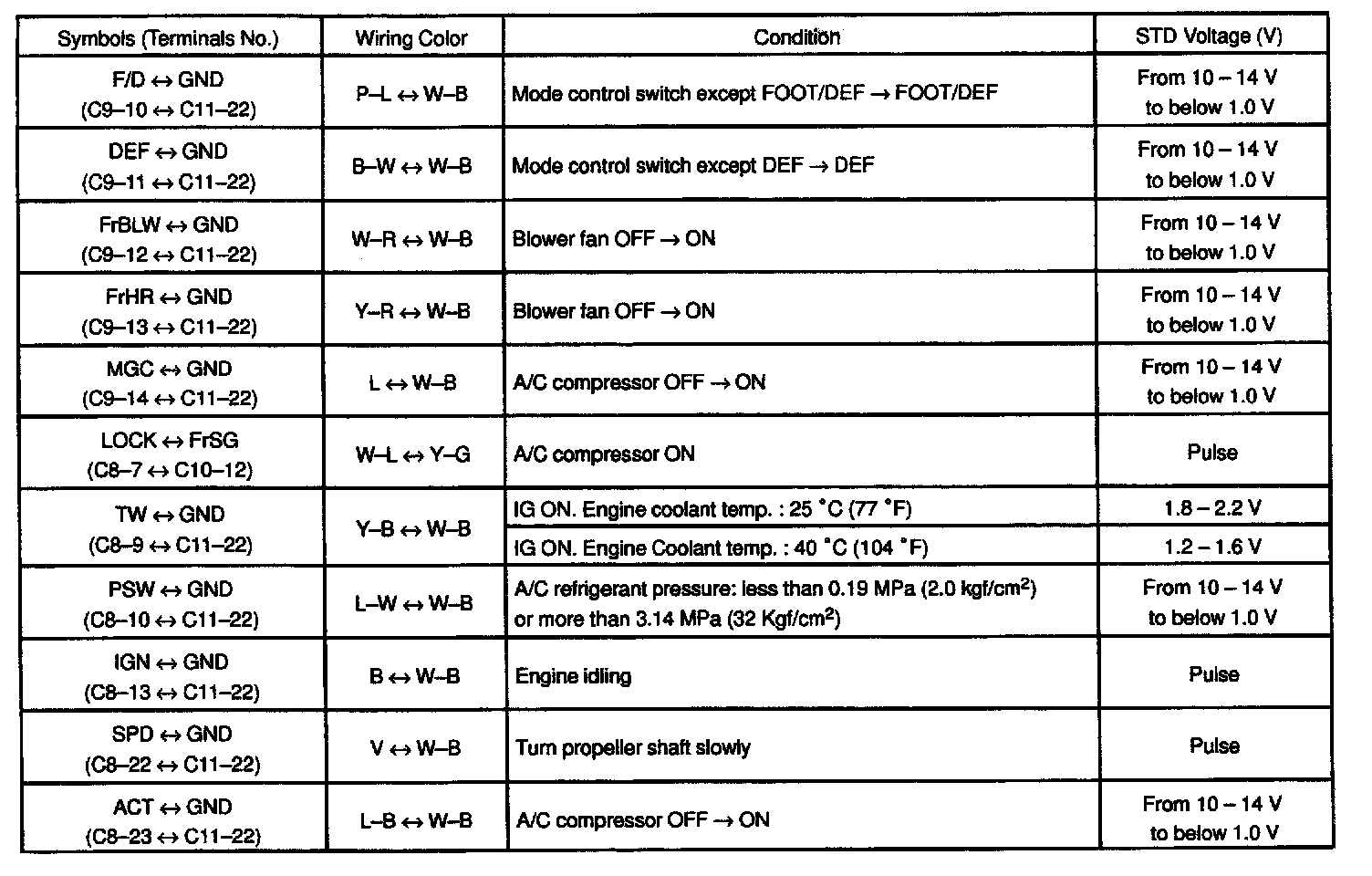

A/C Amplifier - ECU Pinouts - (C8 , C9 , C10 , C11) (Part 2 Of 2):

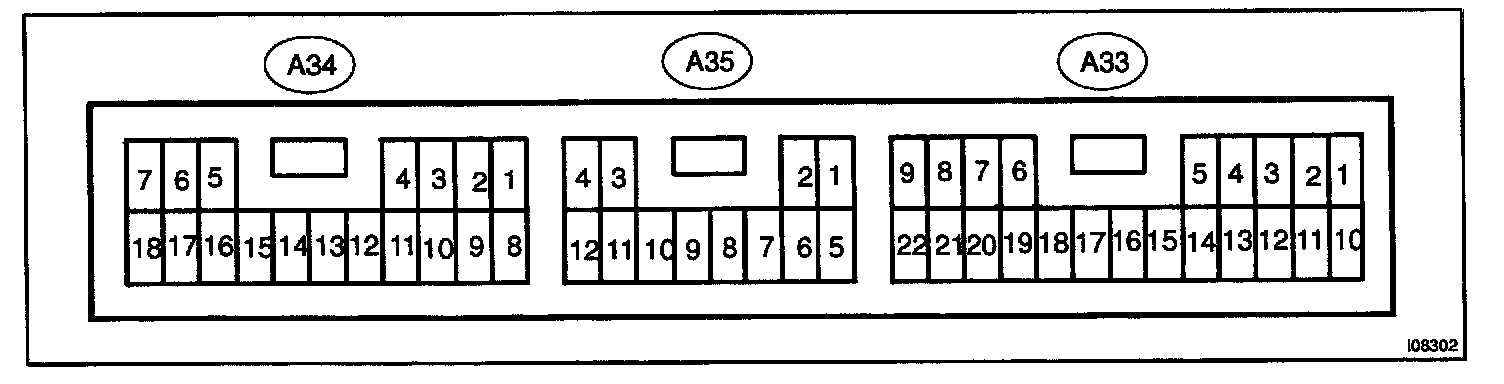

Rear A/C Amplifier - ECU Views - (A34 , A35 , A33):

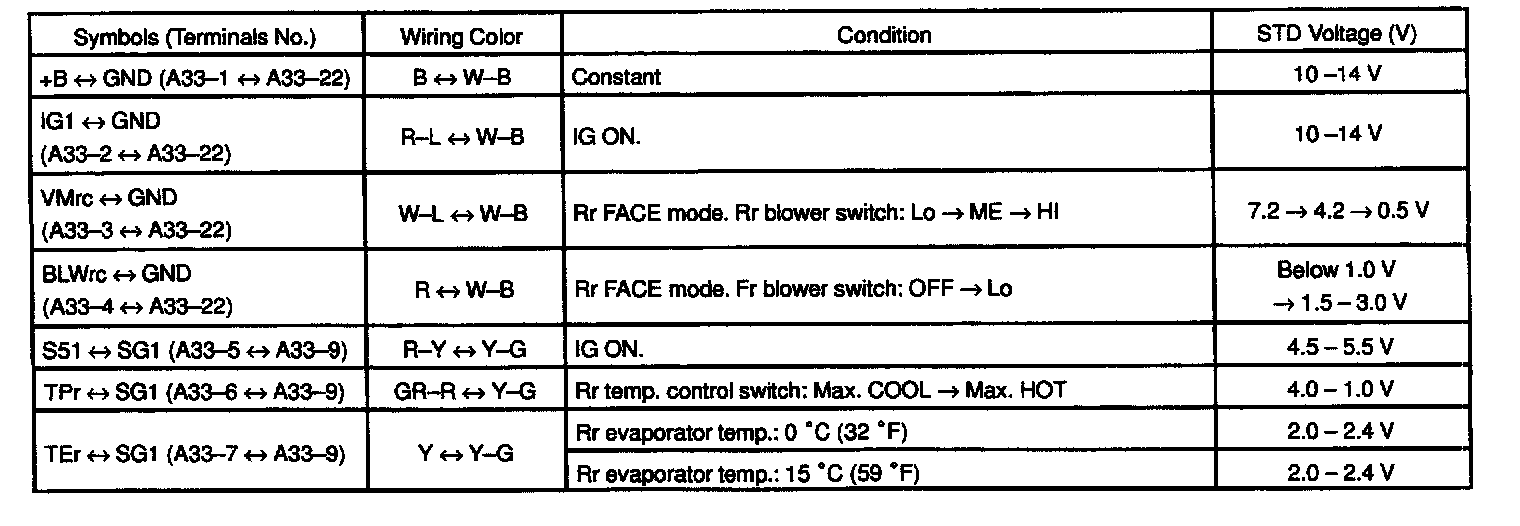

Rear A/C Amplifier - ECU Pinouts - (A34 , A35 , A33) (Part 1 Of 3):

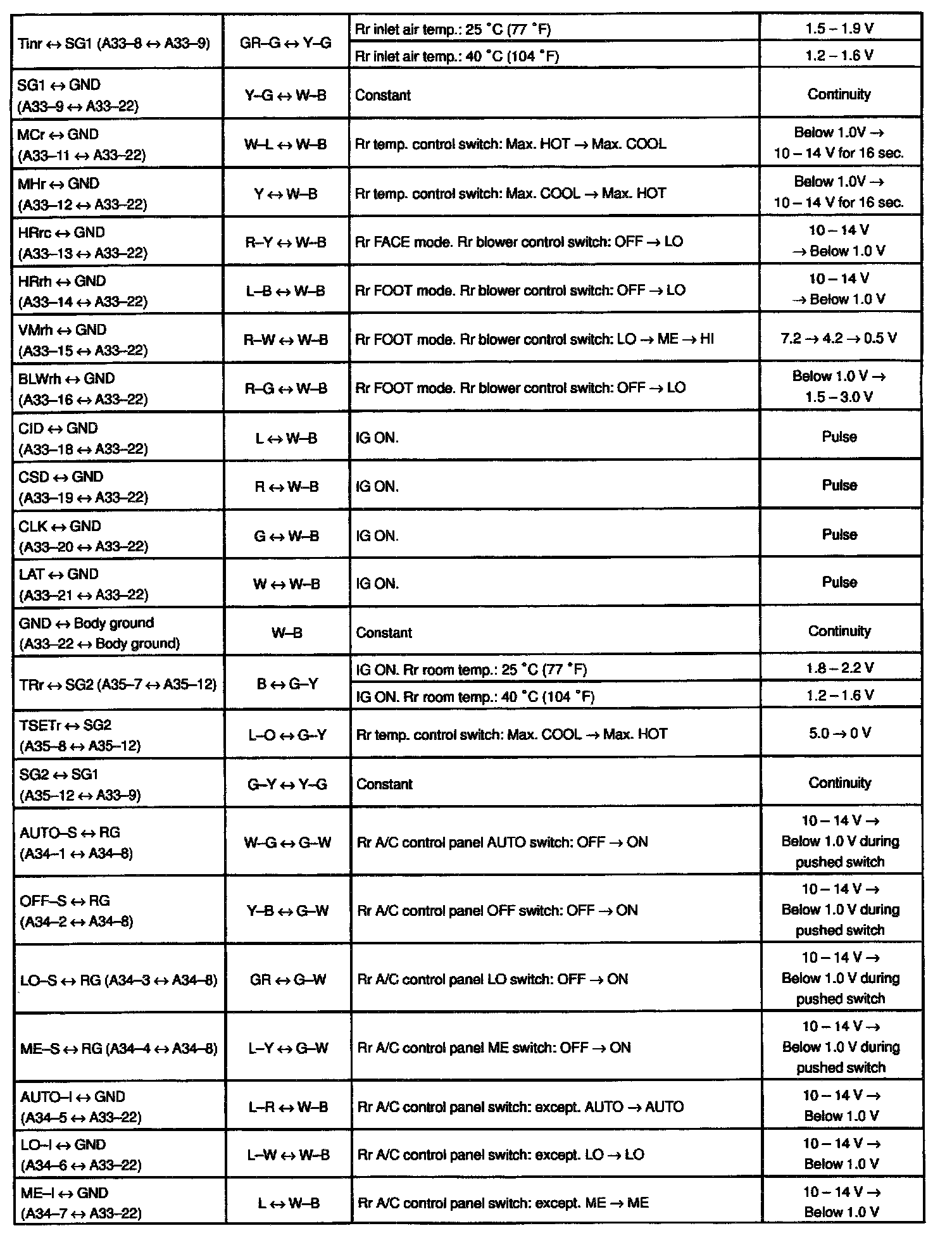

Rear A/C Amplifier - ECU Pinouts - (A34 , A35 , A33) (Part 2 Of 3):

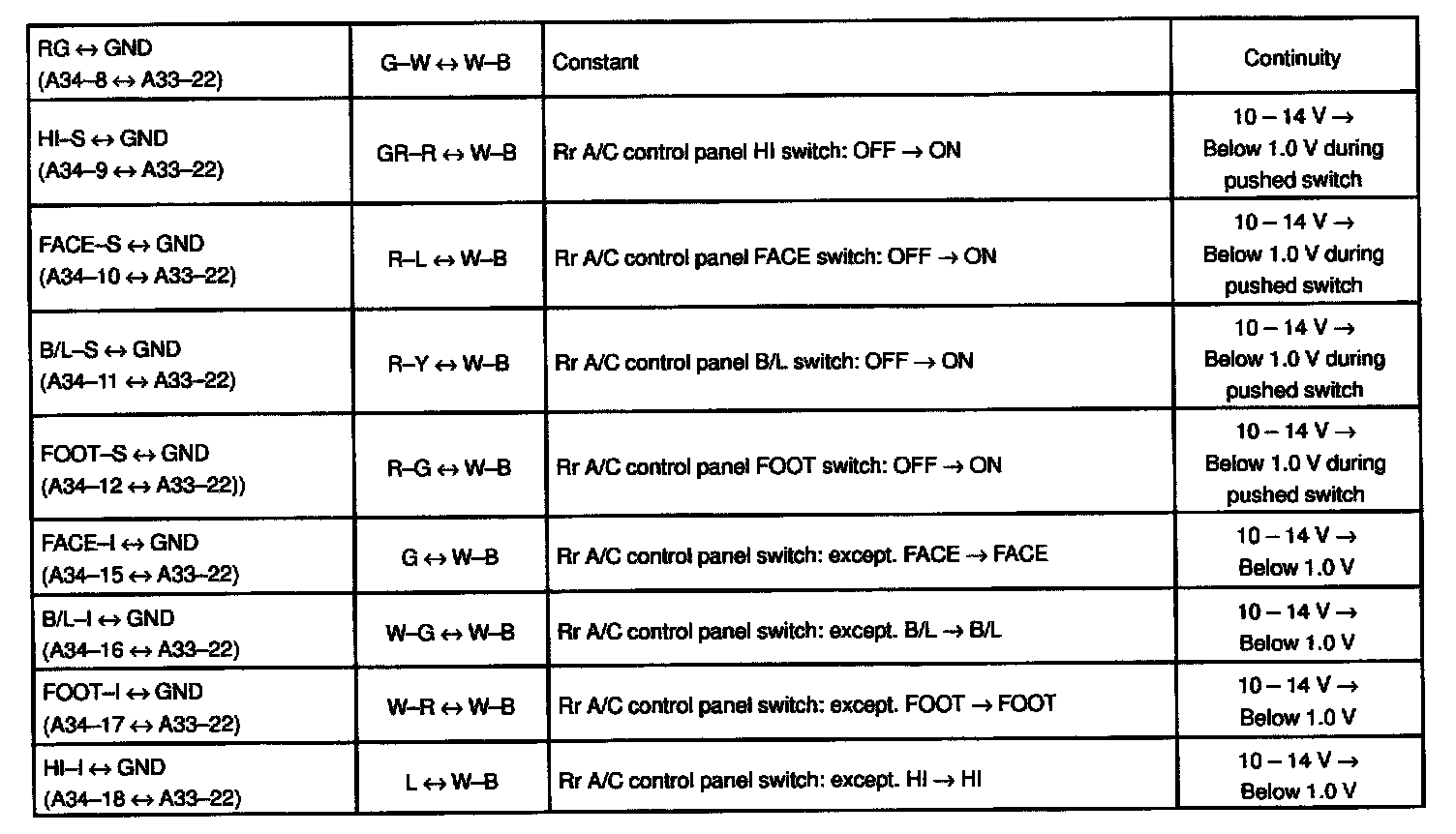

Rear A/C Amplifier - ECU Pinouts - (A34 , A35 , A33) (Part 3 Of 3):
