Lexus Truck
>>
2000
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Rear Differential
>>

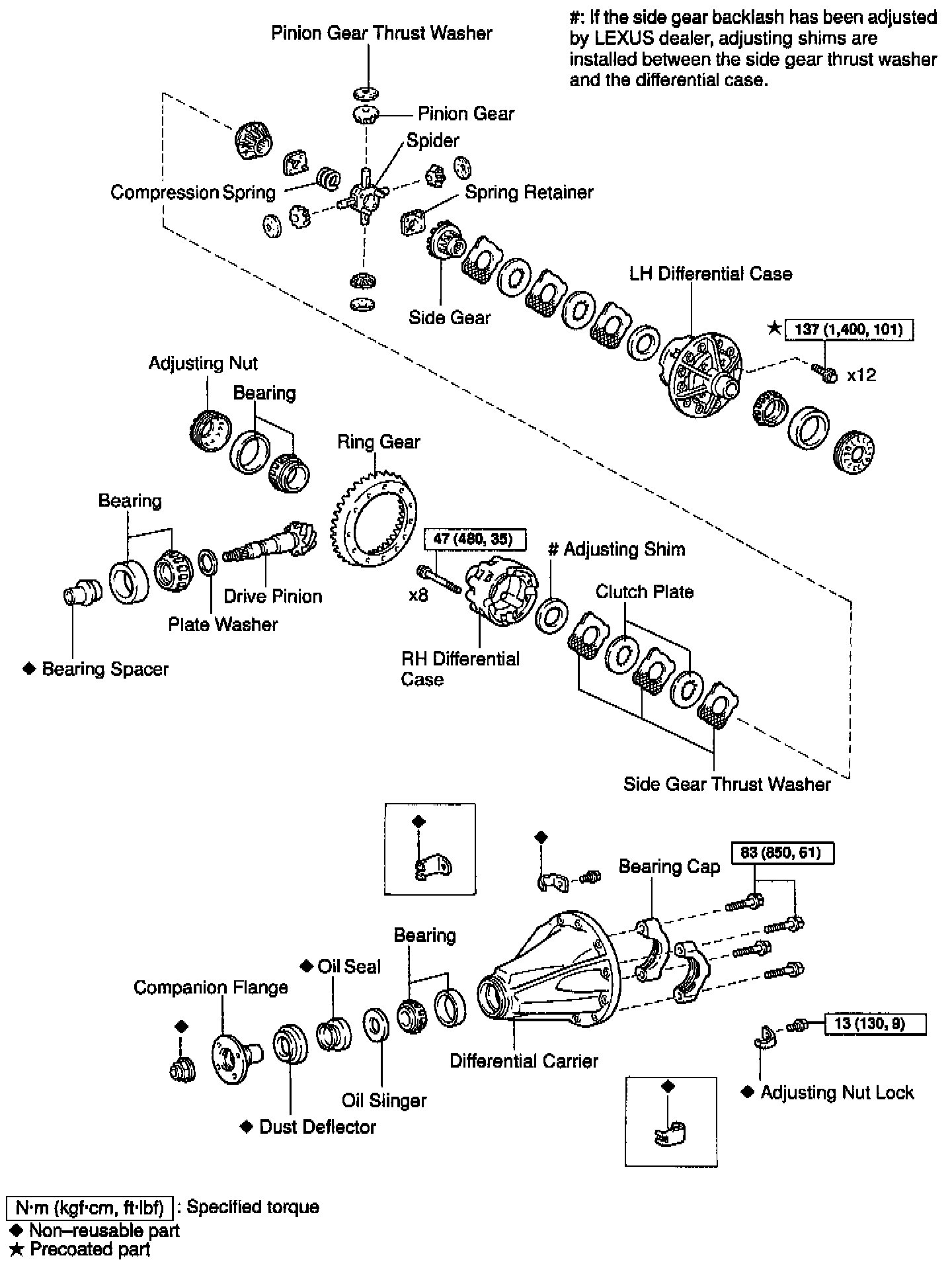

With Limited Slip Differential (LSD)
With Limited Slip Differential (LSD)

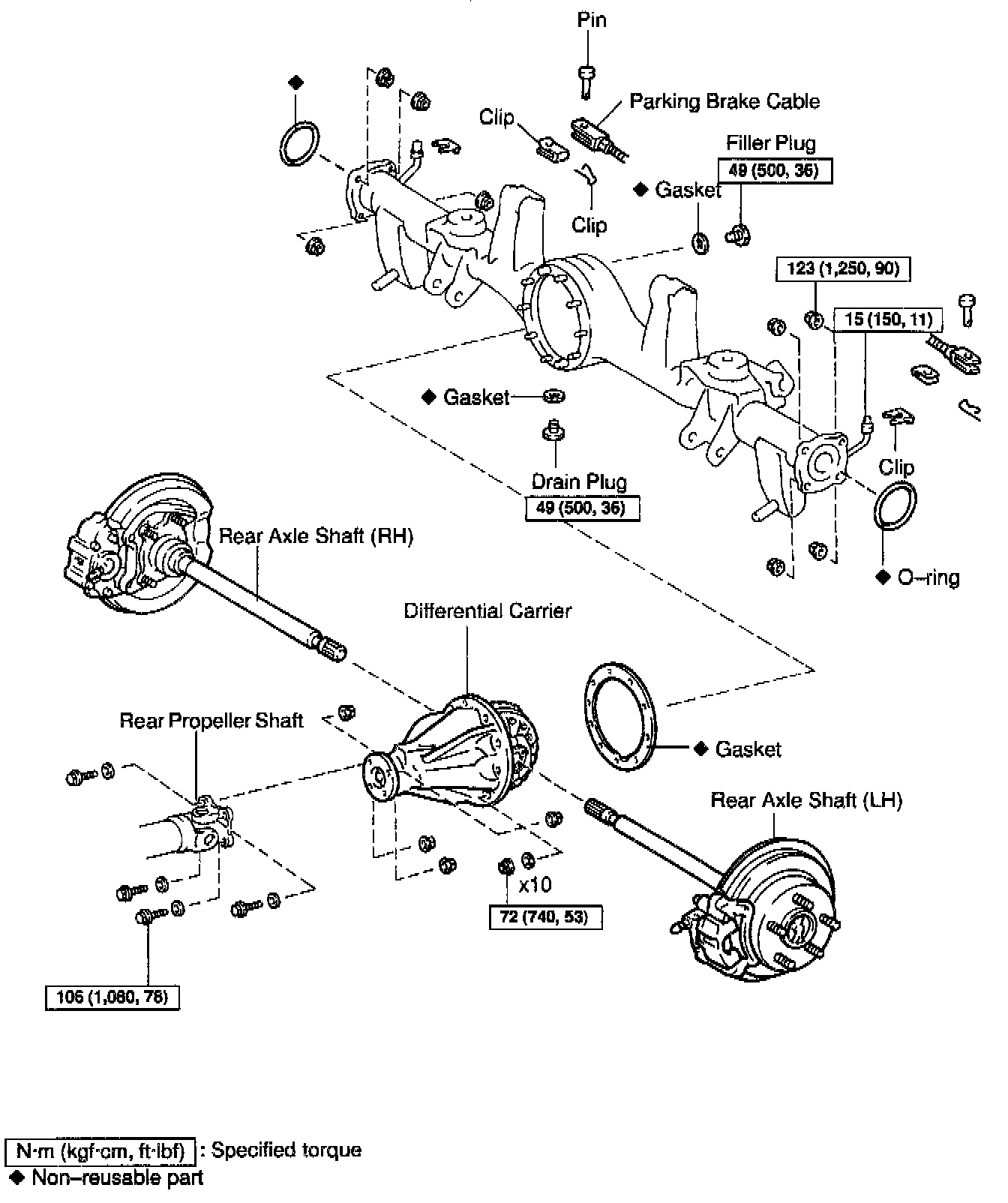

REAR
DIFFERENTIAL CARRIER
W/ RELATED COMPONENTS
