Home
>>
Lexus Truck
>>
2000
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Front Differential
Front Differential

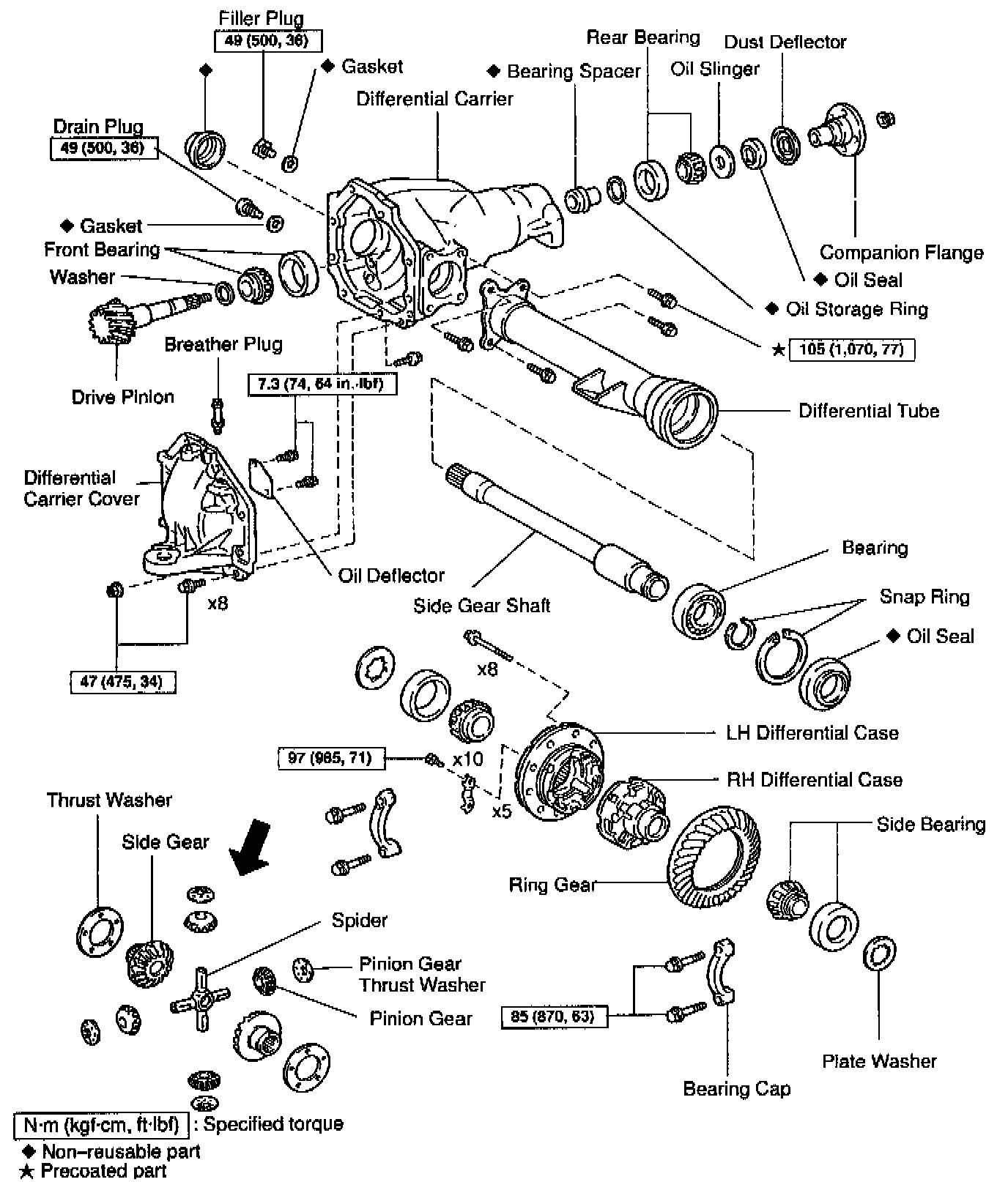

FRONT

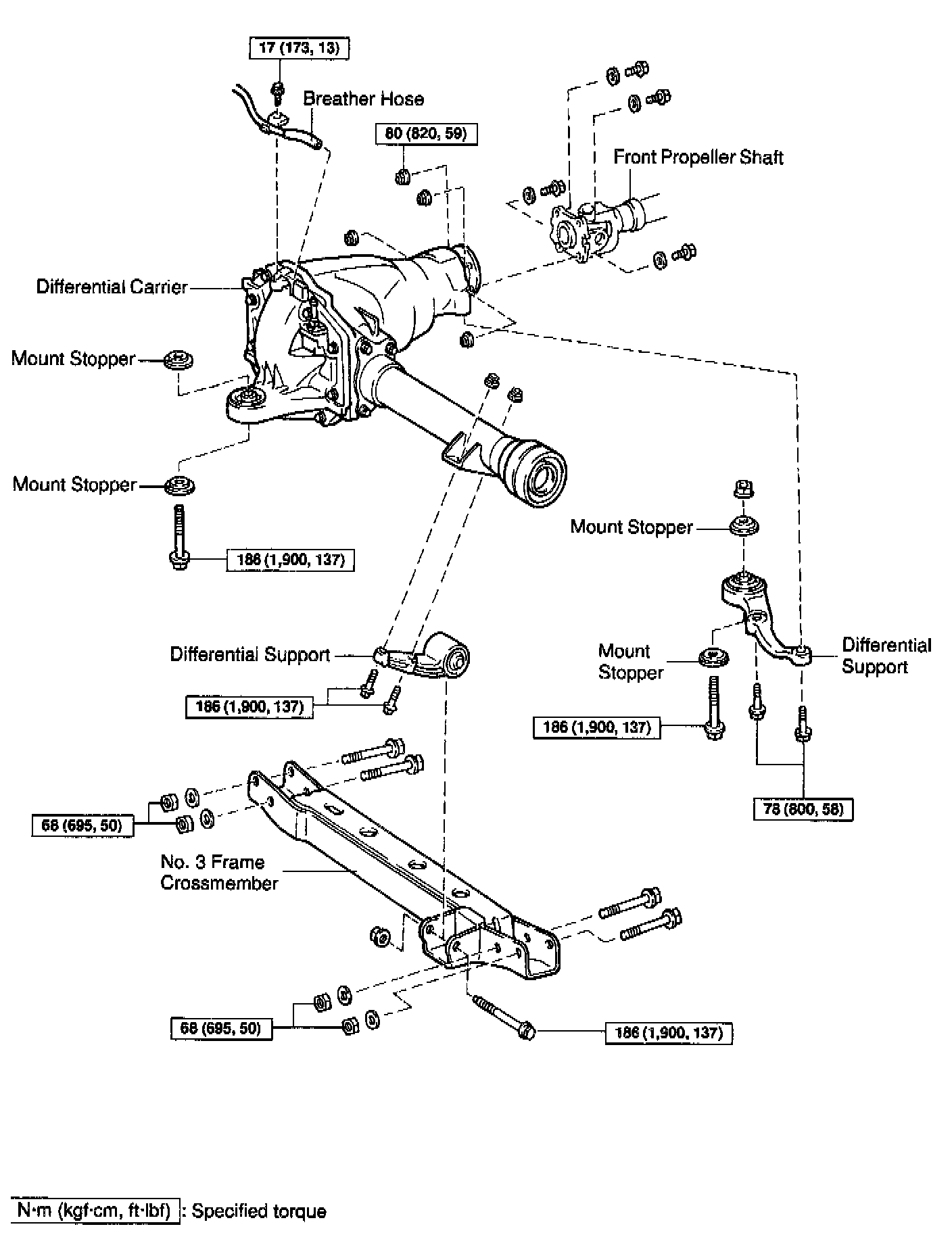

DIFFERENTIAL CARRIER
W/ RELATED COMPONENTS
