Home >> Lexus Truck >> 2000 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fuse, Relay, and Junction Block Data >> Cowl Side J/B LH Inner Circuit

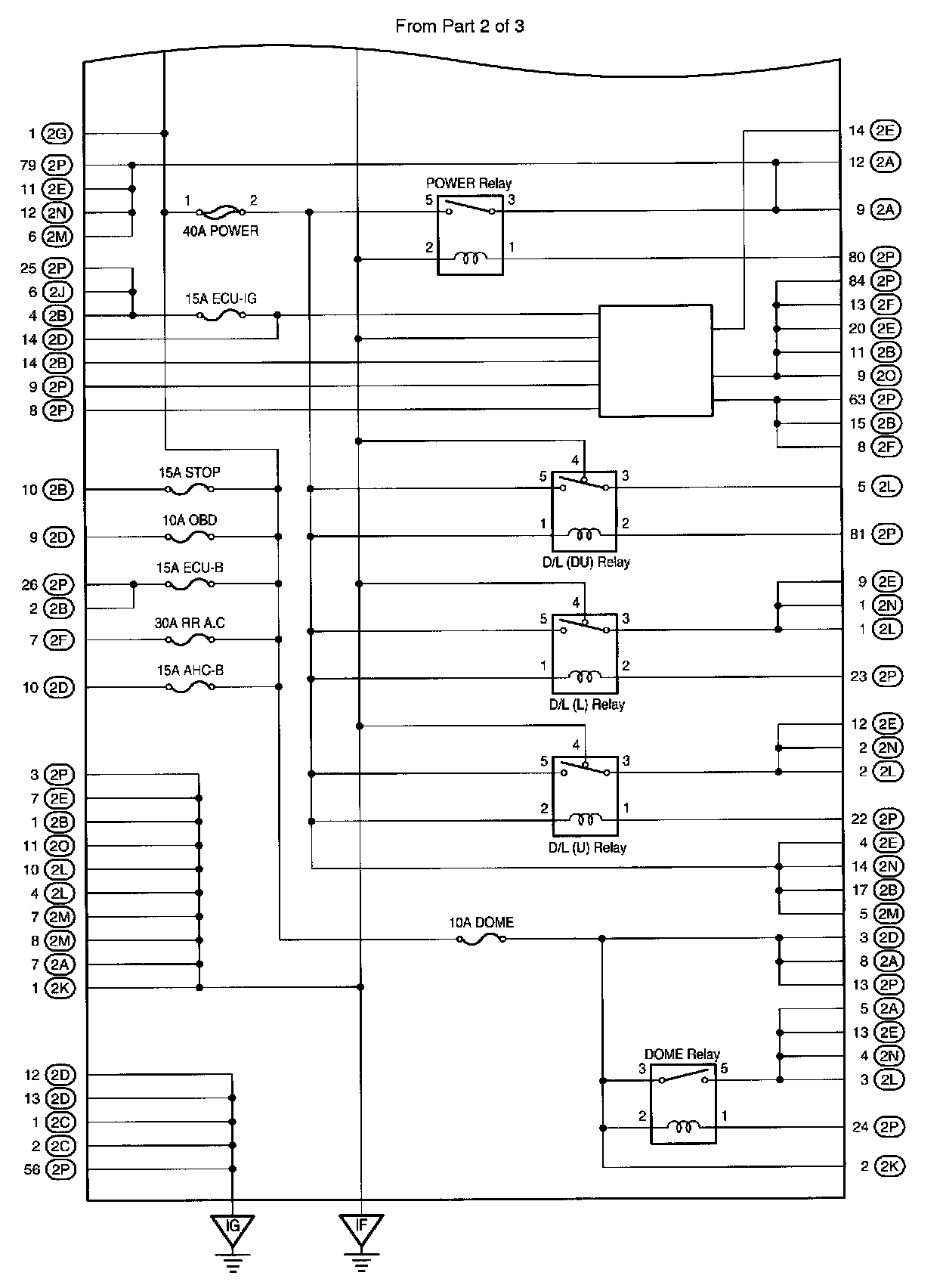

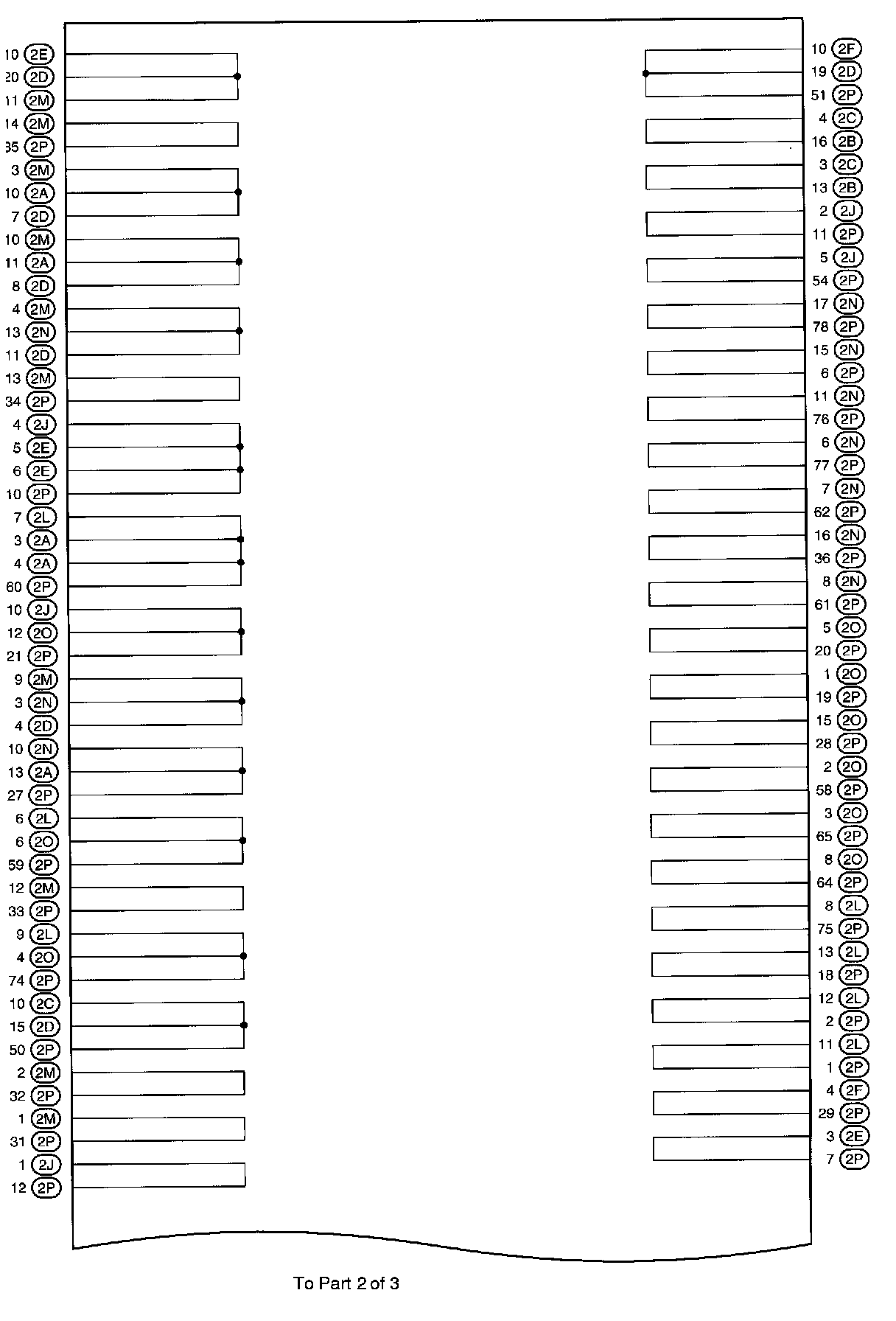

Cowl Side J/B LH Inner Circuit
