Diagnosis System

Check the warning lights and buzzer.
1. Release parking brake lever.

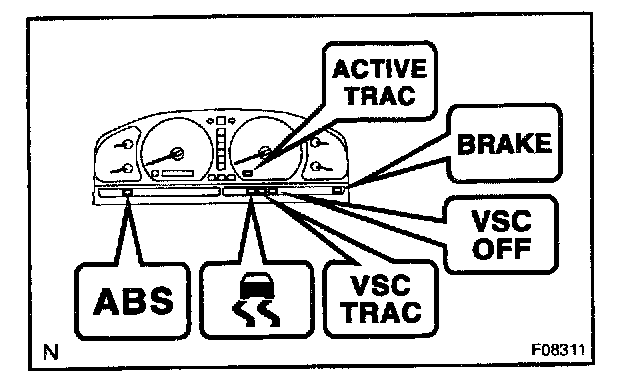

2. When the ignition switch is turned ON, check that the ABS, VSC TRAC and BRAKE warning lights, VSC OFF, SLIP and ACTIVE TRAC indicator lights goes on for 3 sec.
3. When depressing the brake pedal repeatedly it may turn on the warning lights and buzzer.






HINT:
- If the ECU stores DTC, VSC TRAC warning light and VSC OFF indicator light is ON.

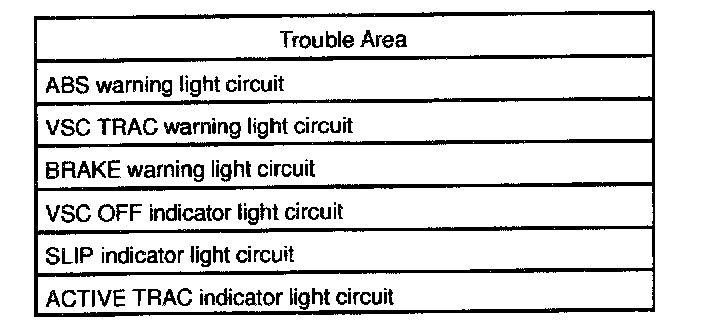

- If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit, VSC TRAC warning light circuit, brake warning light circuit, VSC OFF indicator light circuit, SLIP indicator light circuit and ACTIVE TRAC indicator light circuit.
