VSC TRAC Warning Light Circuit

CIRCUIT DESCRIPTION
If the ECU stores DTC, the VSC TRAC warning light lights on the combination meter.

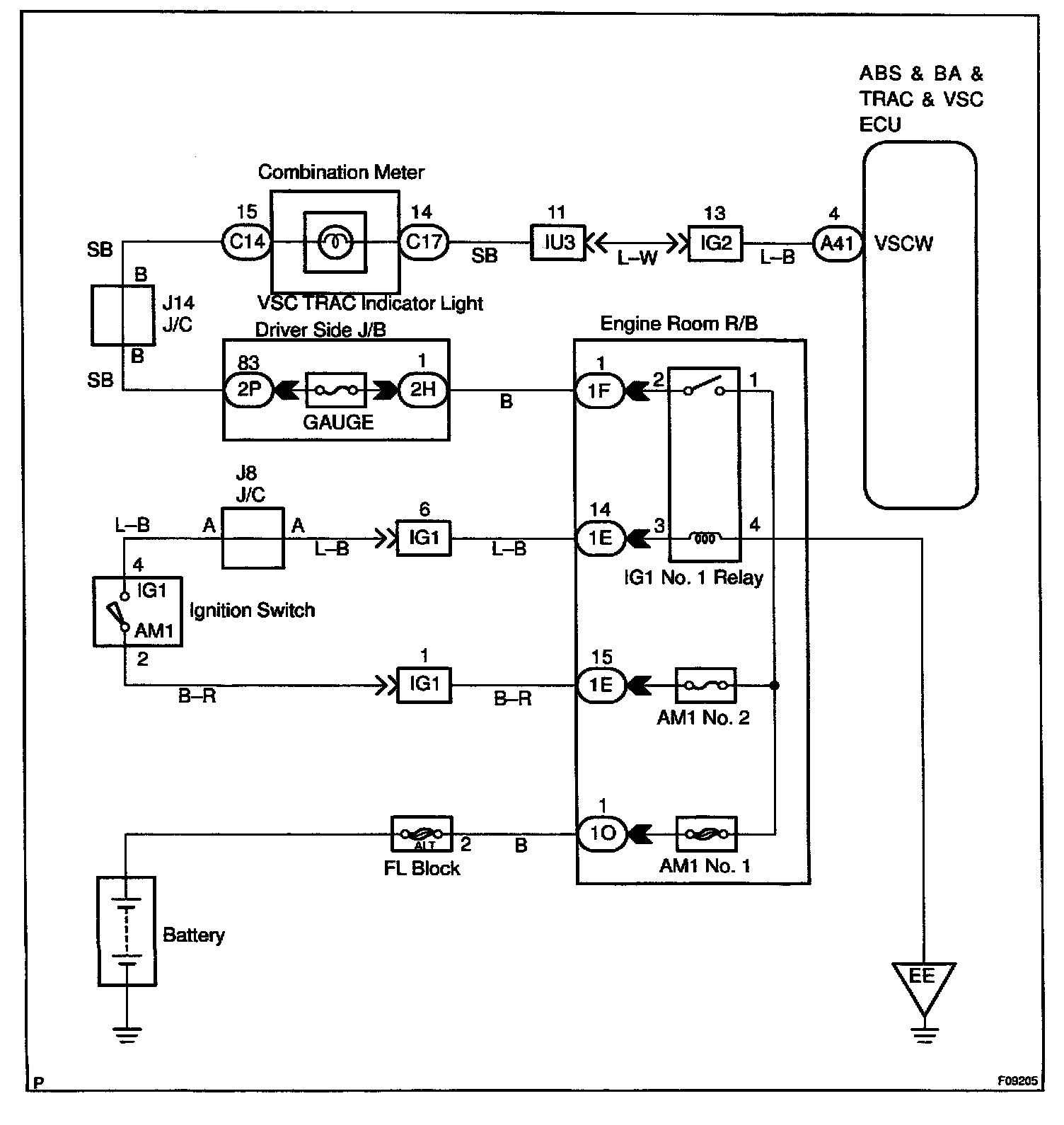

WIRING DIAGRAM

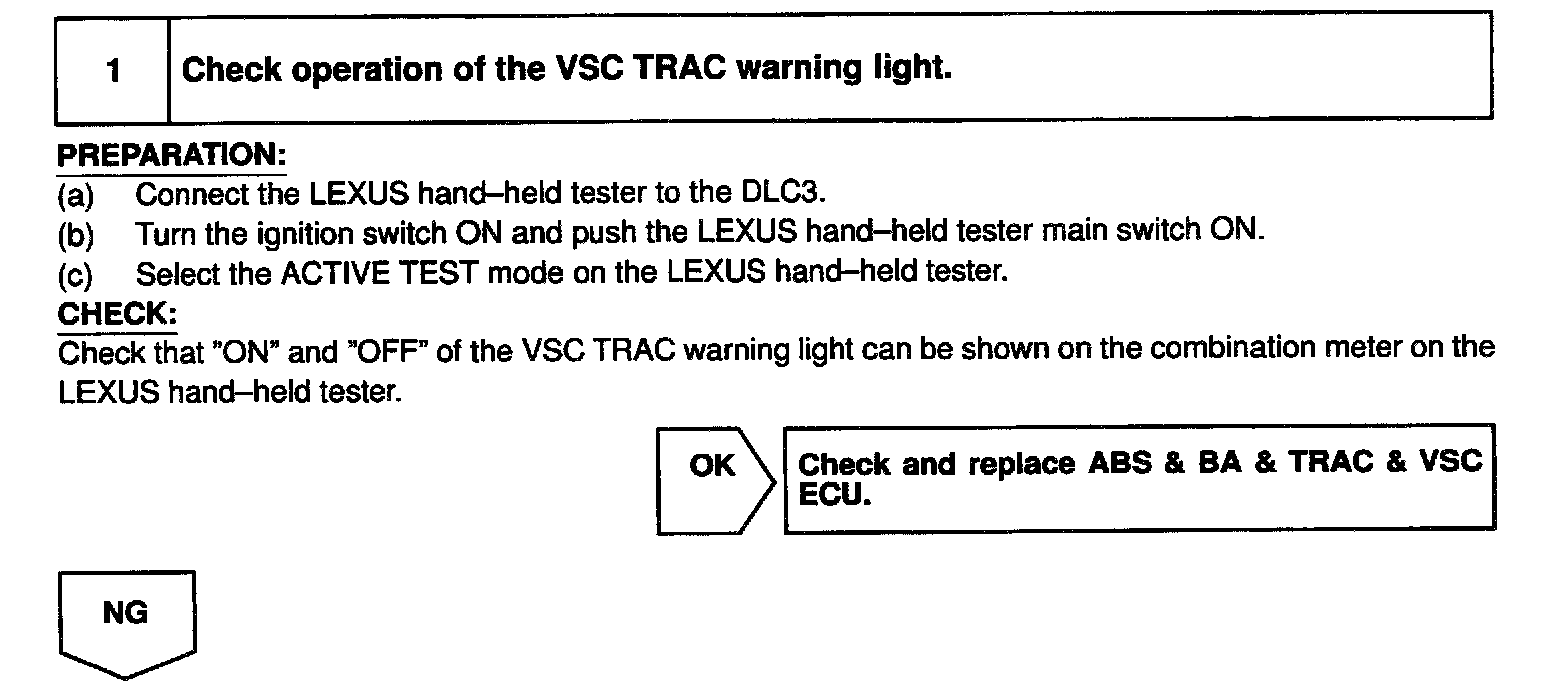

Step 1:

Step 2:

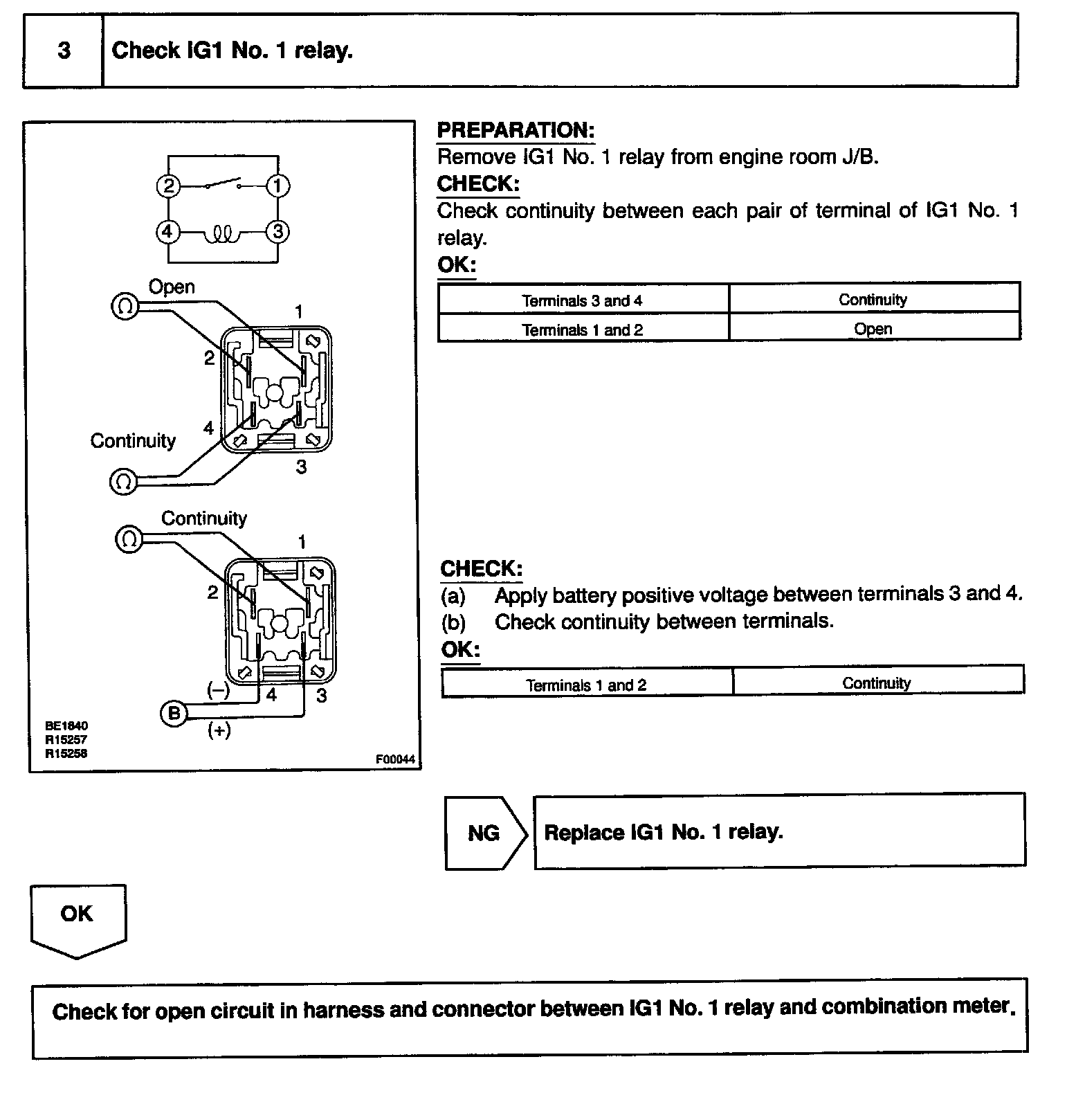

Step 3:

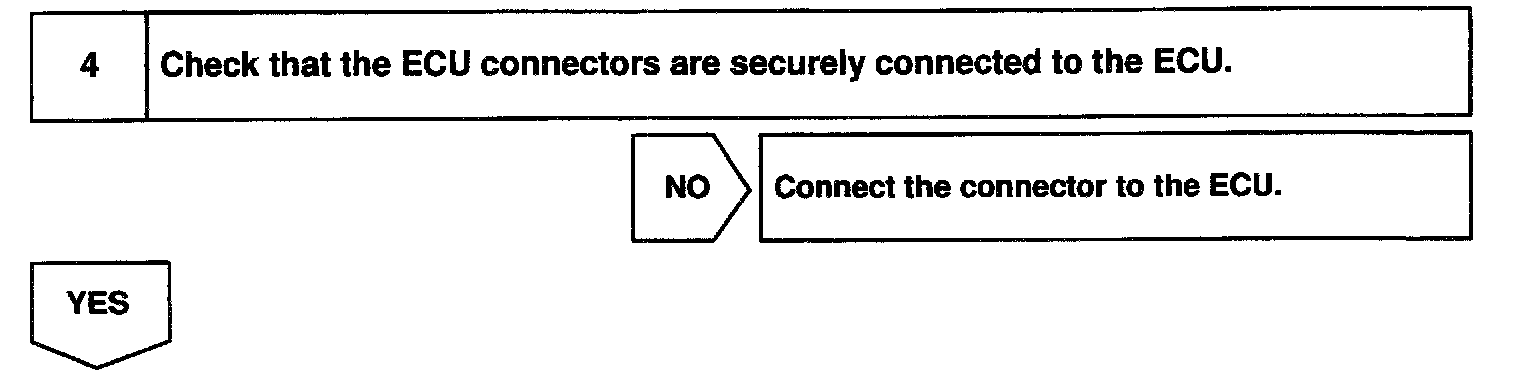

Step 4:

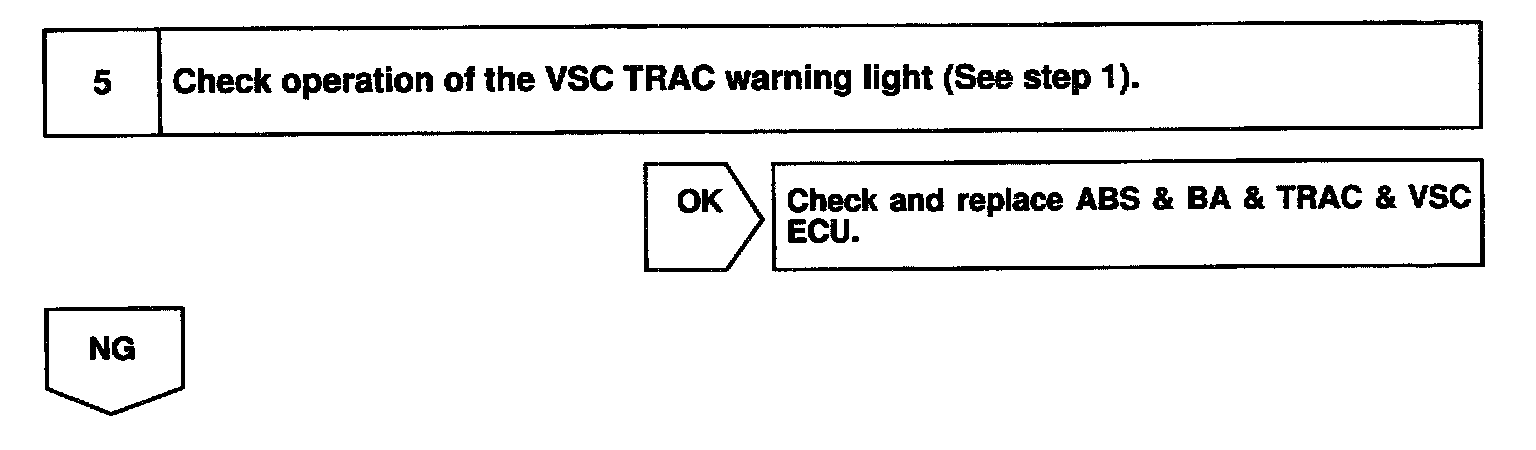

Step 5:

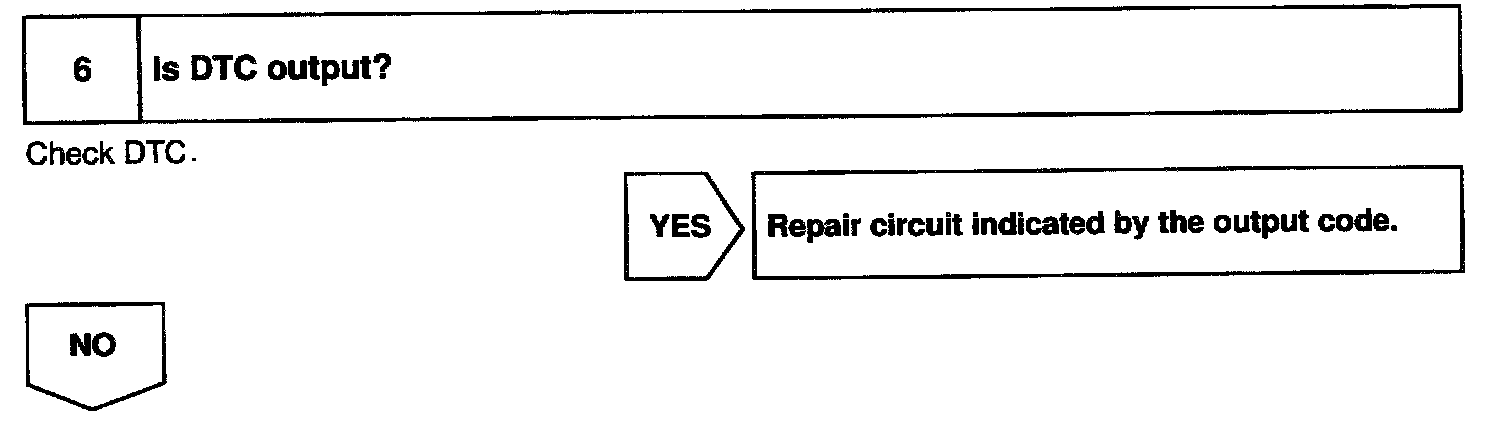

Step 6:

Step 7:

INSPECTION PROCEDURE

HINT: Troubleshoot in accordance with the chart below for each trouble symptom.
