SLIP Indicator Light Circuit

CIRCUIT DESCRIPTION
The SLIP indicator blinks during VSC operation.




WIRING DIAGRAM

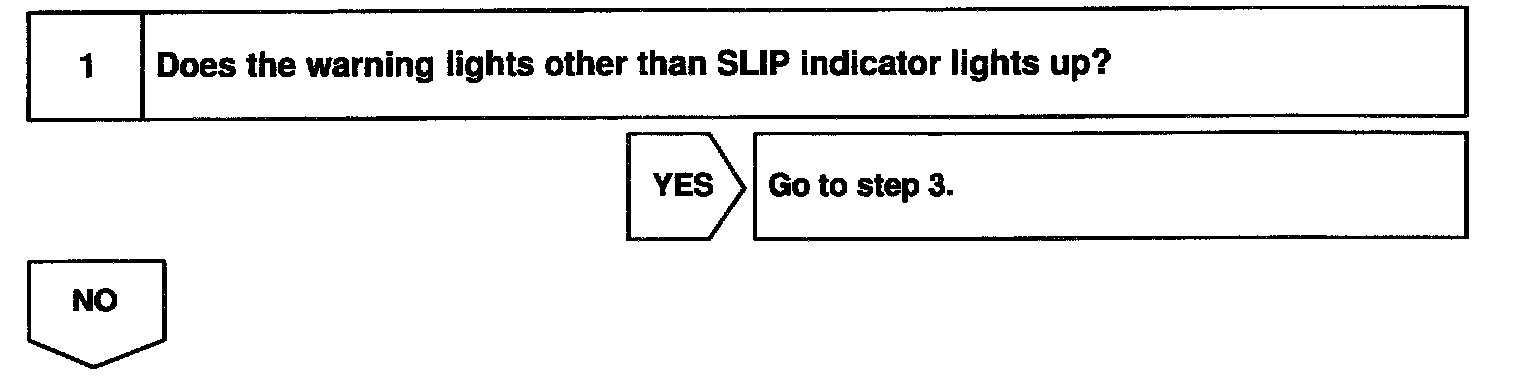

Step 1:

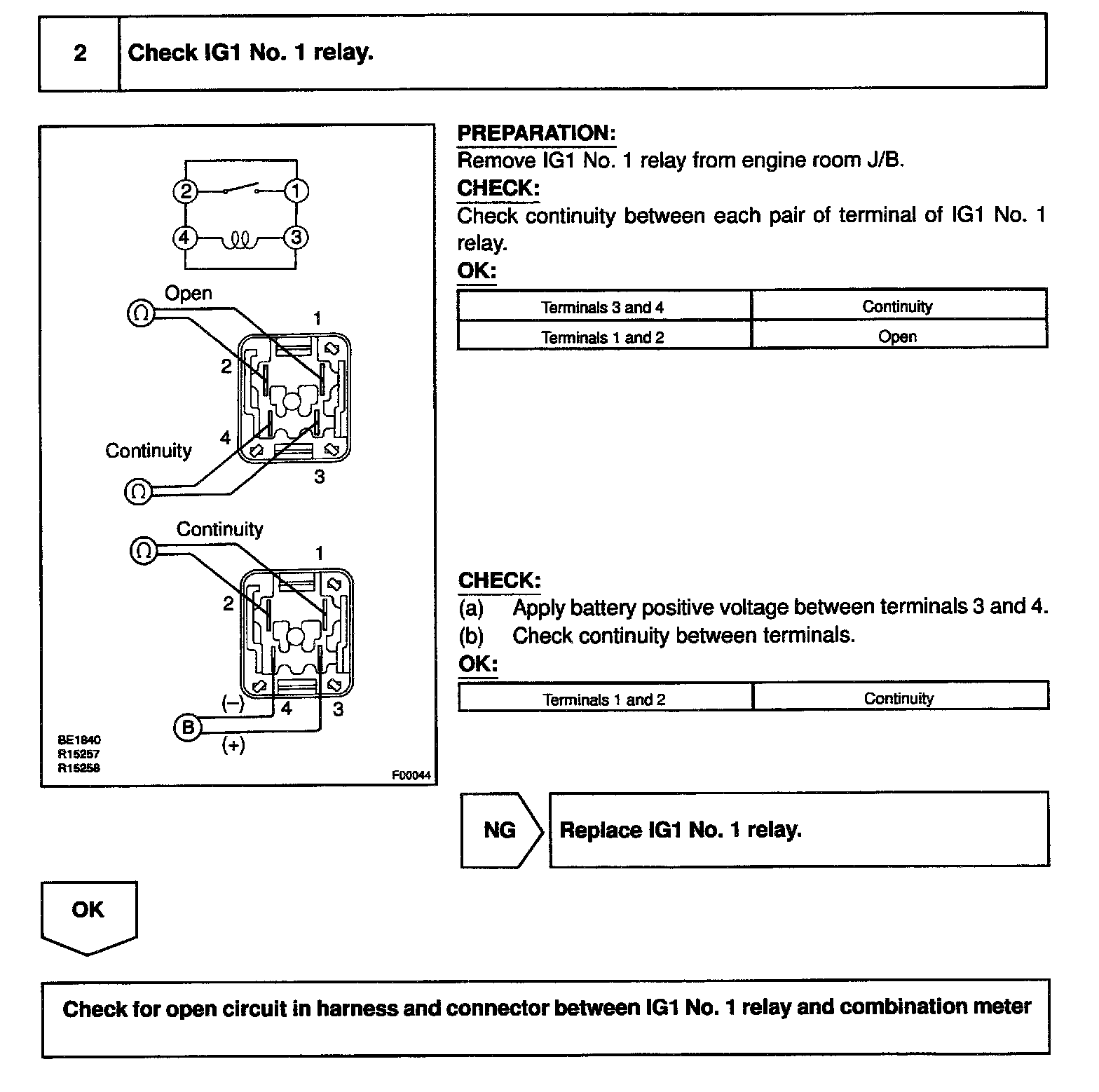

Step 2:

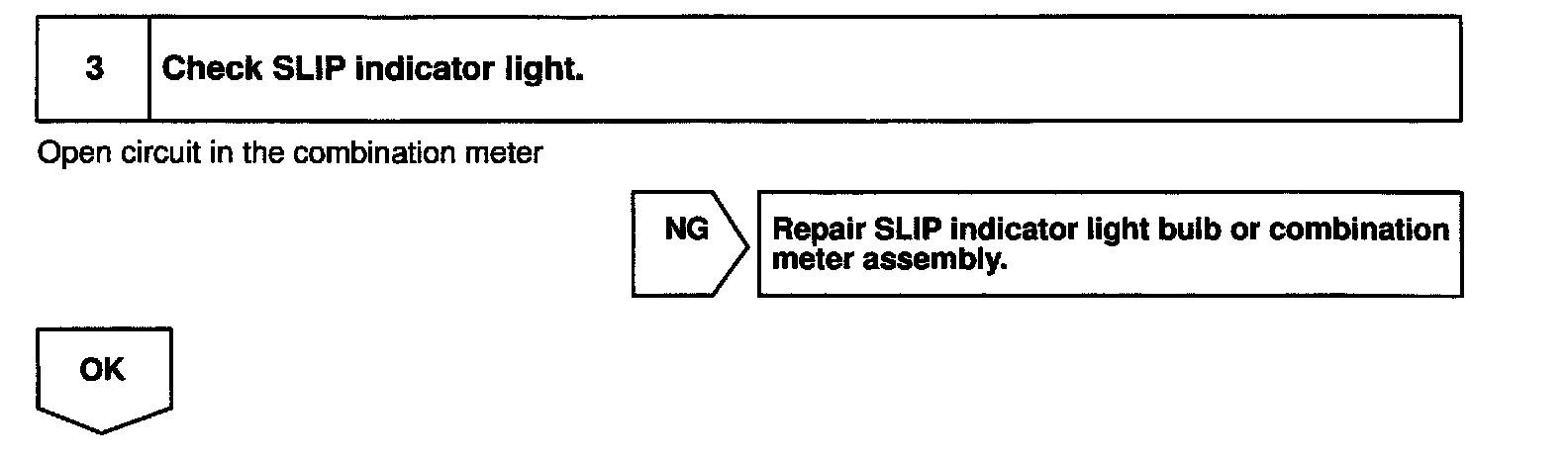

Step 3:

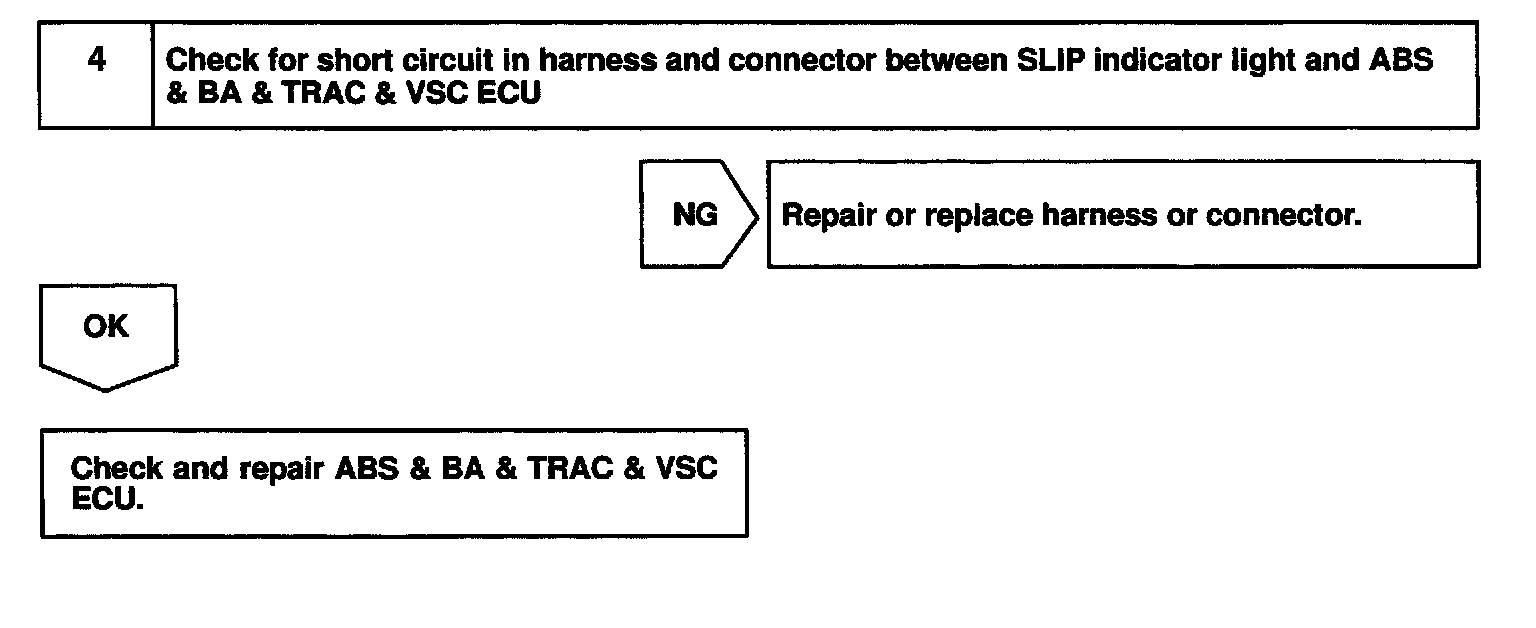

Step 4:




INSPECTION PROCEDURE
