Brake Warning, VSC Buzzer Circuit

CIRCUIT DESCRIPTION
The brake warning, VSC buzzer sounds while the accumulator pressure is abnormally low or an abnormality casing low fluid pressure occurs VSC is activated.




WIRING DIAGRAM

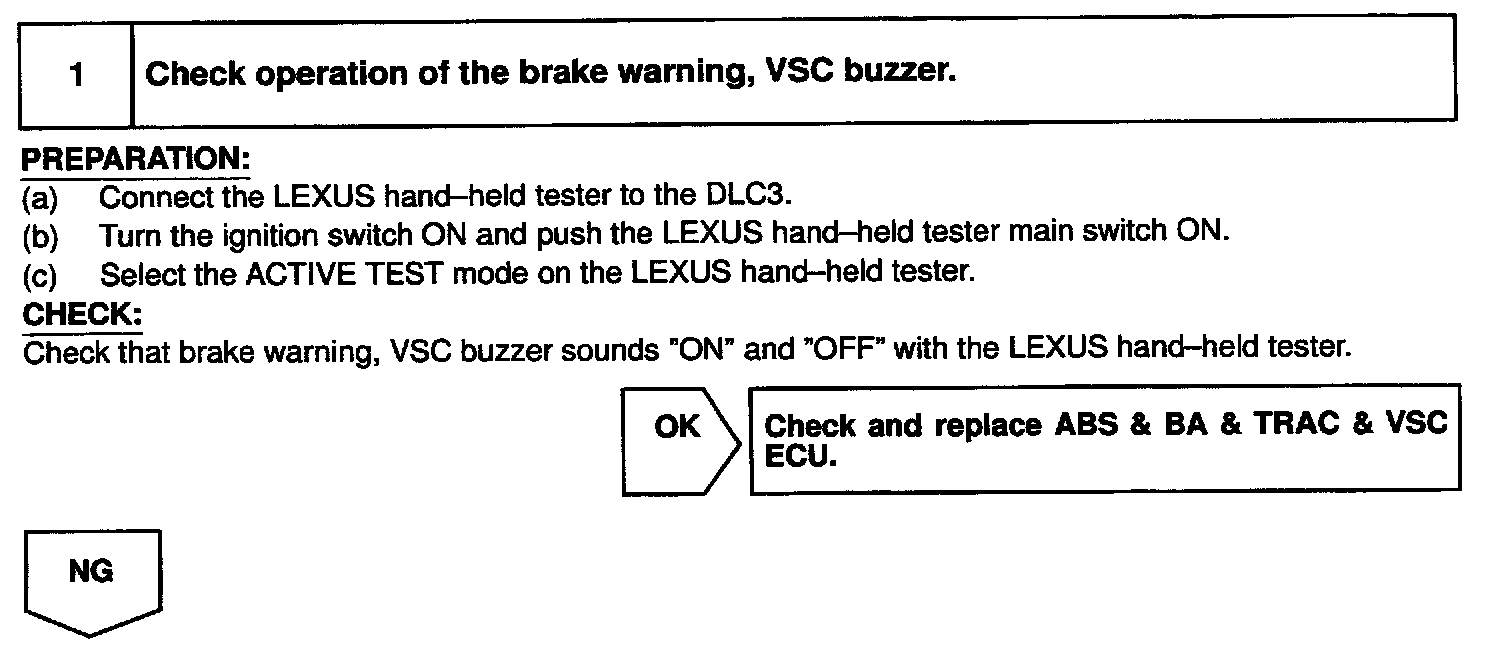

Step 1:

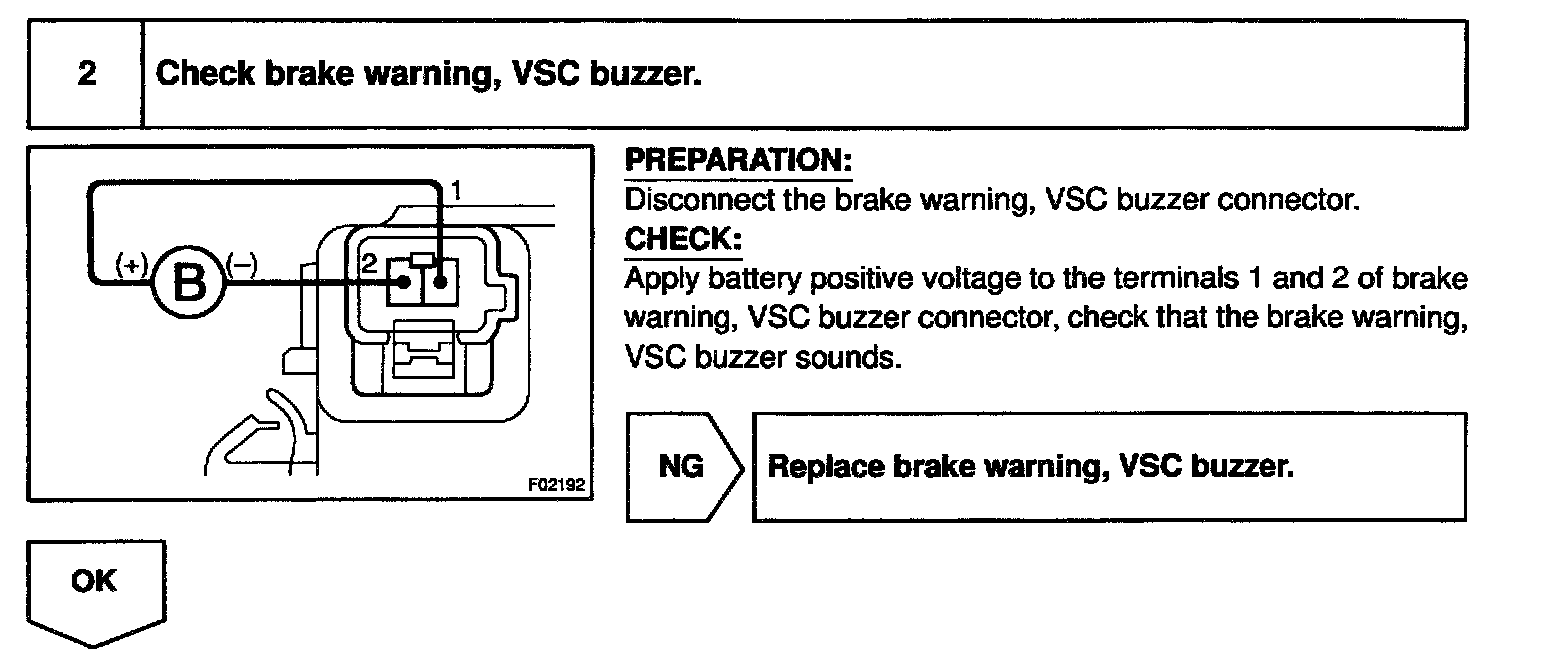

Step 2:

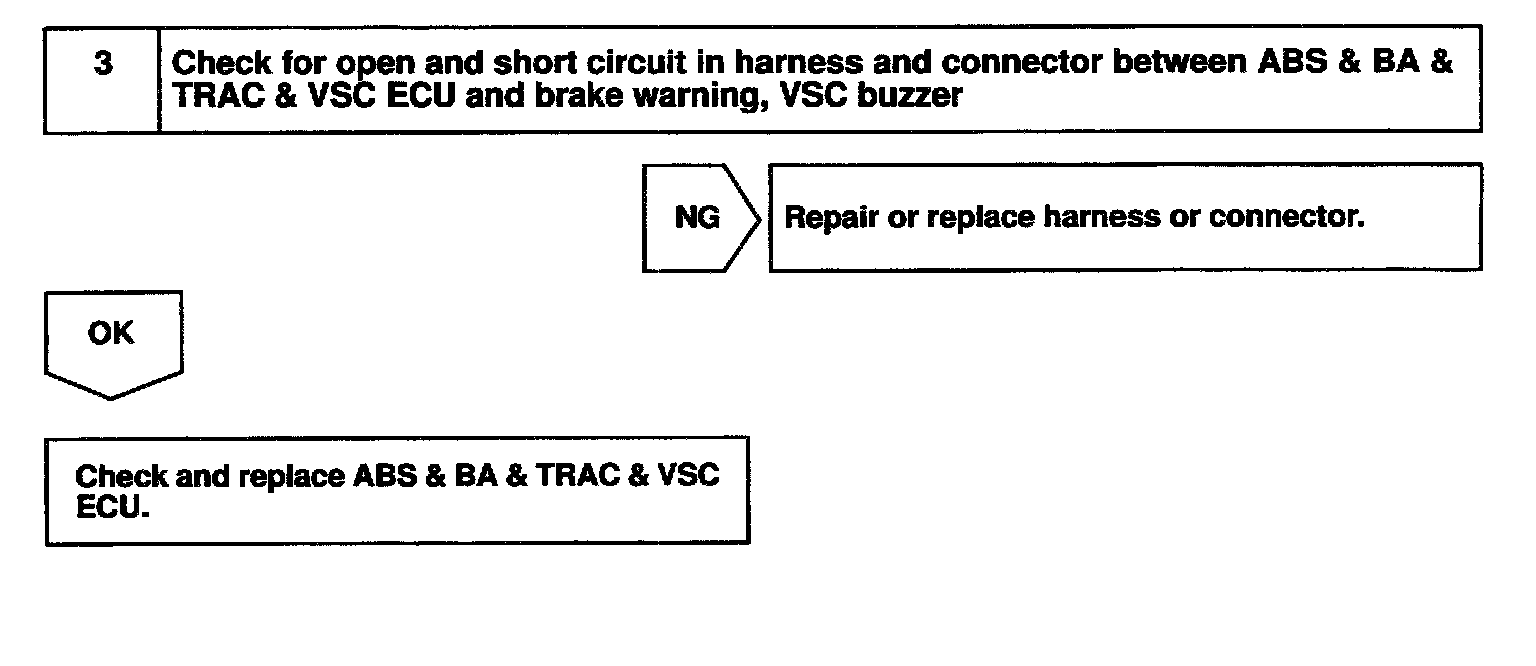

Step 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 2 in case of not using the LEXUS hand-held tester.
