Brake Warning Light Circuit

CIRCUIT DESCRIPTION
The BRAKE warning light lights up while the brake fluid is insufficient and EBD is abnormally.

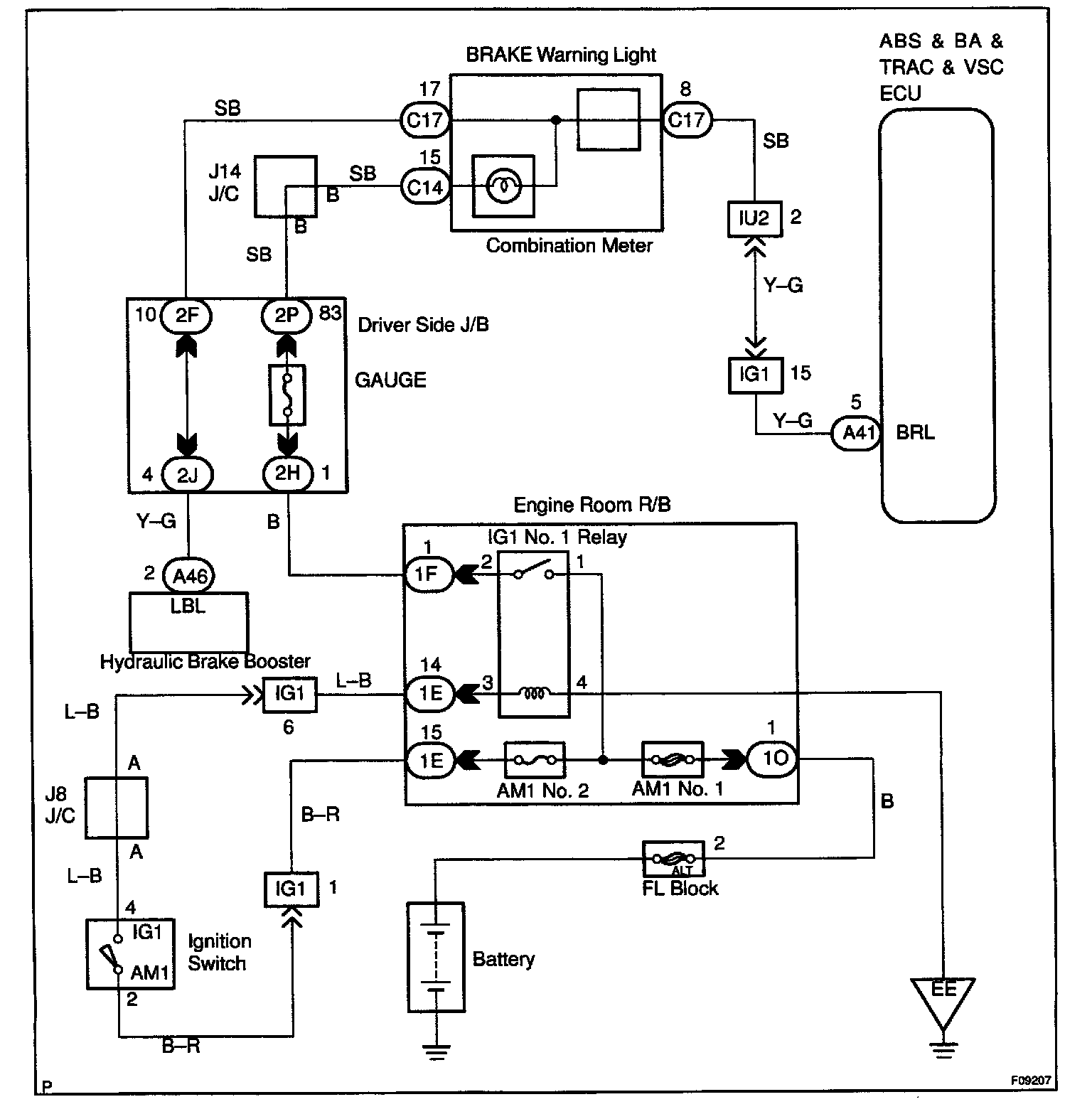

WIRING DIAGRAM

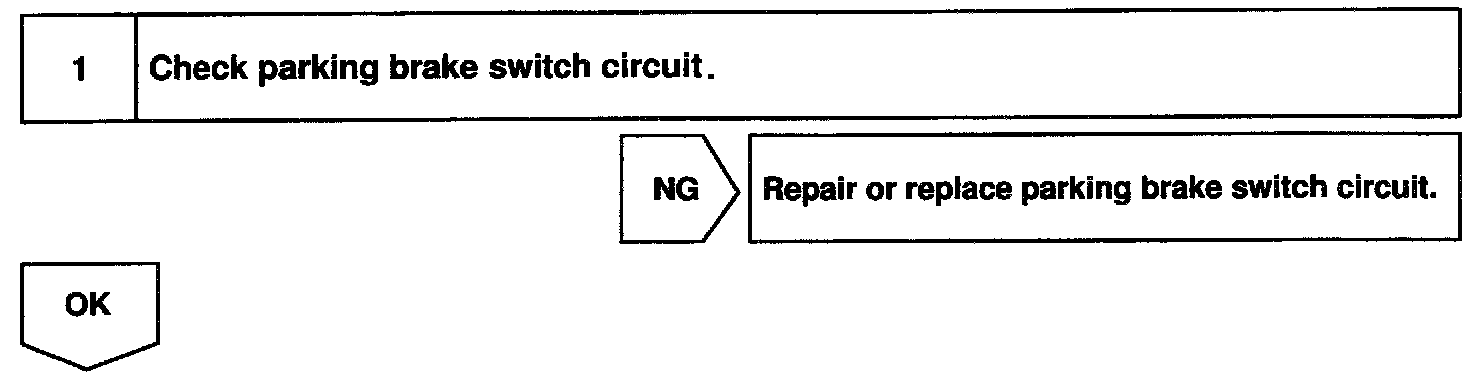

Step 1:

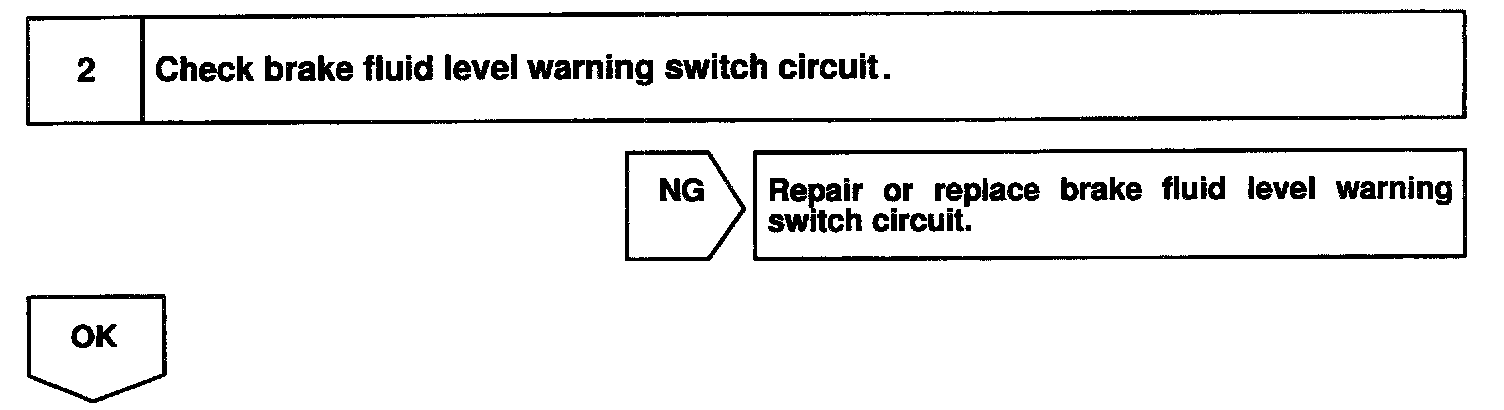

Step 2:

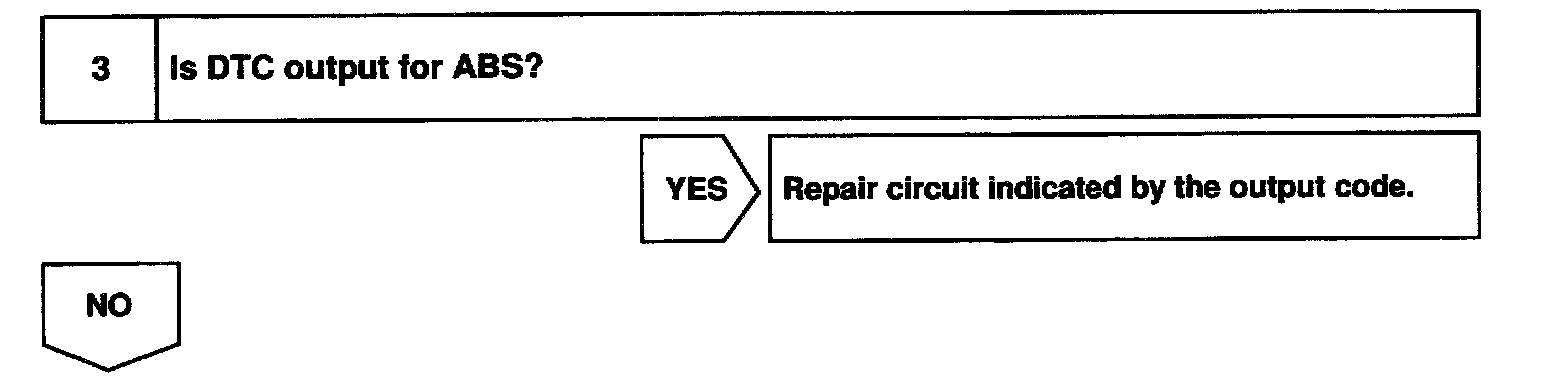

Step 3:

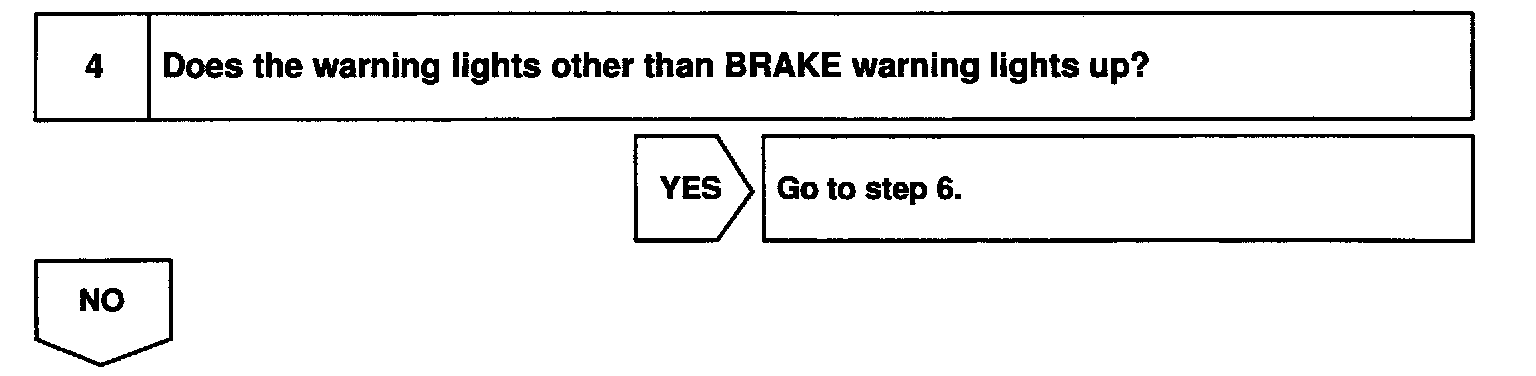

Step 4:

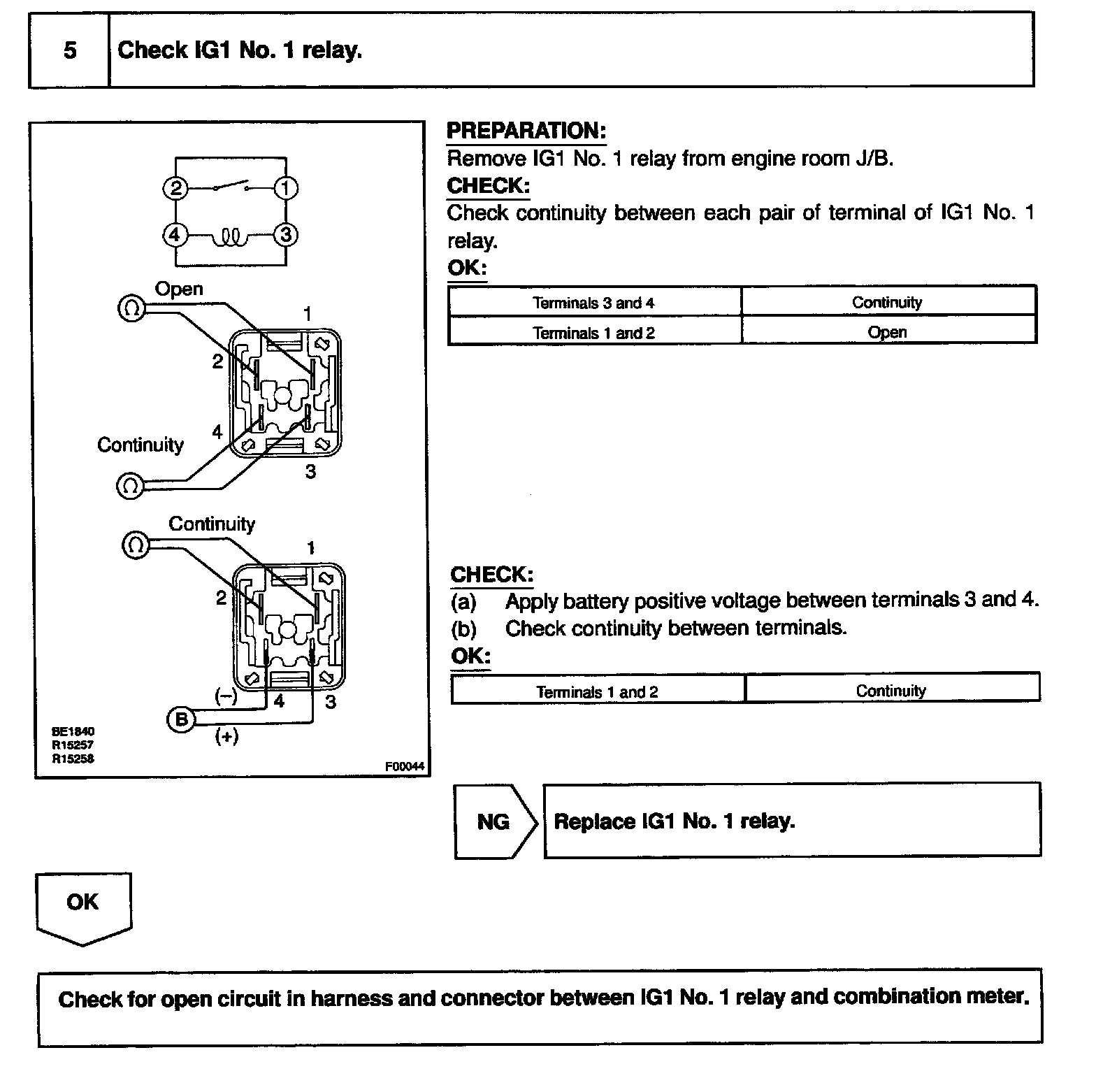

Step 5:

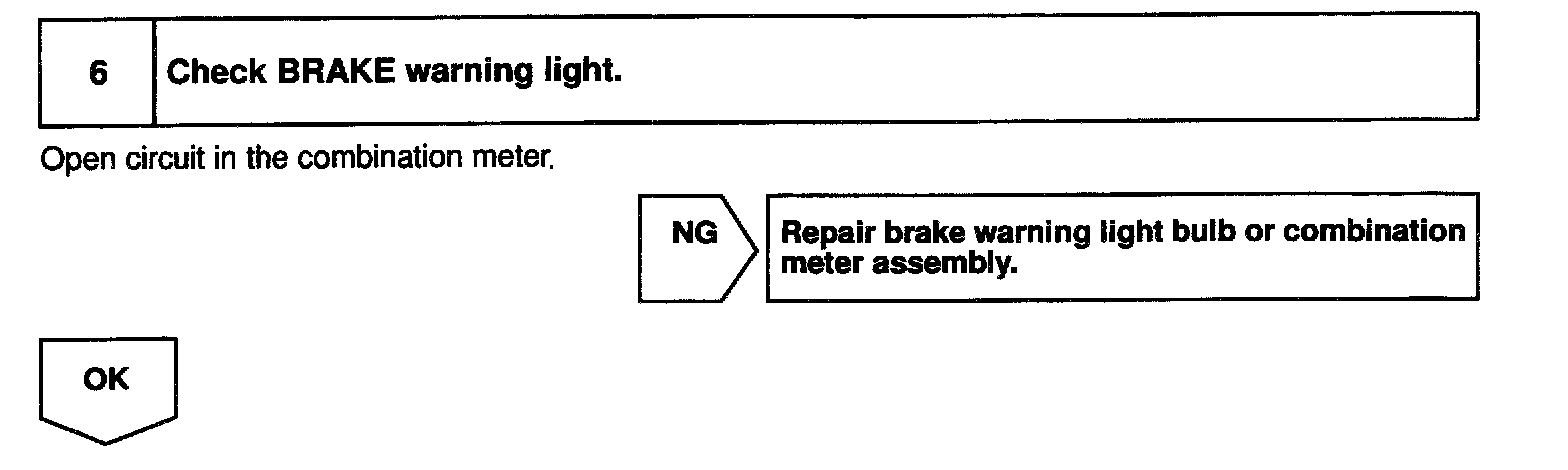

Step 6:

Step 7:

INSPECTION PROCEDURE
