Replacement of Step Pad

Step Pad Replacement Procedure

Replacement of Step Pad.





1. Remove four screws (two at each end) from underneath the running board. (Figure 12)

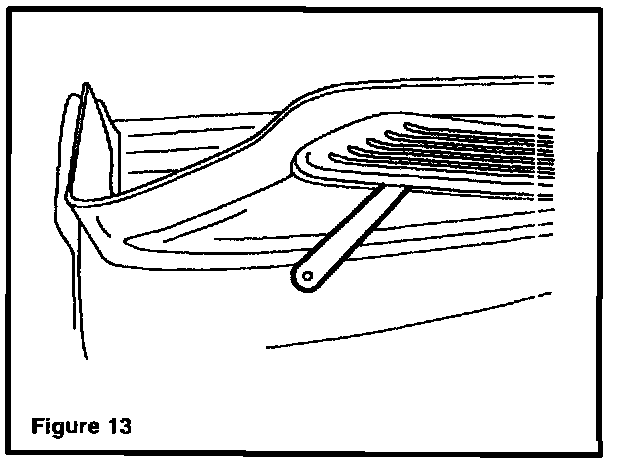

2. With a nylon removal tool (NRT), pry the step pad up and remove. (Figure 13)

3. To install, spray a soapy water solution on the endcaps and bottom side of step pad. Line up the four screw holes and press the step pad into place over the step-pad locks.

4. Install the four screws.
