Replacement of Endcaps

Endcaps Replacement Procedure

Replacement of Endcaps.

1. Remove running board from vehicle as described.

2. Remove the step pad as described.

3. Remove the screws for the underside of the running board.

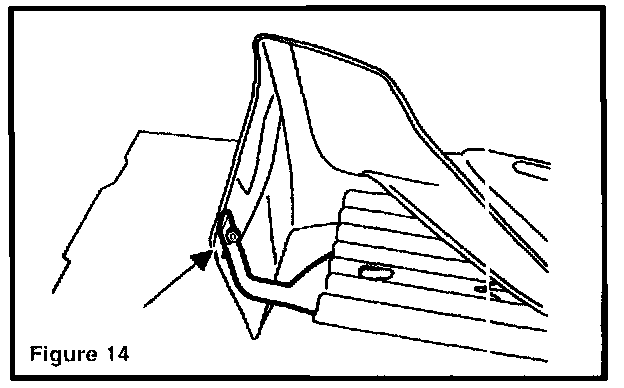

4. Remove L bracket (One side only). (Figure 14)

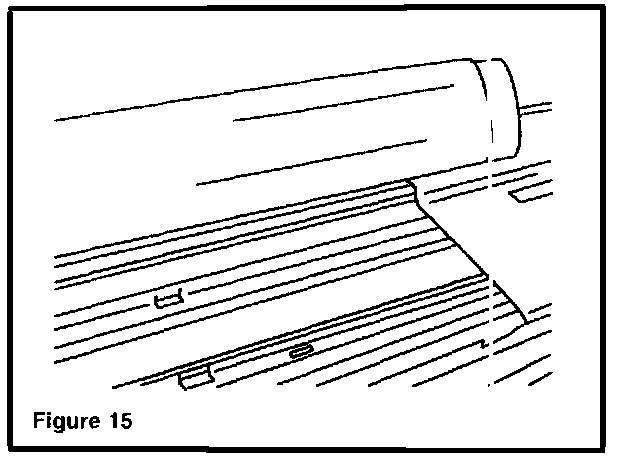

5. Remove endcaps. (Figure 15)

6. Install components in reverse order.
