Seat Heater - Replacement: Overview

BODY
BO001-00

March 31, 2000

Title:
SEAT HEATER REPLACEMENT
PROCEDURE

Models:
'98 - '00 LX 47O

Introduction
This is to inform you of the seat heater replacement procedure. A change has been made to allow separate installation of the seat heater element.

Applicable Vehicles
All 1998 through 2000 LX 470 models.

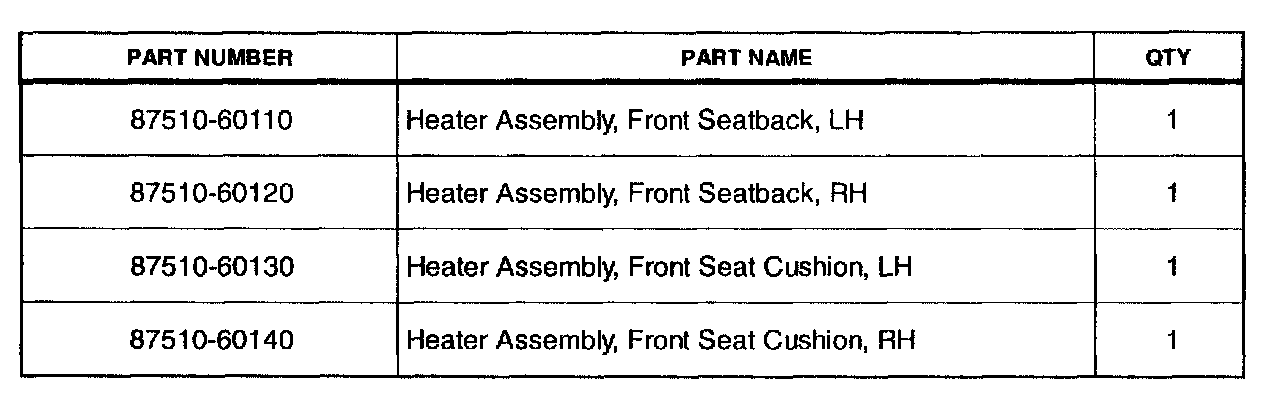

Parts Information

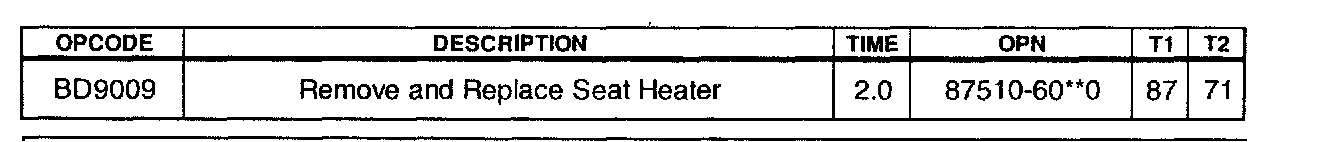

Warranty Information

Applicable Warranty*:
This repair is covered under the Lexus Basic Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

Warranty application is limited to correction of a problem based upon a customer's specific complaint.

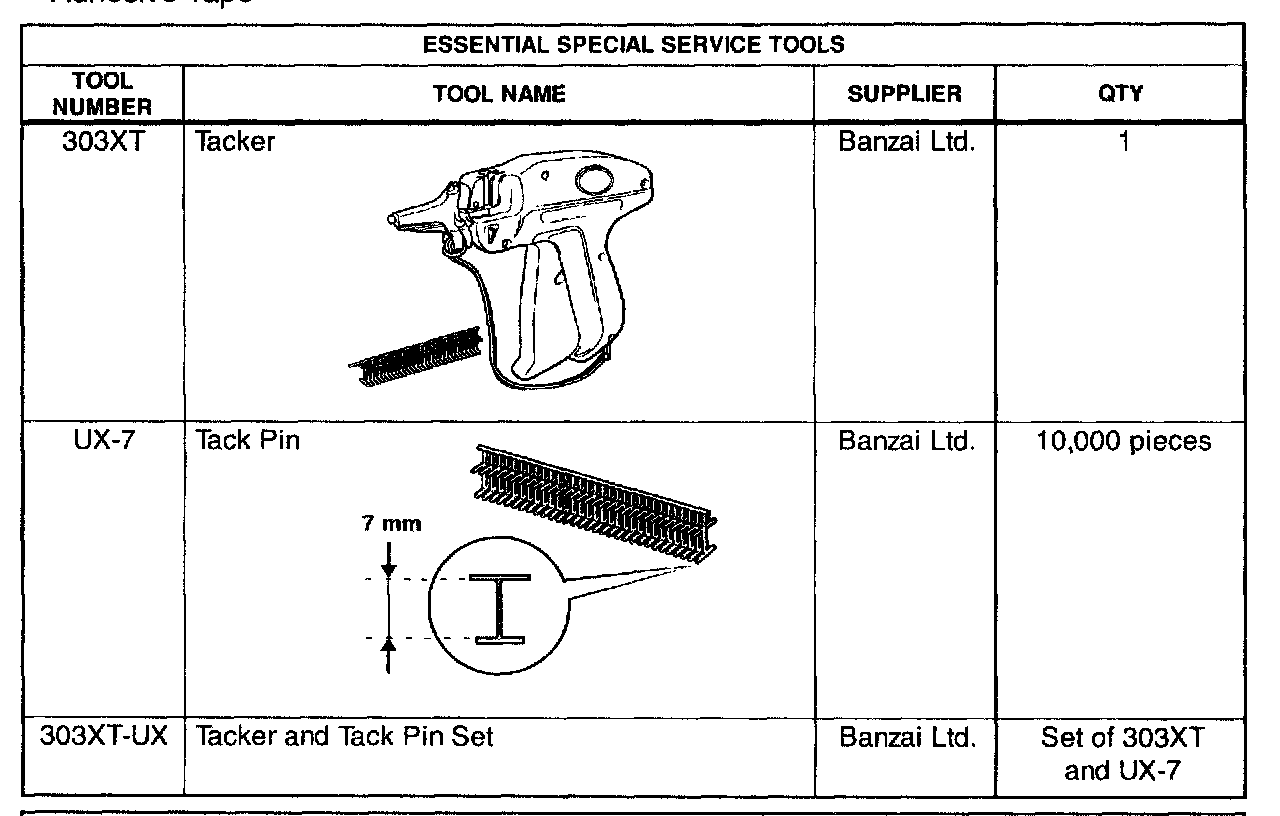

Required Tools and Material
^ Tacker
^ Tacks
^ Hog Ring Pliers
^ Adhesive Tape

NOTE:
1. Banzai Limited
International Operations DEPARTMENT
2-31-19, Shiba, Minato-Ku, Tokyo, Japan
Telephone: 81-3-3769-6891
FAX: 81-3-3451-5200

2. Any local supply tool that is equivalent to the above item is acceptable.

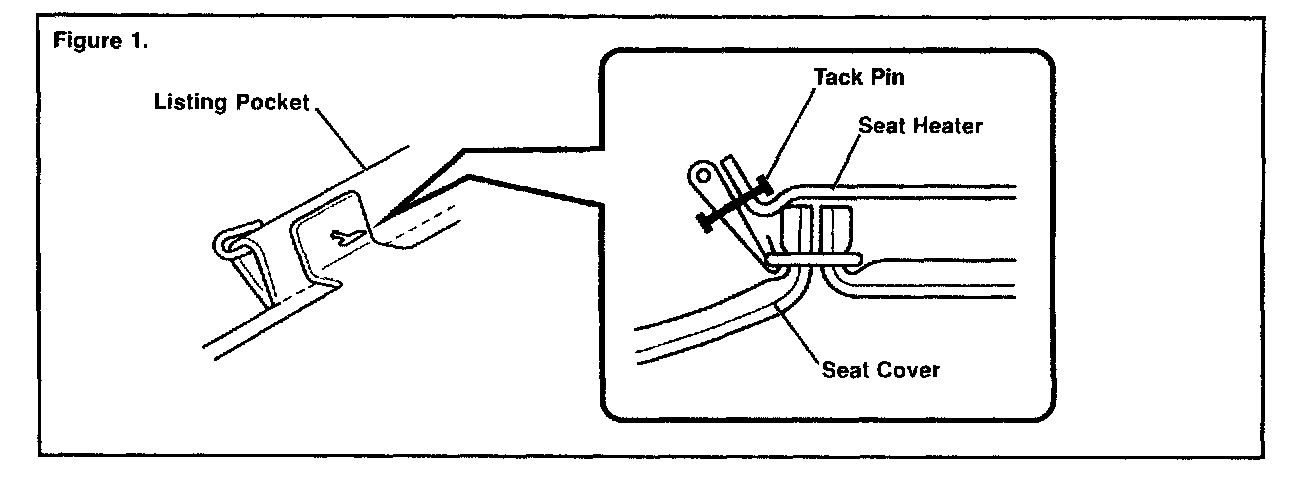

How to use the Tacker:
As shown above, drive in a tack pin with the tacker and fix the seat heater to the seat cover.
