Home
>>
Lexus Truck
>>
2000
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Memory Positioning Systems
>>
Testing and Inspection
>>
Power Mirror Control System
>>
Diagnosis By Symptom

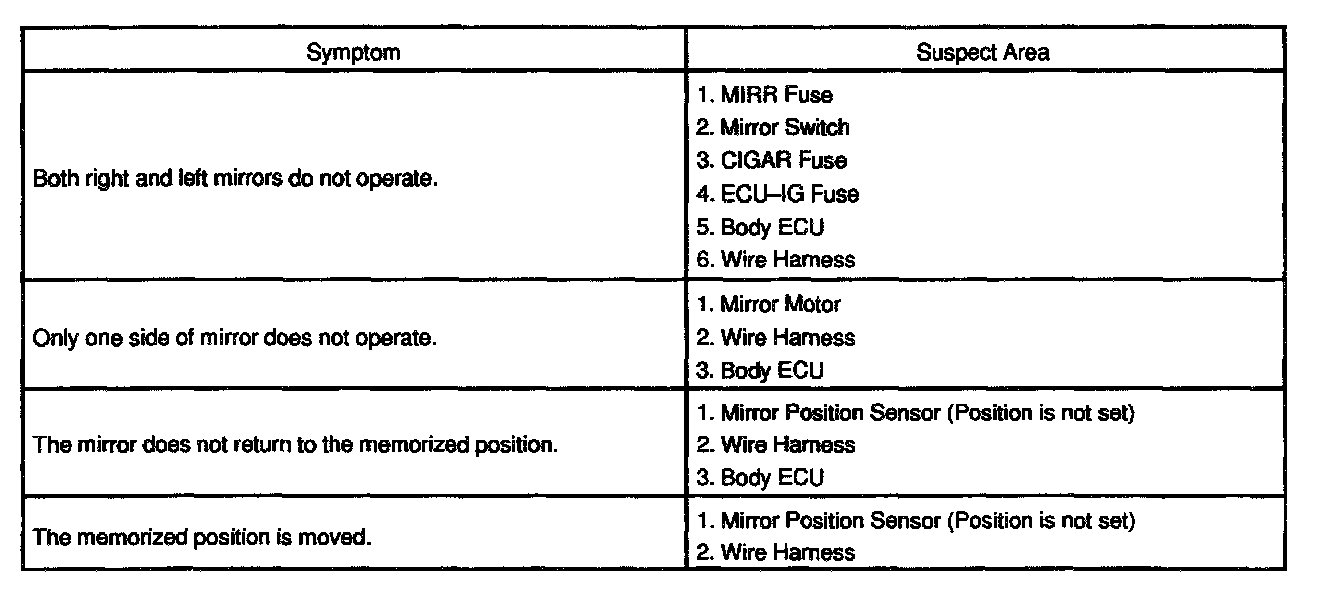

Diagnosis By Symptom
Power Mirror Control System:
This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.
