Component Inspection

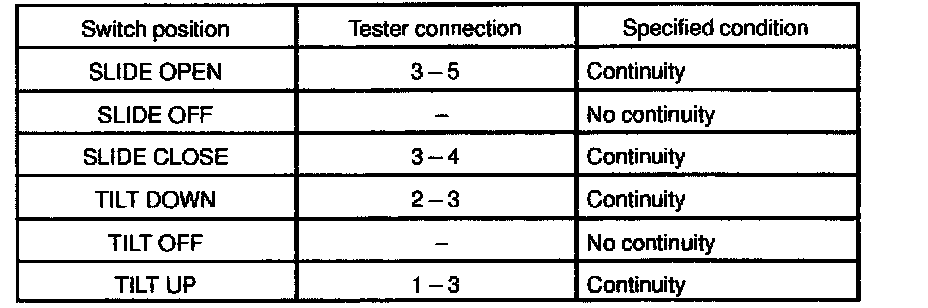

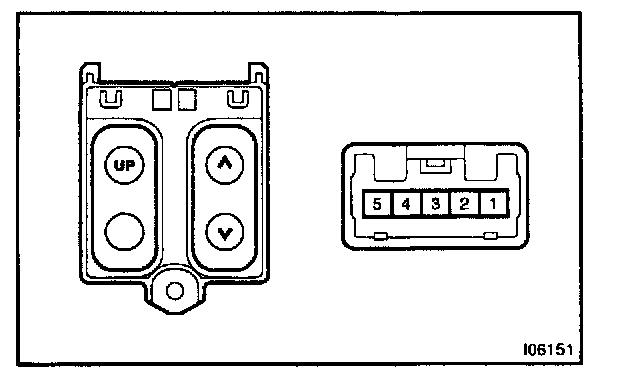

1. INSPECT SLIDING ROOF SWITCH CONTINUITY
If continuity is not as specified, replace the switch.







2. INSPECT SLIDING ROOF CONTROL ASSEMBLY CIRCUIT

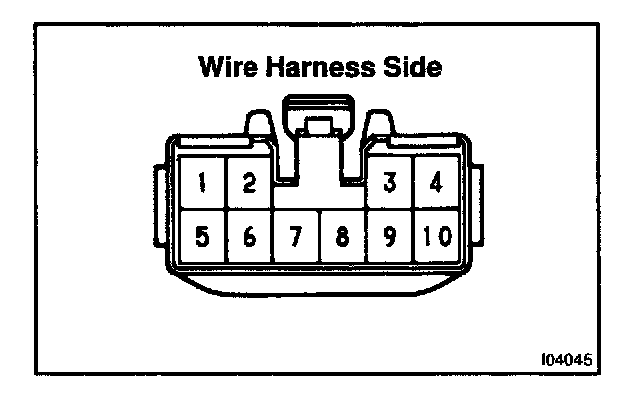

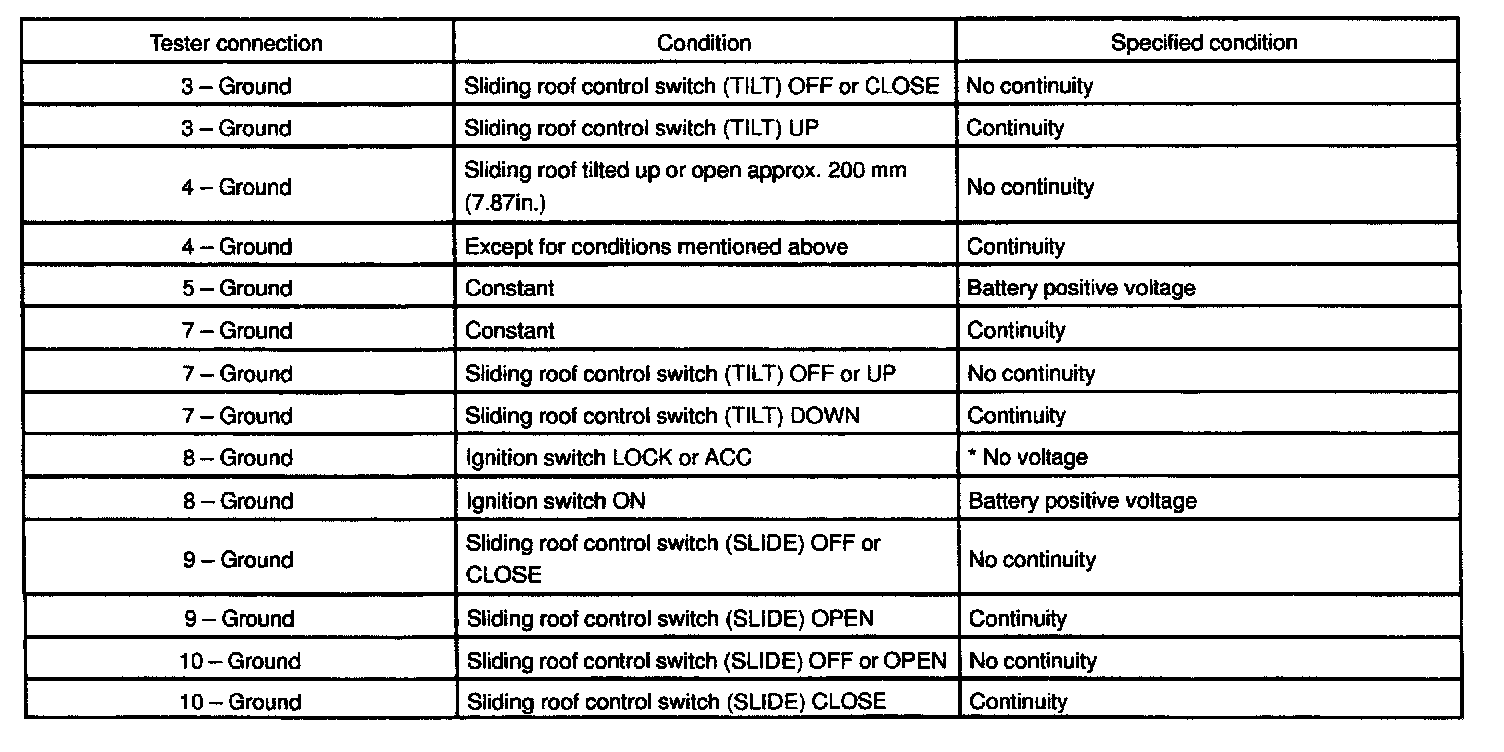

Disconnect the connector from the ECU and inspect the connector on the wire harness side, as shown in the chart.

*: Exceptions: During 60 second period after ignition switch ON -> OFF (ACC) or until driver of passenger door in opened after ignition switch ON -> OFF (ACC).
If circuit is as specified, replace the relay.
