Headliner: Service and Repair
REMOVAL1. REMOVE REAR NO. 2 SEAT
2. REMOVE ROOF HEADLINING REAR TRIM
Using a screwdriver, remove the roof headlining rear trim.
HINT: Tape the screwdriver tip before use.
3. REMOVE REAR MAT SET PLATE

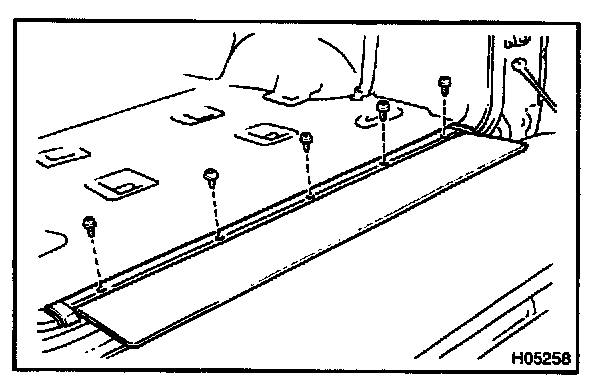

a. Remove the 5 screws.
b. Using a screwdriver, remove the rear mat set plate.
HINT: Tape the screwdriver tip before use.
4. REMOVE NO. 3 REAR SEAT PROTECTOR
a. Remove the screw.
b. Remove the No. 3 rear seat protector.
5. REMOVE THESE PARTS:

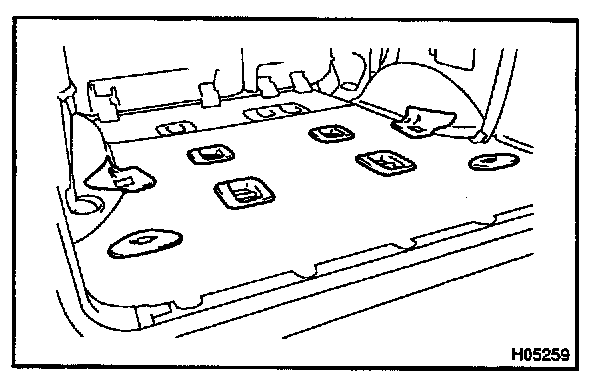

a. Rear floor carpet
b. Rear No. 2 seat outer belt floor anchors
Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
c. Rear No. 1 seat outer belt floor anchors
Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
d. Rear door scuff plates
e. Rear door opening trims
6. REMOVE LH QUARTER TRIM PANEL
a. Remove the quarter trim jack cover.

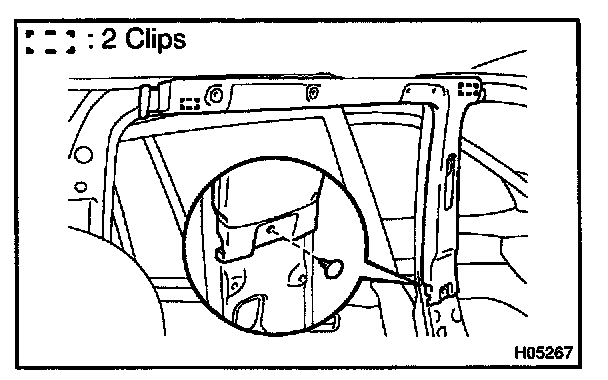

b. Using a clip remover, remove the 2 clips.

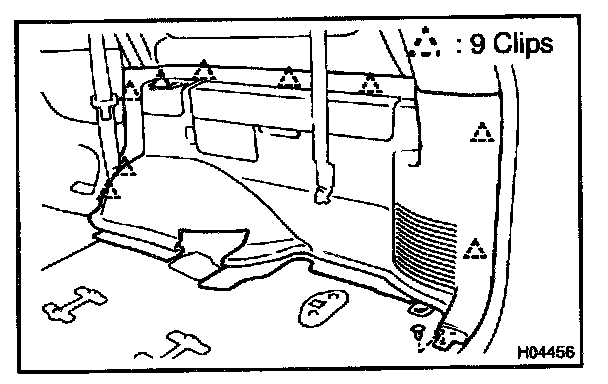

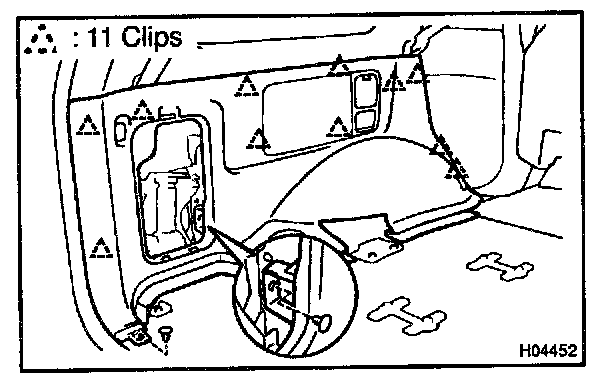

c. Remove the LH quarter trim panel, then disconnect the connector.
7. REMOVE RH QUARTER TRIM PANEL

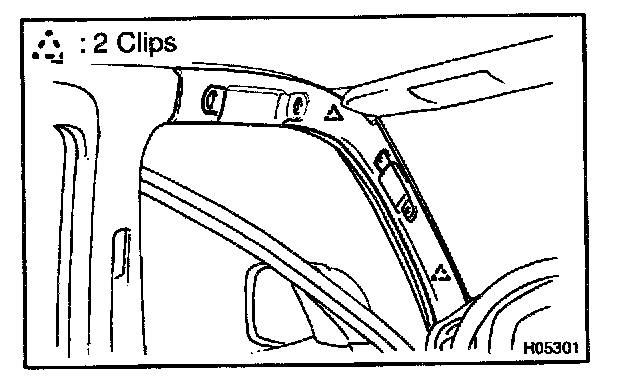

a. Using a clip remover, remove the clip.
b. Remove the RH quarter trim panel.
8. REMOVE THESE PARTS:
a. Rear No. 2 seat outer belt shoulder anchors
Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
b. Rear No. 1 seat outer belt shoulder anchors
Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
9. REMOVE UPPER ROOF SIDE INNER GARNISH
a. Using a screwdriver, remove the assist grip plugs, then remove the 4 screws and assist grips.
HINT: Tape the screwdriver tip before use.
b. Using a screwdriver, remove the upper roof side inner garnishes.
HINT: Tape the screwdriver tip before use.
10. REMOVE THESE PARTS:
a. Front door scuff plates
b. Cowl side trims
c. Front door opening trims
11. REMOVE FRONT PILLAR GARNISH
a. Using a screwdriver, remove the assist grip plugs, then remove the 6 screws and 3 assist grips.
HINT: Tape the screwdriver tip before use.
b. Using a screwdriver, remove the front pillar garnishes.
HINT: Tape the screwdriver tip before use.
12. REMOVE CENTER PILLAR LOWER GARNISH
a. Using a screwdriver, remove the seat belt floor anchor cover caps.
HINT: Tape the screwdriver tip before use.
b. Remove the bolts and front seat outer belt floor anchors.

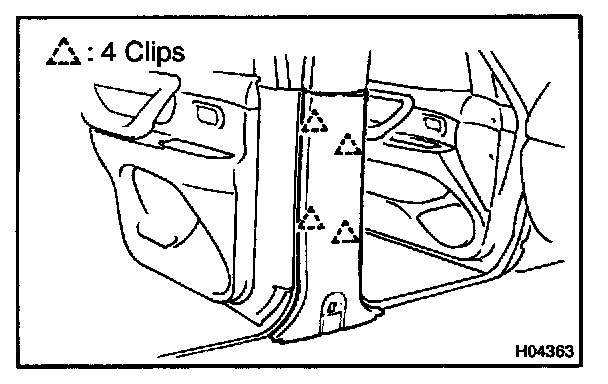

c. Using a screwdriver, remove the center pillar lower garnishes as shown in the illustration.
HINT: Tape the screwdriver tip before use.
13. REMOVE CENTER PILLAR UPPER GARNISH
a. Using a screwdriver, remove the seat belt anchor cover caps.
HINT: Tape the screwdriver tip before use.
b. Remove the bolts and front seat outer belt shoulder anchors.
Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
c. Using a screwdriver, remove the 8 assist grip plugs, then remove the 8 screws and 4 assist grips.
HINT: Tape the screwdriver tip before use.
d. Using a clip remover, remove the clips.
e. Using a screwdriver, remove the center pillar upper garnishes.
HINT: Tape the screwdriver tip before use
14. REMOVE THESE PARTS:
a. Sun visors
b. Double visors
c. Holders
d. Rear cooler control assembly
e. Rear temperature gauge
15. REMOVE DOME LIGHT

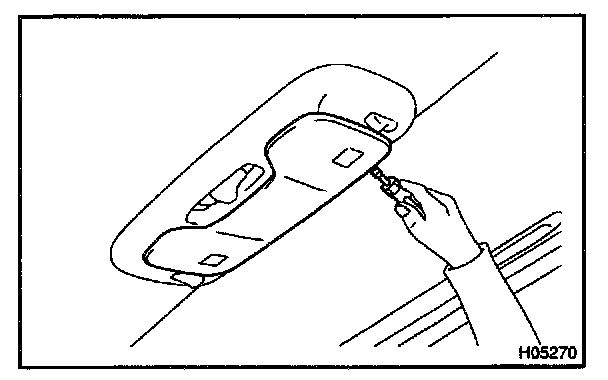

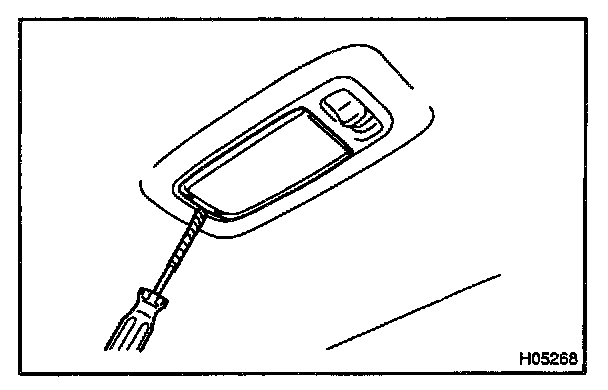

a. Using a screwdriver, remove the lens as shown in the illustration.
HINT: Tape the screwdriver tip before use.
b. Remove the 4 screws and dome light, then disconnect the connector.
16. w/ Sliding Roof:
REMOVE MAP LIGHT

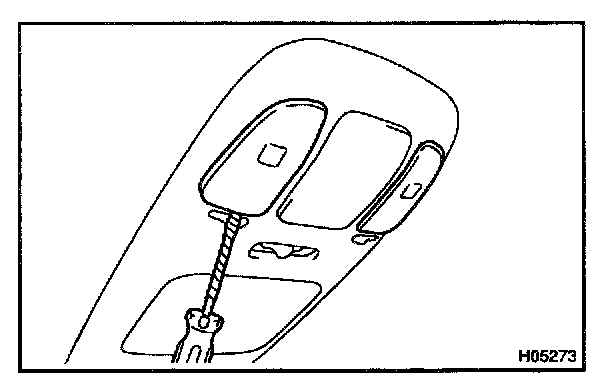

a. Using a screwdriver, remove the lens as shown in the illustration.
HINT: Tape the screwdriver tip before use.
b. Remove the 4 screws and map light, then disconnect the connector.
17. w/ Sliding Roof:
REMOVE OVERHEAD CONSOLE BOX
a. Remove the bolt.

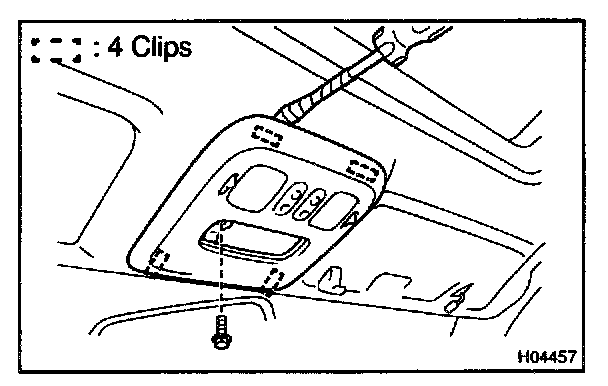

b. Using a screwdriver, remove the overhead console box, then disconnect the connector.
HINT: Tape the screwdriver tip before use.
18. w/o Sliding Roof:
REMOVE OVERHEAD CONSOLE BOX
a. Remove the bolt.

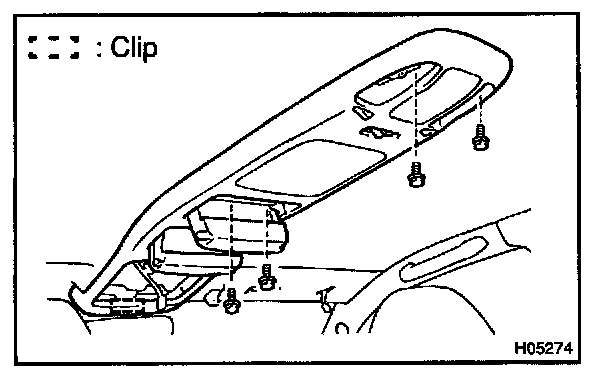

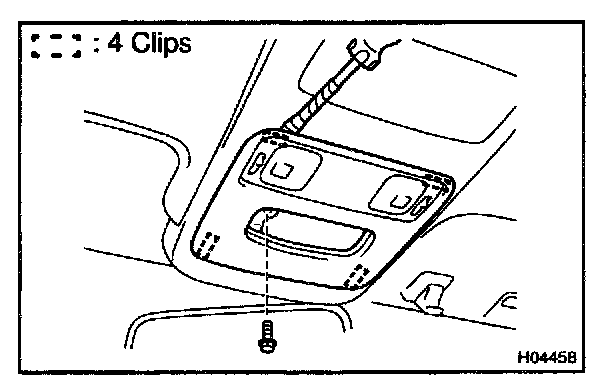

b. Using a screwdriver, remove the map light assembly, then disconnect the connector.
HINT: Tape the screwdriver tip before use.
c. Using a screwdriver, remove the 2 lenses.
HINT: Tape the screwdriver tip before use.
d. Remove the 4 bolts.
e. Using a screwdriver, remove the overhead console box, then disconnect the connector.
HINT: Tape the screwdriver tip before use.
19. w/ Sliding Roof:
REMOVE SLIDING ROOF OPENING TRIM
20. REMOVE ROOF HEADLINING

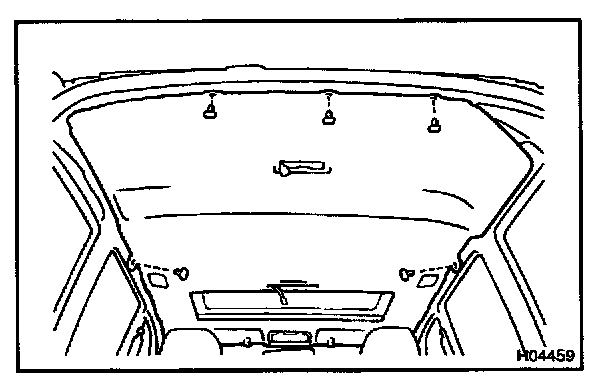

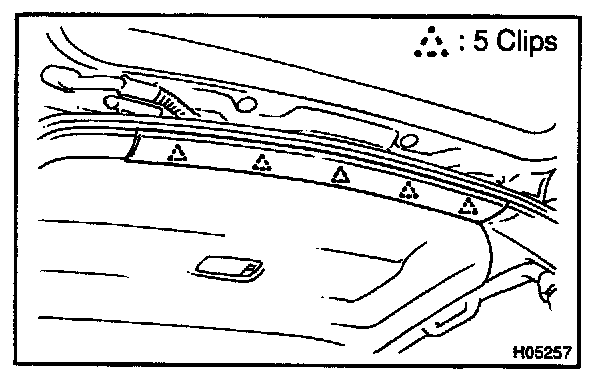

Using a clip remover, remove the 5 clips and roof headlining.
INSTALLATION
Installation is in the reverse order of removal.
