Removal and Replacement
REMOVAL1. REMOVE THESE PARTS:
a. Front door scuff plates
b. Cowl side trims
c. Front door opening trims
d. Assist grips
e. Front pillar garnishes
2. REMOVE STEERING WHEEL
3. REMOVE CLUSTER FINISH PANEL

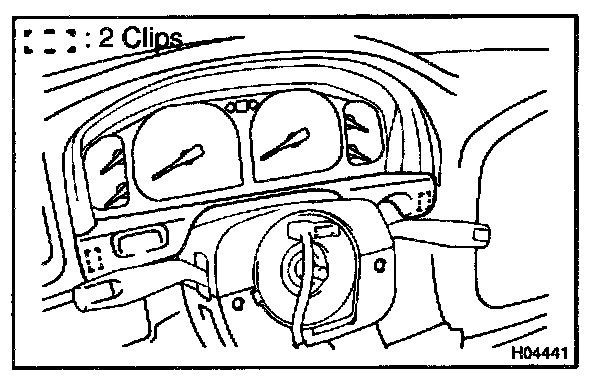

Using a screwdriver, remove the cluster finish panel.
HINT: Tape the screwdriver tip before use.
4. REMOVE HOOD LOCK AND FUEL LID CONTROL CABLE LEVER

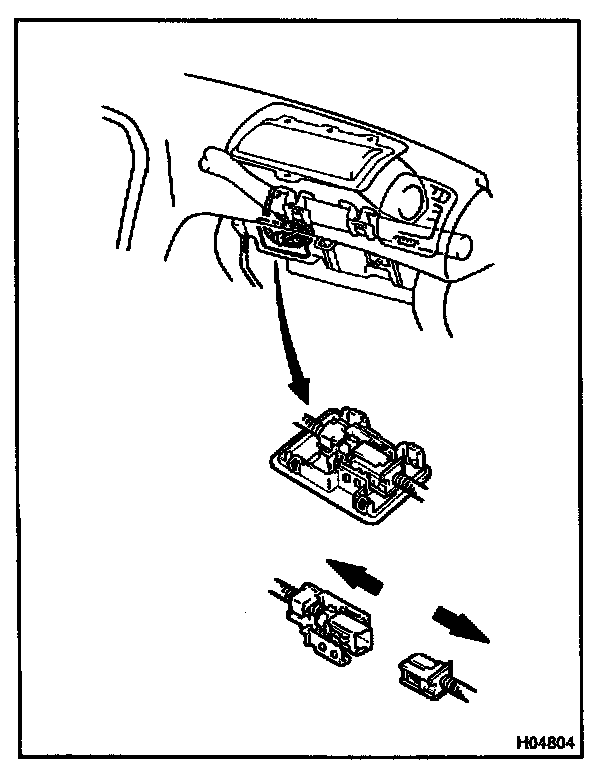

a. Remove the 2 screws and hood lock control cable.
b. Remove the 2 screws and fuel lid control cable lever.

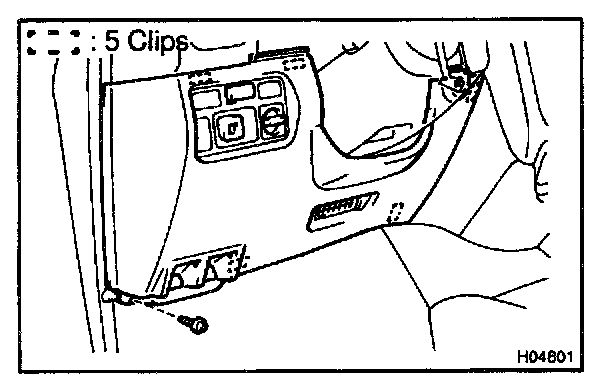

5. REMOVE LOWER NO. 1 PANEL
a. Remove the screw.
b. Using a screwdriver, remove the lower No. 1 panel, then disconnect the connectors.
HINT: Tape the screwdriver tip before use.
6. REMOVE LH LOWER PANEL
7. REMOVE COLUMN COVER
Remove the 3 screws and column cover.

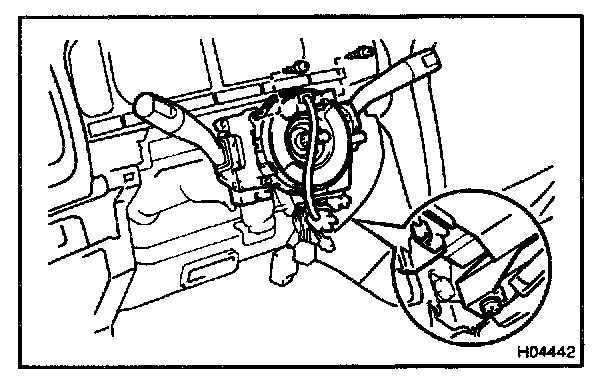

8. REMOVE COMBINATION SWITCH
a. Disconnect the connectors.
b. Remove the clamp.
c. Remove the 3 screws and combination switch.
9. REMOVE NO. 2 HEATER TO REGISTER DUCT
Remove the screw and No. 2 heater to register duct as shown in the illustration.
10. REMOVE STEERING COLUMN

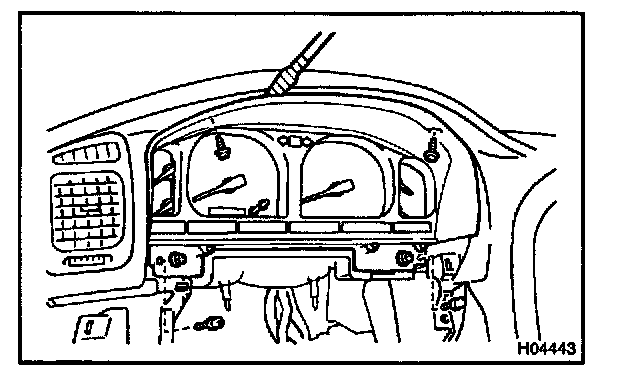

11. REMOVE COMBINATION METER
a. Disconnect the connectors.
HINT: The connectors can be disconnected by loosening the bolts.
b. Remove the 2 screws and bolts.
c. Using a screwdriver, remove the combination meter.
HINT: Tape the screwdriver tip before use.

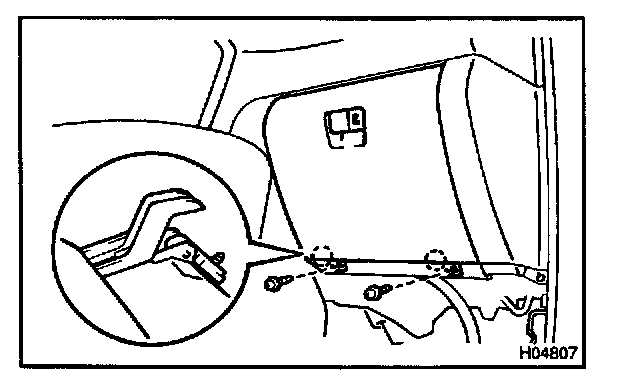

12. REMOVE GLOVE COMPARTMENT DOOR
a. Remove the glove compartment door stoppers.
b. Remove the 2 screws and glove compartment door as shown in the illustration.
13. DISCONNECT AIRBAG CONNECTOR
a. Using a screwdriver, remove the No. 1 under cover.
HINT: Tape the screwdriver tip before use.

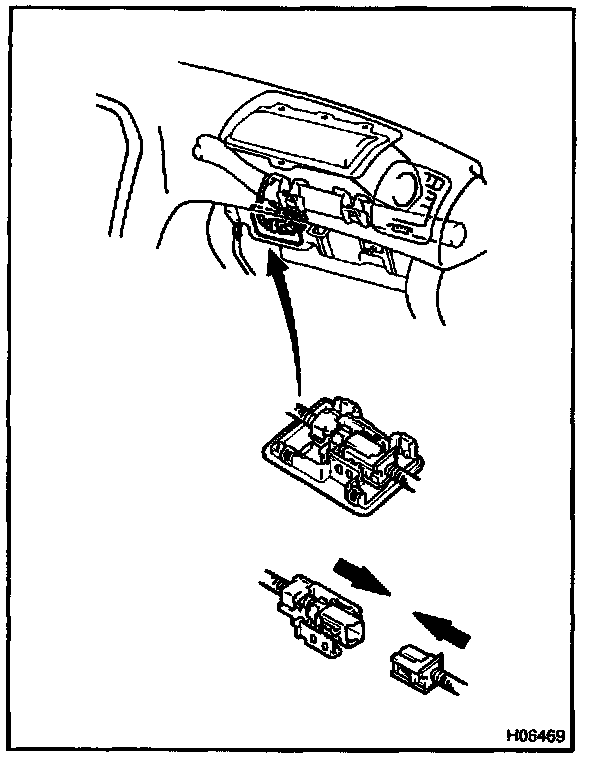

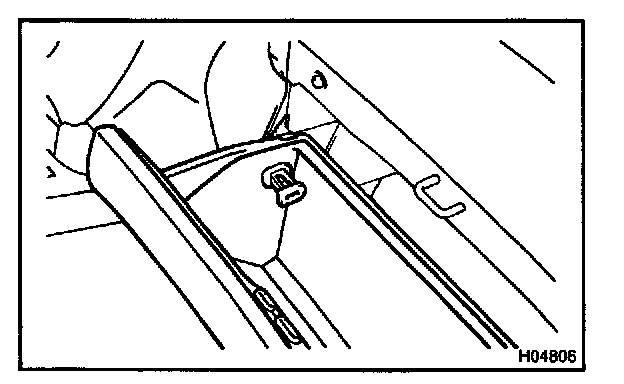

b. Pull up the airbag connector from the No. 1 under cover.
c. Disconnect the airbag connector.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness
14. REMOVE LOWER NO. 2 PANEL
Remove the 3 screws and lower No. 2 panel.
15. REMOVE CENTER CLUSTER

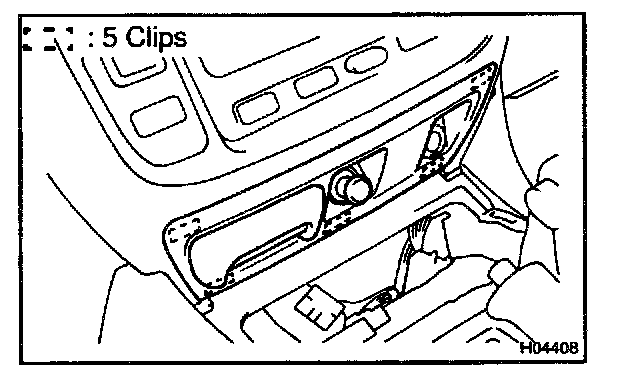

a. Using a moulding remover, remove the center cluster in order "A", "B", "C", "D" as shown in the illustration.
b. Disconnect the connectors.
16. REMOVE RADIO ASSEMBLY
17. REMOVE REAR CONSOLE PANEL

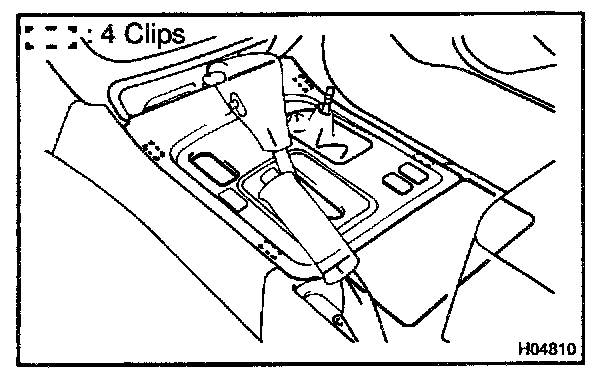

a. Remove the transfer shift lever knob.
b. Using a screwdriver, remove the rear console panel.
HINT: Tape the screwdriver tip before use.
18. REMOVE CONSOLE REAR END PANEL

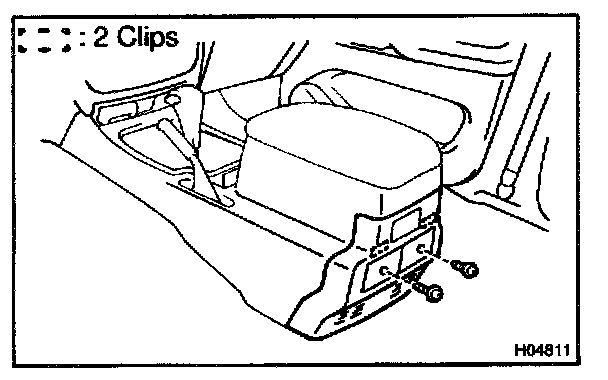

a. Remove the 2 screws.
b. Using a screwdriver, remove the console rear end panel.
HINT: Tape the screwdriver tip before use.

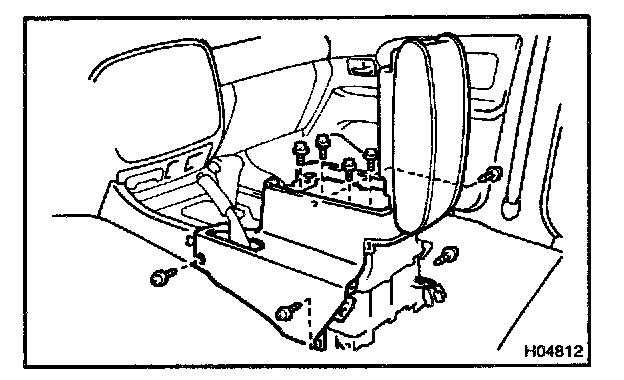

19. REMOVE REAR CONSOLE BOX
Remove the 4 bolts, 4 screws and rear console box.
20. REMOVE CENTER LOWER CLUSTER FINISH PANEL
Using a screwdriver, remove the center lower cluster finish panel, then disconnect the connector.
HINT: Tape the screwdriver tip before use.
21. REMOVE FRONT CONSOLE BOX
Remove the 2 screws, 2 bolts and front console box.

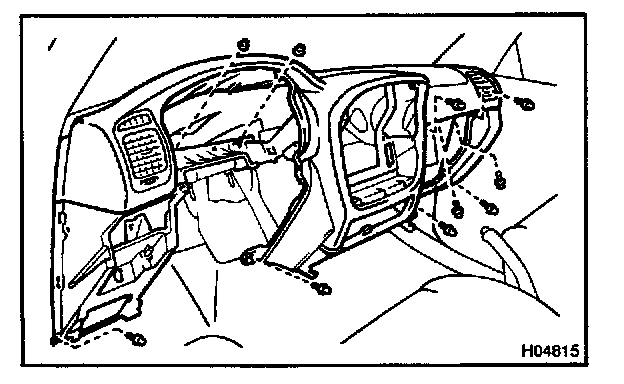

22. REMOVE INSTRUMENT PANEL
a. Disconnect the junction connectors.
HINT: The connectors can be disconnected by loosening the bolts.
b. Disconnect the connector, then remove the 8 bolts, 2 nuts and instrument panel.
23. REMOVE THESE PARTS:
a. Engine control ECU
b. No. 3 heater to register duct
c. No. 4 heater to register duct
d. Floor brace
e. No. 1 brace
f. Reinforcement
INSTALLATION
1. INSTALL THESE PARTS:
a. Reinforcement
b. No. 1 brace
c. Floor brace
d. No. 4 heater to register duct
e. No. 3 heater to register duct
2. INSTALL INSTRUMENT PANEL
HINT:

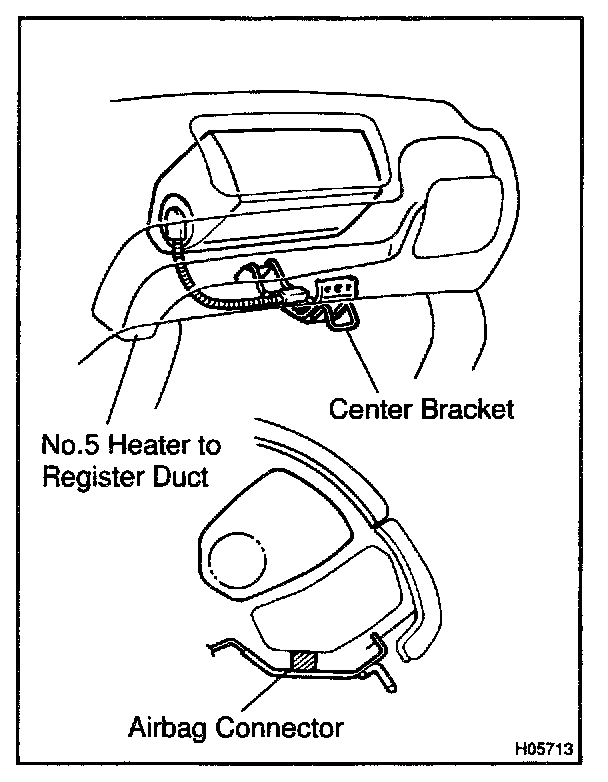

- Install the airbag connector between the No. 5 heater to register duct and center bracket temporarily, then install the instrument panel.
- Remove the airbag connector before installing the lower No. 2 panel.
a. Install the 6 bolts, 2 nuts and instrument panel, then connect the connectors.
b. Install the 2 bolts to the front passenger airbag assembly.
Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)
c. Connect the junction connectors.
HINT: The connectors can be connected by tightening the bolts.
3. INSTALL THESE PARTS:
a. Front console box
b. Center lower cluster finish panel
c. Rear console box
d. Rear heater control panel
e. Console rear end panel
f. Rear console panel
g. Radio assembly
h. Center cluster
i. Lower No. 2 panel
4. CONNECT AIRBAG CONNECTOR
5. INSTALL GLOVE COMPARTMENT DOOR
6. INSTALL COMBINATION METER
a. Check that the set-in connectors are connected in the installation holes on the instrument panel securely.
b. Place the combination meter on the instrument panel.

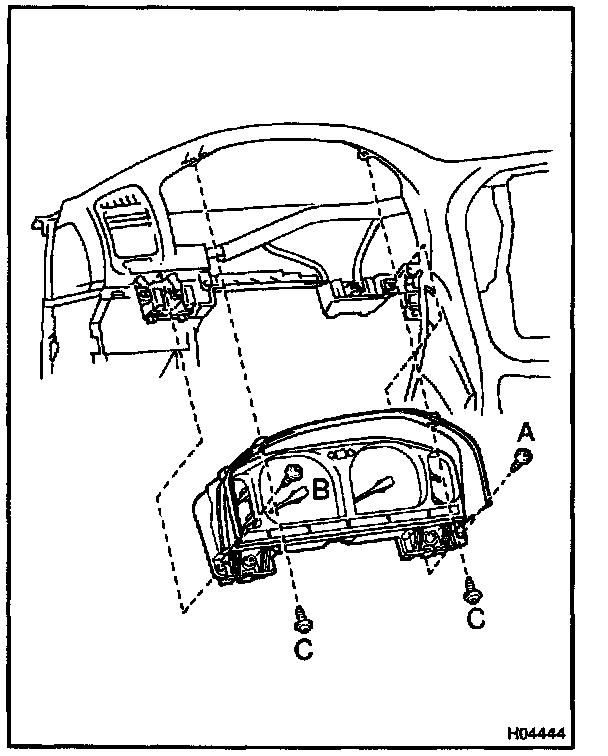

c. Install the combination meter by tightening the screws, A, B and C in the order.
d. Tighten the connection bolts.
HINT:
- When connection completes, the bolts turns vainly, causing turning noise.

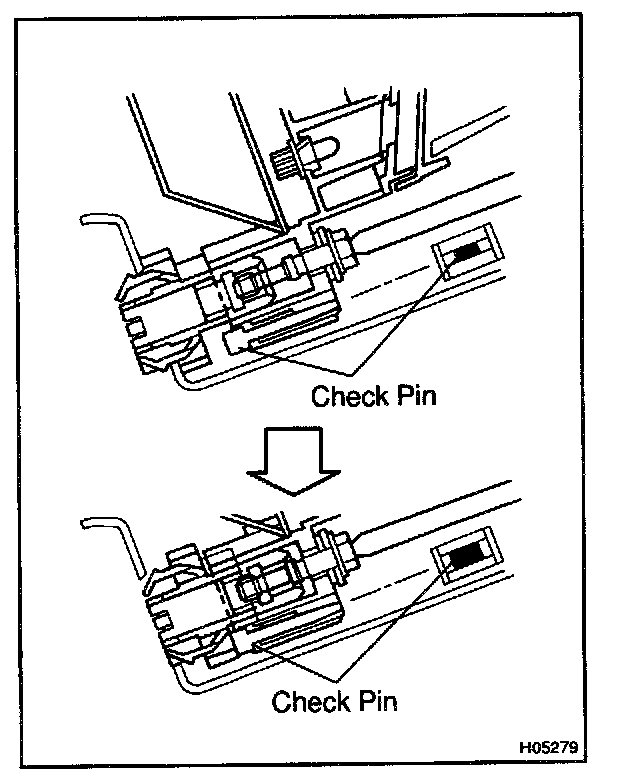

- Check this noise and that the connection check pins protrude from the lower side of the connection bolts.
NOTE: Follow the procedures in order of (c) and (d). Otherwise, set-in connectors on the wire harness side and connectors on the meter side might not be connected properly.
7. INSTALL THESE PARTS:
a. Steering column
b. No. 2 heater to register duct
c. Combination switch
d. Column cover
e. LH lower panel
f. Lower No. 1 panel
g. Hood lock and fuel lid control cable lever
h. Cluster finish panel
i. Steering wheel
j. Front pillar garnishes
k. Assist grips
l. Front door opening trims
m. Cowl side trims
n. Front door scuff plates
