Carpet: Service and Repair
REMOVAL1. REMOVE REAR NO. 2 SEATS
Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)
2. REMOVE REAR NO. 1 SEATS
Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
a. Fold the seatback down.
b. Unlock the seat lock, and swing the whole seat up and forward.

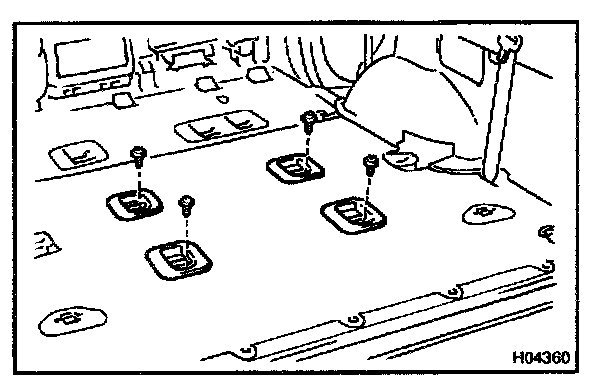

c. Remove the 4 bolts and rear No. 1 seat.

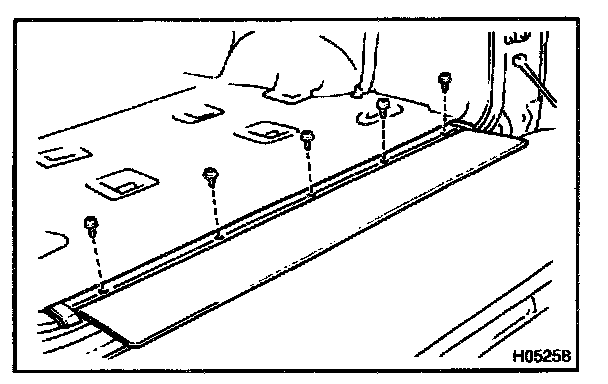

3. REMOVE REAR MAT SET PLATE
a. Remove the 5 screws.
b. Using a screwdriver, remove the rear mat set plate.
HINT: Tape the screwdriver tip before use.
4. REMOVE NO. 3 REAR SEAT PROTECTOR
a. Remove the screw.
b. Remove the No. 3 rear seat protector.
5. REMOVE THESE PARTS:
a. No. 3 seat front bracket cover
b. No. 3 seat bracket support cover
c. No. 1 rear seat protector
d. No. 2 rear seat protector
e. Front seats
Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)

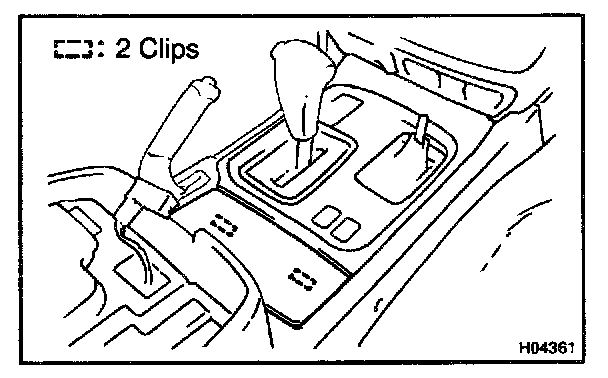

6. REMOVE CONSOLE CUP HOLDER BOX
Using a screwdriver, remove the console cup holder box.
HINT: Tape the screwdriver tip before use.

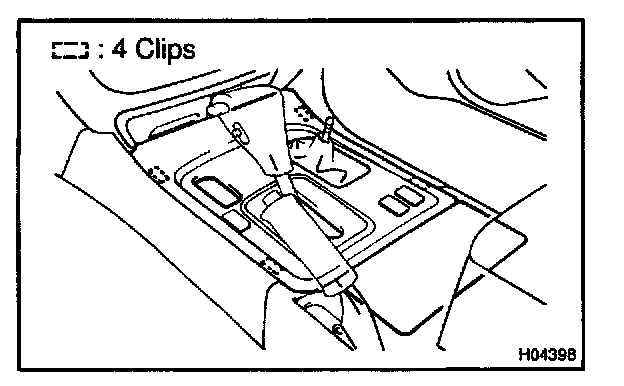

7. REMOVE REAR CONSOLE PANEL
a. Remove the transfer shift lever knob.
b. Using a screwdriver, remove the rear console panel.
HINT: Tape the screwdriver tip before use.

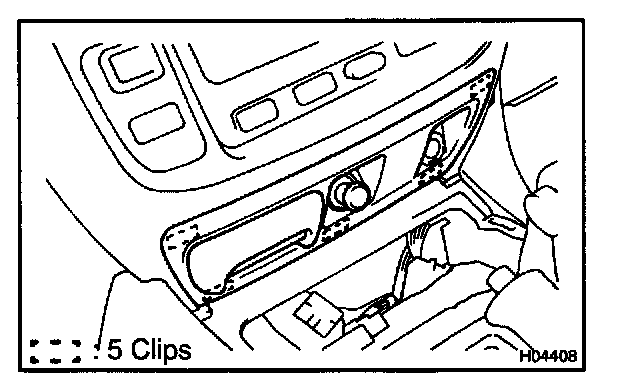

8. REMOVE CENTER LOWER CLUSTER FINISH PANEL
Using a screwdriver, remove the center lower cluster finish panel, then disconnect the connectors.
HINT: Tape the screwdriver tip before use.

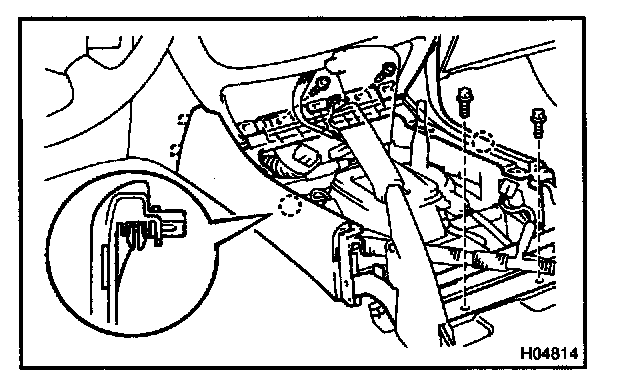

9. REMOVE FRONT CONSOLE BOX
Remove the 2 screws and front console box.
10. REMOVE THESE PARTS:
a. Front door scuff plates
b. Rear door scuff plates
c. Front door opening trims
d. Rear door opening trims
11. REMOVE CENTER PILLAR LOWER GARNISH
a. Using a screwdriver, remove the seat belt floor anchor cover caps.
HINT: Tape the screwdriver tip before use.
b. Remove the bolts and front seat outer belt floor anchors.

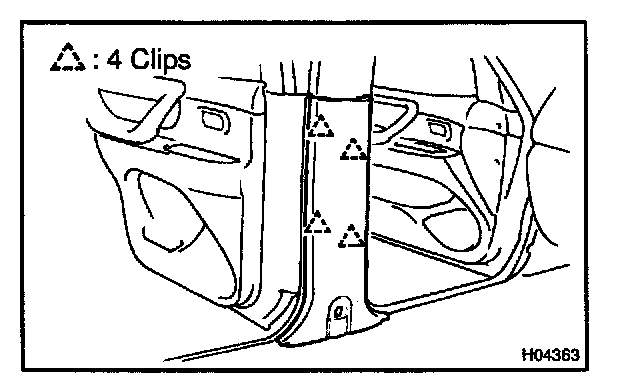

c. Using a screwdriver, remove the center pillar lower garnishes as shown in the illustration.
HINT: Tape the screwdriver tip before use.
12. REMOVE REAR FLOOR CARPET
13. REMOVE FRONT FLOOR CARPET

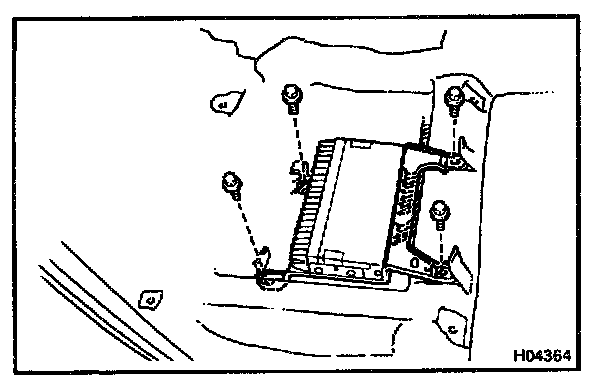

a. Remove the 4 bolts.
b. Remove the power amplifier.
c. Remove the front carpet.
INSTALLATION
Installation is in the reverse order of removal.
