Repair Procedure

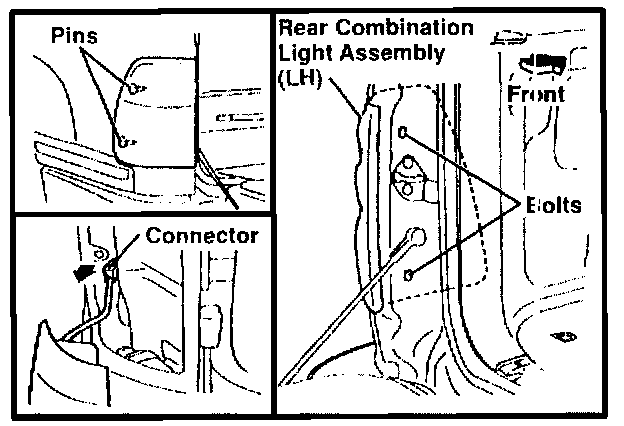

1. Remove the rear combination light assembly (LH).





A. Remove the two bolts.

B. Pull the assembly to the outside of the vehicle and remove the two pins.

C. Disconnect the connector and remove the rear combination light assembly (LH).

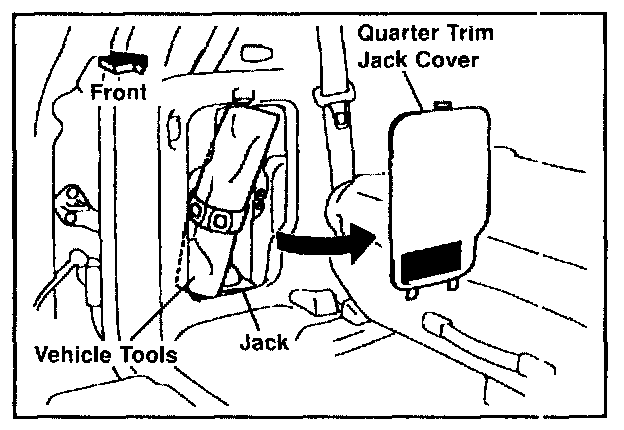

2. Remove the quarter trim jack cover.

3. Remove the vehicle tools and jack.

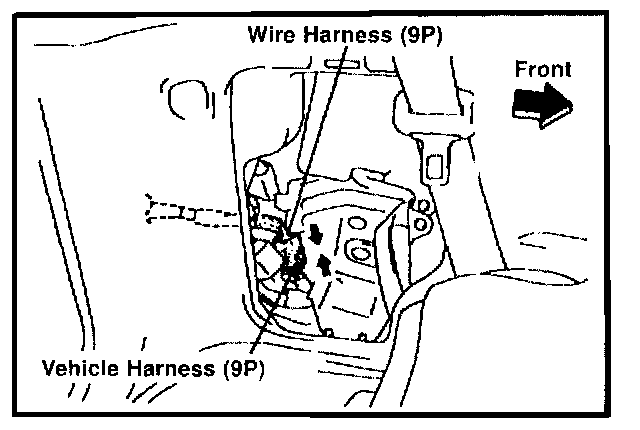

4. Disconnect the wire harness in the harness assembly towing converter from the vehicle harness (9P).

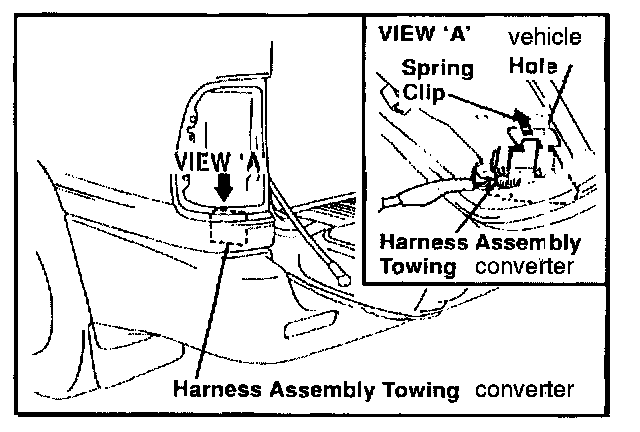

5. Remove the harness assembly towing converter from the vehicle hole by disengaging spring loaded clip and removing.

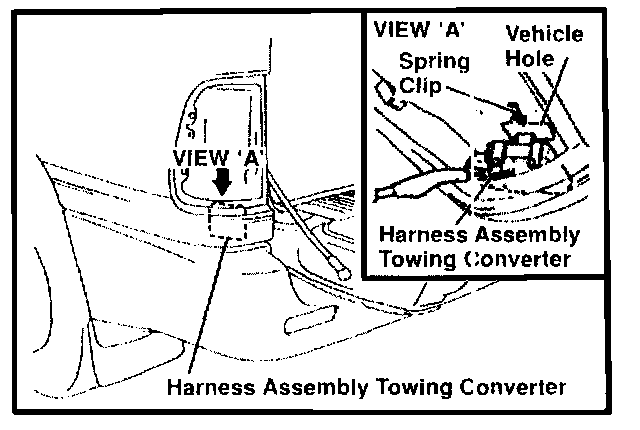

6. Install the new harness assembly towing Procedure converter into the vehicle hole by (Continued) engaging spring clip.

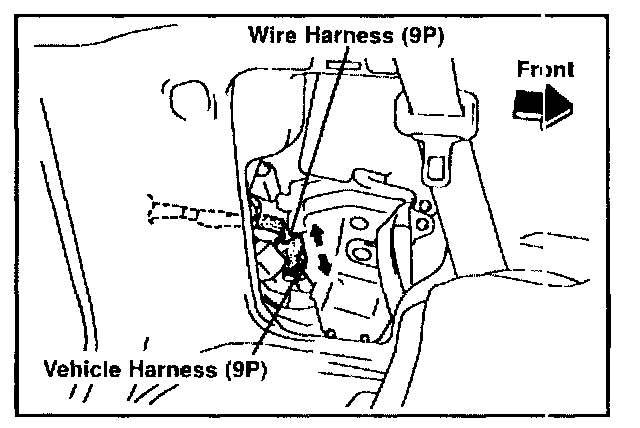

7. Connect the wire harness in the harness assembly towing converter to the vehicle harness (9P).





8. Replace the vehicle tools and jack.

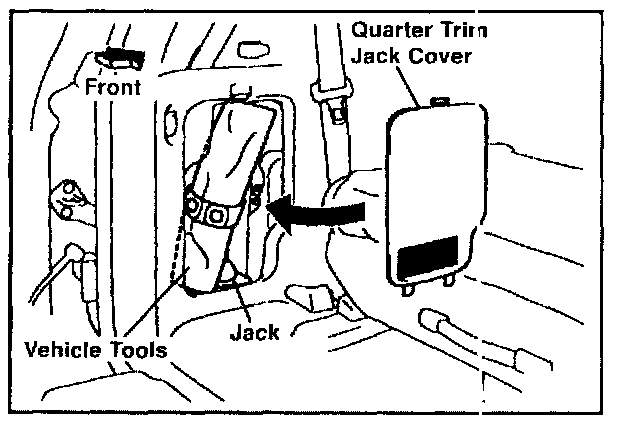

9. Replace the quarter trim jack cover.

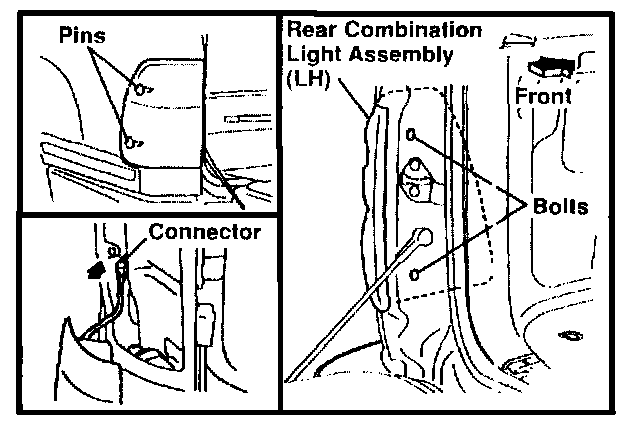

10. Reinstall the rear combination light assembly (LH).

A. Connect the connector of the rear combination light assembly (LH) to the vehicle connector.

B. Replace the two pins in the rear combination light assembly (LH).

C. Replace the two bolts.

Functional Verification

1. Now that installation is complete, connect SST 00002-62195 to four flat trailer connectors.

2. Start Engine.

3. Turn on vehicle headlights. Check to see if vehicle tail and headlights are lit. Also, confirm that the SST tail indicator lamp is lit.

4. Turn on vehicle left turn signal. Confirm step three conditions again and check to see if the left turn signal lamp on vehicle is flashing. Also, confirm that the SST left indicator lamp is flashing.

5. Apply Brake. Check to see if vehicle right stop light is lit and SST right indicator lamp is lit. Also, confirm conditions of steps 3 and 4 again.

6. Release Brake. Turn on vehicle right turn signal. Check to see if vehicle right turn signal is flashing and SST right indicator lamp is flashing. Also, Vehicle and SST tail indicator lamps should still be lit.

7. Apply Brake. Check to see if vehicle right stop light is lit and SST right indicator lamp is lit. Also, confirm conditions of steps 3 and 4 again.

8. Turn off vehicle turn signal and headlights. Apply brakes. Check to see if vehicle stop lights are lit and SST right and left indicator lights are also lit.

9. Release brakes. Turn on vehicle hazard switch. Check to see if vehicle hazard lights are flashing. Left and right SST indicator lamps should also be flashing.

10. Turn off vehicle hazard switch. Confirm that all lamps are off on both vehicle and SST.
