Trailer Wire Harnesses - Revision: Overview

ACCESSORIES
AX002-00
REVISED

Title:
TRAILER WIRE HARNESS

Models:
00 LX 470

May 5, 2000

Introduction

Starting December 1999, the 2000 MY LX 470 came equipped with a factory installed towing converter system.

The new converter system will require installation of a sub-harness (Service P/N 08921-60820) from converter to hitch which will be available in all PIO/DIO hitch kits (P/N PT228-60001). This converter system is not interchangeable with the previous Trailer Harness kit (P/N PT207-60994).

This bulletin provides a ten step procedure for replacing the new factory converter in case of repair or maintenance. Also provided is a procedure for functional verification once replacement is complete. Service Part Number 08940-60810 should be ordered in the case of converter replacement. This service part contains the converter and wiring harness for the vehicle side. It does not contain the sub-harness (P/N 08921-60820) used from converter to hitch.

Applicable Vehicles:
^ 2000 model year CLX 470 starting with VIN: JT6HTOOW # Y0094690

Production Change Information

MODEL STARTING PRODUCTION DATE STARTING VIN

LX 470 December 1999 JT6HT00W # Y0094690

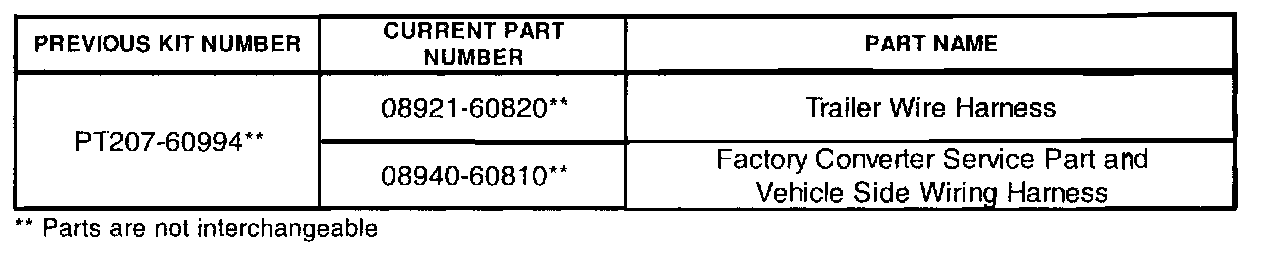

Parts Information

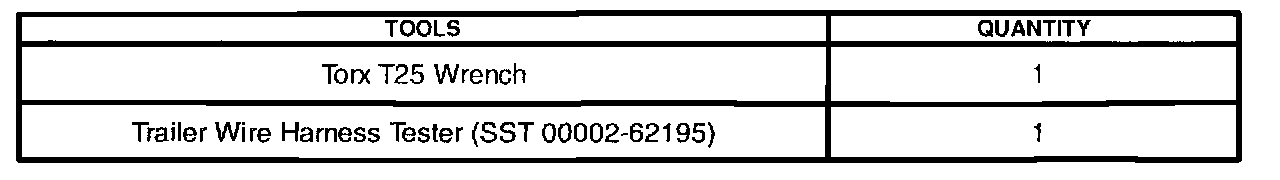

Required Tools & Material

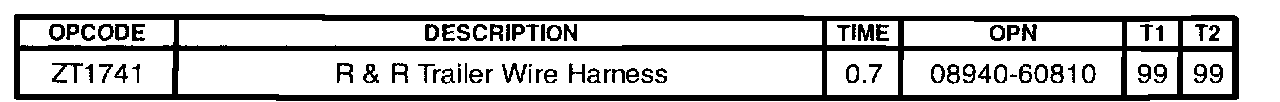

Warranty Information

Applicable Warranty *:
This repair is covered under the LEXUS Basic Warranty.
This Warranty is in effect for 48 months or 48,000 miles, whichever occurs first, from the vehicle's in- service date.

* Warranty application is limited to correction of a problem upon a customer's specific complaint.
