Back Door Key Lock and Unlock Switch Circuit
CIRCUIT DESCRIPTIONThe back door key lock and unlock switch goes ON when the back door key cylinder is turned to the unlock side with the key.

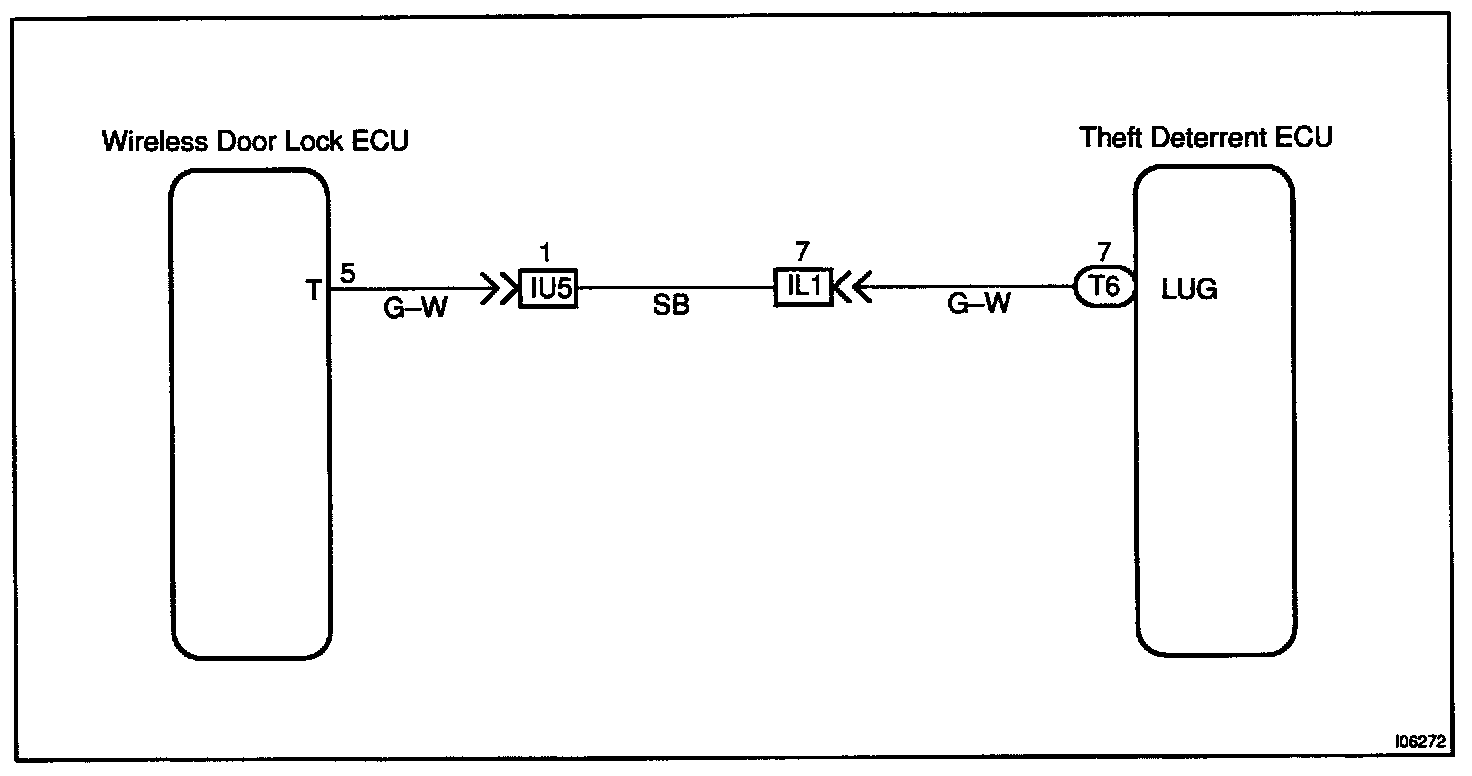

Wiring Diagram:

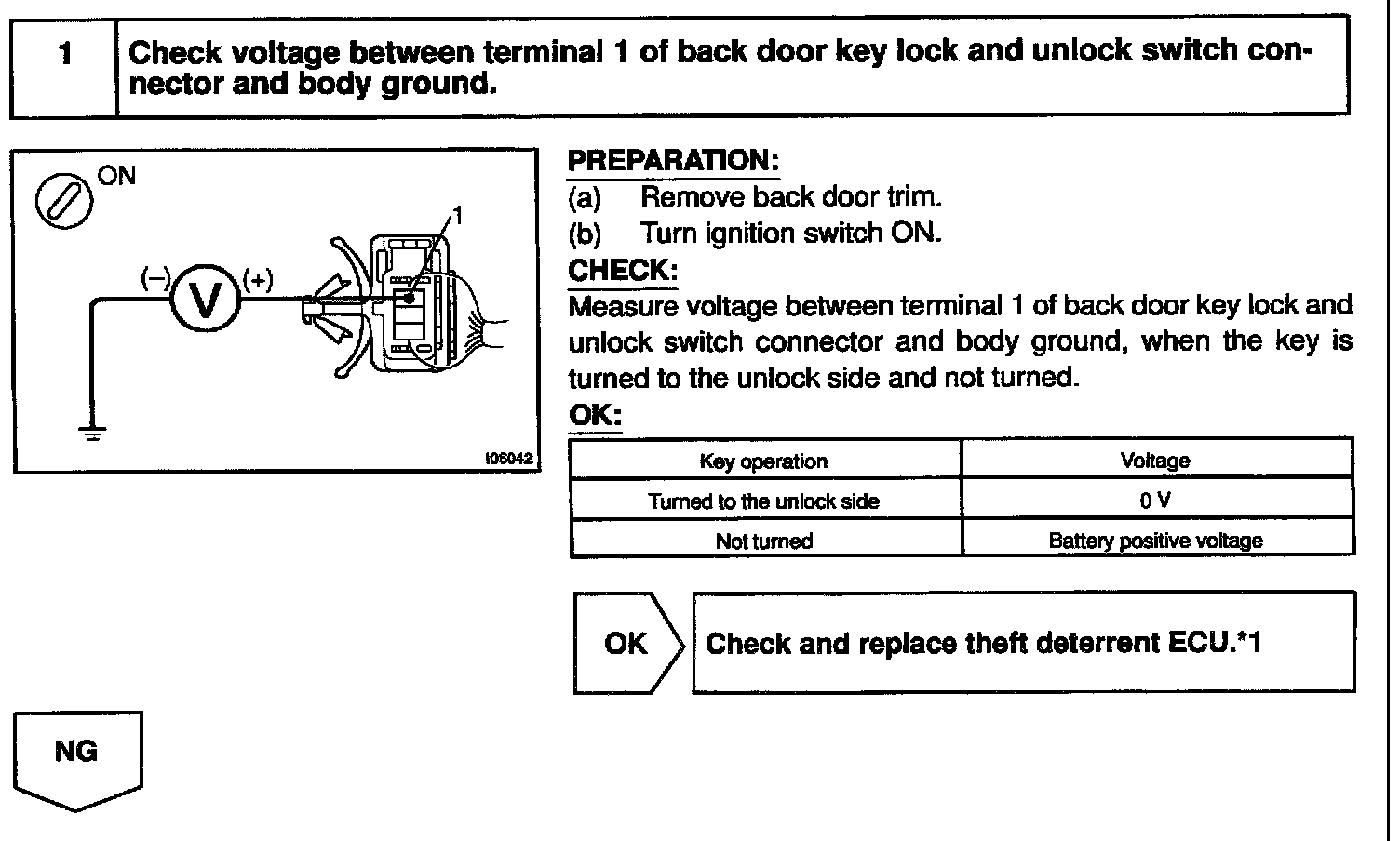

Step 1:

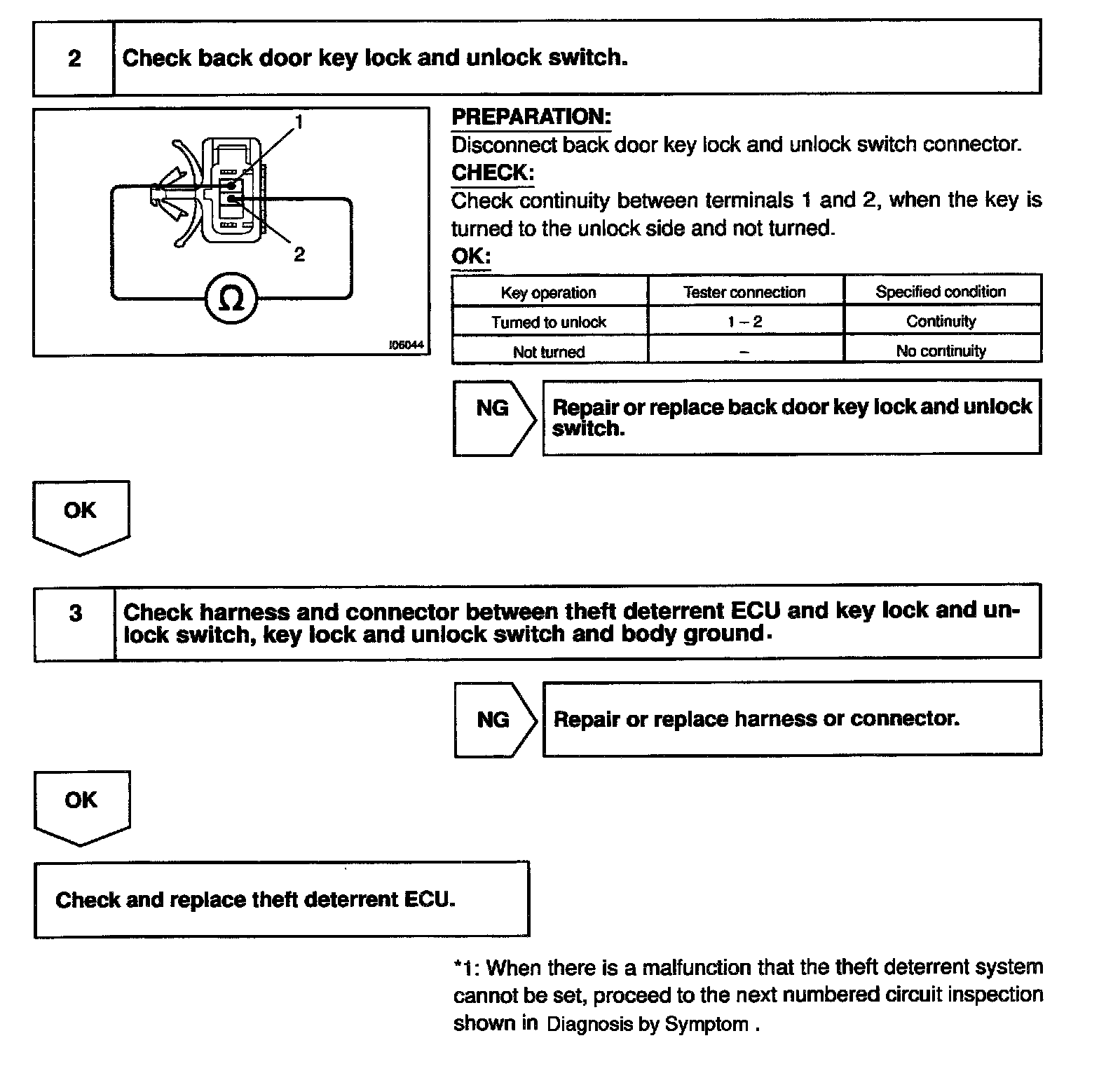

Steps 2 - 3:
INSPECTION PROCEDURE
The back door key lock and unlock switch goes ON when the back door key cylinder is turned to the unlock side with the key.
INSPECTION PROCEDURE
