DTC 13
DTC 13
CIRCUIT DESCRIPTION
This DTC is output when communication stops between tilt and telescopic ECU and Body ECU.

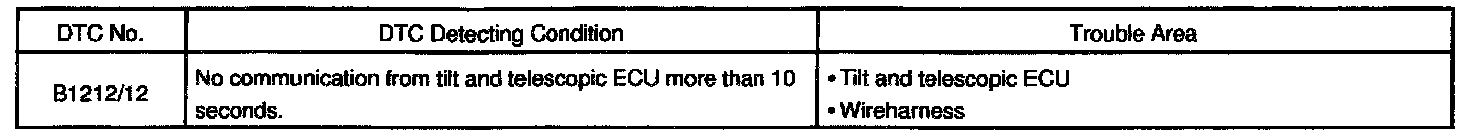

DTC Detecting Condition:

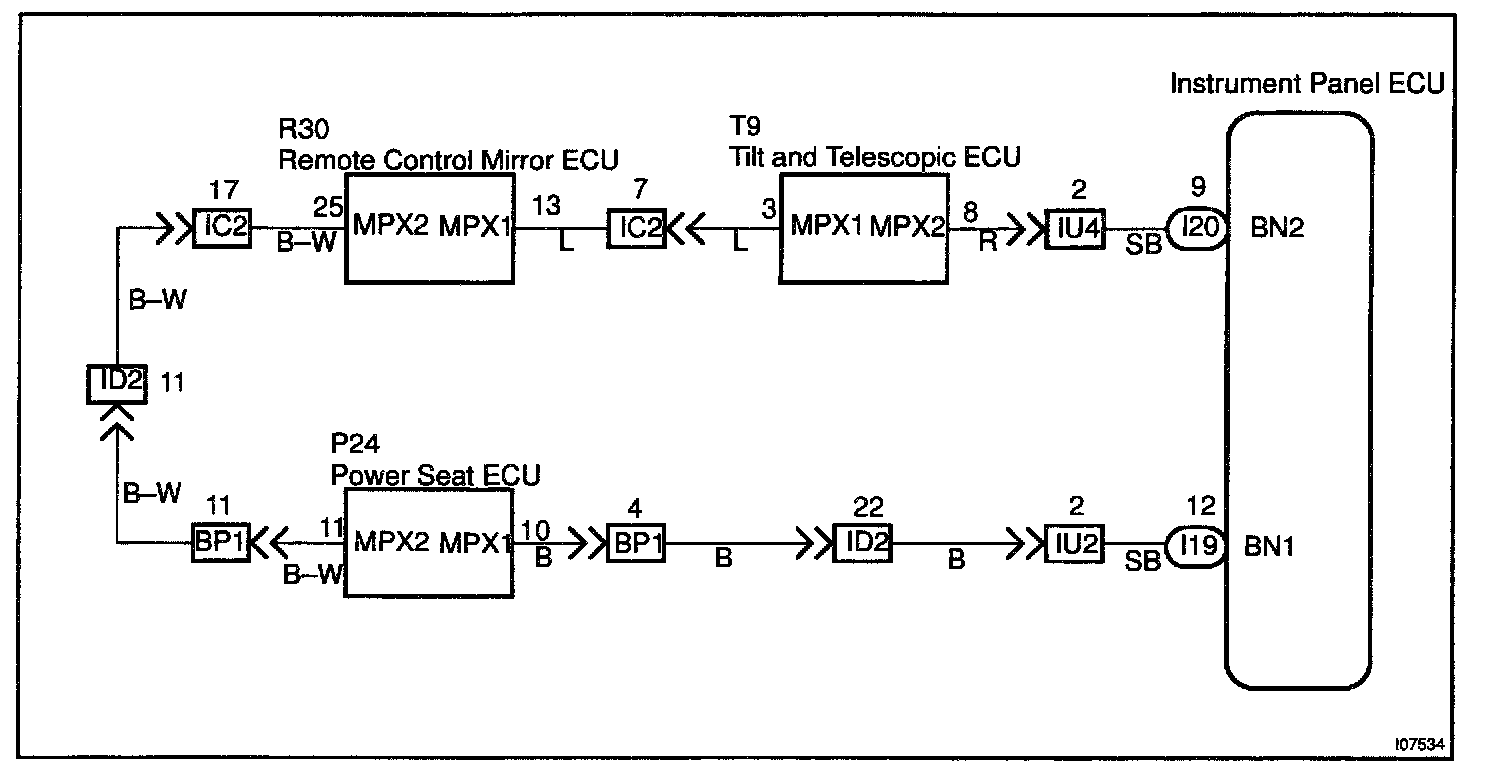

Wiring Diagram:

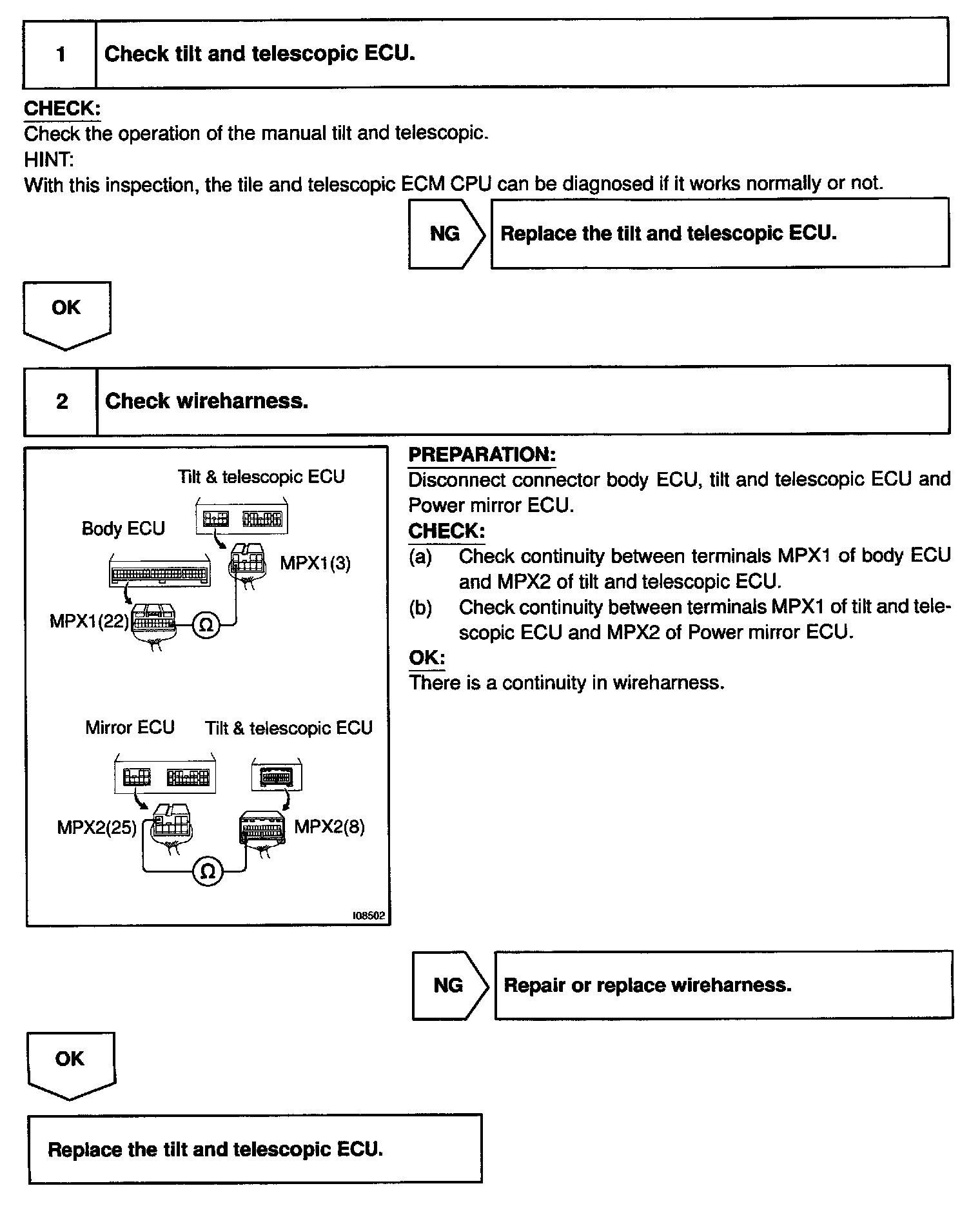

Steps 1 - 2:
INSPECTION PROCEDURE
