Suspension Control ( Automatic - Electronic Level )

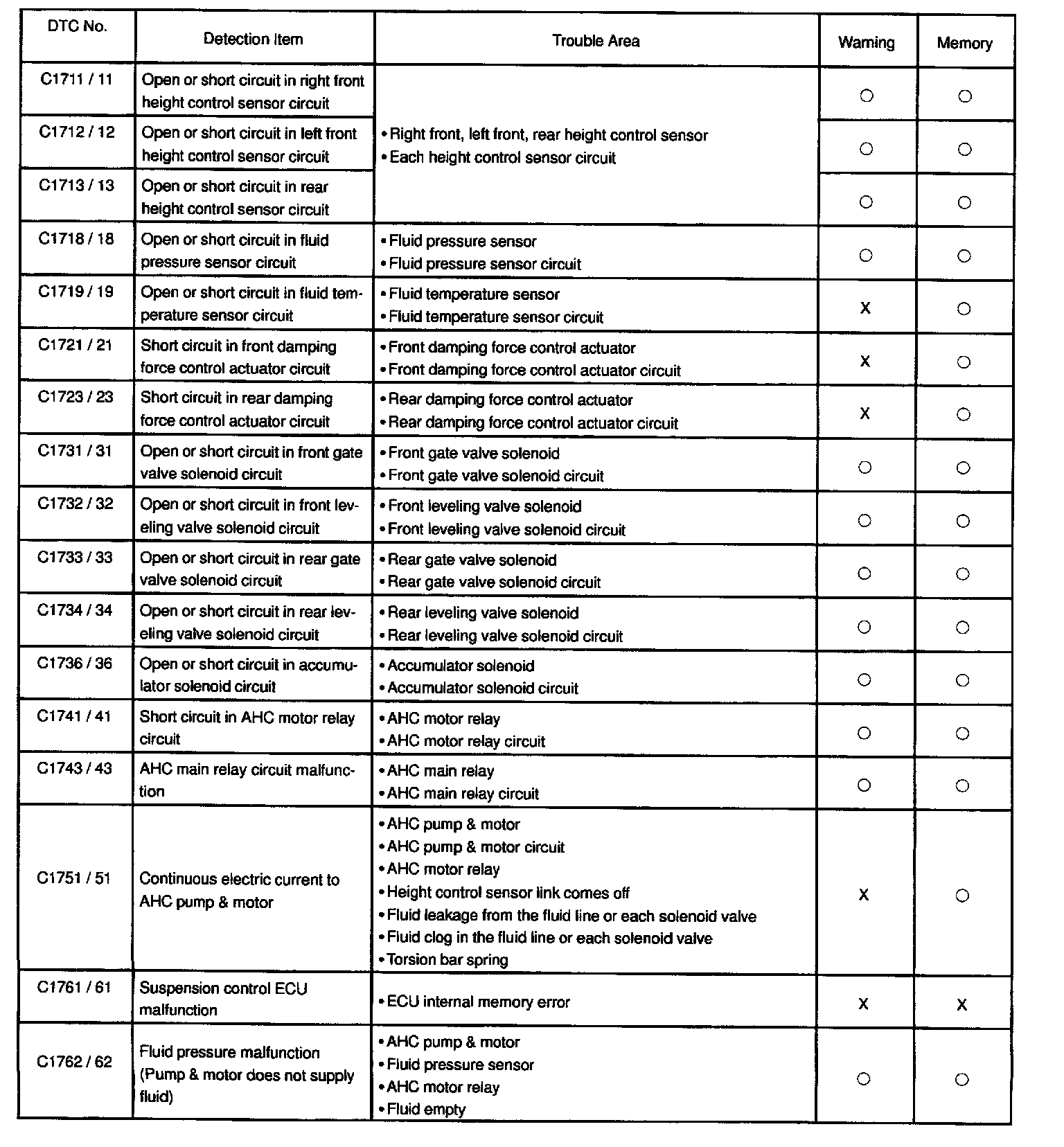

C1711/11 - C1762/62:

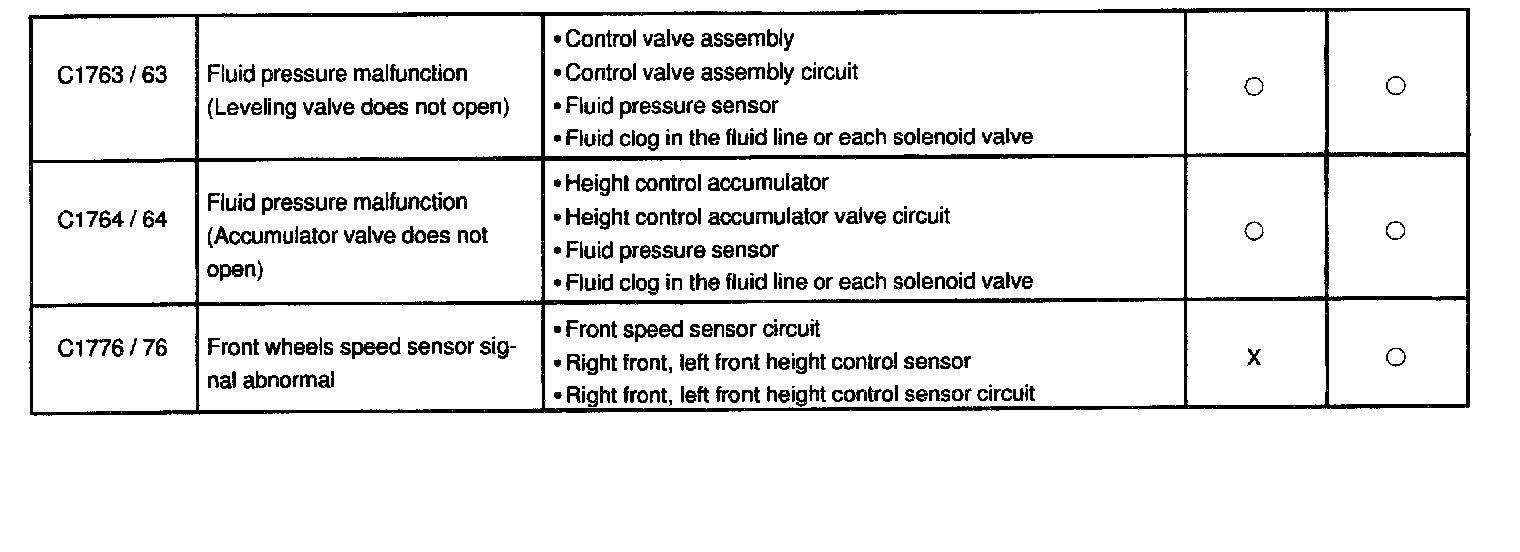

C1763/63 - C1776/76:

DIAGNOSTIC TROUBLE CODE CHART

HINT:
- Using SST 09843-18020, connect the terminals Tc and E1 of DLC1.
- If any abnormality is not found when inspection parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code.

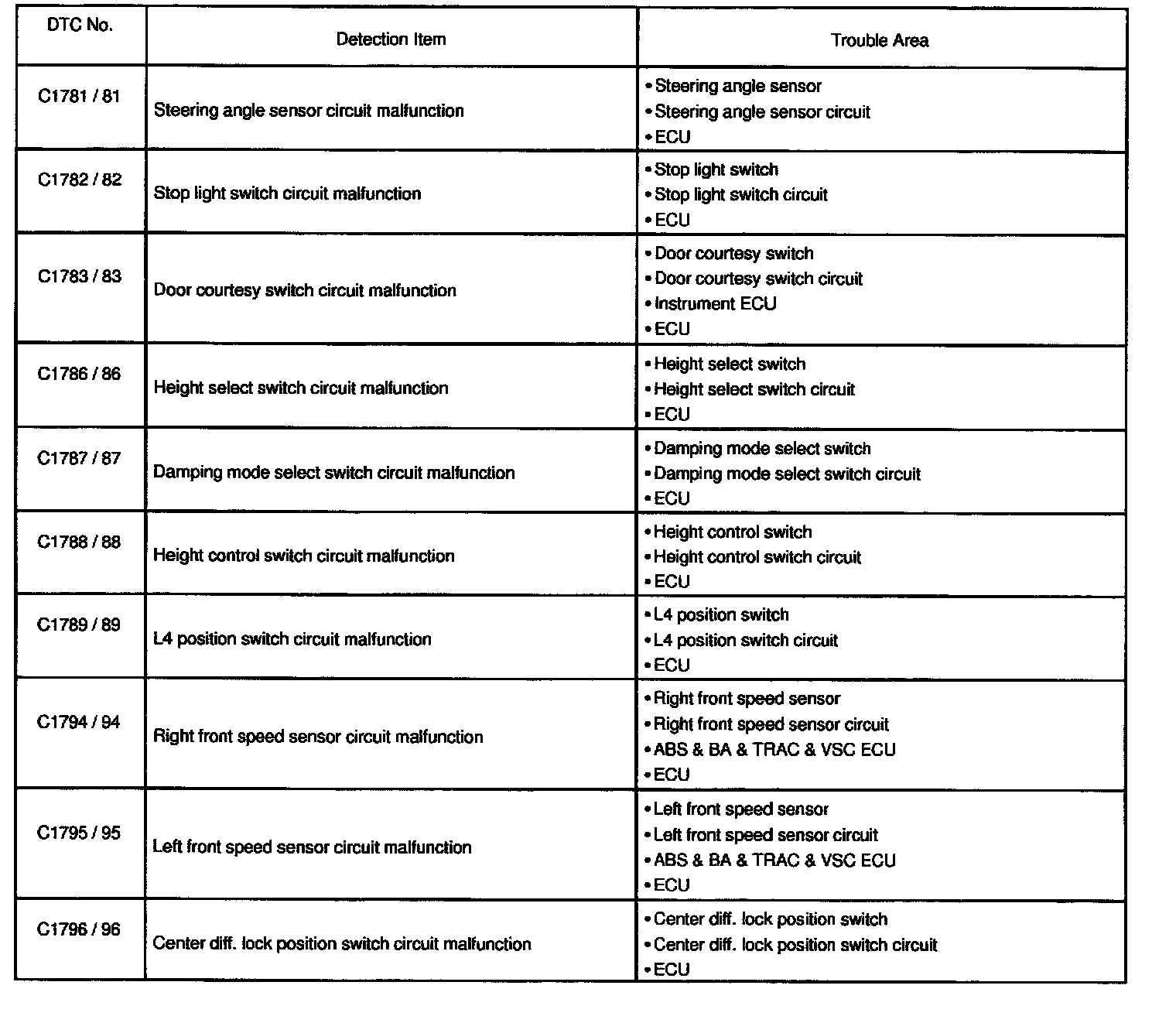

DTC OF INPUT SIGNAL CHECK
If a malfunction code is displayed during the test DTC check, check the circuit listed for that code.
