SAE Controlled Trouble Codes

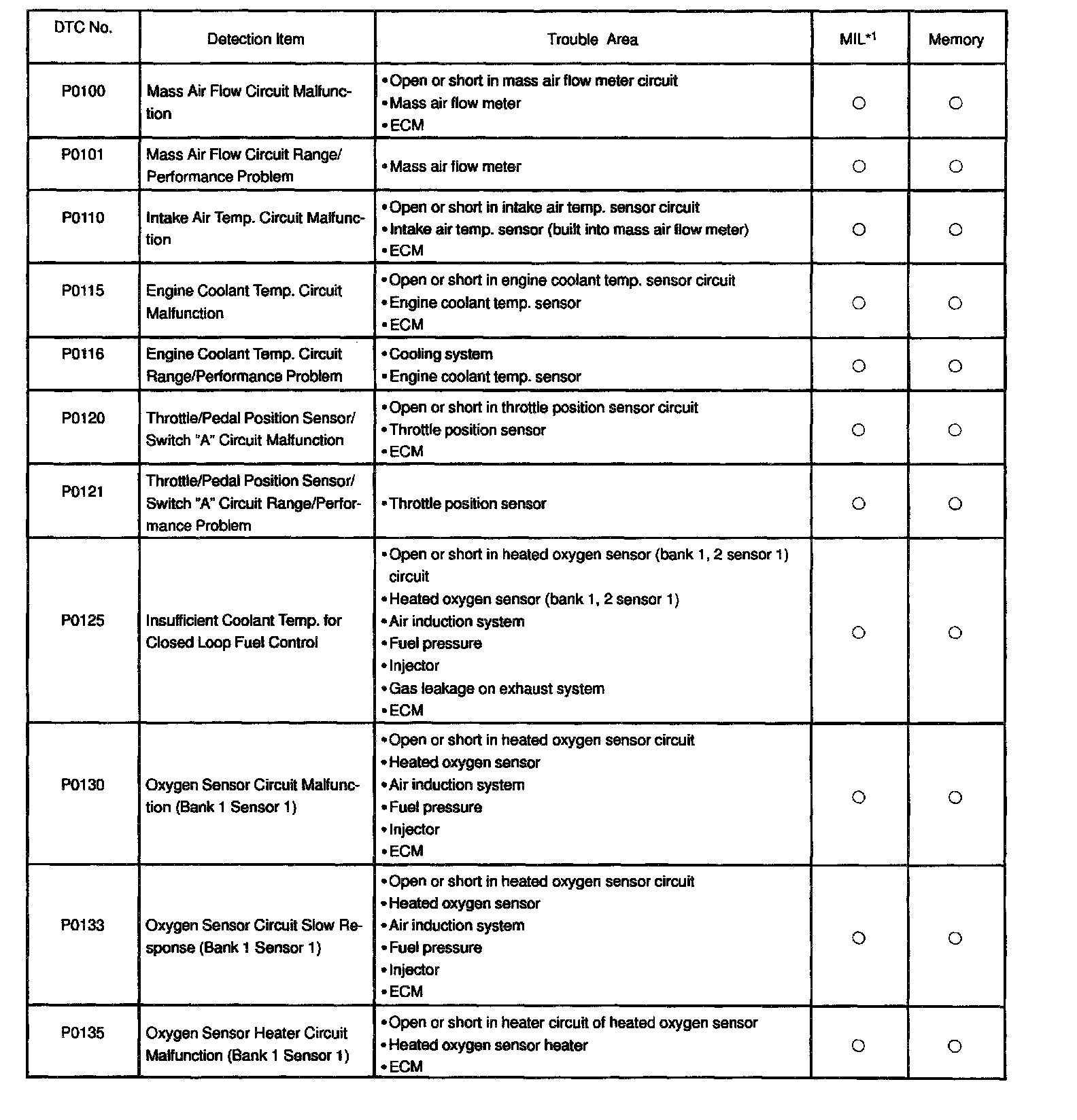

P0100 - P0135:

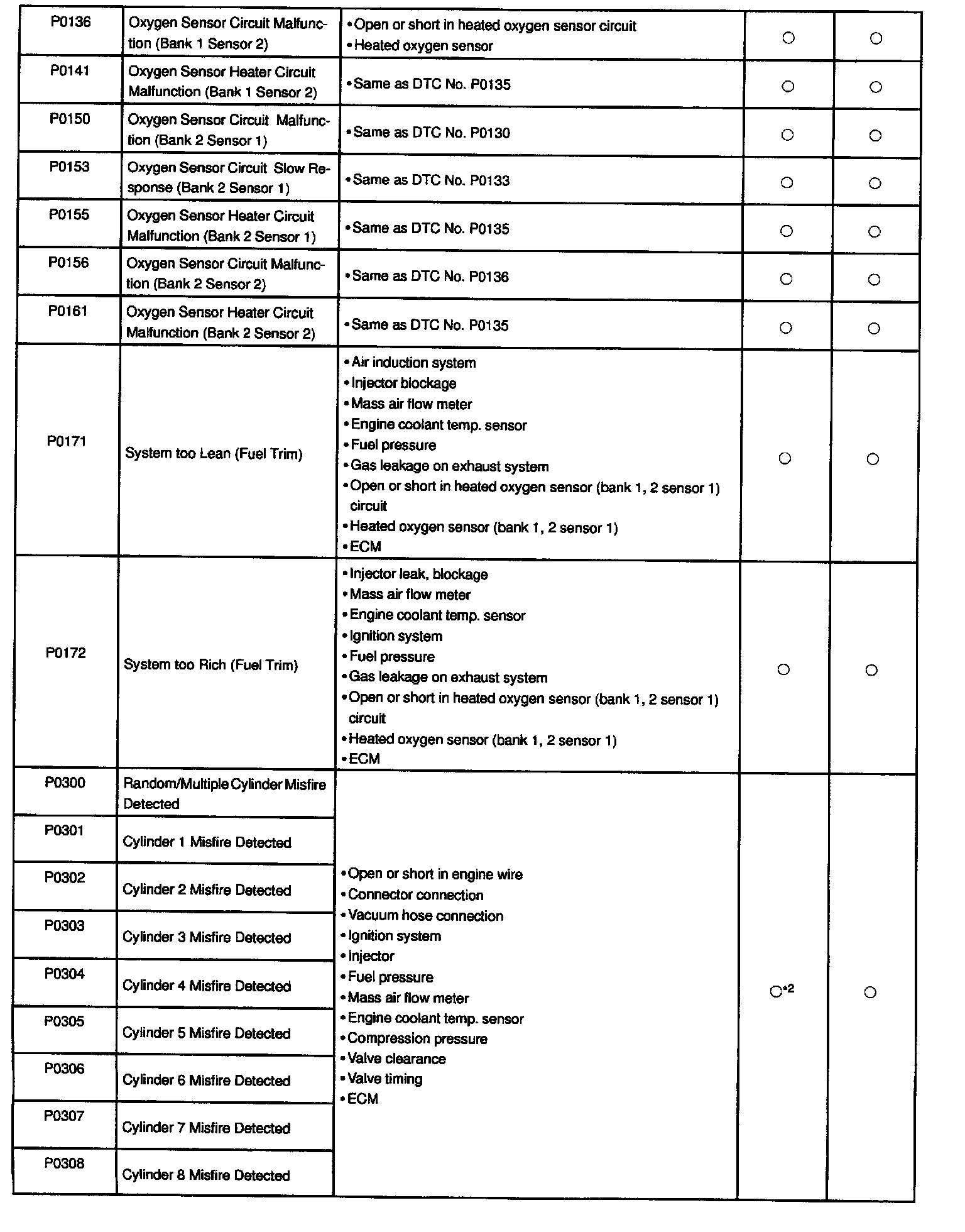

P0136 - P0308:

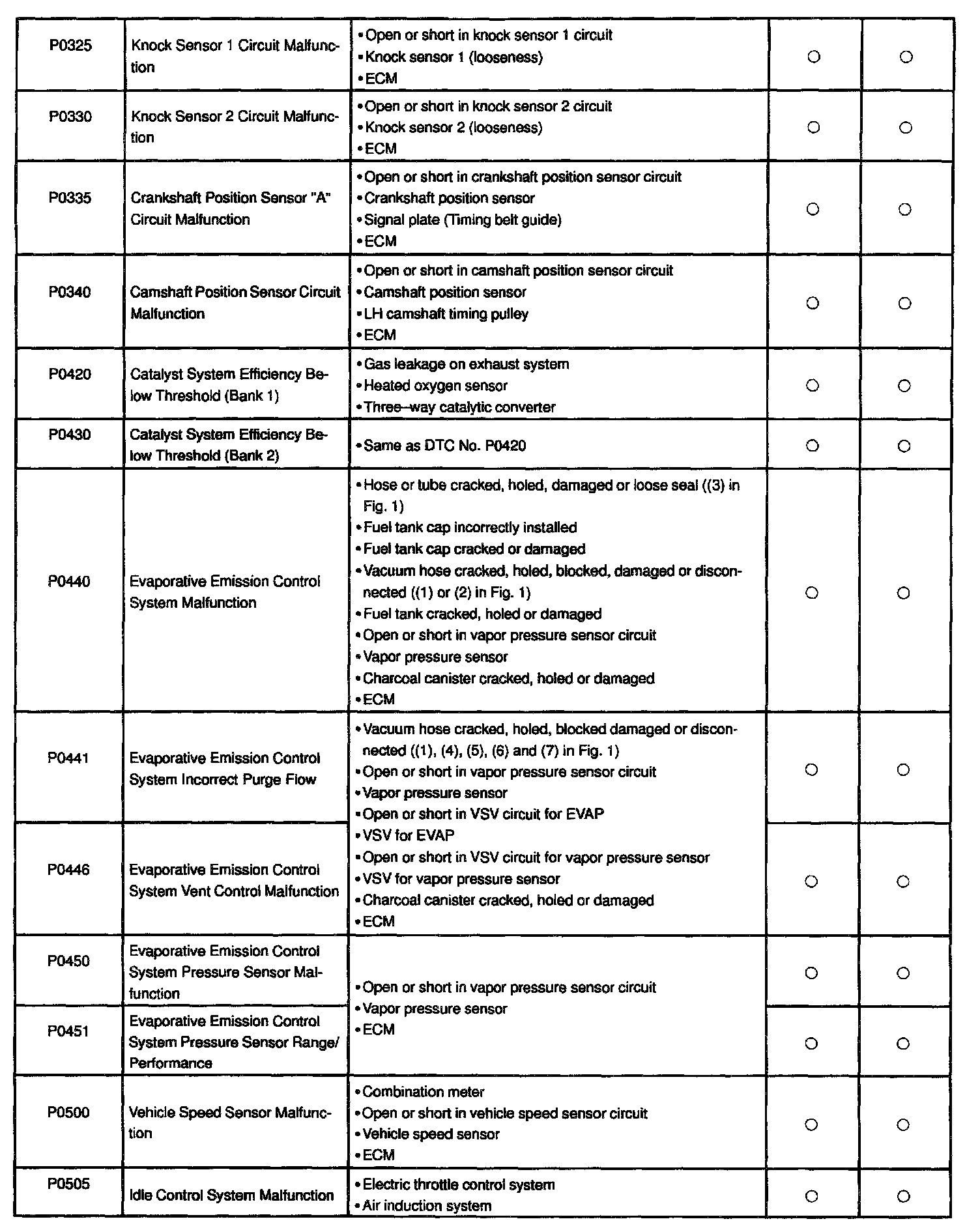

P0325 - P0505:

*1: MIL lights up.
*2: MIL lights up or blinking.

DIAGNOSTIC TROUBLE CODE CHART

HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.
If a malfunction code is displayed during the DTC check in check mode, check the circuit for the codes listed in the table.
