C1796

CIRCUIT DESCRIPTION
This circuit is sending the signal to the ECU by detecting that the transfer center differential is in the "LOCK" condition.

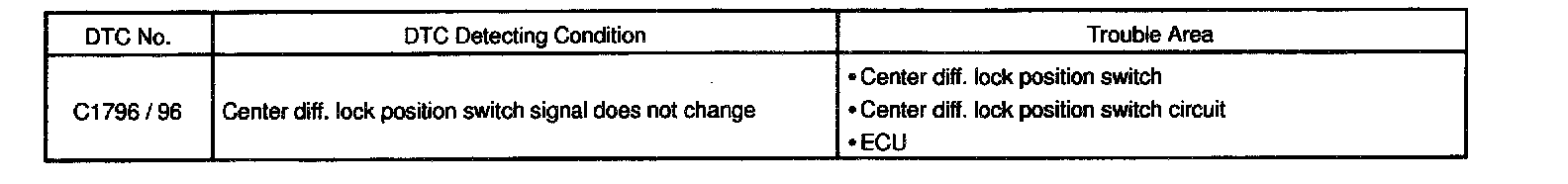

DETECTING CONDITIONS

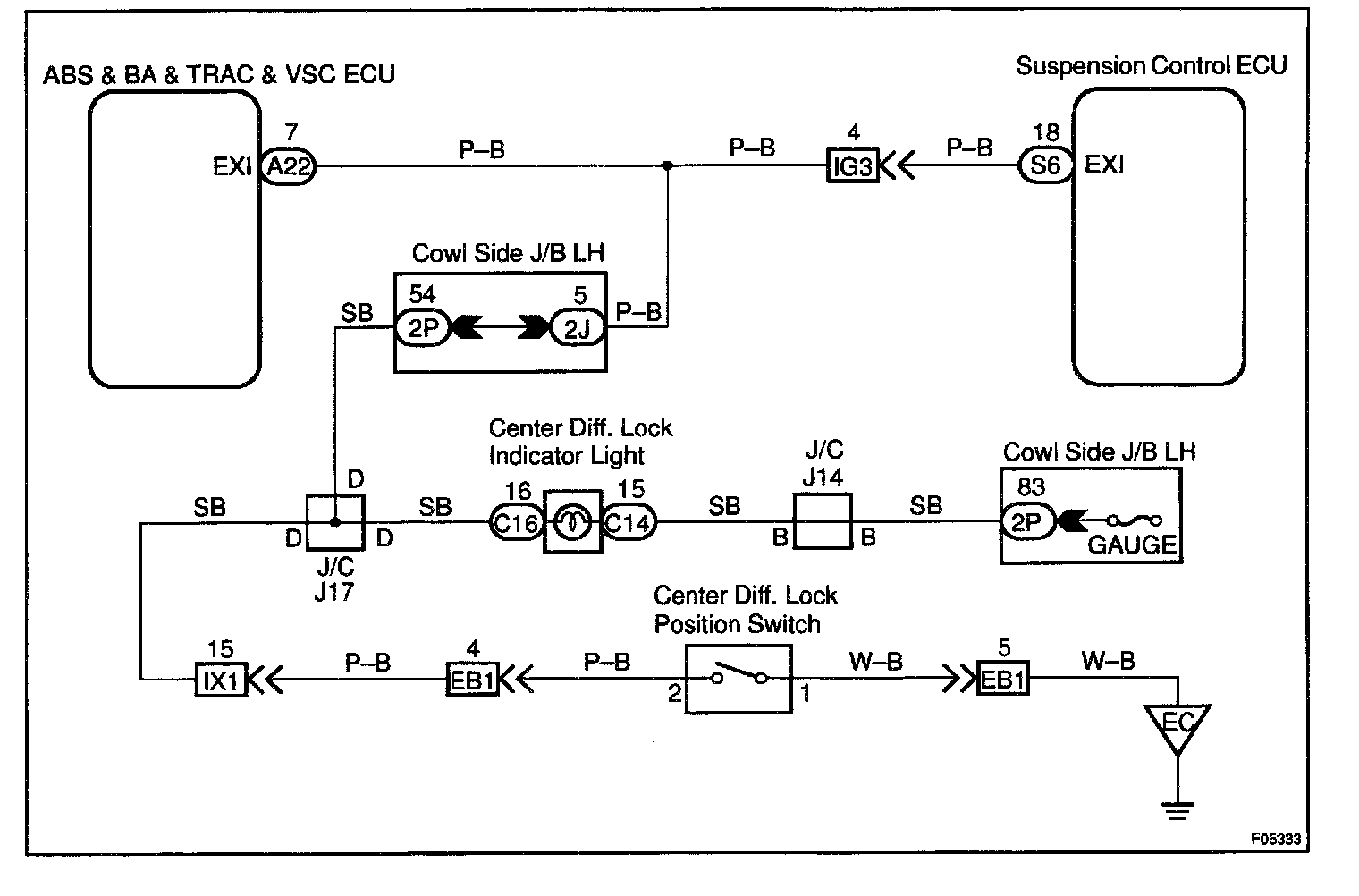

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

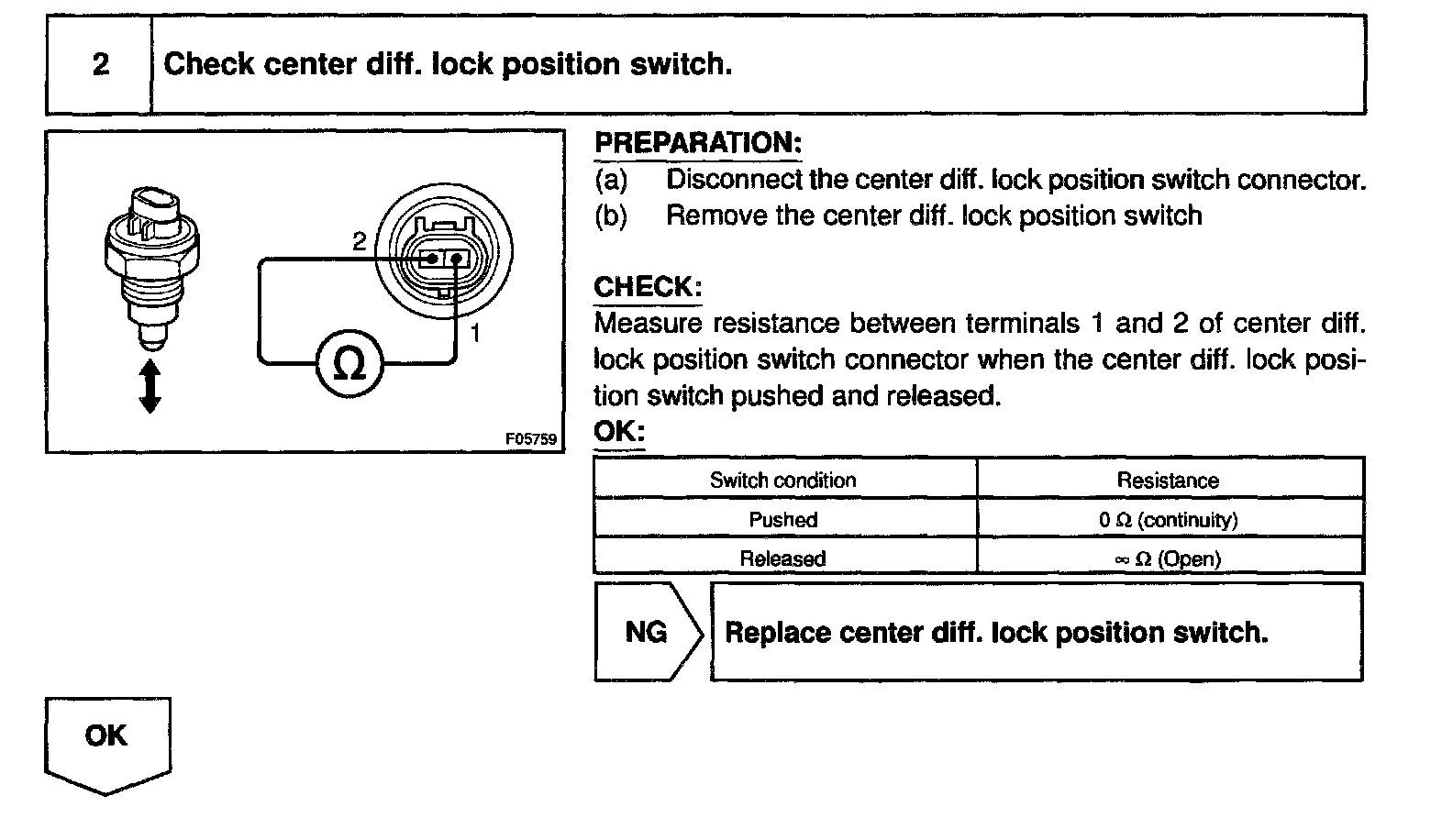

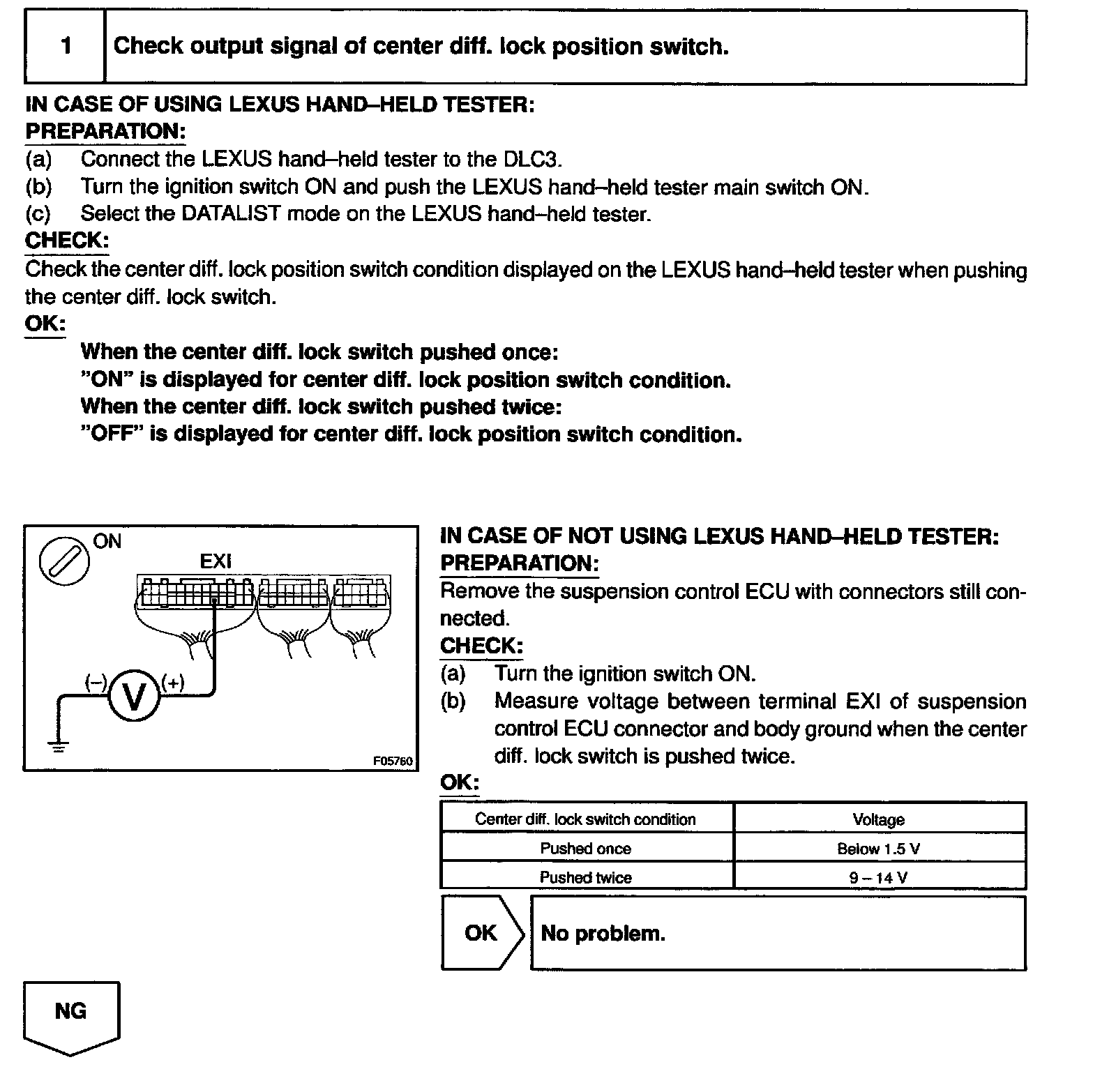

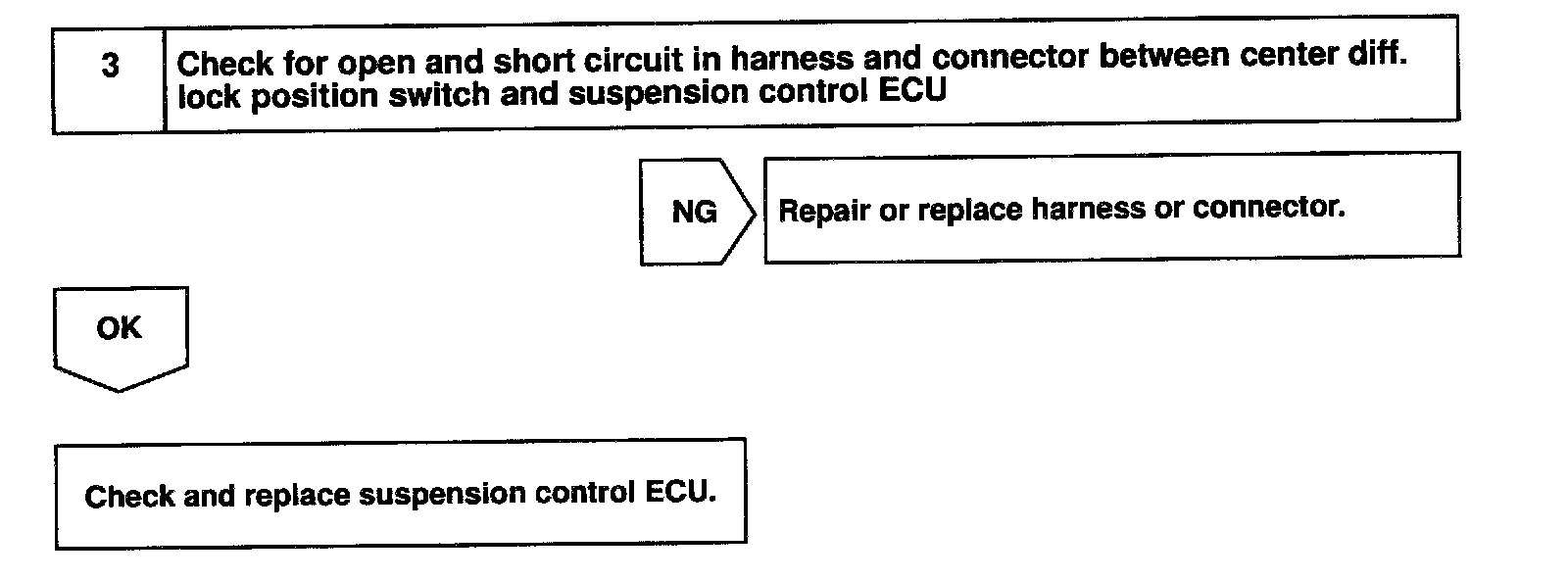

INSPECTION PROCEDURE
