C1794

CIRCUIT DESCRIPTION
This circuit receiving the speed detected by the speed sensor from the ABS & BA & TRAC & VSC ECU.

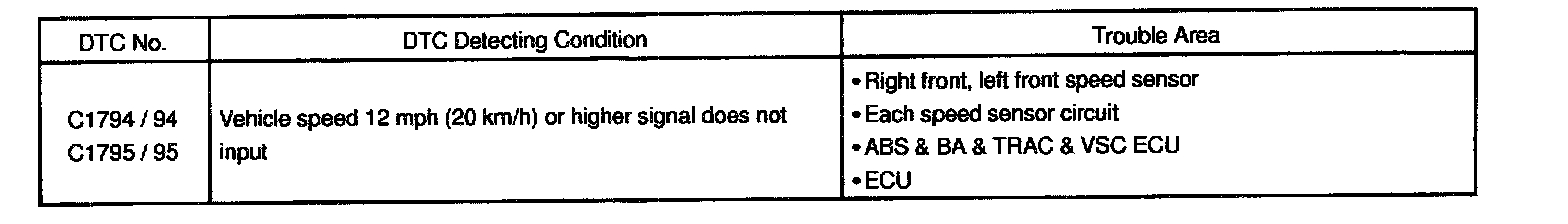

DETECTING CONDITIONS

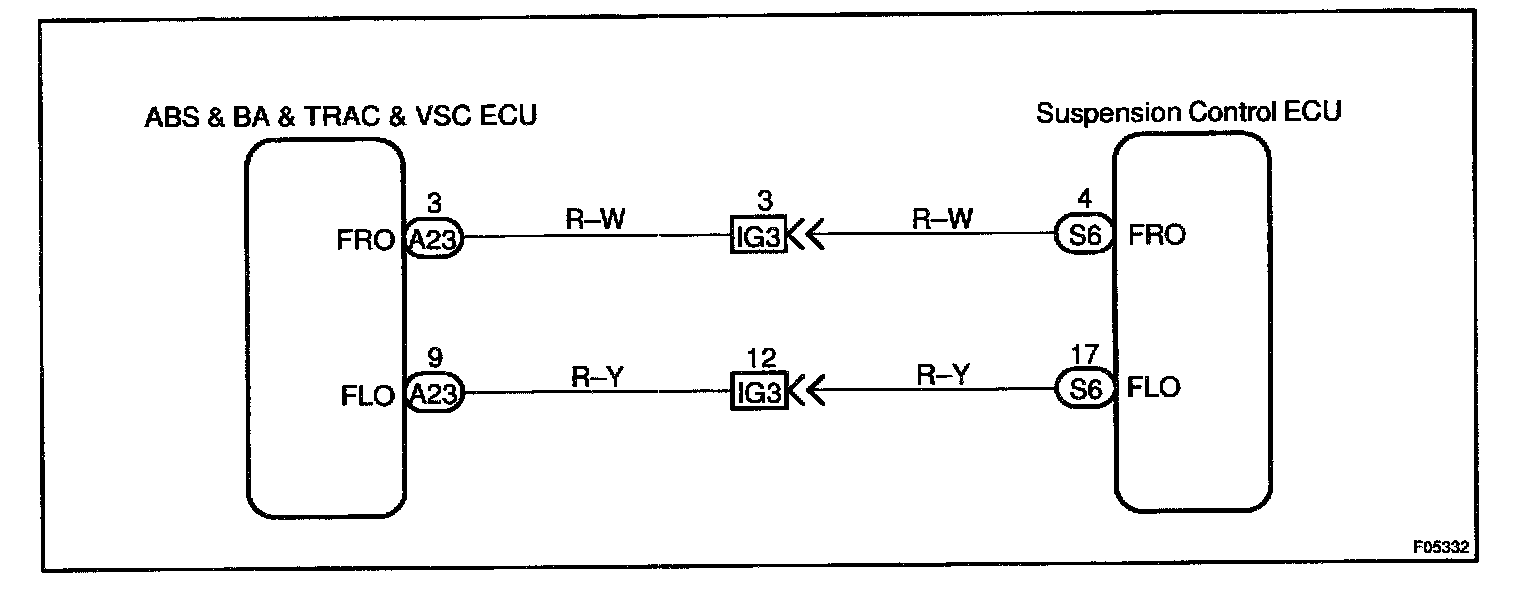

WIRING DIAGRAM

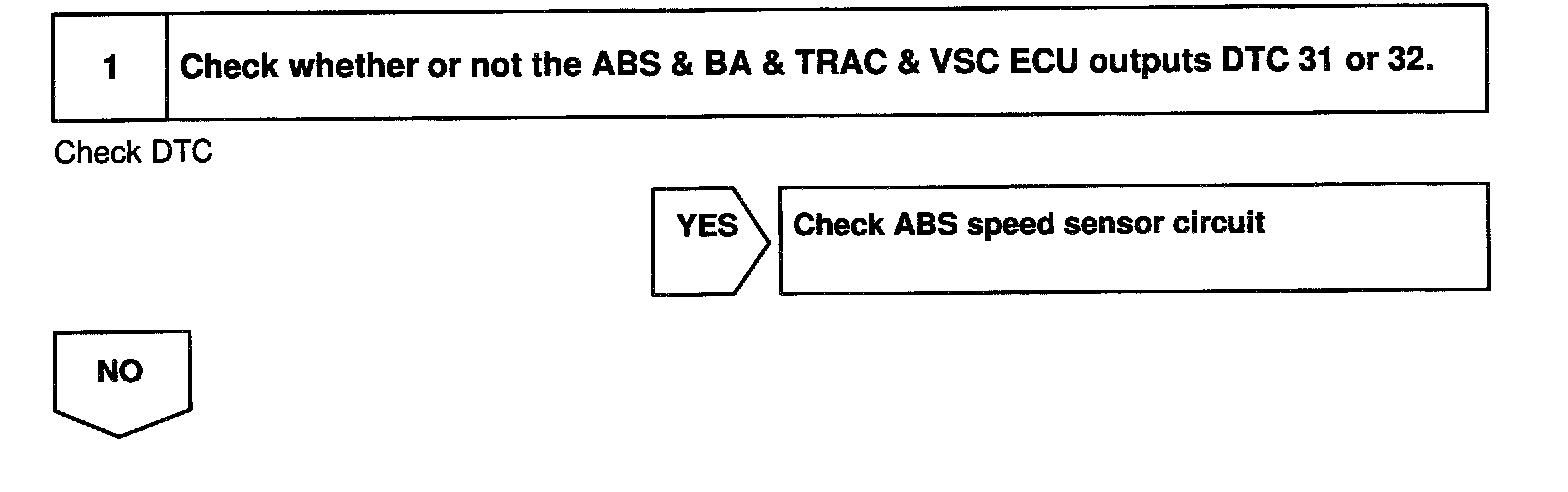

Step 1:

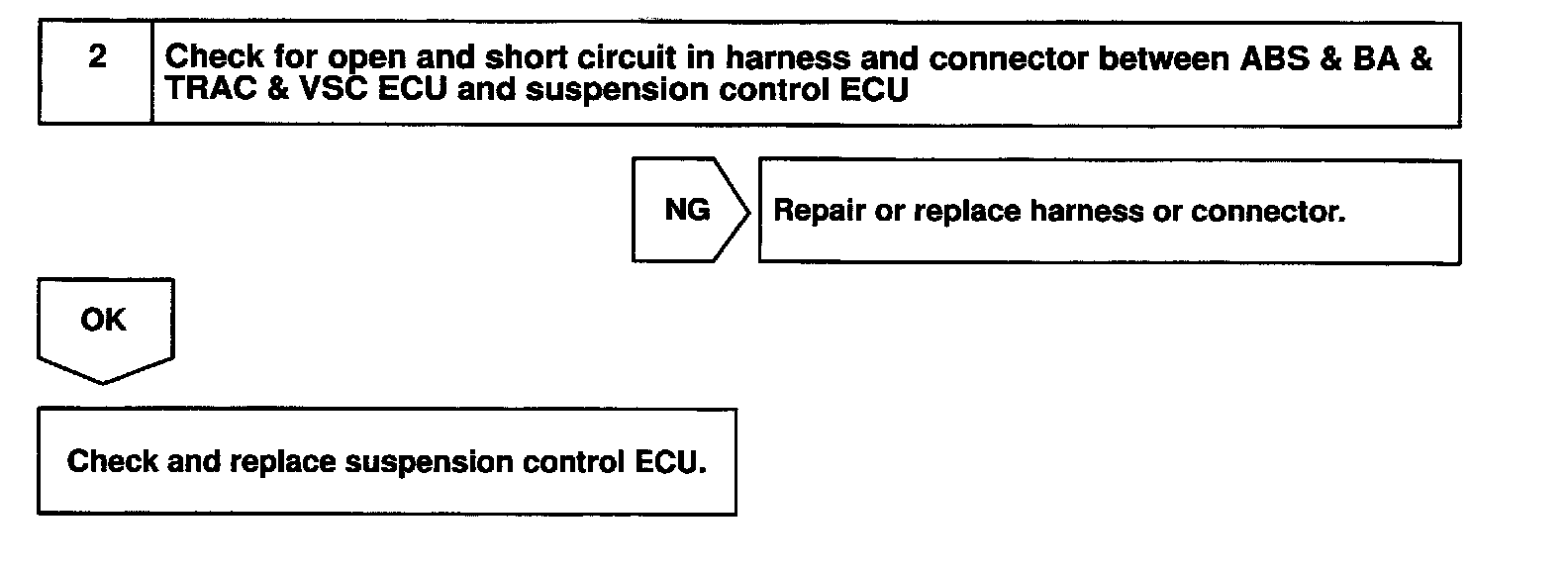

Step 2:

INSPECTION PROCEDURE
