C1789

CIRCUIT DESCRIPTION
This circuit is sending the signal to the ECU by detecting that the transfer shift lever is in "L4" position.

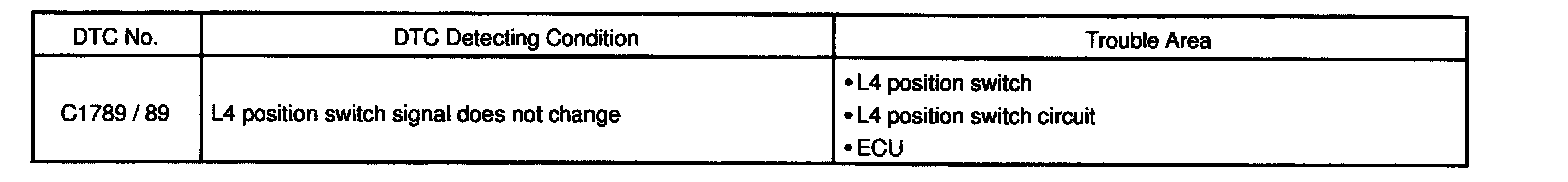

DETECTING CONDITIONS

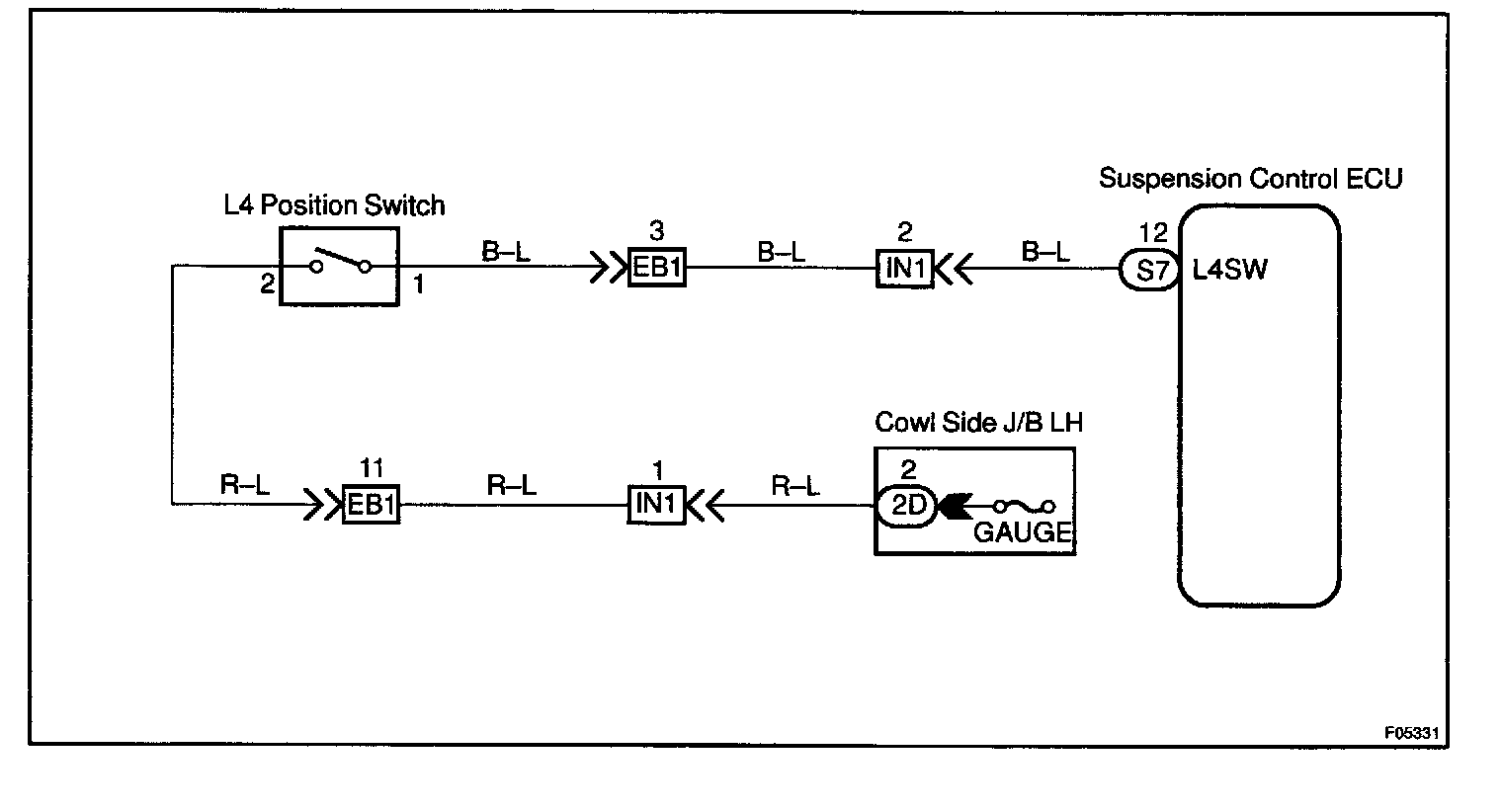

WIRING DIAGRAM

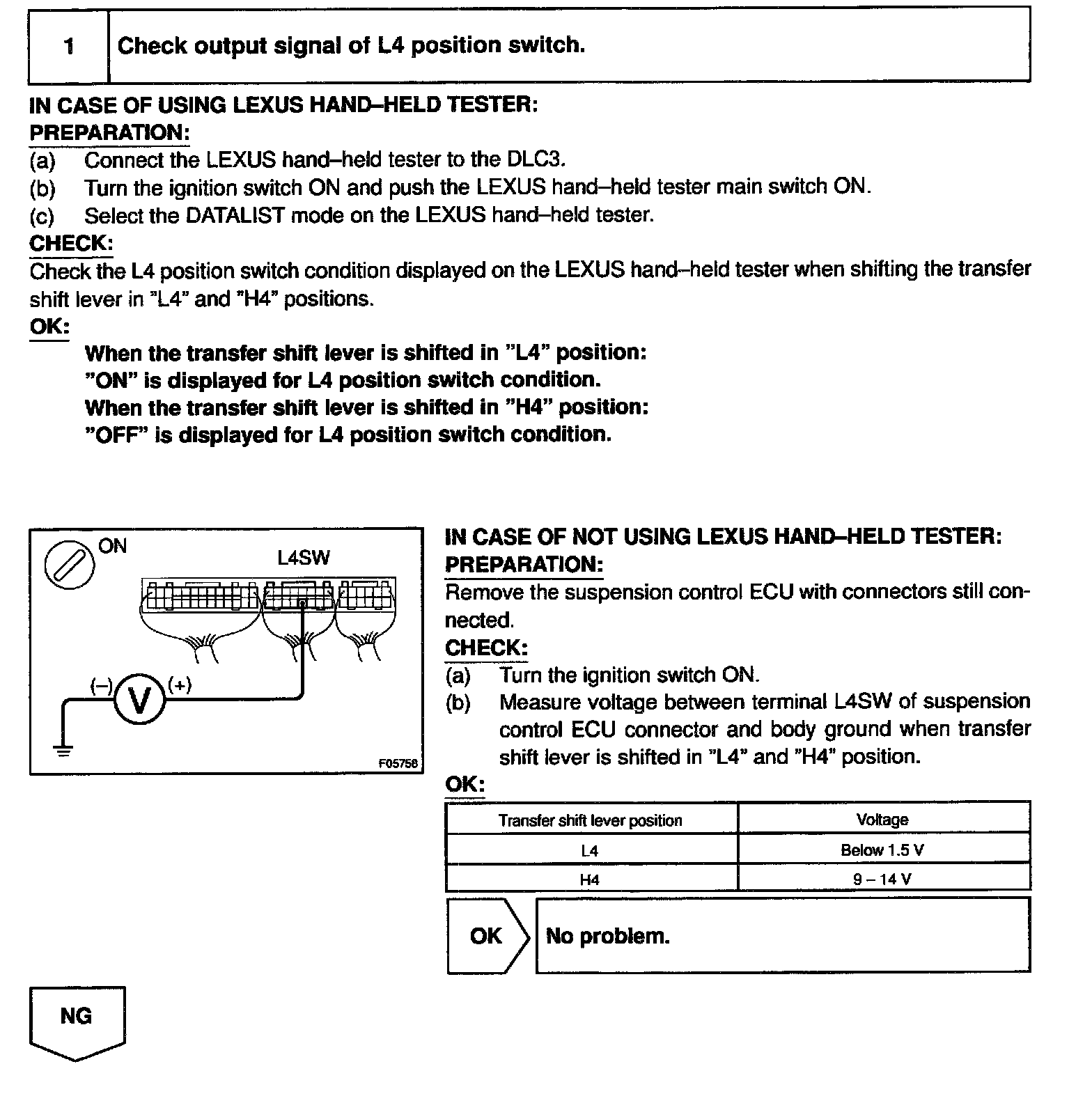

Step 1:

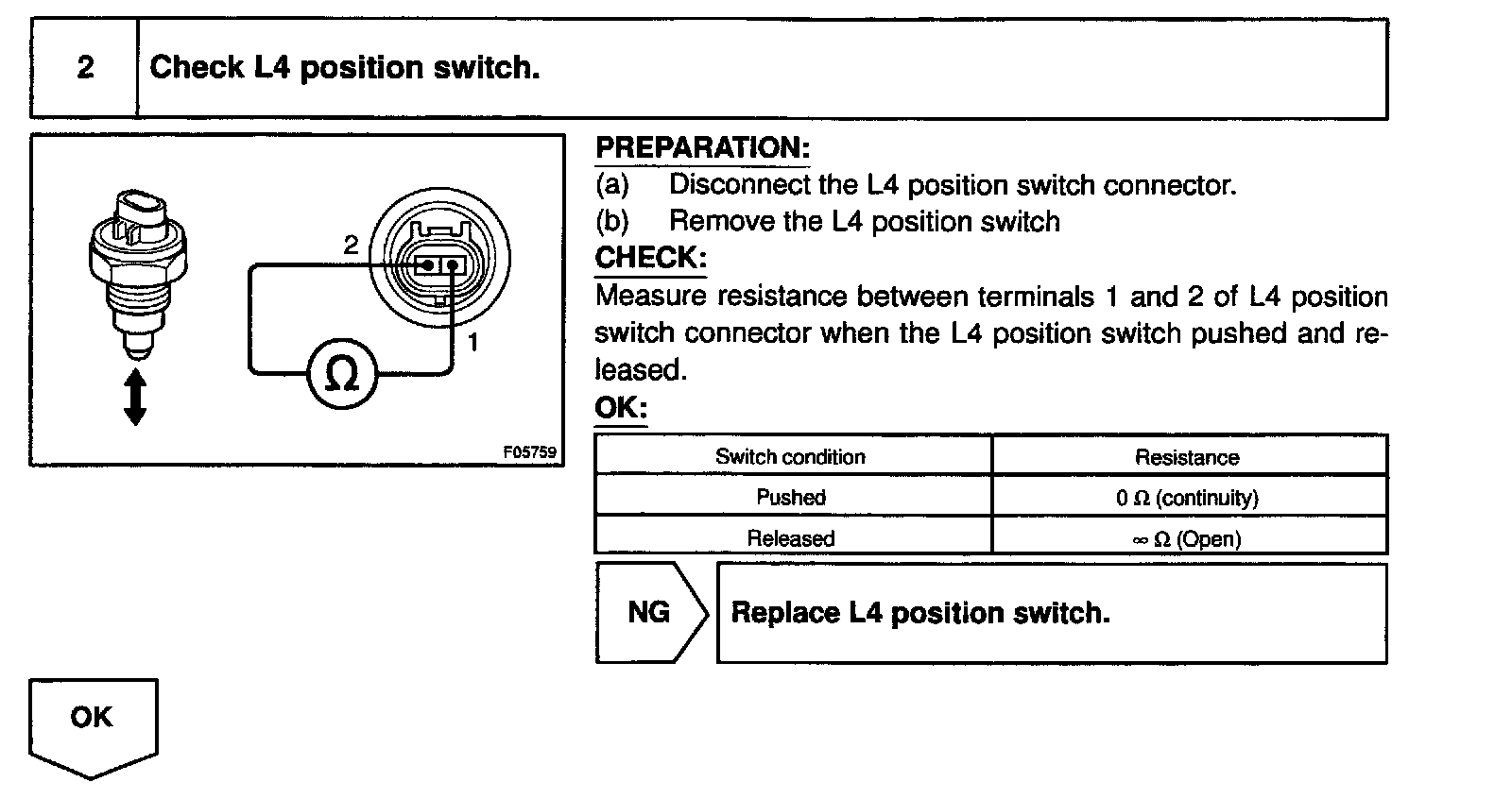

Step 2:

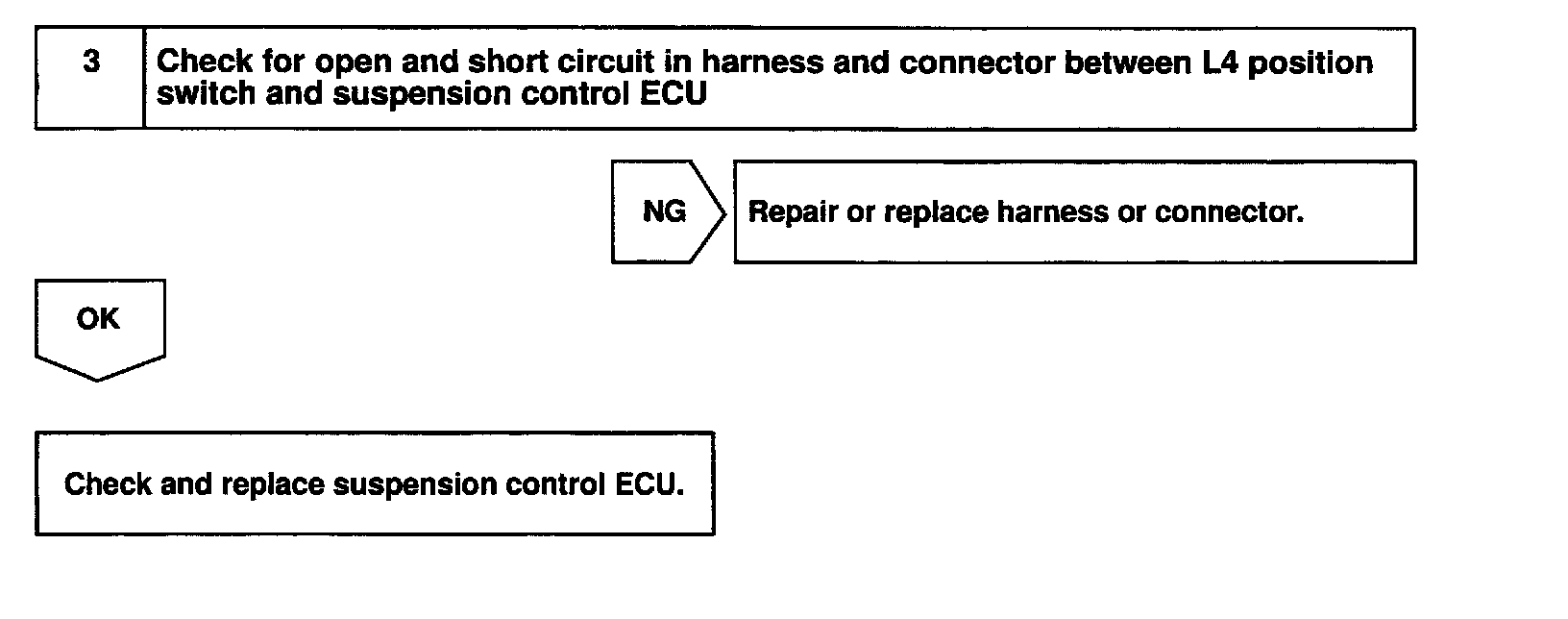

Step 3:

INSPECTION PROCEDURE
