C1788

CIRCUIT DESCRIPTION
This is the height control system main switch. When the height control switch is pushed, the height control OFF indicator light lights up and height control goes off.
The "OFF" condition of the height control will not be cancelled until the height control switch is pushed again or the vehicle is driven.

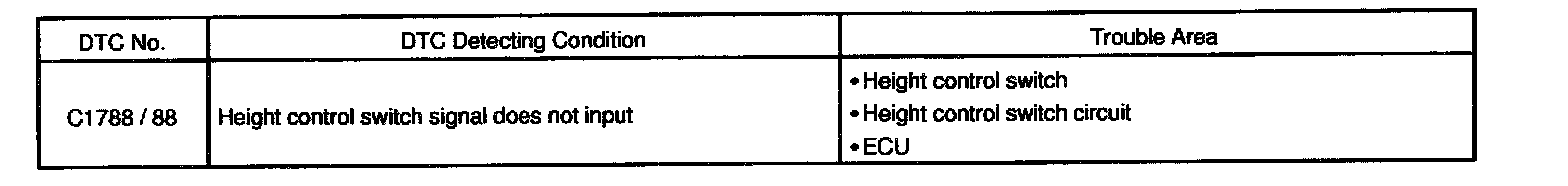

DETECTING CONDITIONS

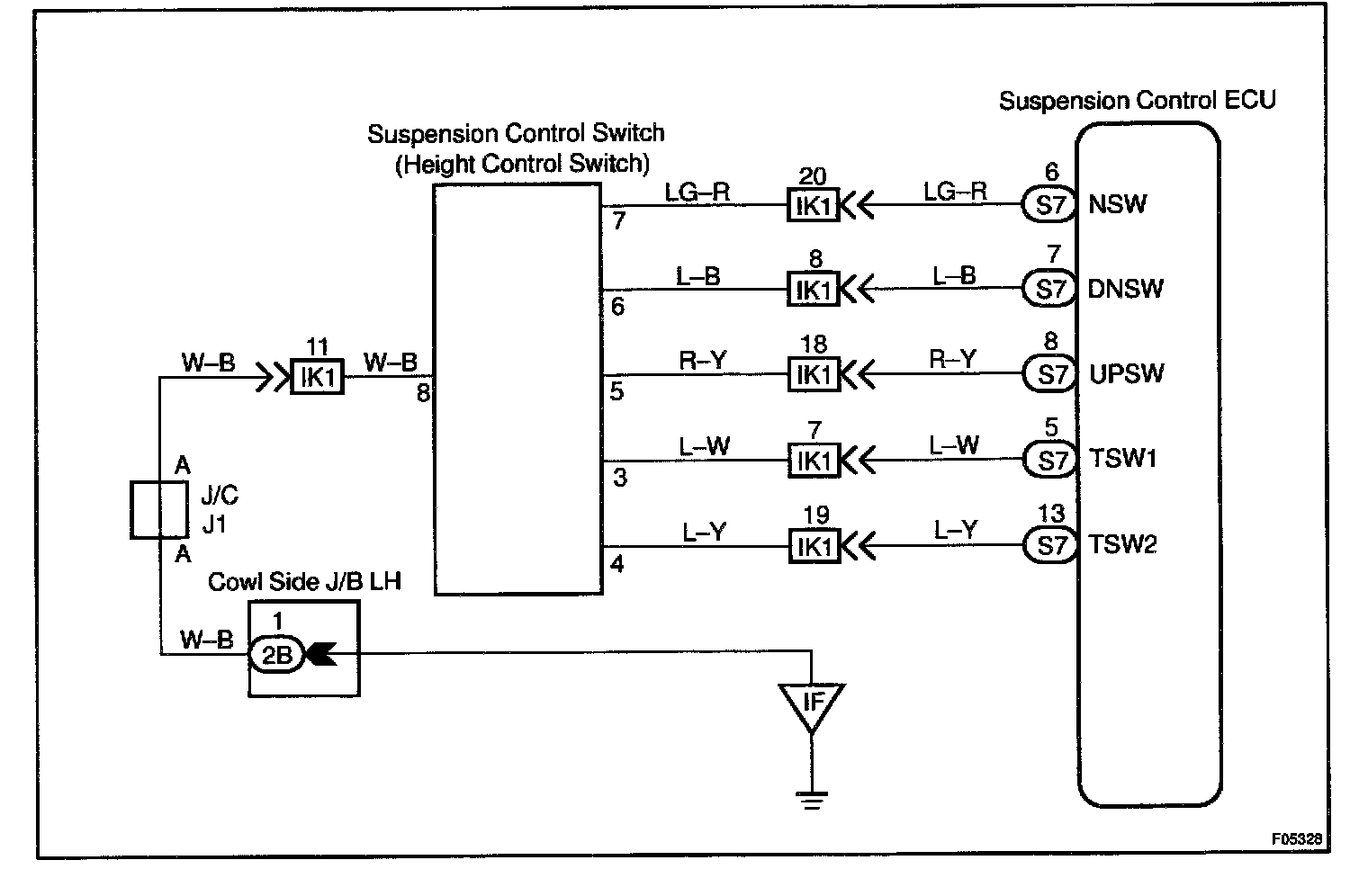

WIRING DIAGRAM

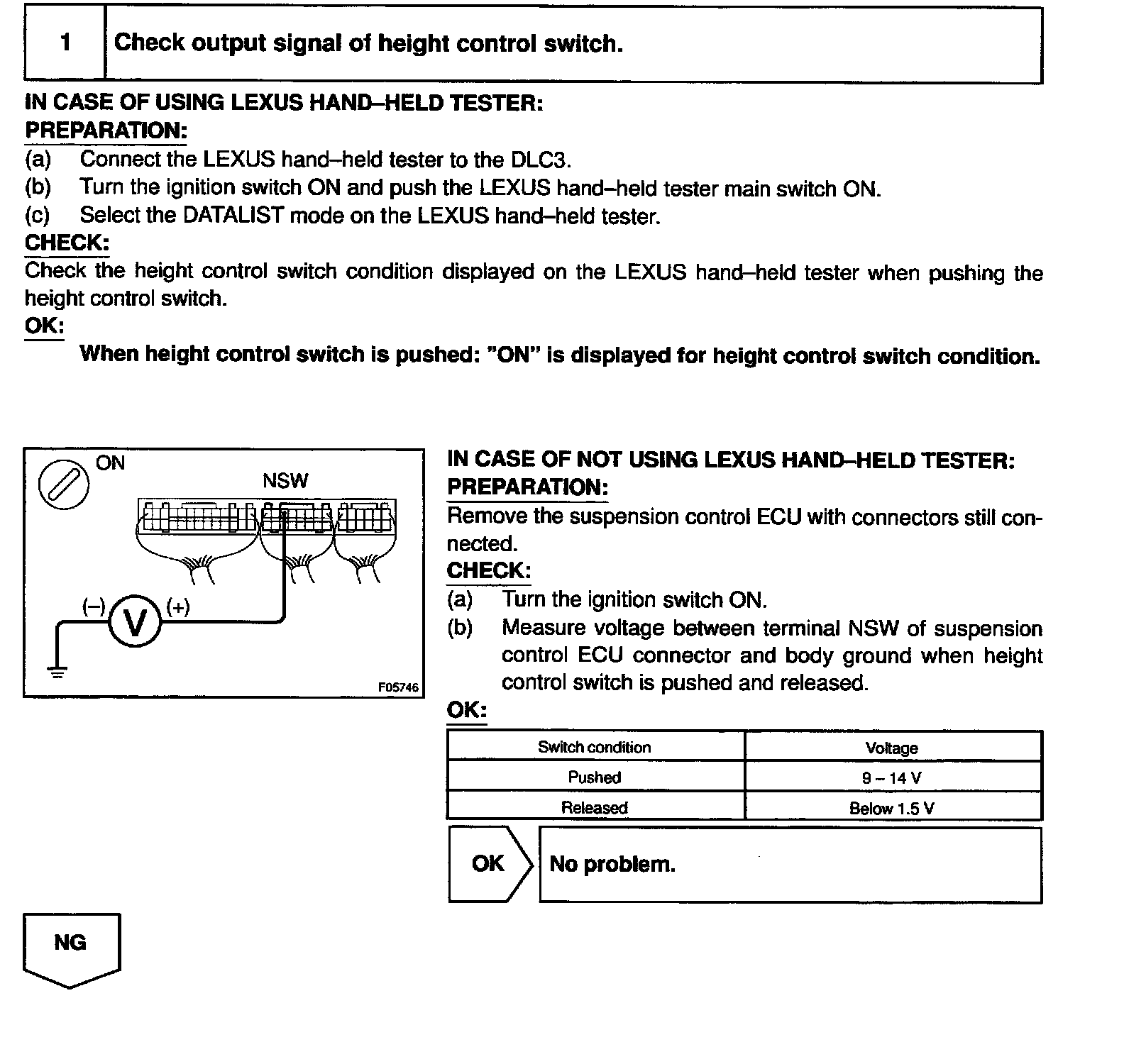

Step 1:

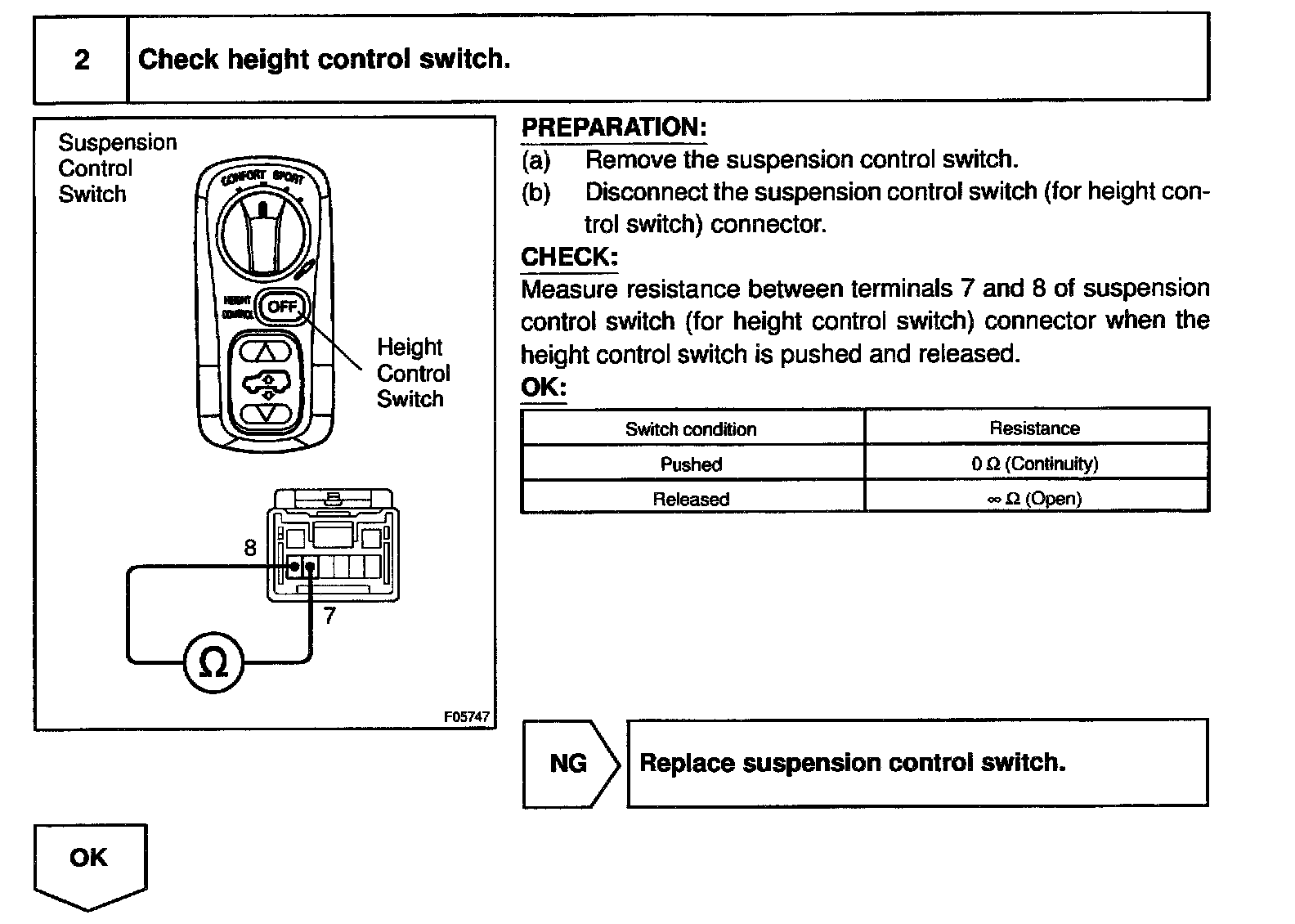

Step 2:

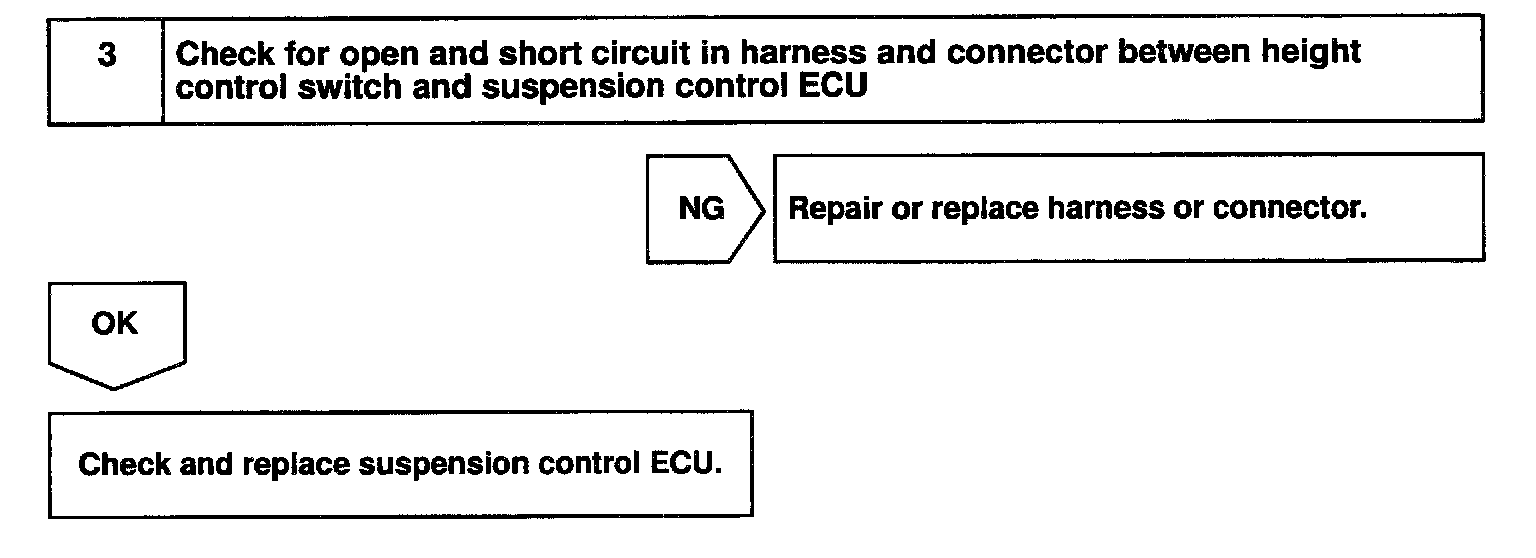

Step 3:

INSPECTION PROCEDURE
