C1787

CIRCUIT DESCRIPTION
This circuit is sending the signal to the ECU to switch over to the damping mode selected by the damping mode select switch.

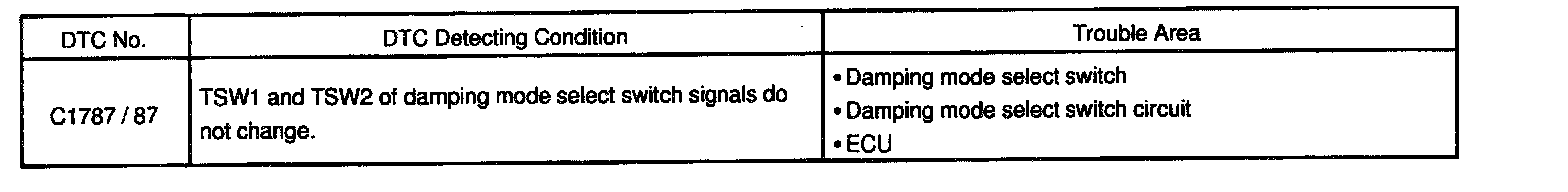

DETECTING CONDITIONS

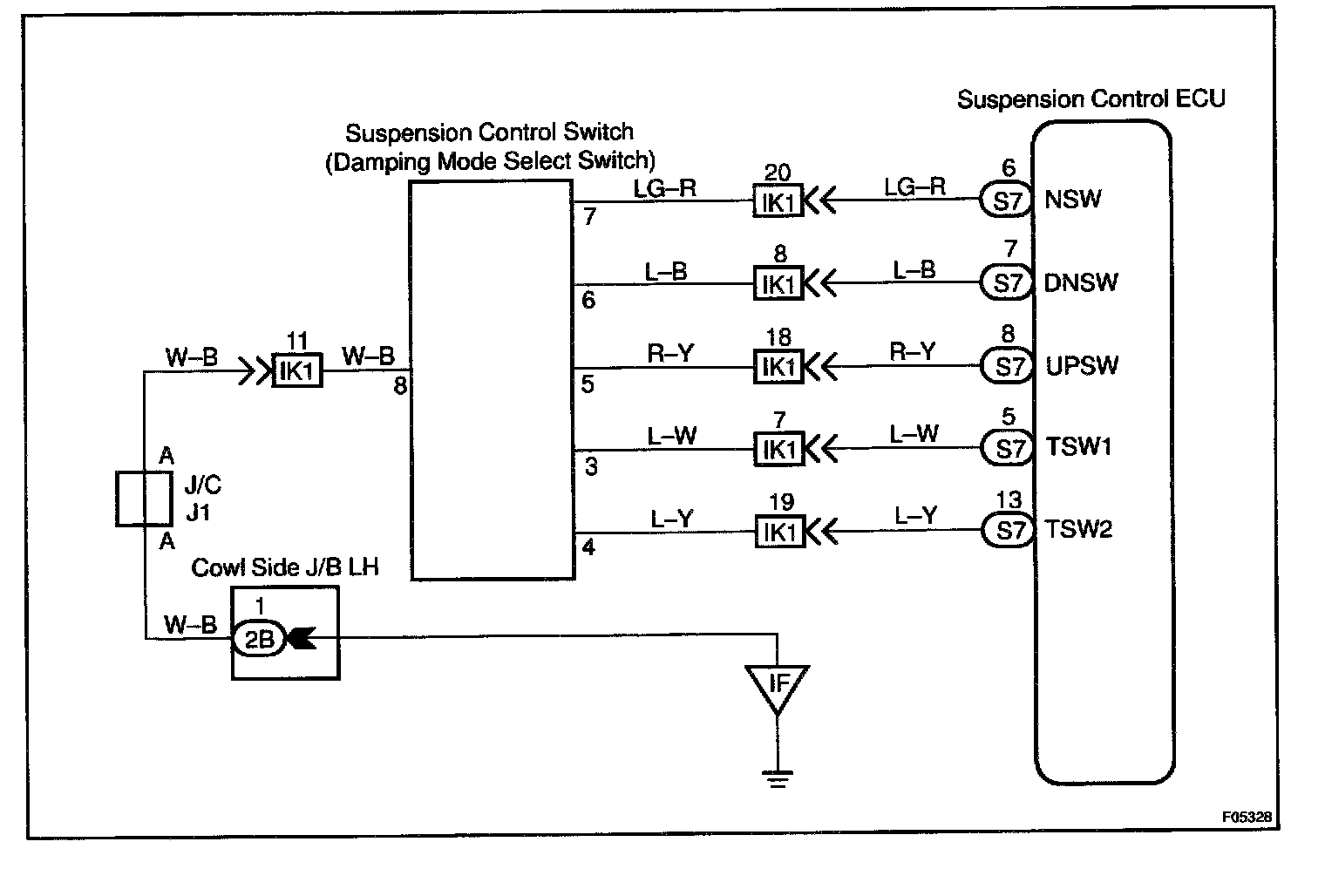

WIRING DIAGRAM

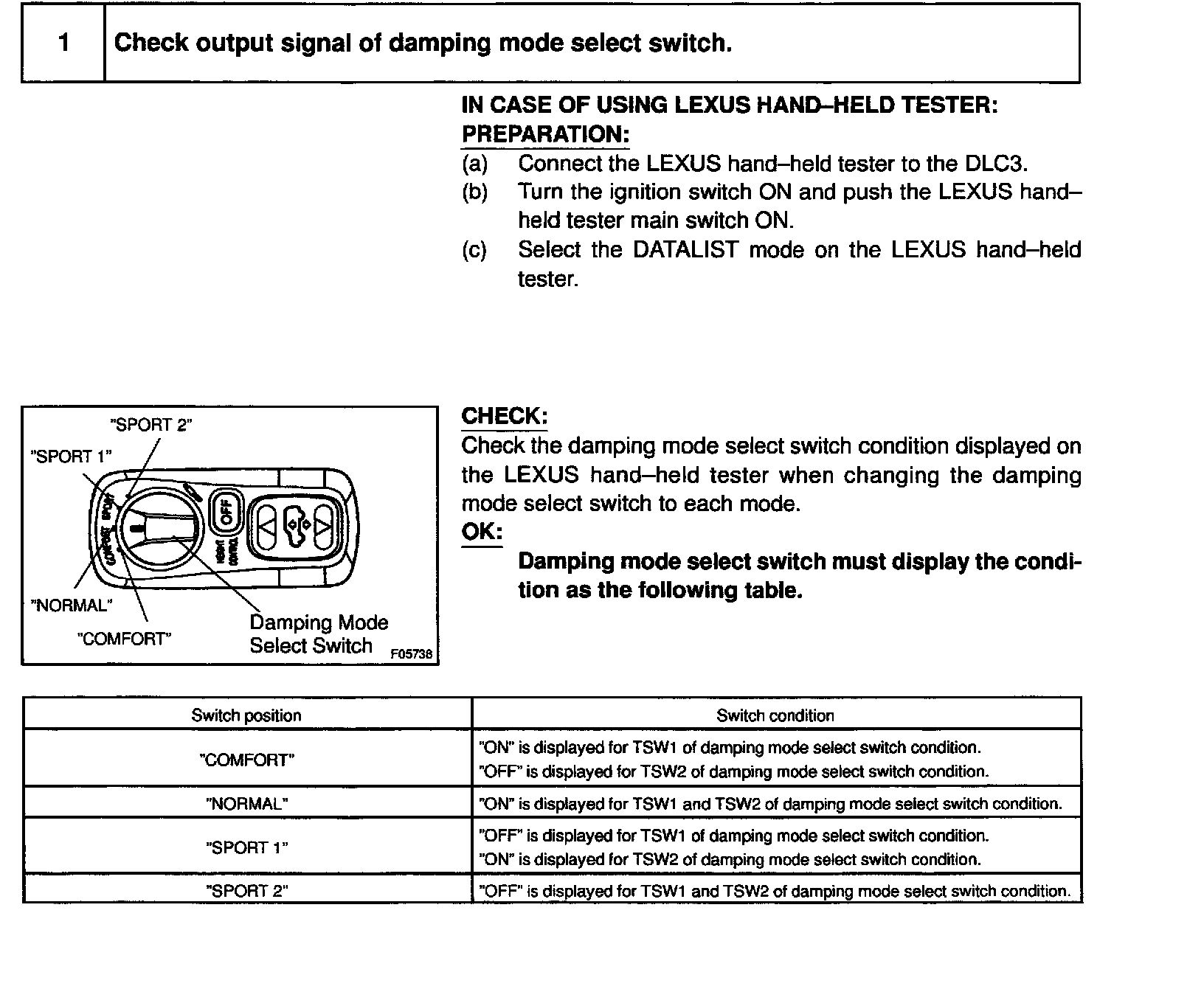

Step 1 (Part 1 Of 2):

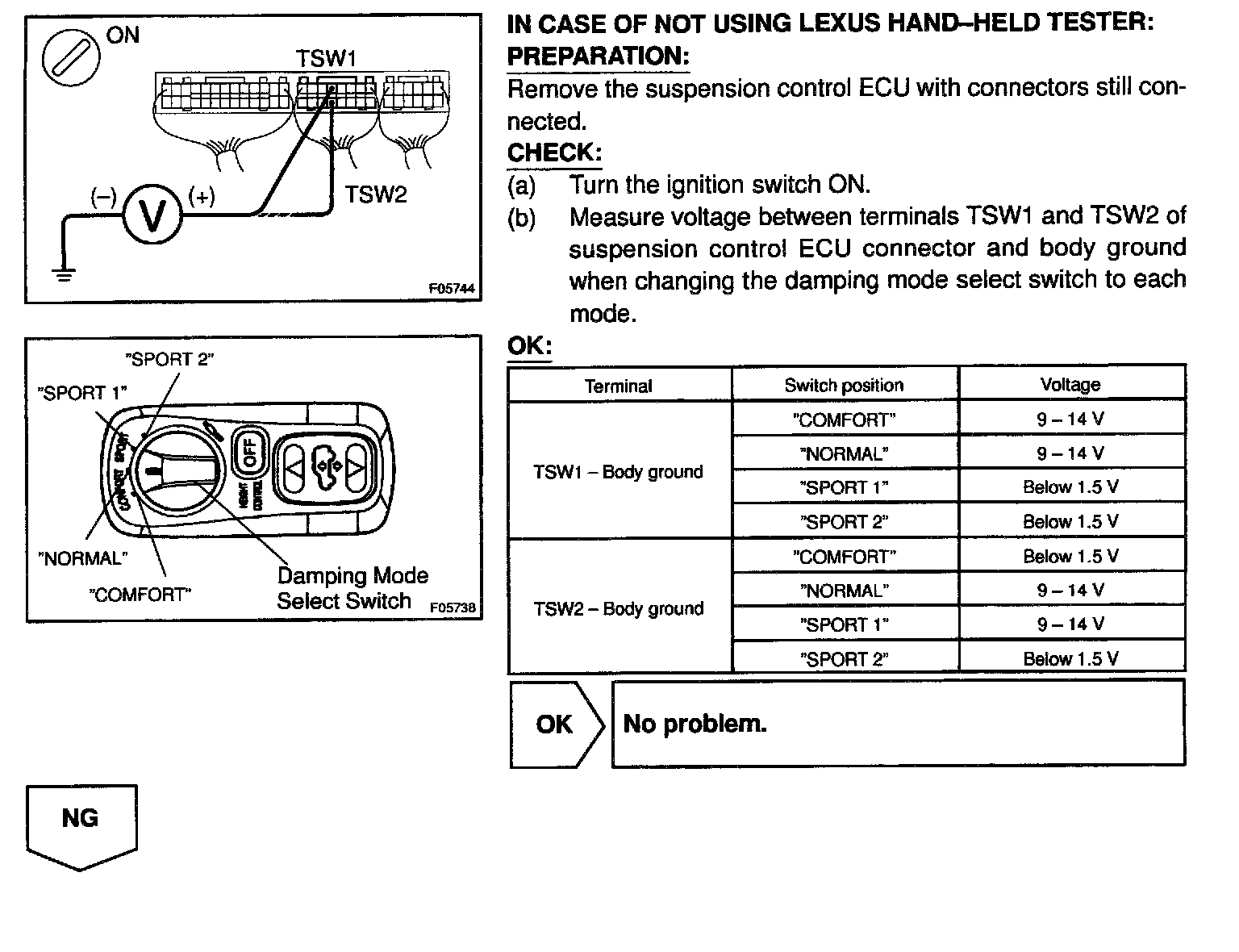

Step 1 (Part 2 Of 2):

Step 2:

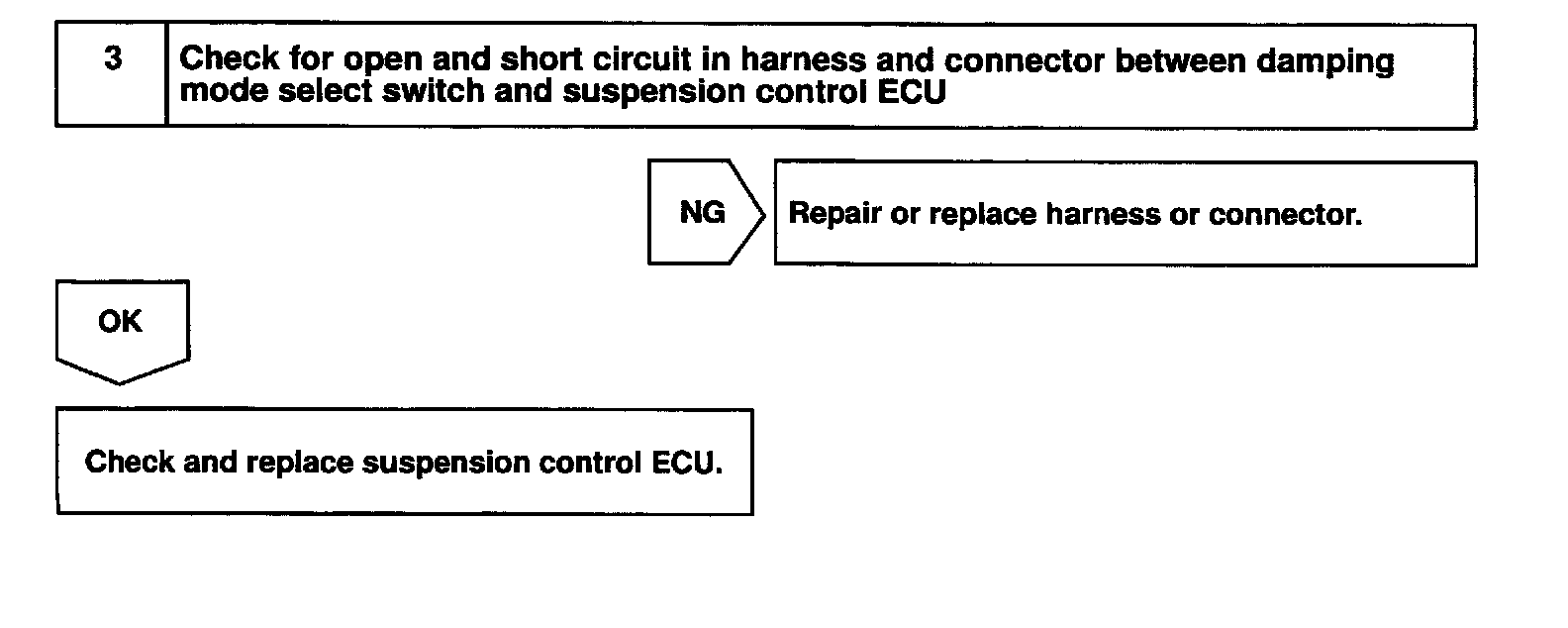

Step 3:

INSPECTION PROCEDURE
