ABS W/BA & VSC System

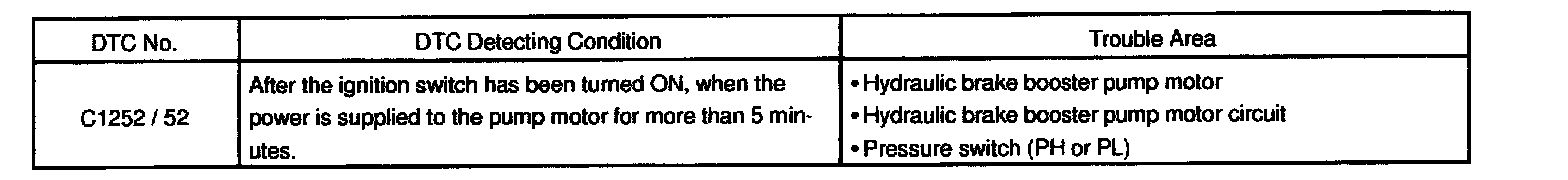

DETECTING CONDITIONS

Fail safe function:
If trouble occurs in the pump motor, the ECU cuts off current to the ABS solenoid relay and prohibits ABS & BA & TRAC & VSC controls.

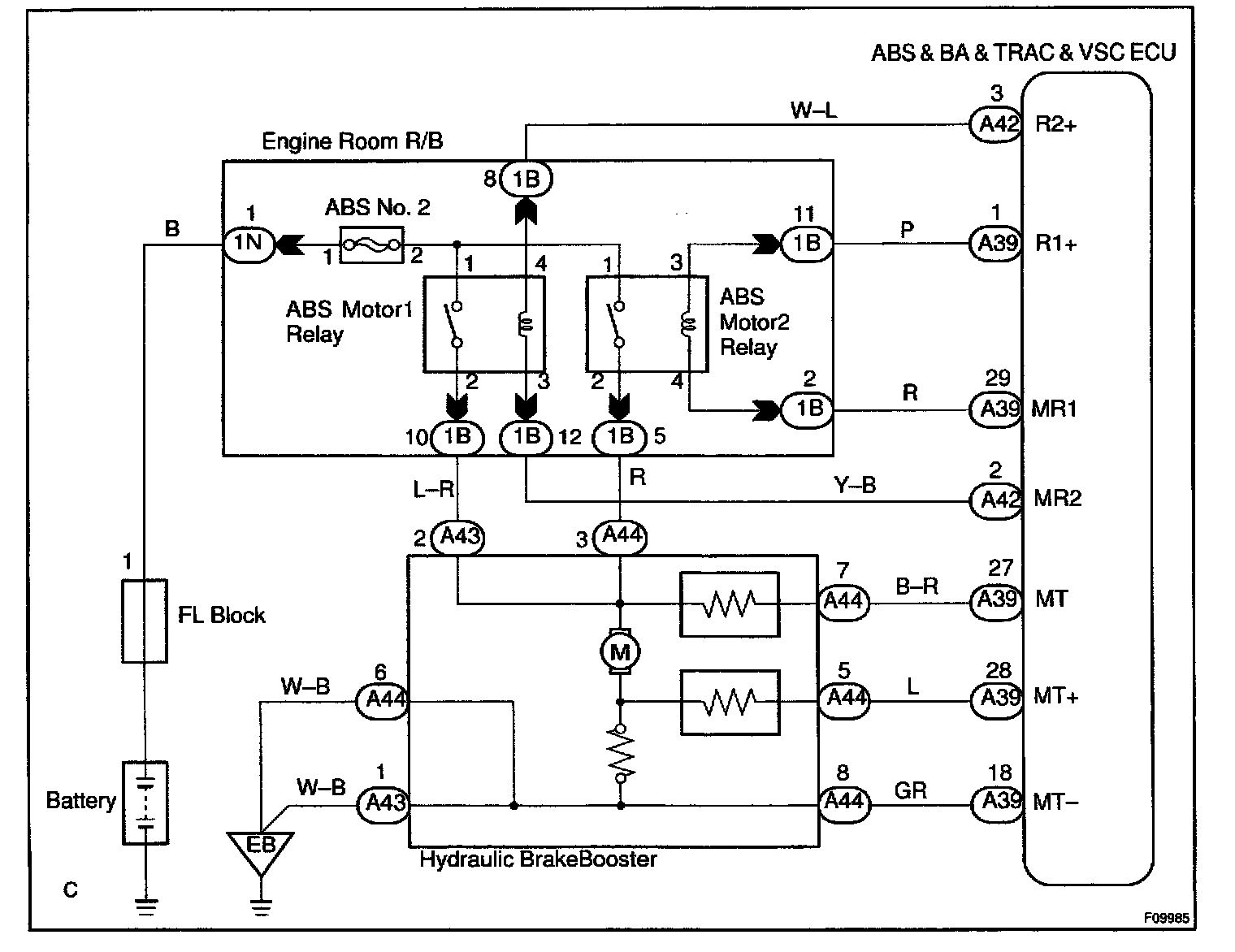

WIRING DIAGRAM

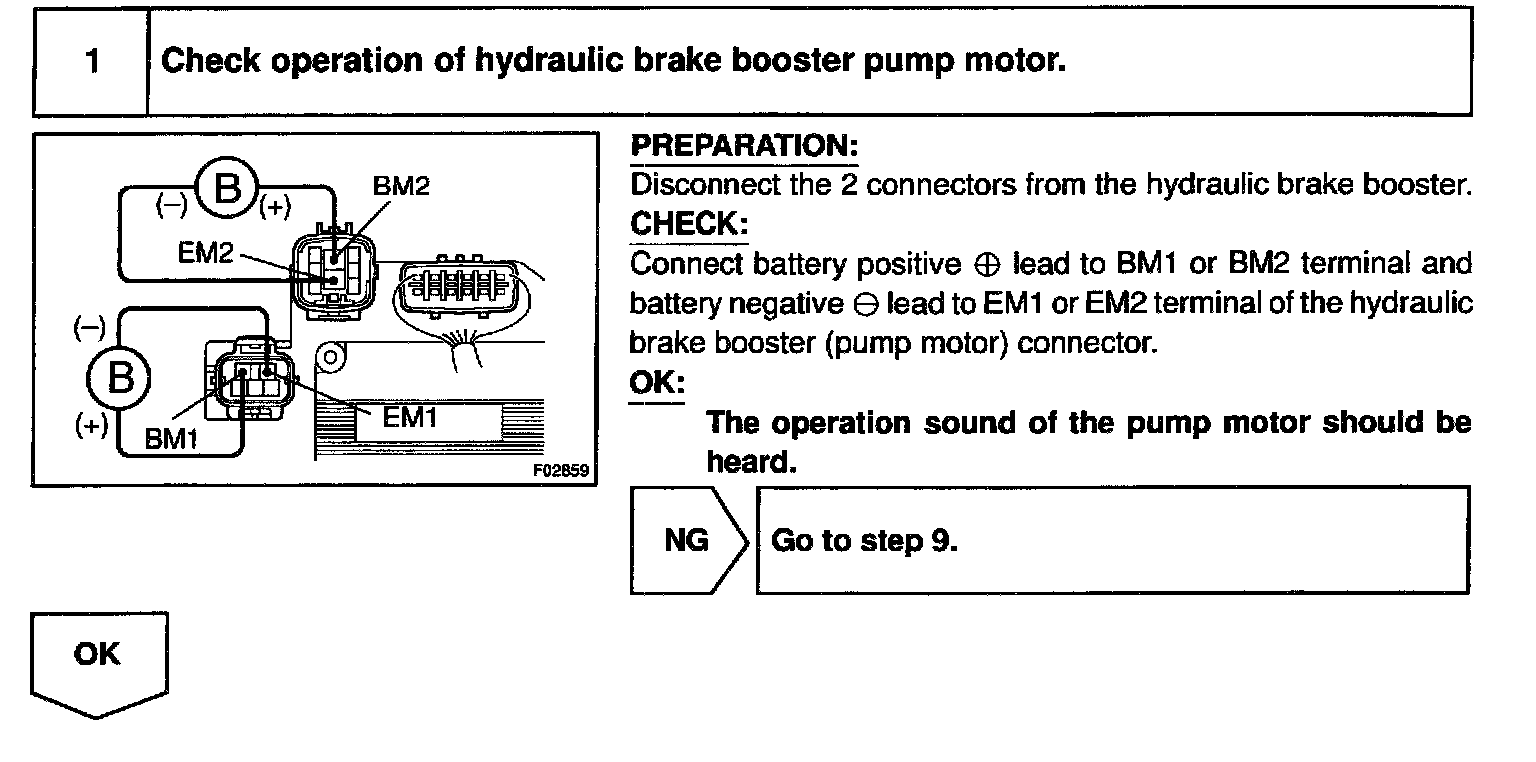

Step 1:

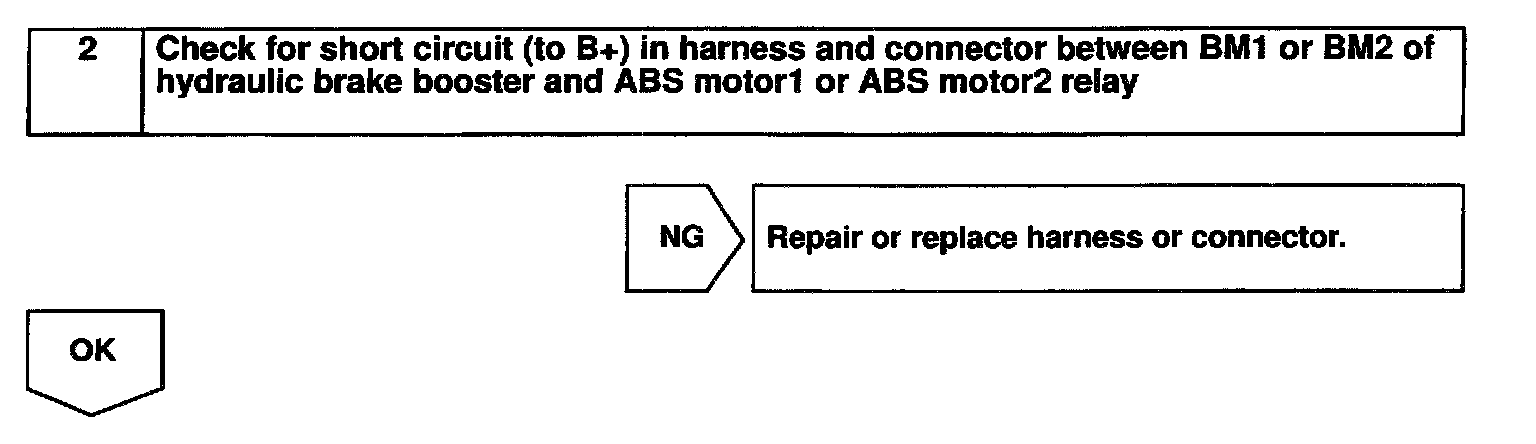

Step 2:

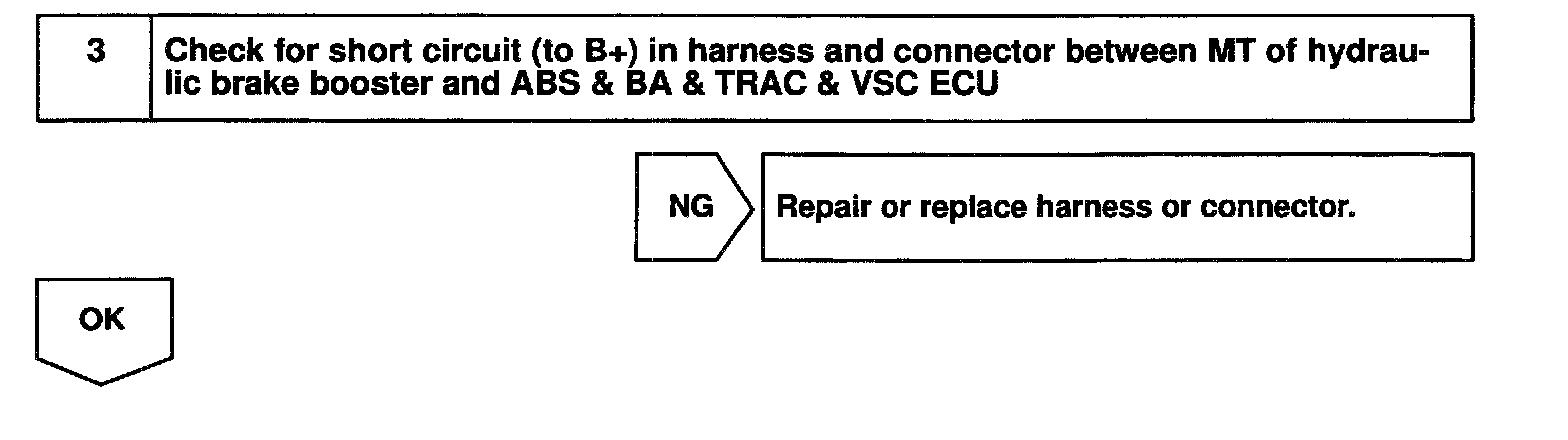

Step 3:

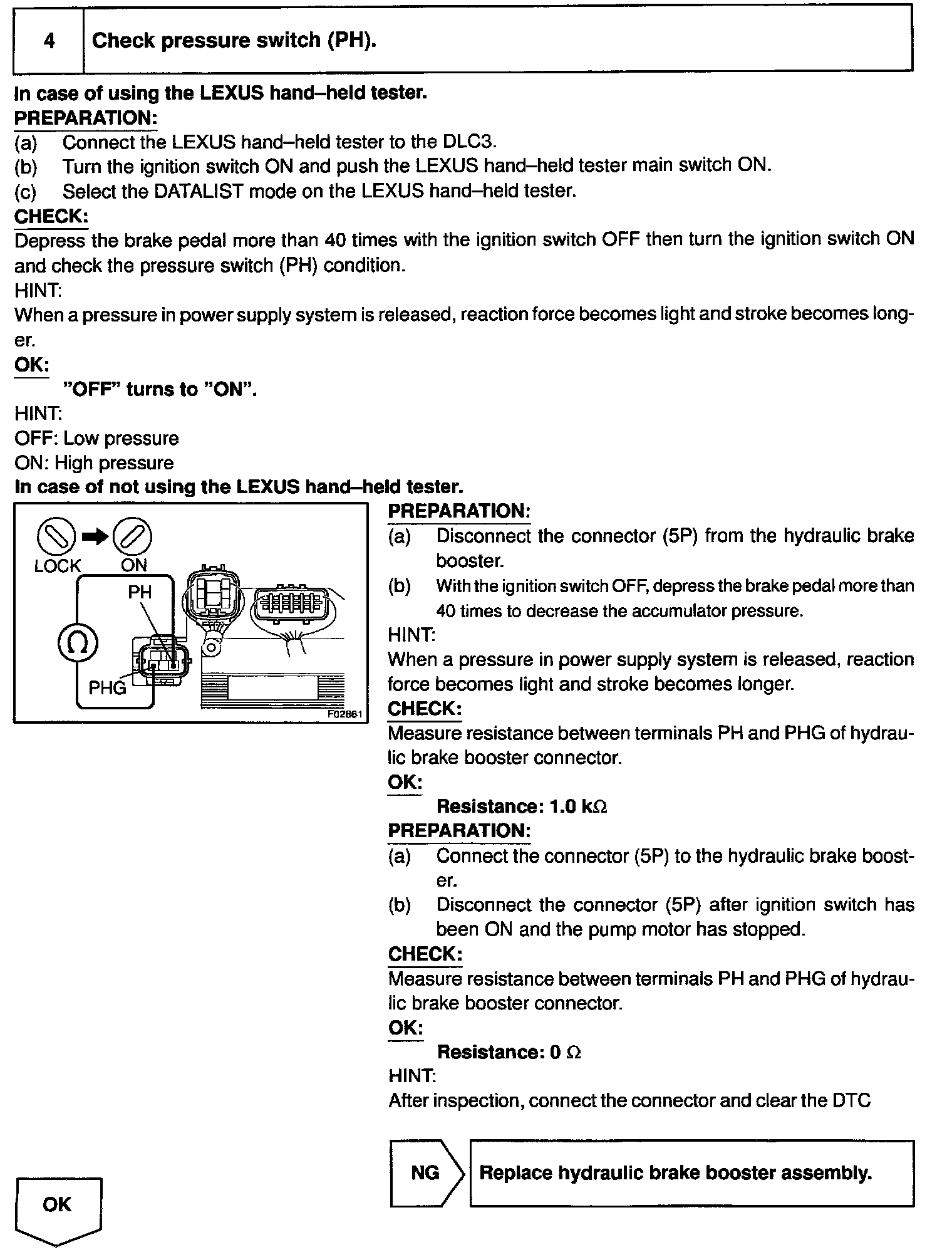

Step 4:

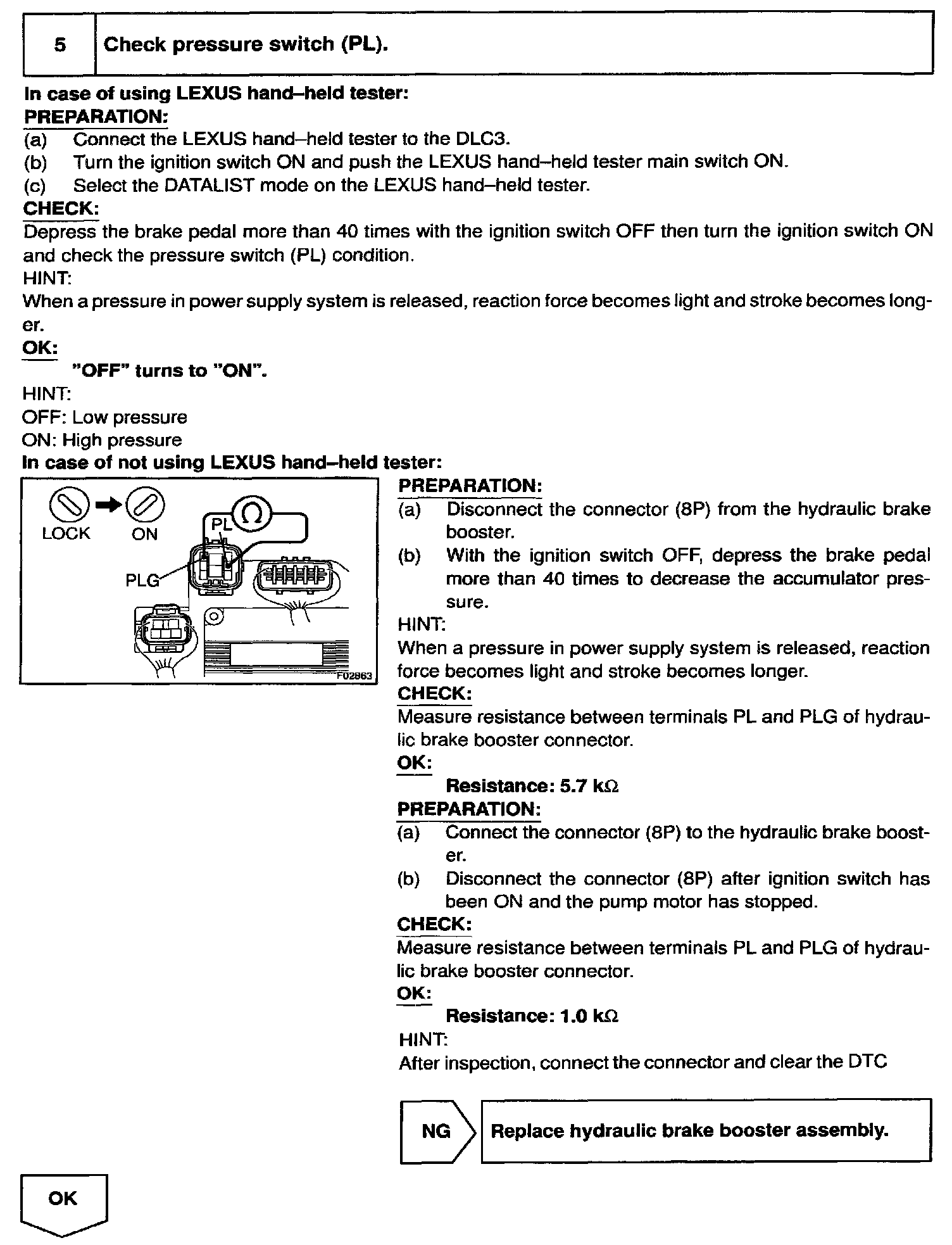

Step 5:

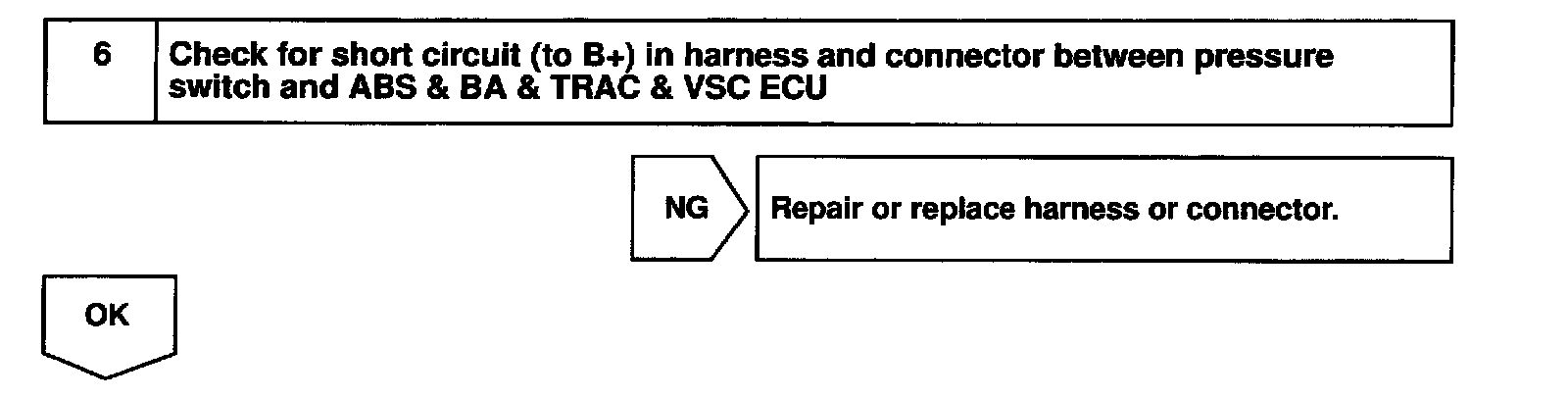

Step 6:

Step 7:

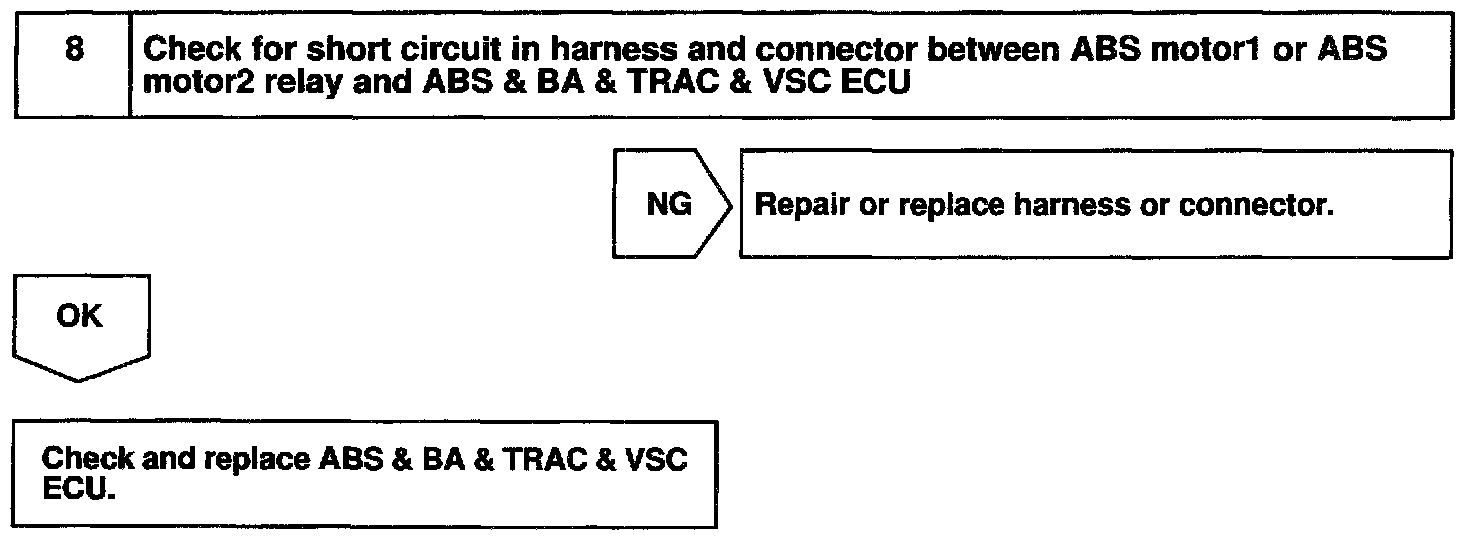

Step 8:

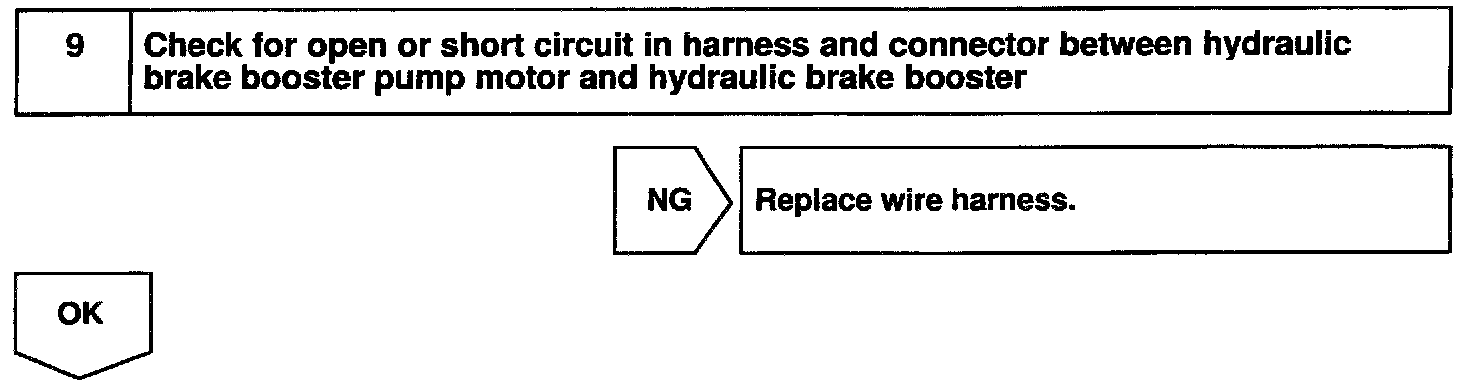

Step 9:

Step 10:

INSPECTION PROCEDURE
