ABS W/BA & VSC System

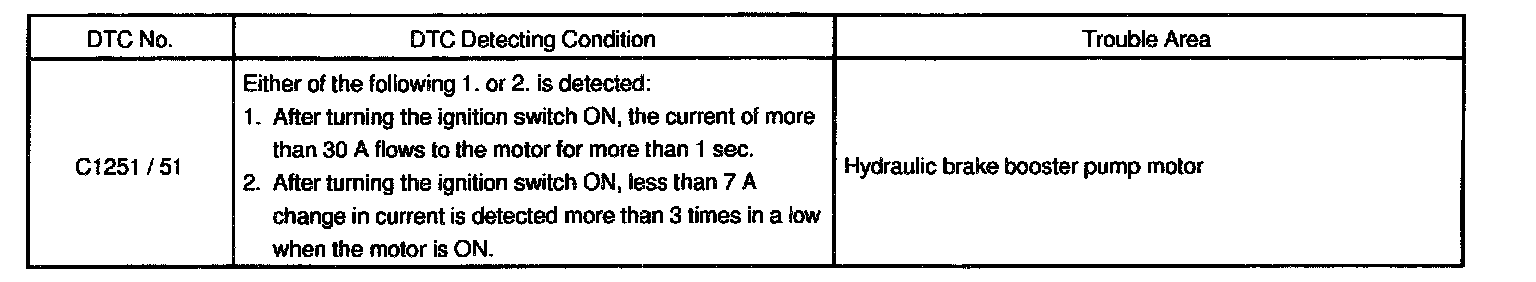

DETECTING CONDITIONS

Fail safe function;
If trouble occurs in the pump motor, the ECU cuts off current to the ABS solenoid relay and prohibits ABS & BA & TRAC & VSC controls

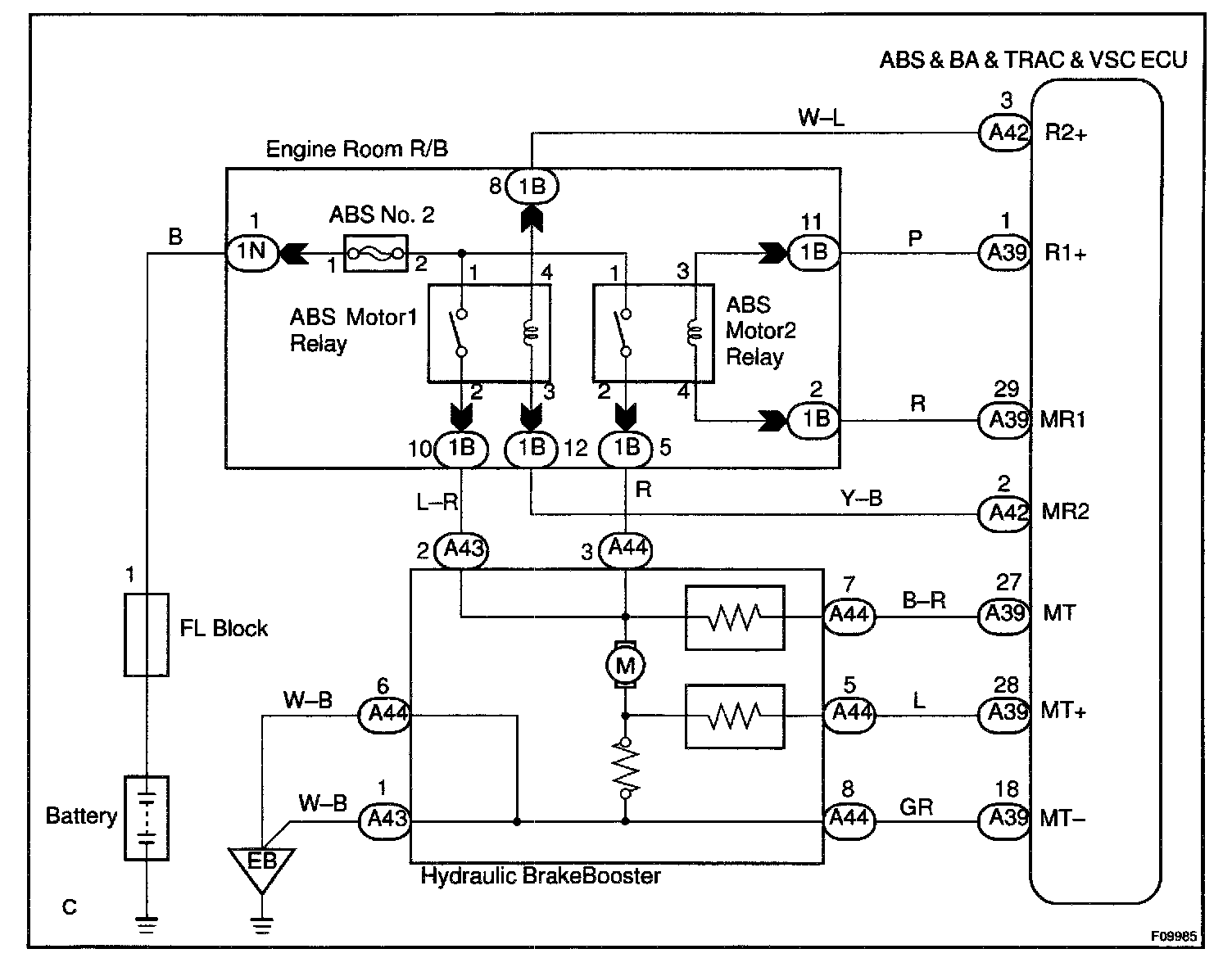

WIRING DIAGRAM

Step 1:

Step 2:

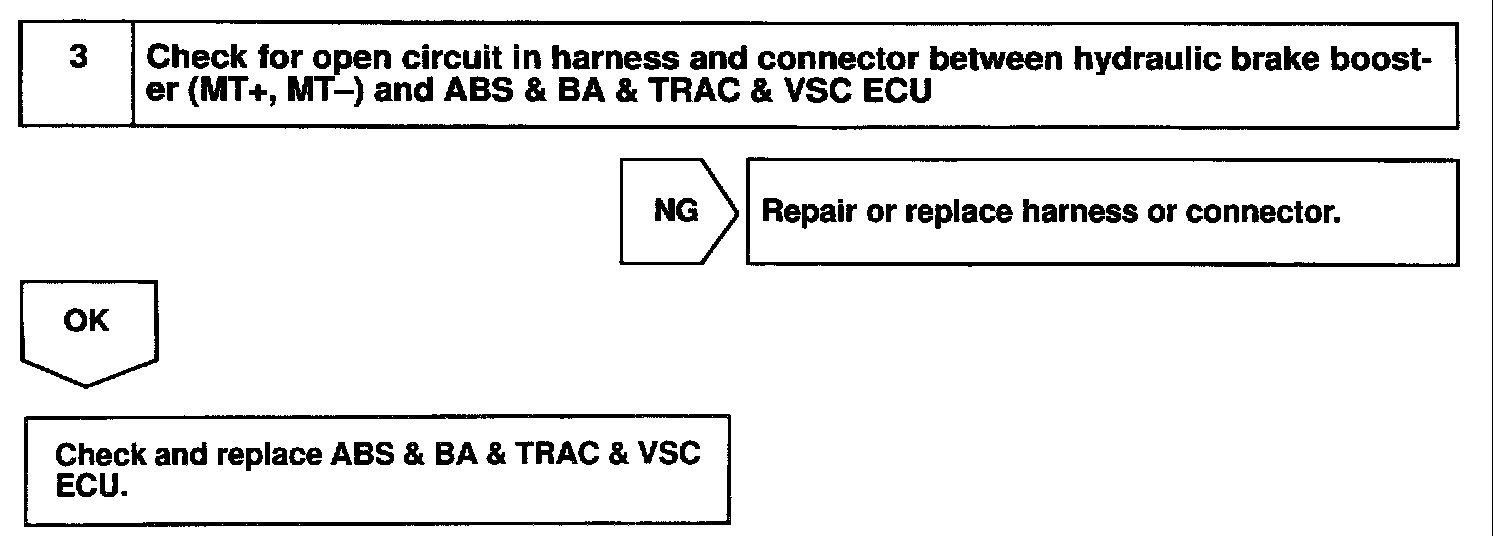

Step 3:

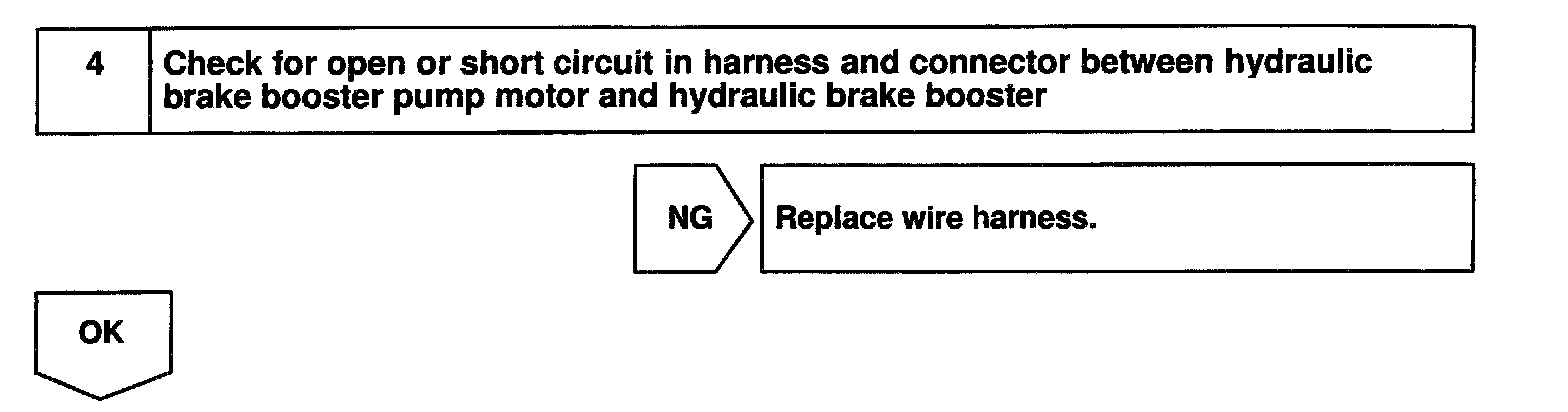

Step 4:

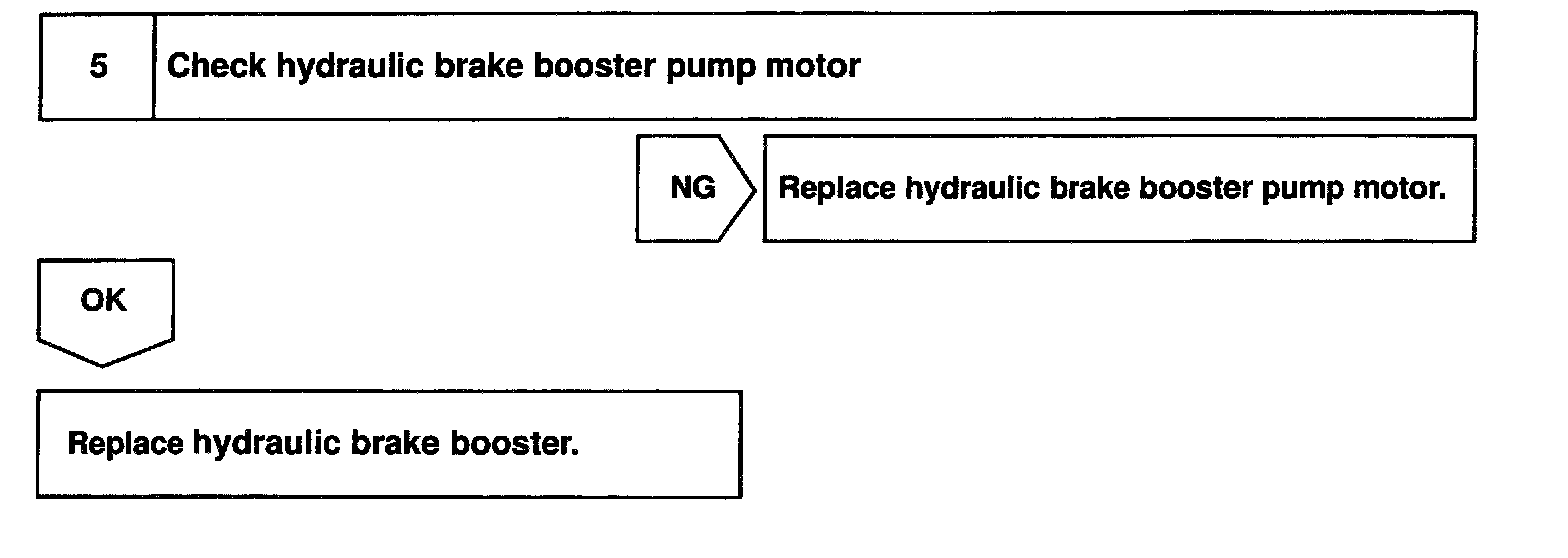

Step 5:

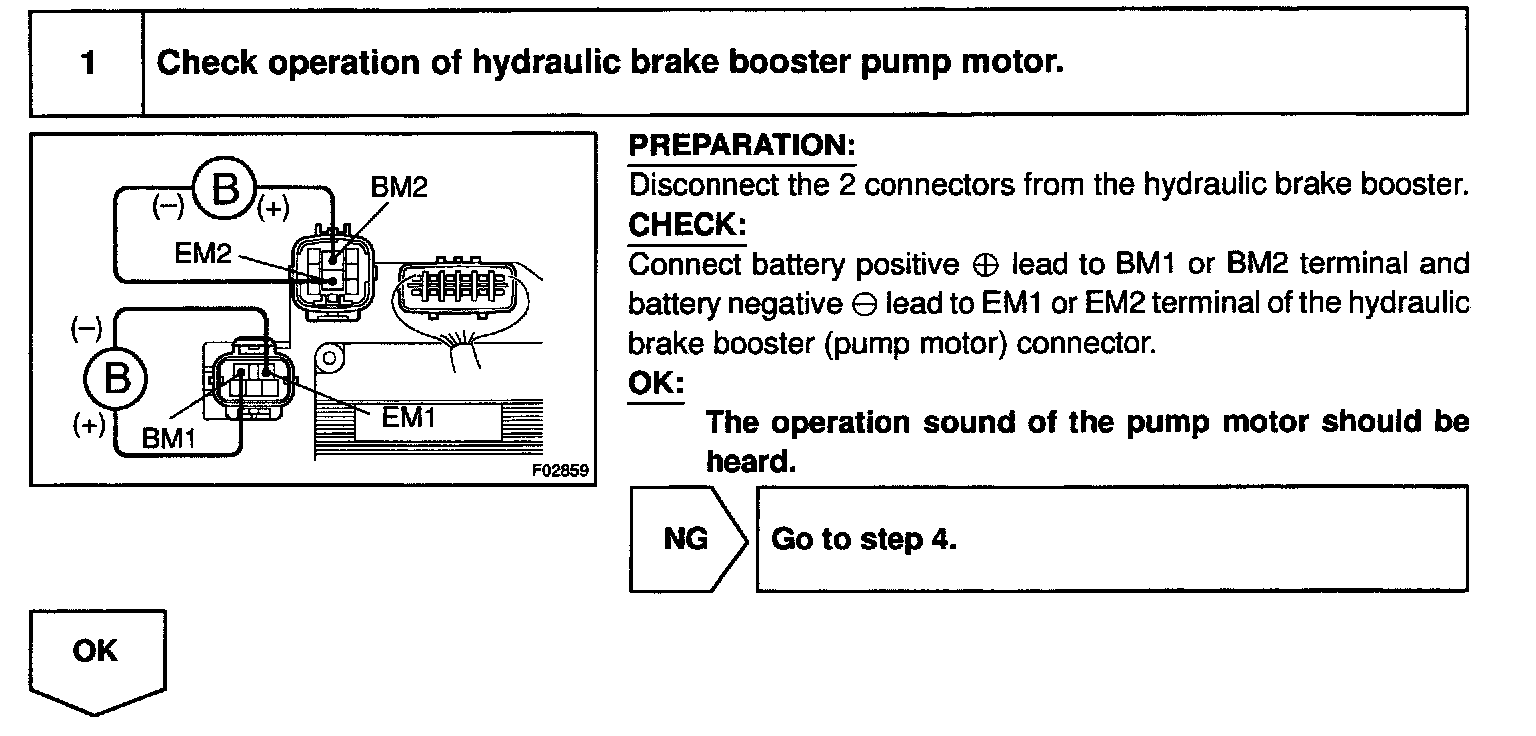

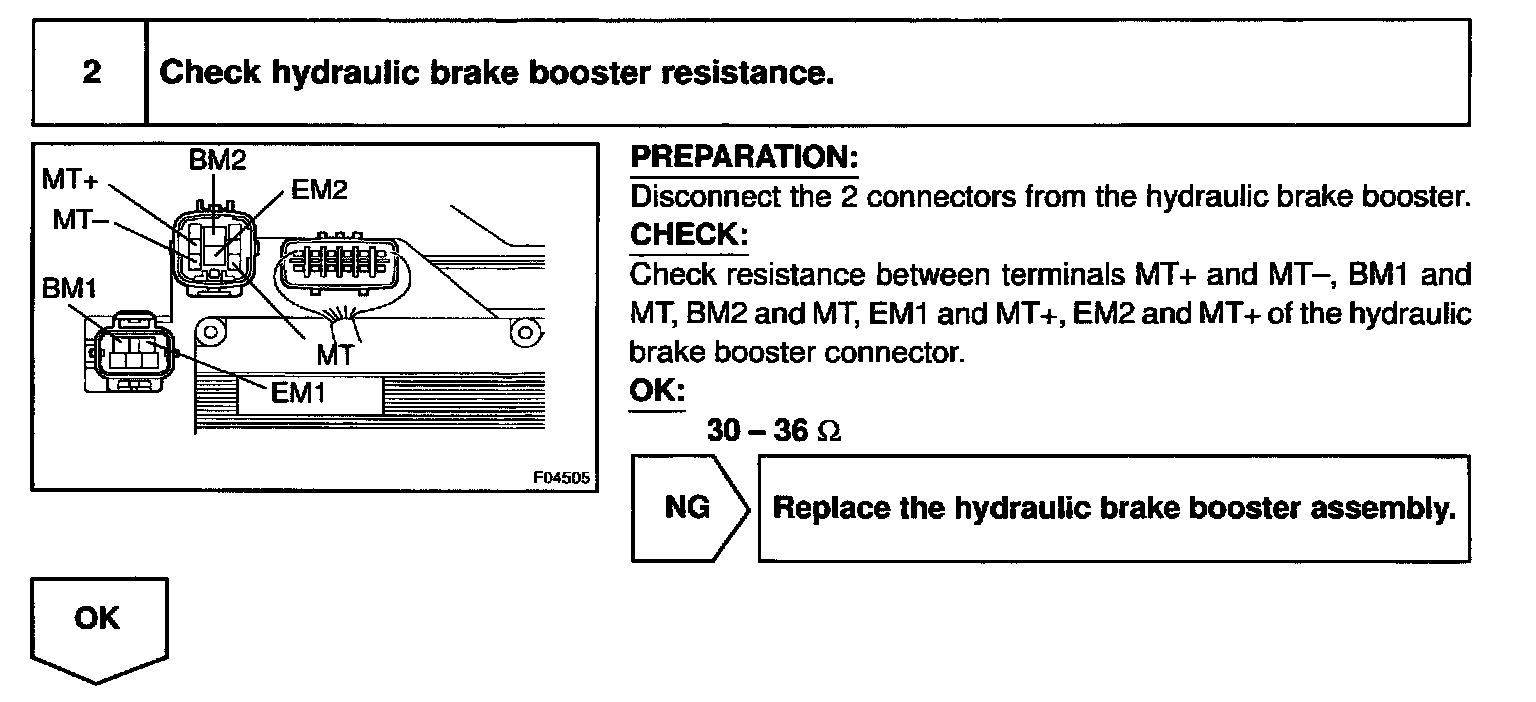

INSPECTION PROCEDURE
