ABS W/BA & VSC System

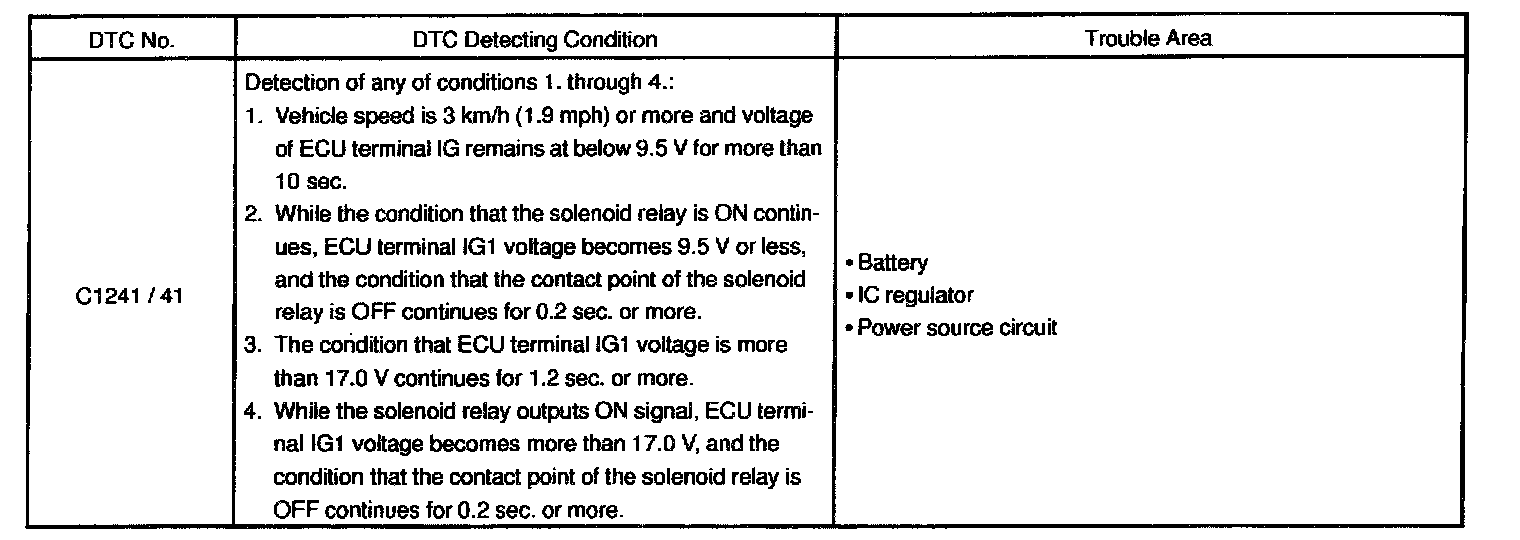

DETECTING CONDITIONS

Fail safe function:
If trouble occurs in the power source circuit, the ECU cuts off current to the ABS solenoid relay and prohibits ABS & BA & TRAC & VSC controls and the brake system becomes normal.

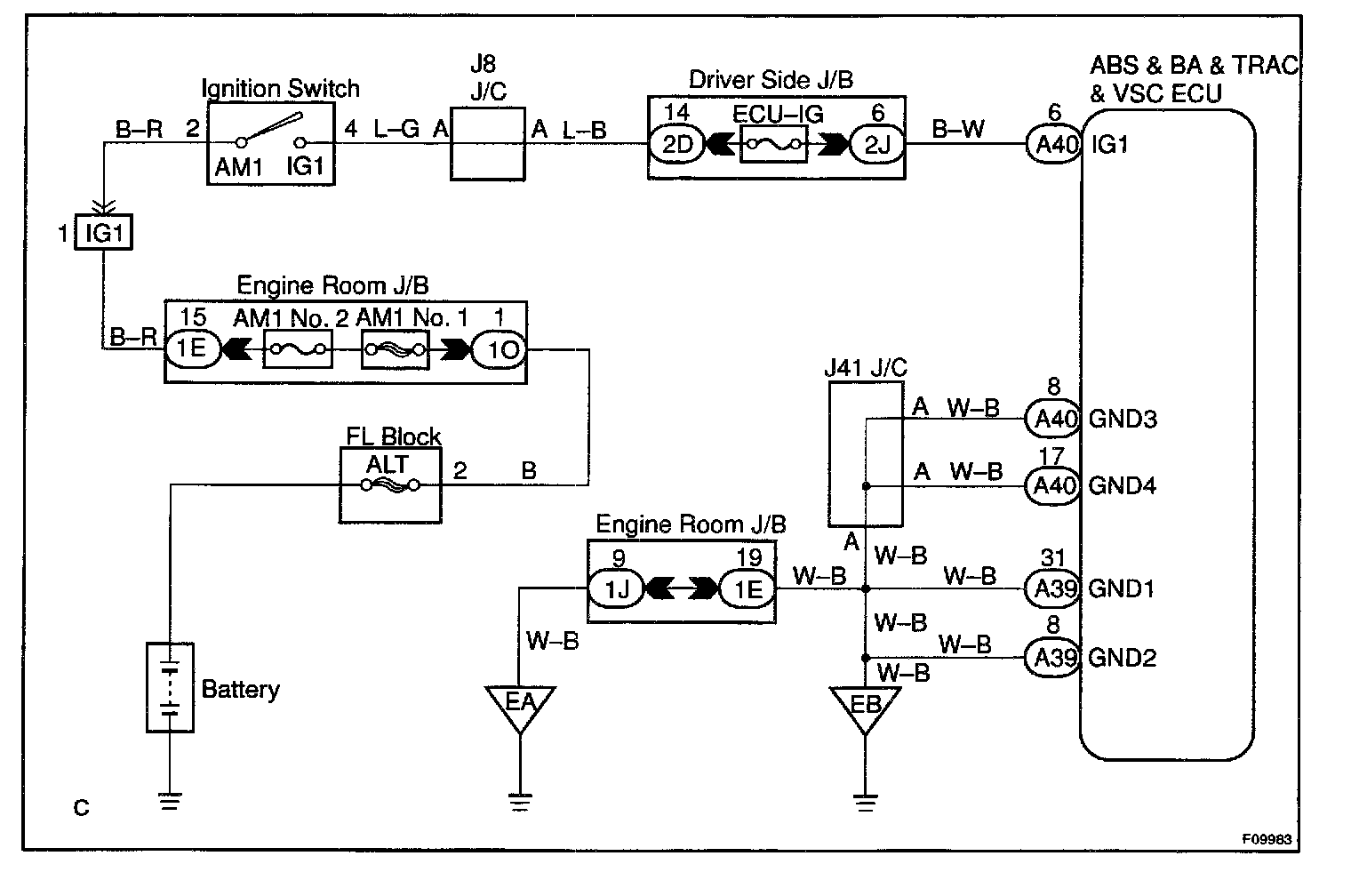

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

Step 4:

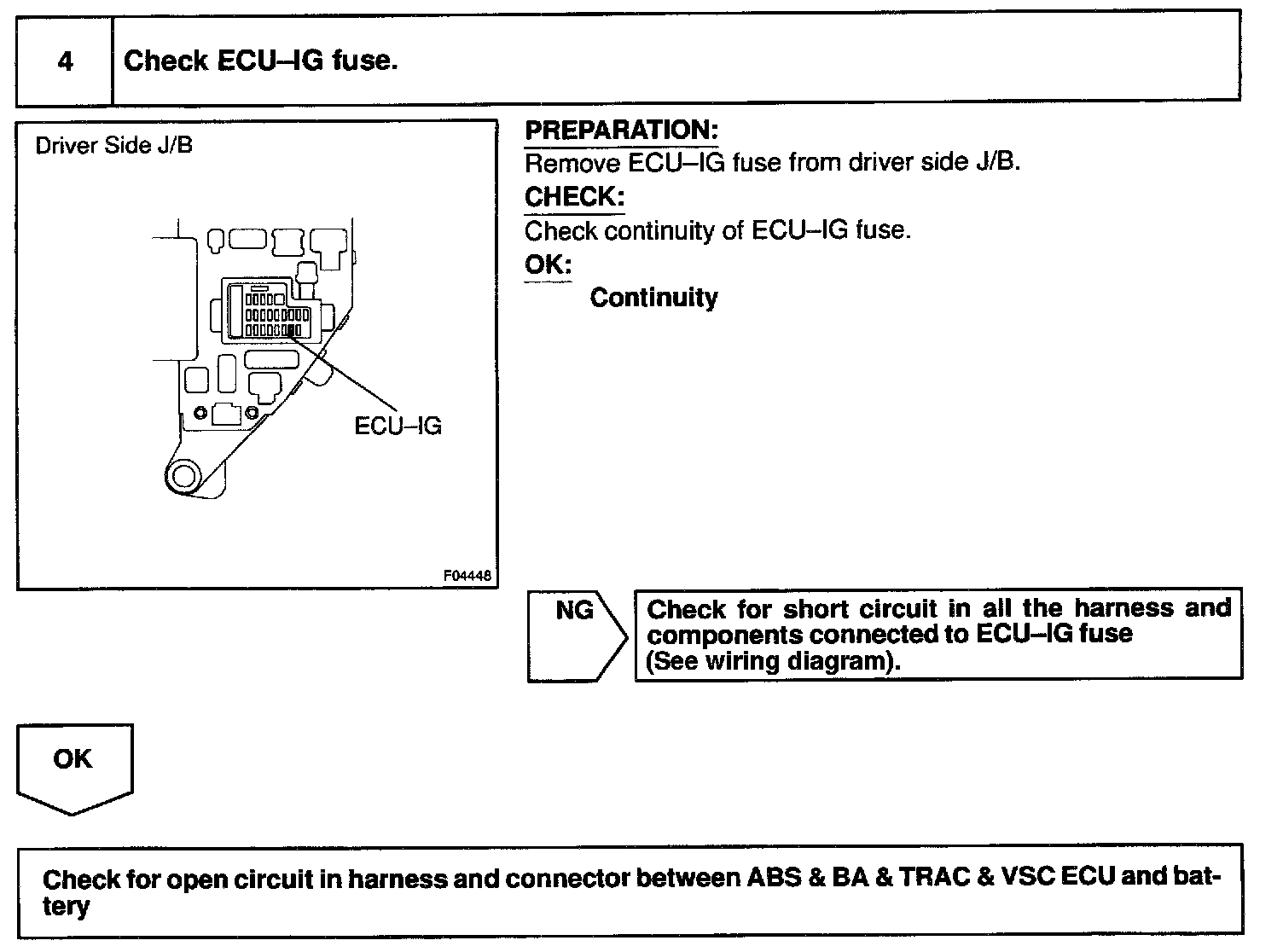

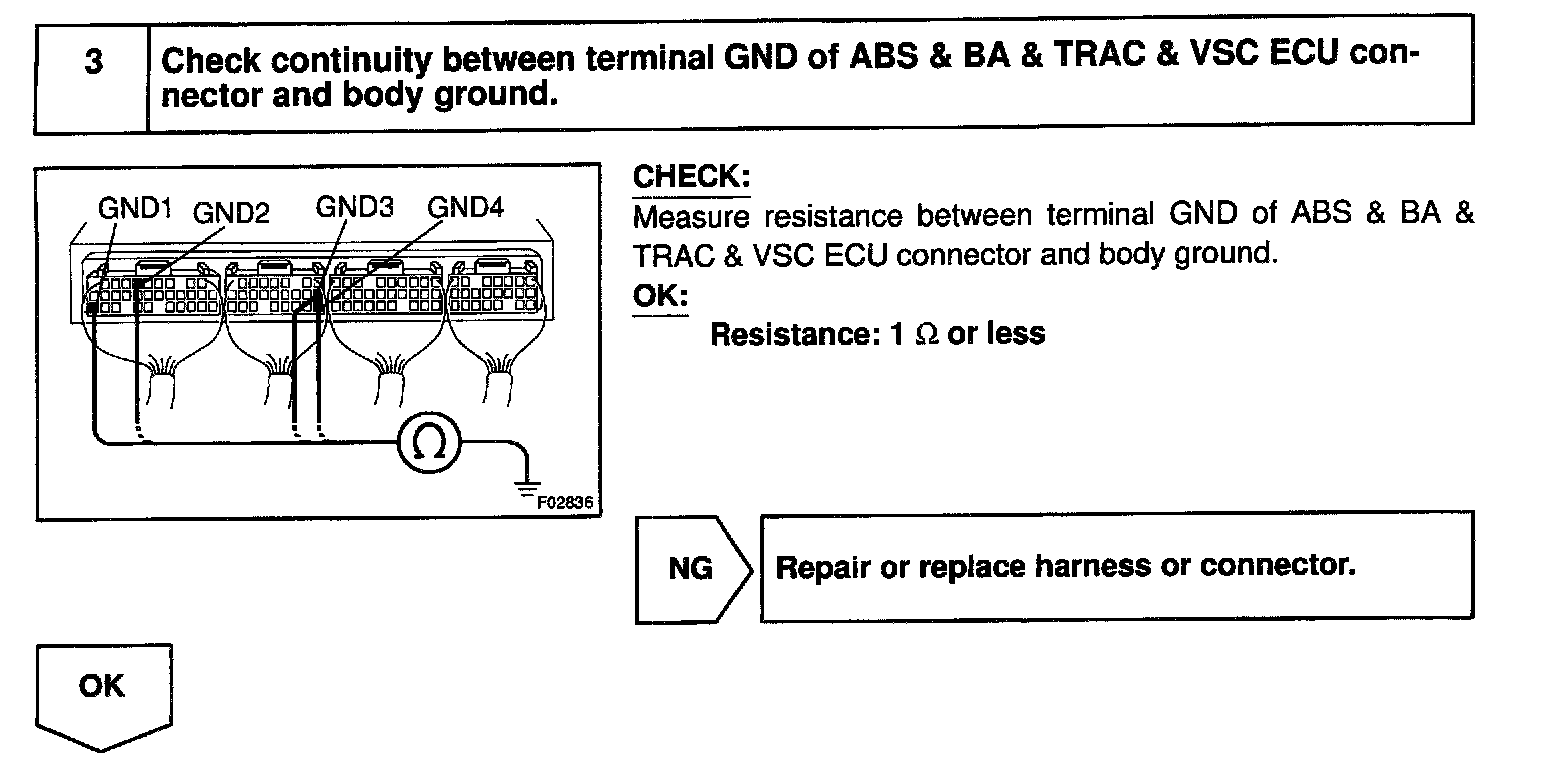

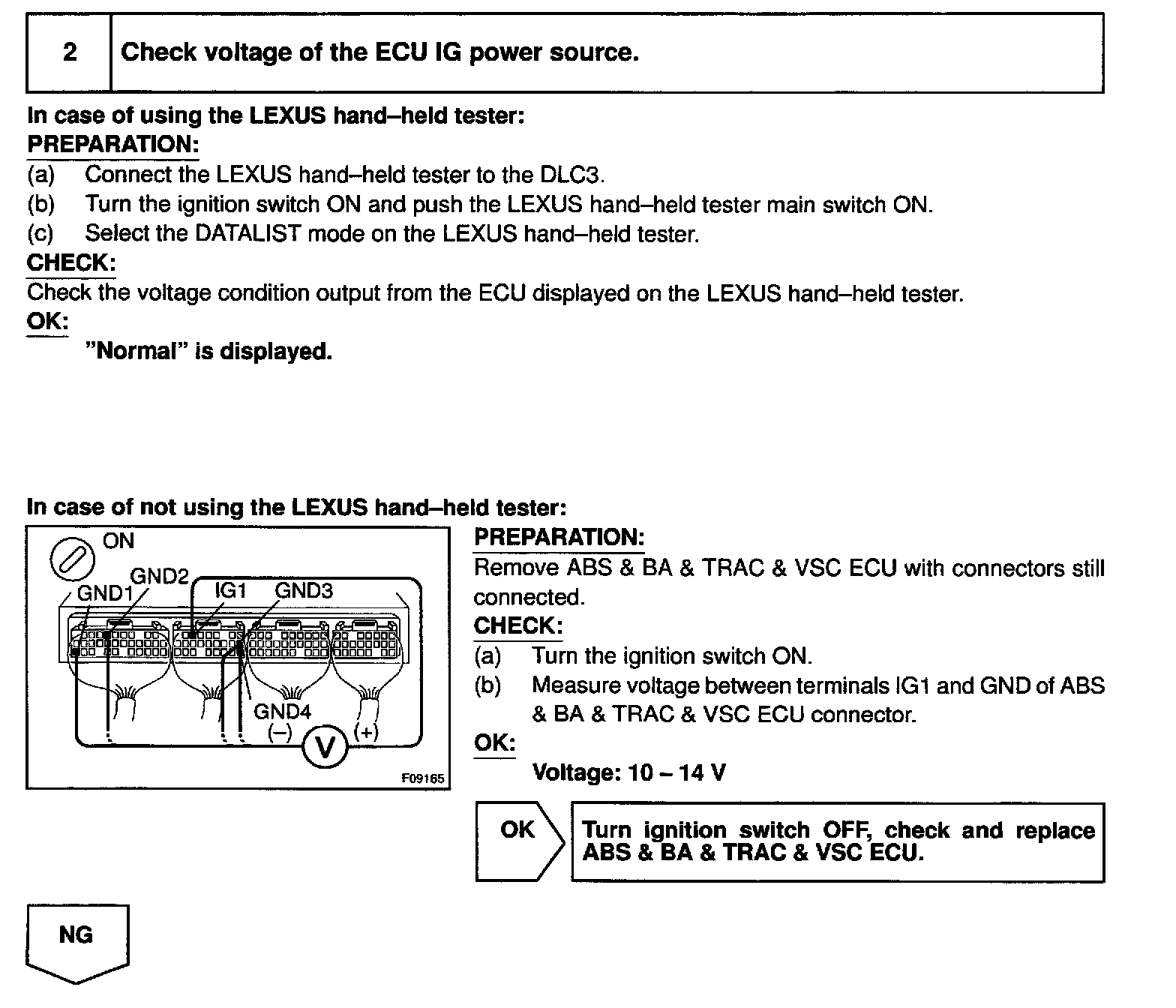

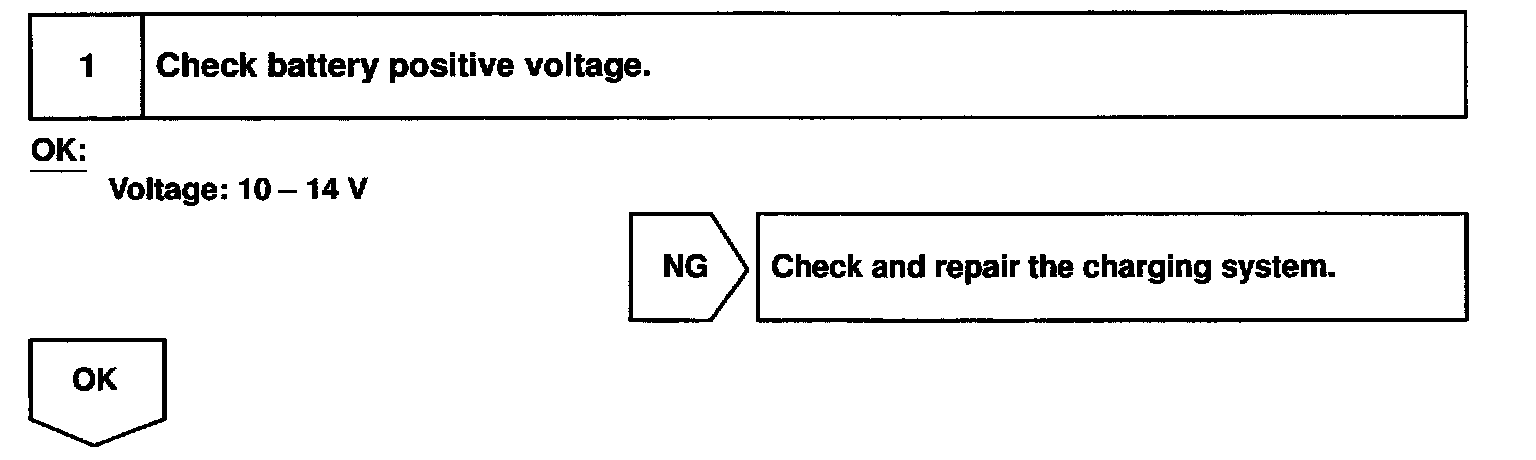

INSPECTION PROCEDURE
