ABS W/BA & VSC System

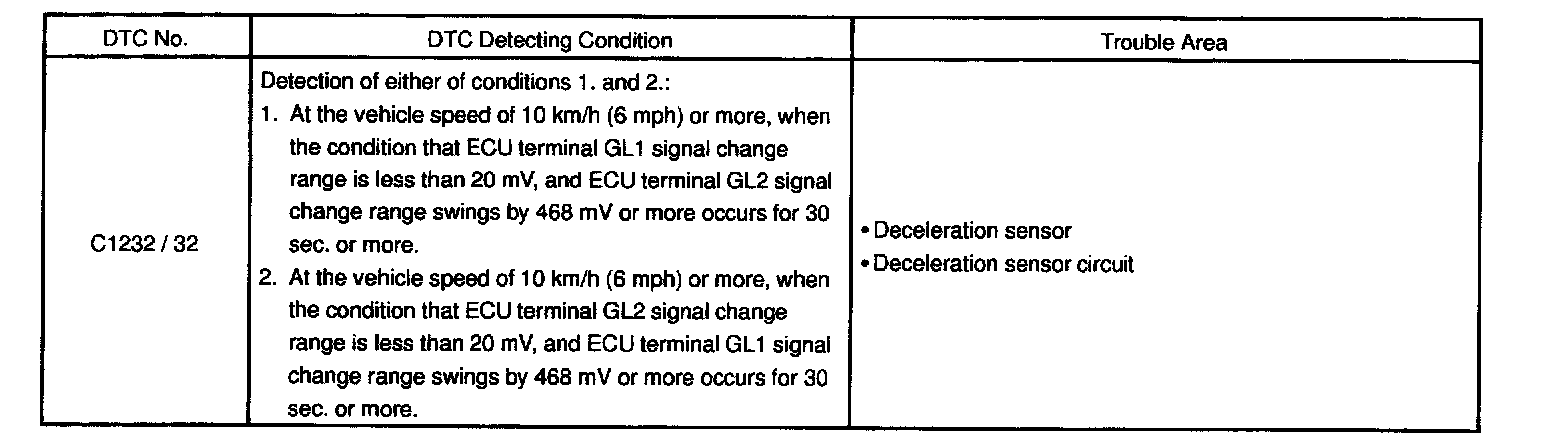

CIRCUIT DESCRIPTION




Fail safe function: If trouble occurs in the deceleration sensor circuit, the ECU prohibits TRAC & VSC controls

Step 1:

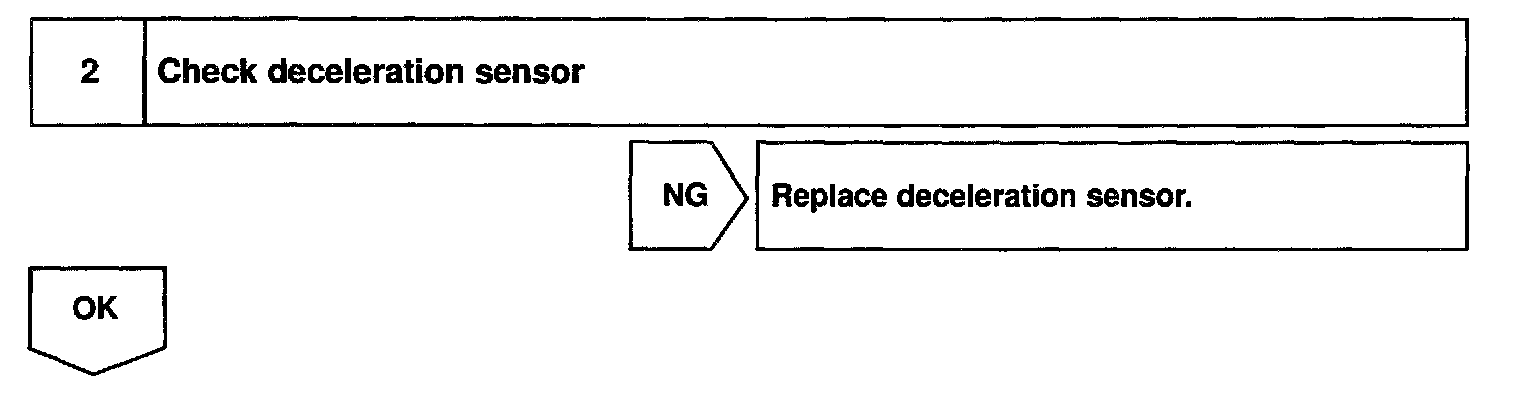

Step 2:

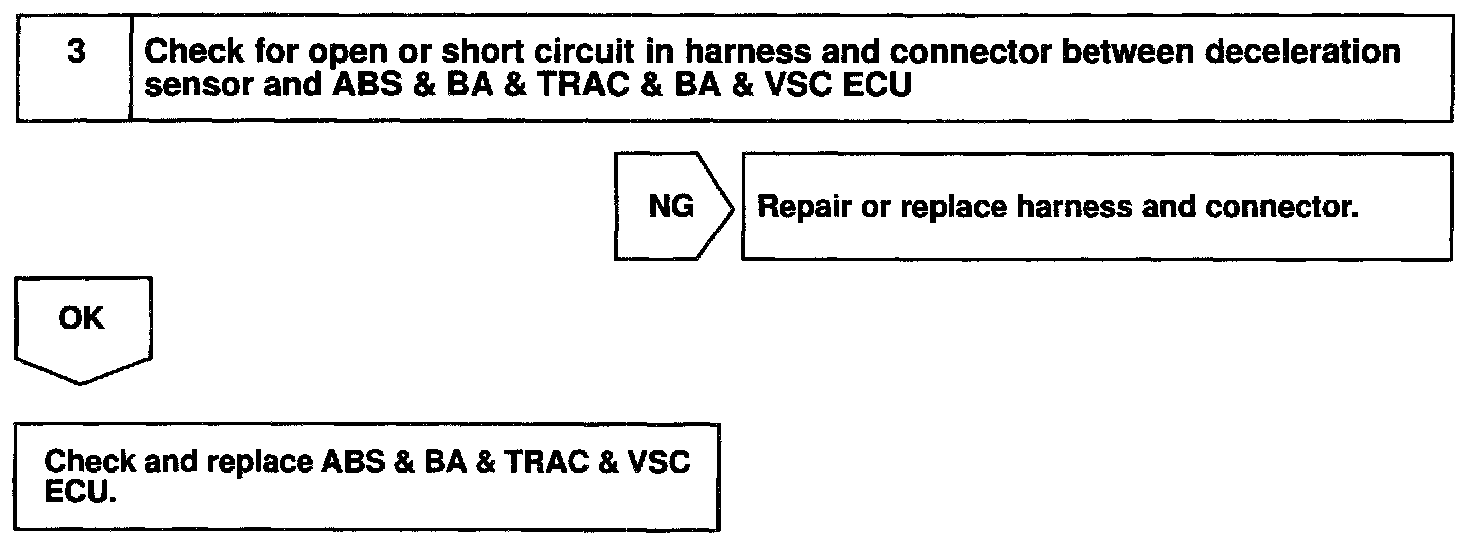

Step 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 2 in case of not using the LEXUS hand-held tester.
