Lexus Truck
>>
2000
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
C Code Charts
>>
C1207
>>
ABS W/BA & VSC System
ABS W/BA & VSC System

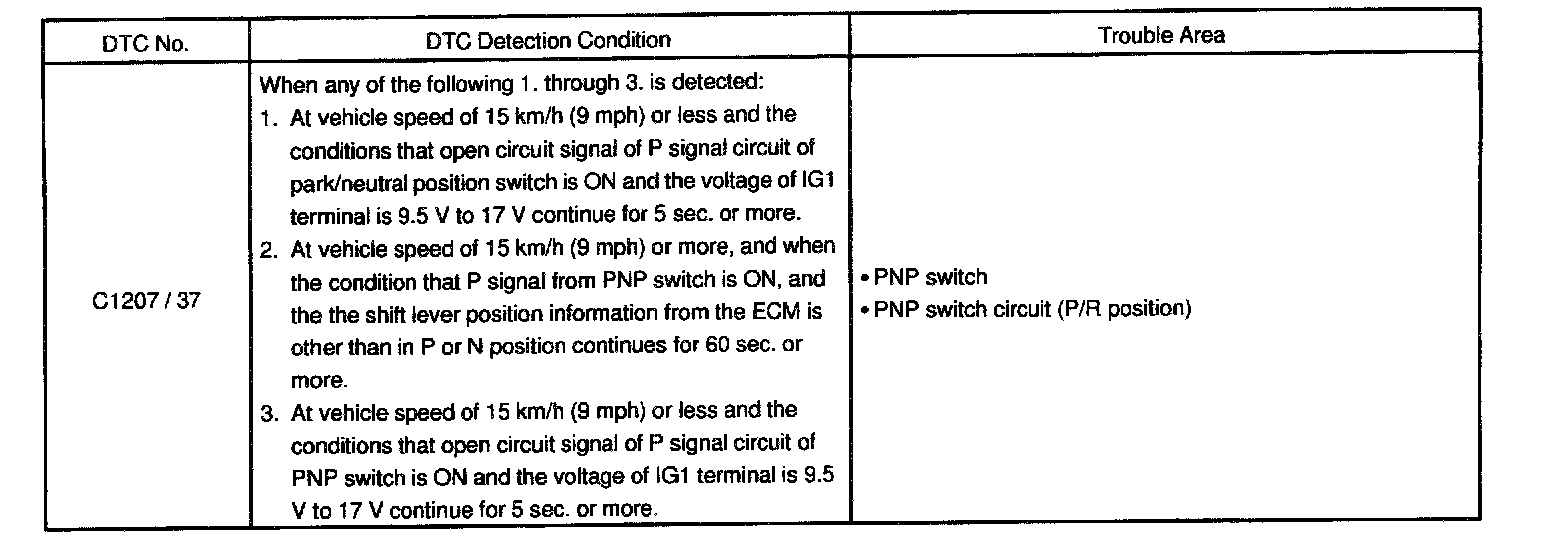

DETECTING CONDITIONS

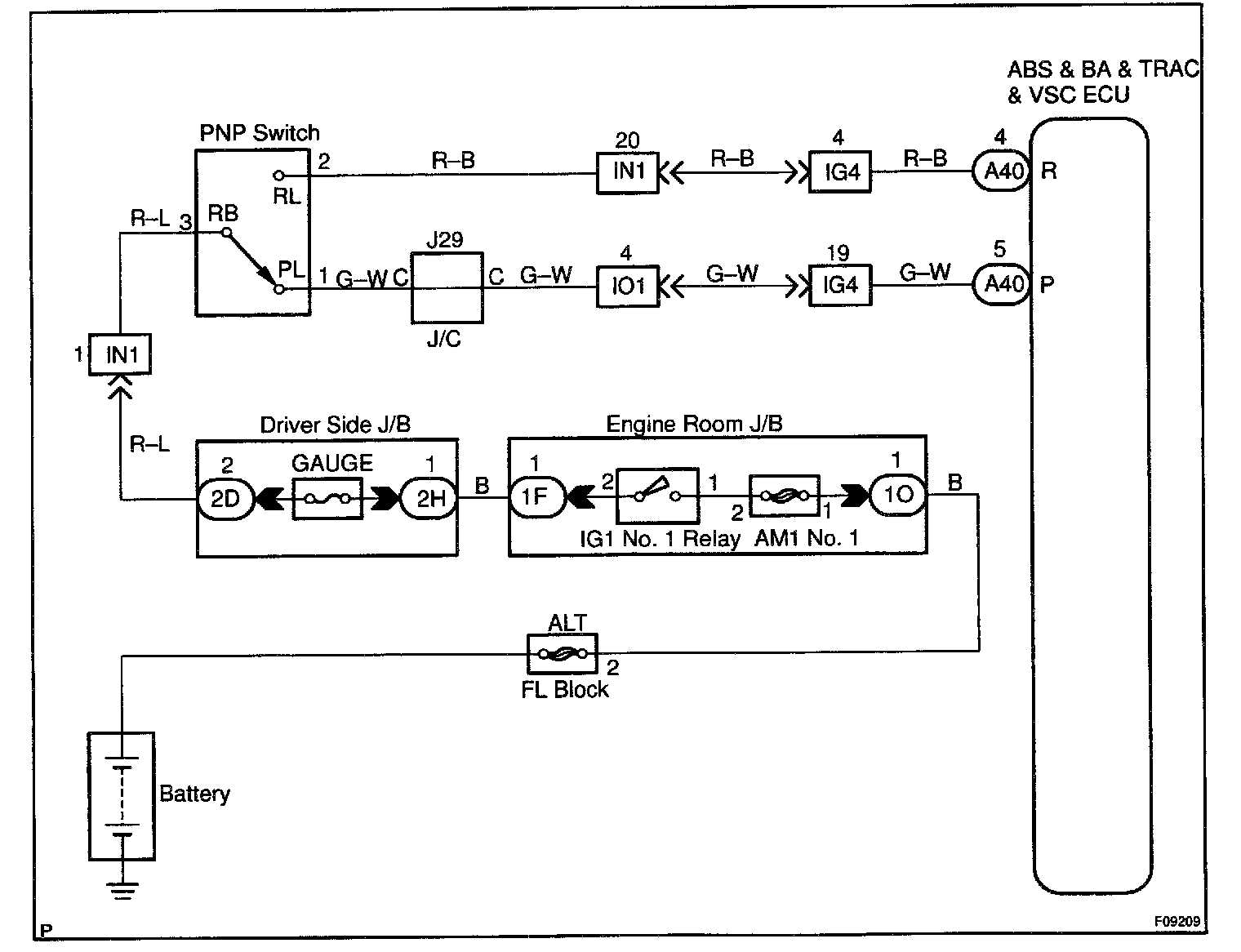

WIRING DIAGRAM

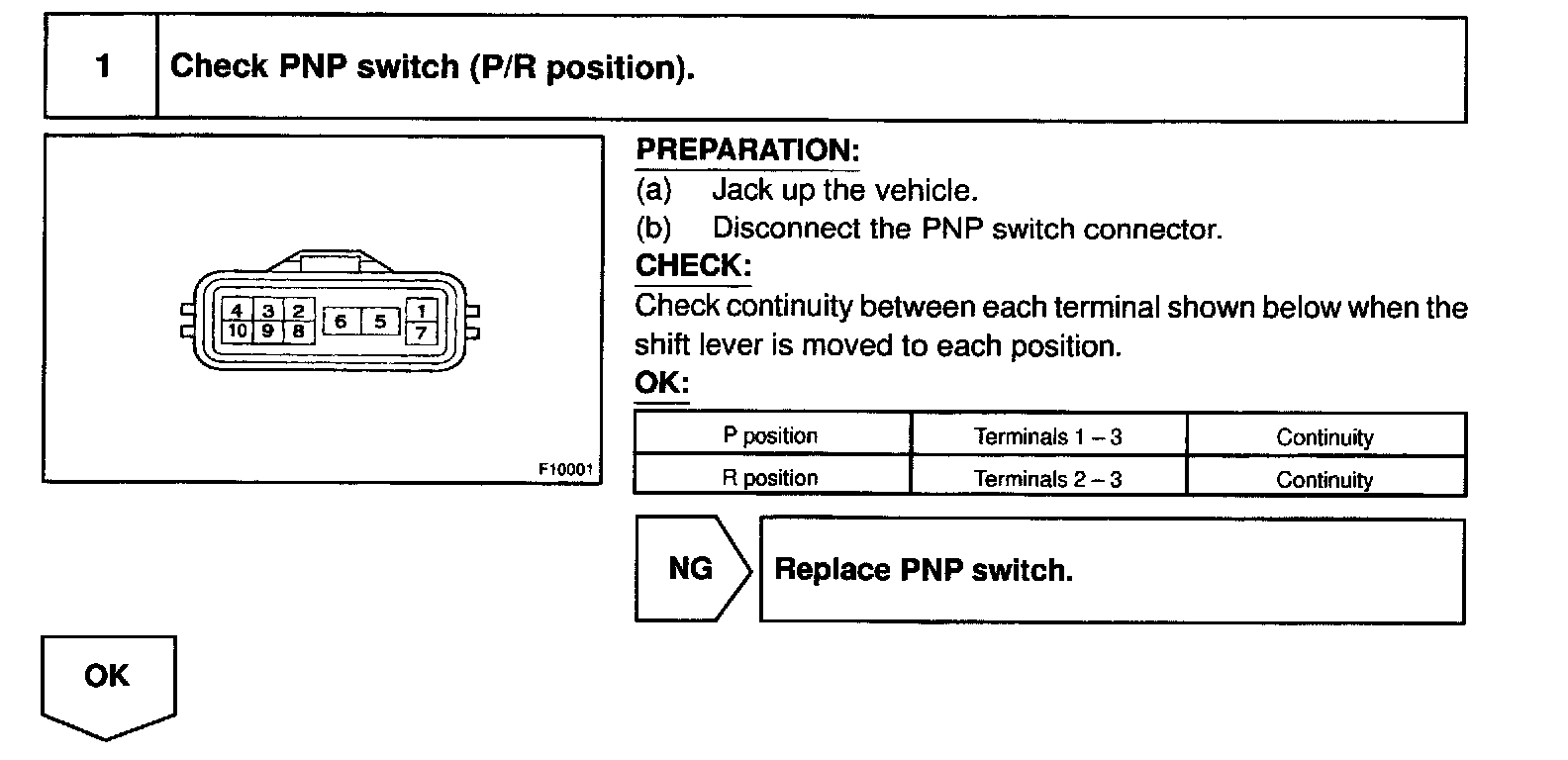

Step 1:

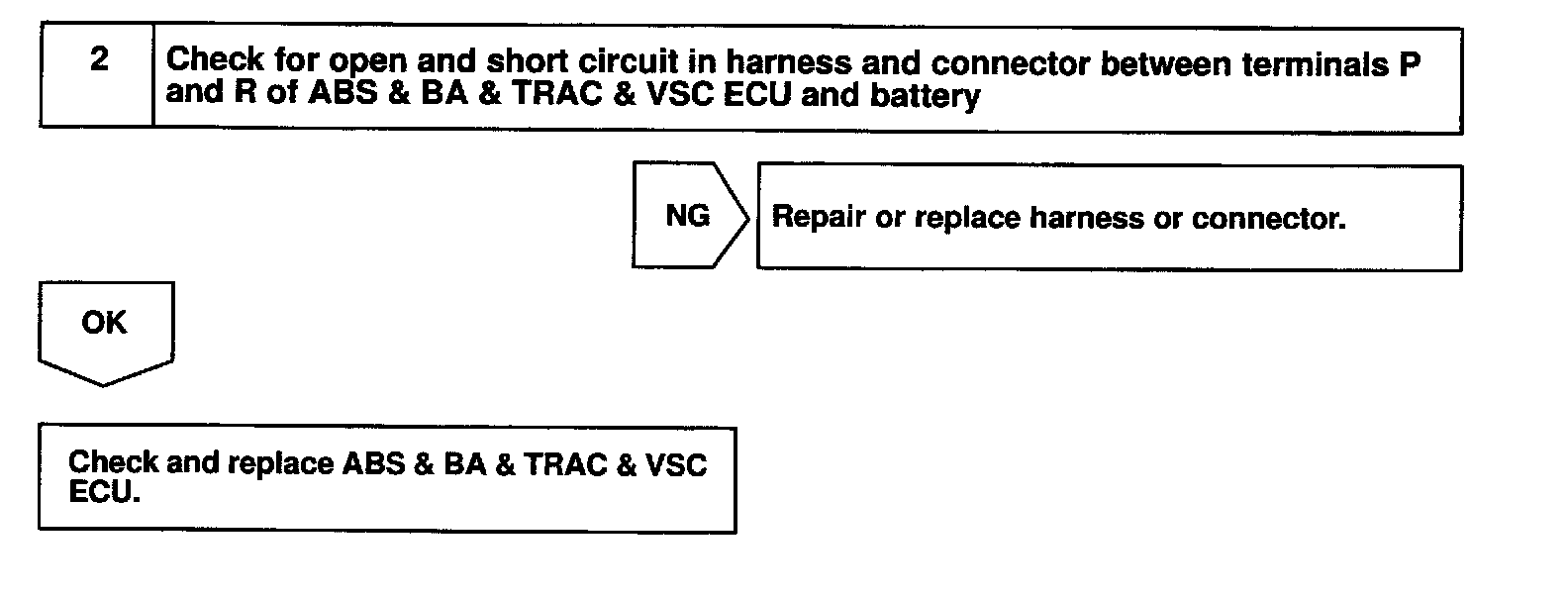

Step 2:
INSPECTION PROCEDURE
