Upper

REMOVAL

1. Remove front wheel.
Torque: 131 Nm (97 ft. lbs.)
2. Remove front fender apron.

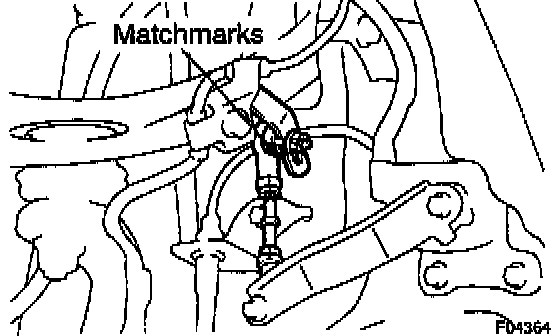

3. Disconnect height control sensor link.
a. Place matchmarks on the height control sensor link and upper suspension arm.
b. Remove the nut and disconnect the height control sensor link.
Torque: 5.6 Nm (49 inch lbs.)

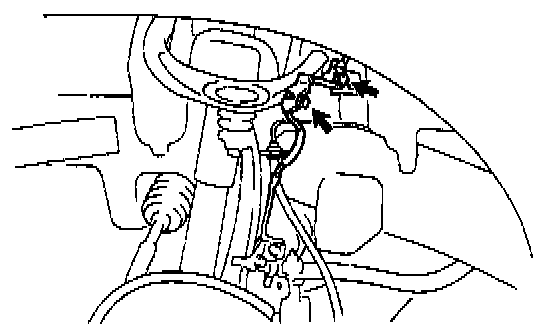

4. Disconnect ABS speed sensor wire harness.
Torque: 13 Nm (9 ft. lbs.)
Remove the 2 bolts and disconnect the ABS speed sensor wire harness.
5. Disconnect steering knuckle from upper suspension arm.
a. Support the lower suspension arm with a jack.
b. Remove the cotter pin and nut.
Torque: 110 Nm (81 ft. lbs.)

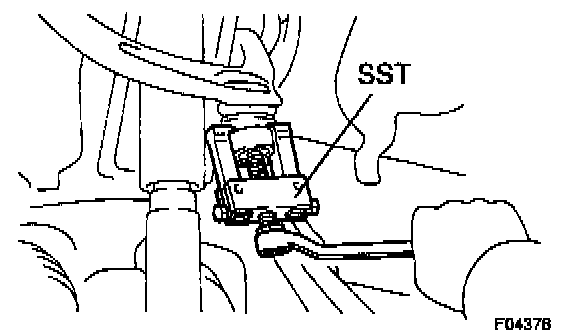

c. Using Special Service Tool (SST) 0962-62011 or equivalent, disconnect the steering knuckle from the upper suspension arm.





6. Remove upper suspension arm.

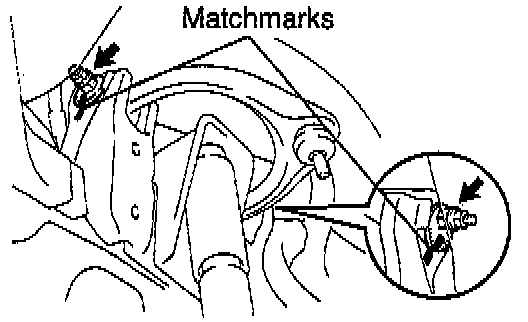

a. Place matchmarks on the front and rear No. 2 adjust cams and body.
b. Remove the 2 nuts, No. 1 and No. 2 camber adjust cams and upper suspension arm.
Torque: 98 Nm (72 ft. lbs.)

HINT: At the time of installation, after stabilizing the suspension, torque the nuts.


INSTALLATION

Installation is in the reverse order of removal.
After installation, check front wheel alignment.
