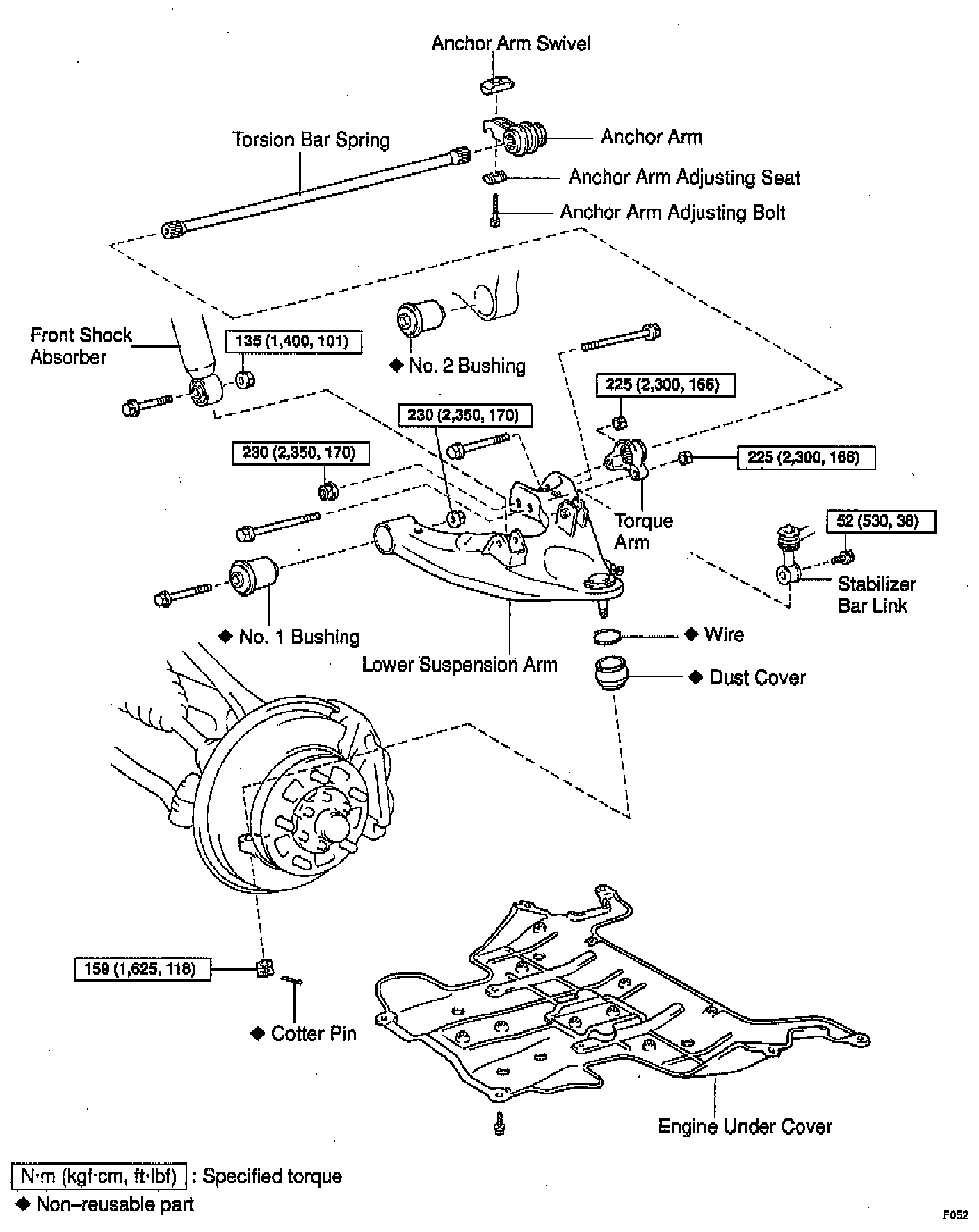

Lower

REMOVAL

1. Remove front wheel.
Torque: 131 Nm (97 ft. lbs.)
2. Remove engine under cover.
3. Remove front torsion bar spring.

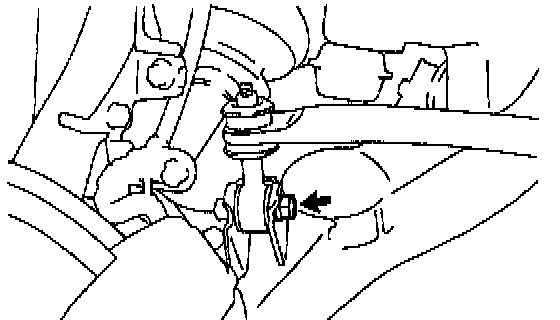

4. Disconnect stabilizer bar link from lower suspension arm.
Remove the bolt and disconnect the stabilizer bar link from the lower suspension arm.
Torque: 52 Nm (38 ft. lbs.)

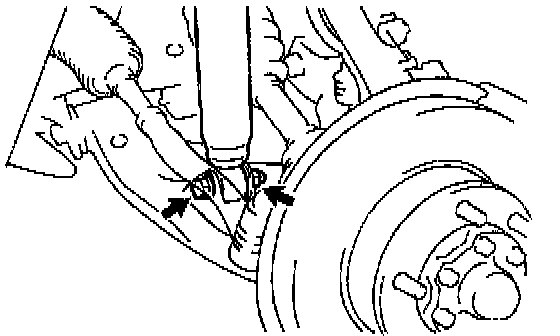

5. Disconnect shock absorber from lower suspension arm.
Remove the bolt, nut and disconnect the shock absorber from the lower suspension arm.
Torque: 135 Nm (101 ft. lbs.)
6. Disconnect steering knuckle from lower suspension arm.
Remove the cotter pin and nut.
Torque: 159 Nm (118 ft. lbs.)

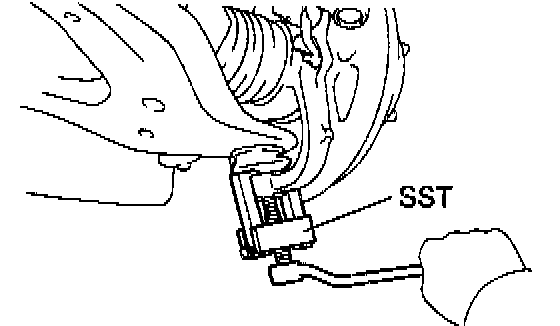

b. Using Special Service Tool (SST) 09628-62011 or equivalent, disconnect the steering knuckle from the lower suspension arm.

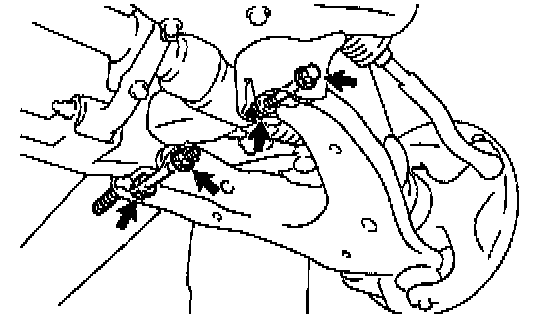

7. Remove lower suspension arm.
Remove the 2 nuts, 3 bolts and lower suspension arm.
Torque: 230 Nm (170 ft. lbs.)

INSTALLATION

Installation is in the reverse order of removal.
After installation, check front wheel alignment.
