Front Upper Arm

REPLACEMENT

1. Replace bushing.
a. Using a chisel and hammer, pry up the flange of the bushing.

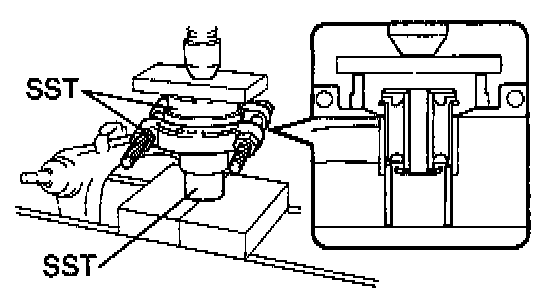

b. Using Special Service Tool (SST) 09527-17011, 09710-28021 (09710-08031), 09950-00020 or equivalent, a steel plate and press, remove the bushing.

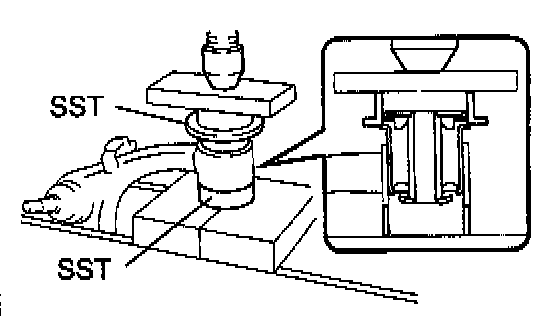

c. Using SST 09316-20011, 09710-28012 (09710-07062), a steel plate and press, install a new bushing.

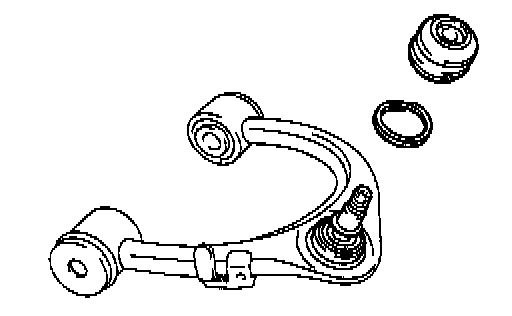

2. Replace dust cover.
a. Remove the wire and dust cover.
b. Coat the ball joint with grease in the boot kit.
c. Install a new dust cover and wire.
