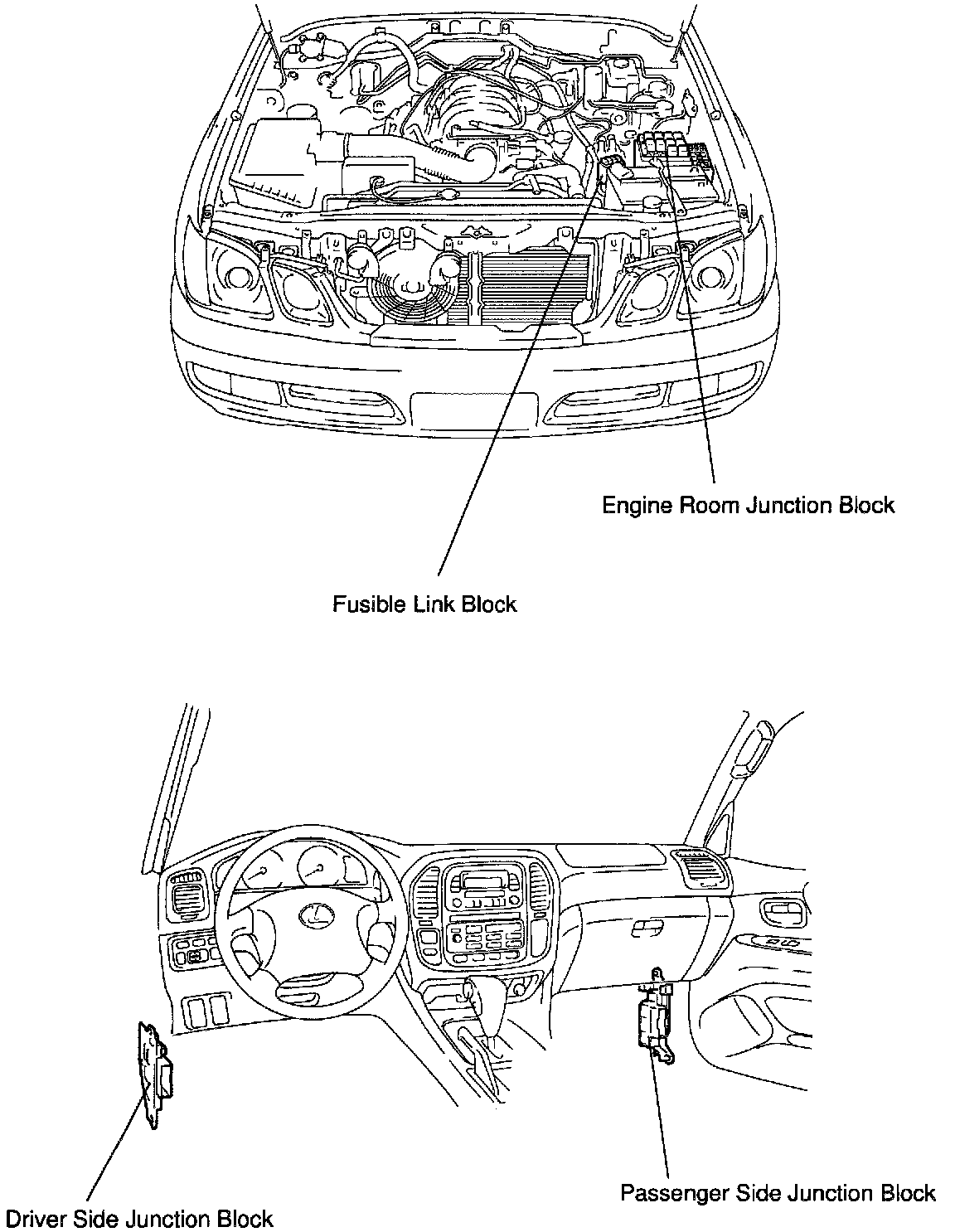

Fuse Block: Locations

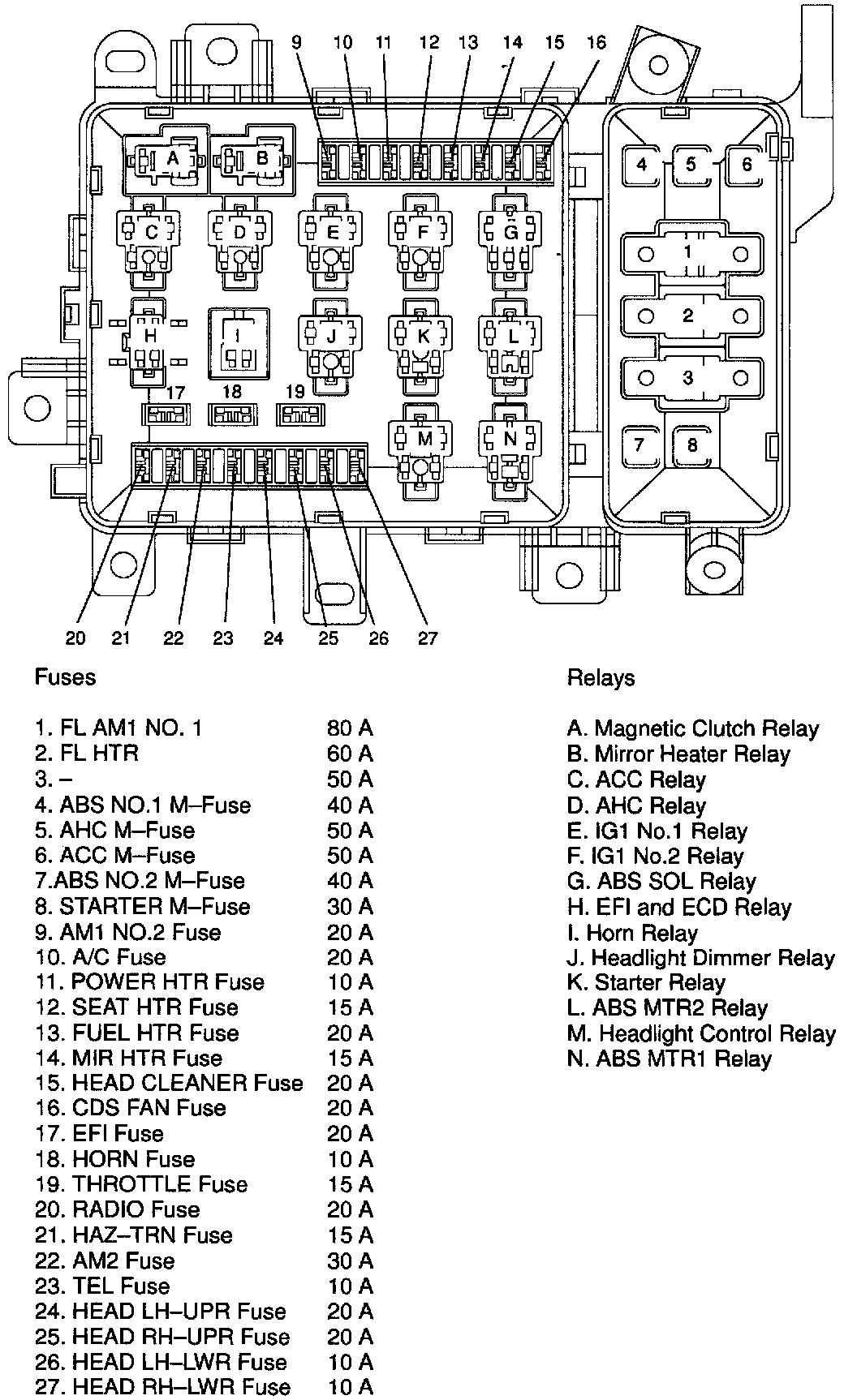

Engine Room Junction Block

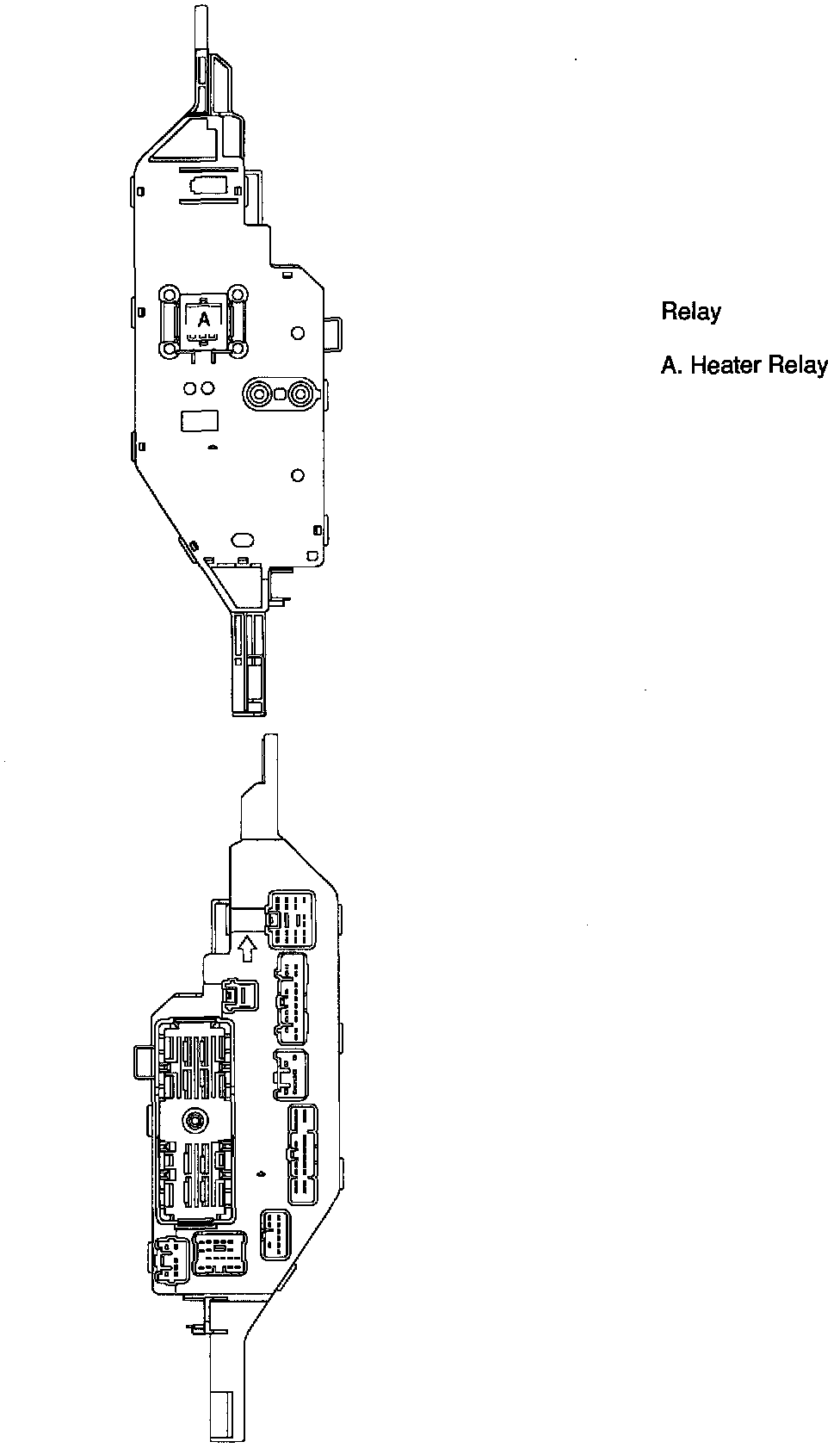

Driver Side Junction Block





Passenger Side Junction Block
