Power Transistor (For Rear Heater)

REMOVE THESE PARTS:
a. Front seats
b. Rear console box
c. Front console box cover.
d. Lower center cluster finish panel
e. Front door scuff plates
f. Cowl side trims
g. Rear door scuff pates
h. Center pillar garnishes

REMOVE POWER TRANSISTOR
a. Slide the floor carpet backward.
b. Disconnect the connector.

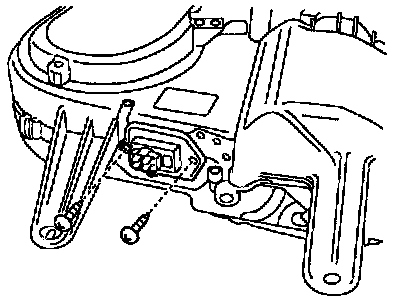

c. Remove the 2 screws and blower resistor.

INSPECT POWER TRANSISTOR
Check the power transistor in the same way as for "POWER TRANSISTOR (For Rear Cooler)".

INSTALL POWER TRANSISTOR

INSTALL THESE PARTS:
a. Center pillar garnishes
b. Rear door scuff pates
c. Cowl side trims
d. Front door scuff plates
e. Lower center cluster finish panel
f. Front console box cover.
g. Rear console box
h. Front seats
